ZyXEL Communications P-871H Series User Manual

ZyXEL Communications P-871H Series User Manual

Vdsl modem with 4-port switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

P-871H Series
VDSL Modem with 4-port Switch
User's Guide
Version 3.50
7/2005

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications P-871H Series

Summary of Contents for ZyXEL Communications P-871H Series

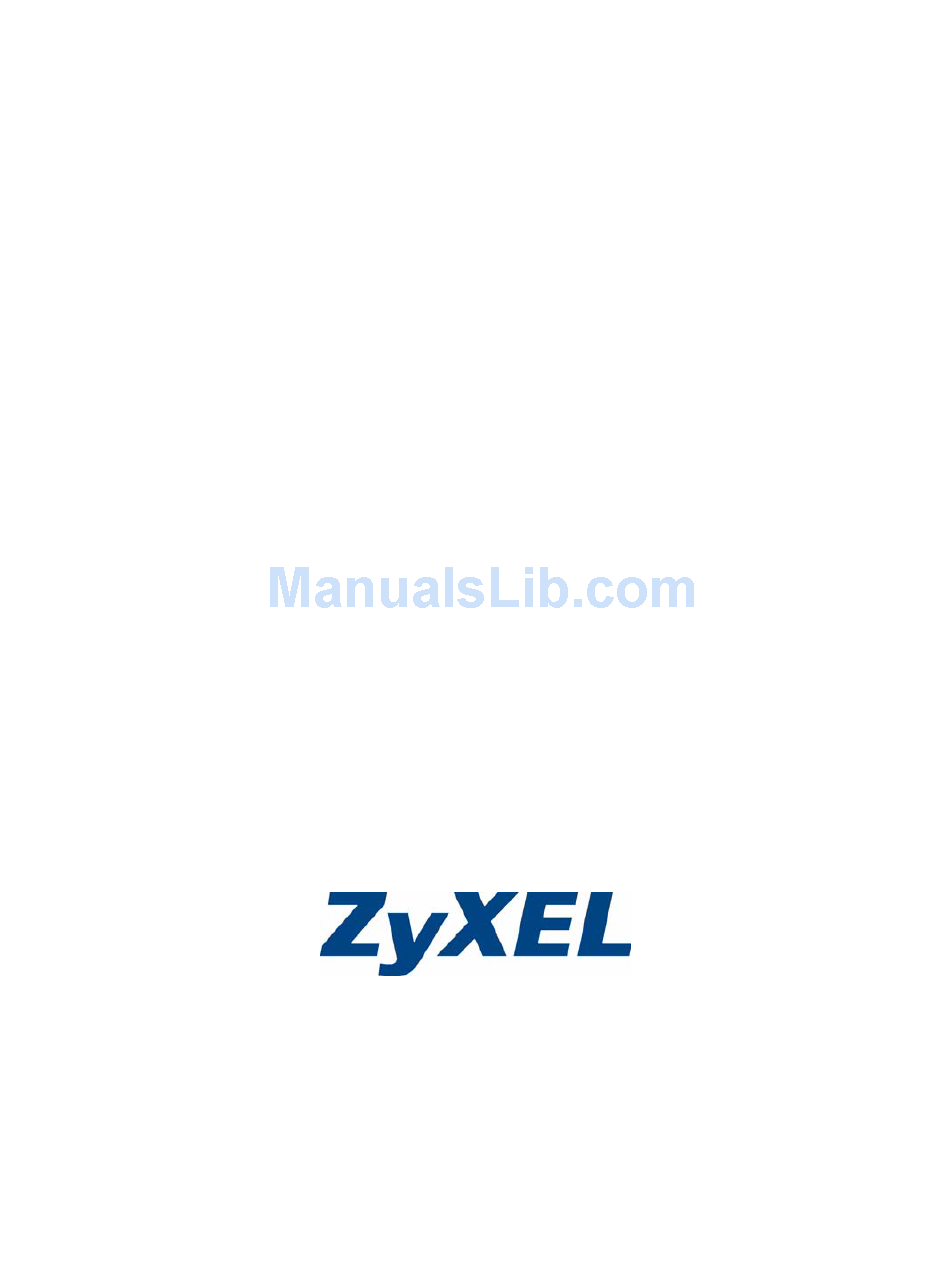

  • Page 1 P-871H Series VDSL Modem with 4-port Switch User’s Guide Version 3.50 7/2005...

  • Page 2: Copyright

    ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein.

  • Page 3: Interference Statements And Warnings

    P-871H Series User’s Guide Interference Statements and Warnings This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operations.

  • Page 4: Safety Warnings

    P-871H Series User’s Guide Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. • To reduce the risk of fire, use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord.

  • Page 5: Zyxel Limited Warranty

    P-871H Series User’s Guide ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and...

  • Page 6: Customer Support

    P-871H Series User’s Guide Customer Support Please have the following information ready when you contact customer support. • Product model and serial number. • Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it.
  • Page 7 P-871H Series User’s Guide METHOD SUPPORT E-MAIL TELEPHONE* WEB SITE REGULAR MAIL SALES E-MAIL FTP SITE LOCATION support@zyxel.co.uk +44 (0) 1344 303044 www.zyxel.co.uk ZyXEL Communications UK 08707 555779 (UK only) Ltd.,11 The Courtyard, UNITED KINGDOM Eastern Road, Bracknell, sales@zyxel.co.uk +44 (0) 1344 303034 ftp.zyxel.co.uk...

  • Page 8: Table Of Contents

    P-871H Series User’s Guide Table of Contents Copyright ........................1 Interference Statements and Warnings..............2 Safety Warnings ....................... 3 ZyXEL Limited Warranty ..................4 Customer Support ....................5 Table of Contents ..................... 7 List of Figures ......................11 List of Tables ......................13 Preface ........................
  • Page 9 P-871H Series User’s Guide 3.3.1 Change Your Password ................ 26 3.4 Prestige Lockout ....................26 3.5 Resetting the Prestige ..................27 3.5.1 Reload the Configuration File ..............27 3.6 Logging Out of the Web Configurator ............... 28 3.7 Help ......................... 28 Chapter 4 System Status and Port Statistics ................
  • Page 10 P-871H Series User’s Guide Chapter 8 Maintenance ......................53 8.1 The Maintenance Screen ................53 8.1.1 VDSL Chip Reset ..................53 8.1.2 Load Factory Defaults ................53 8.1.3 Reboot System ..................54 8.2 Firmware and Configuration Management ............54 8.2.1 Filename Conventions ................55 8.2.1.1 Example FTP Commands ..............
  • Page 11 P-871H Series User’s Guide 11.7.8 sys sw vlan1q port defaultVID ..............67 11.7.9 sys sw vlan1q svlan list ................68 11.7.10 sys sw vlan1q svlan setentry ..............68 11.7.11 sys sw vlan1q status ................68 Appendix A Setting up Your Computer’s IP Address ............. 71 Windows 95/98/Me ....................

  • Page 12: List Of Figures

    P-871H Series User’s Guide List of Figures Figure 1 Internet Access Application ..............18 Figure 2 Front Panel ....................19 Figure 3 Rear Panel ....................20 Figure 4 Web Configurator: Login ................23 Figure 5 Web Configurator Home Screen (Status) ..........24 Figure 6 Change Password ...................
  • Page 13 P-871H Series User’s Guide Figure 39 sys sw port status Command Example ..........65 Figure 40 sys sw qos defpri Command Example ..........66 Figure 41 sys sw vlan status Command Example ..........66 Figure 42 sys sw vlan type Command Example ............ 67 Figure 43 sys sw vlan1q port status Command Example ........

  • Page 14: List Of Tables

    P-871H Series User’s Guide List of Tables Table 1 Front Panel LEDs ..................19 Table 2 Navigation Panel Sub-links Overview ............25 Table 3 Web Configurator Screen Sub-links Details ..........25 Table 4 Navigation Panel Links ................25 Table 5 Password ....................26 Table 6 Status ......................
  • Page 15 P-871H Series User’s Guide List of Tables...

  • Page 16: Preface

    P-871H Series User’s Guide Preface Congratulations on your purchase of the Prestige 871H Series VDSL Modem with 4-port switch. This preface introduces you to the Prestige Ethernet Prestige and discusses the conventions of this User’s Guide. It also provides information on other related documentation.
  • Page 17 Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to techwriters@zyxel.com.tw or send regular mail to The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you.

  • Page 18: Getting To Know Your Prestige

    P-871H Series User’s Guide H A P T E R Getting to Know Your Prestige This chapter introduces the main features and applications of the Prestige. 1.1 Introduction The Prestige can be used for high-speed Internet access through a VDSL connection over the telephone line.

  • Page 19: Hardware Features

    P-871H Series User’s Guide Configuration and Firmware Maintenance You can backup or restore the Prestige configuration or upgrade the firmware on the Prestige. 1.3 Hardware Features This section describes the ports on the Prestige. Built-in Switch The 10/100 Mbps auto-negotiating Ethernet ports allow the Prestige to detect the speed of incoming transmissions and adjust appropriately without manual intervention.

  • Page 20: Chapter 2 Hardware Overview

    P-871H Series User’s Guide H A P T E R Hardware Overview This chapter describes the ports and LEDs on the Prestige. 2.1 Hardware Connection Refer to the Quick Start Guide for information on hardware connections. 2.2 Front Panel LEDs Figure 2 Front Panel The following table describes the LEDs.

  • Page 21: Rear Panel

    P-871H Series User’s Guide Table 1 Front Panel LEDs (continued) COLOR STATUS DESCRIPTION VDSL Green The Prestige is connected to a DSL line. Slow The Prestige is initializing the DSL line. Blinking Fast Data is being transmitted or received. Blinking The DSL link is down.

  • Page 22: Power Port

    P-871H Series User’s Guide 2.3.5 POWER Port Connect the power adaptor to the port labeled POWER on the rear panel of your Prestige. Push in the power button to turn on the Prestige. Note: To avoid damage to the Prestige, make sure you use the supplied power adaptor.
  • Page 23 P-871H Series User’s Guide Chapter 2 Hardware Overview...

  • Page 24: The Web Configurator

    P-871H Series User’s Guide H A P T E R The Web Configurator This section introduces the configuration and functions of the web configurator. 3.1 Introduction The web configurator is an HTML-based management interface that allows easy Prestige setup and management via Internet browser. Use Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions.

  • Page 25: The Status Screen

    P-871H Series User’s Guide 3.3 The Status Screen The Status screen is the first screen that displays when you access the web configurator. The following figure shows the navigating components of a web configurator screen. Figure 5 Web Configurator Home Screen (Status) In the navigation panel, click a main link to reveal a list of submenu links.

  • Page 26: Table 2 Navigation Panel Sub-Links Overview

    P-871H Series User’s Guide Table 2 Navigation Panel Sub-links Overview ADVANCED BASIC SETTING MANAGEMENT APPLICATION The following table lists the various web configurator screens within the sub-links. Table 3 Web Configurator Screen Sub-links Details BASIC SETTING ADVANCED APPLICATION MANAGEMENT System Info...

  • Page 27: Change Your Password

    P-871H Series User’s Guide Table 4 Navigation Panel Links (continued) LINK DESCRIPTION Management Maintenance This link takes you to screens where you can perform firmware and configuration file maintenance as well as reboot the system. 3.3.1 Change Your Password It is highly recommended that you periodically change the password for accessing the Prestige.

  • Page 28: Resetting The Prestige

    P-871H Series User’s Guide 4 Assigning minimum bandwidth to the CPU port. If you limit bandwidth to the CPU port, you may find that the Prestige performs sluggishly or not at all. Note: Be careful not to lock yourself and others out of the Prestige.

  • Page 29: Logging Out Of The Web Configurator

    P-871H Series User’s Guide Figure 7 Resetting the Prestige: Via the Console Port Bootbase Version: V1.0 | 04/25/2003 10:01:06 RAM: Size = 32768 Kbytes FLASH: Intel 32M ZyNOS Version: V3.50(DU.0)b6 | 07/11/2003 18:00:29 Press any key to enter debug mode within 3 seconds.

  • Page 30: System Status And Port Statistics

    P-871H Series User’s Guide H A P T E R System Status and Port Statistics This chapter describes the system status (web configurator home page) and port details screens. 4.1 Overview The home screen of the web configurator displays a port statistical summary table with links to each port showing statistical details.

  • Page 31: Status: Vdsl Port Details

    P-871H Series User’s Guide Table 6 Status LABEL DESCRIPTION System up Time This field shows how long the system has been running since the last time it was started. The following fields are related to the VDSL port. Port This identifies the VDSL port. Click a port number to display the VDSL Port Details screen.

  • Page 32: Figure 10 Status: Port Details (Vdsl)

    P-871H Series User’s Guide Figure 10 Status: Port Details (VDSL) The following table describes the labels in this screen. Table 7 Status: VDSL Port Details LABEL DESCRIPTION Port Info Number This field displays the port number. Link Type This field displays the type of the port.

  • Page 33: Status: Port Details

    P-871H Series User’s Guide Table 7 Status: VDSL Port Details (continued) LABEL DESCRIPTION Rx Packets This field displays the number of packets received. Collision Collision Count This field shows the number of packets collision detected. Error Packet Rx CRC This field shows the number of frames with error(s).
  • Page 34 P-871H Series User’s Guide Table 8 Status: Port Details (continued) LABEL DESCRIPTION Flow Control This field displays whether the flow control feature is activated (Enable) or not (Disable). TxPkts This field shows the number of transmitted frames on this port Tx Bytes This field shows the transmitted traffic (in Bytes) on this port.
  • Page 35 P-871H Series User’s Guide Chapter 4 System Status and Port Statistics...

  • Page 36: Chapter 5 Basic Setting

    P-871H Series User’s Guide H A P T E R Basic Setting This chapter describes how to configure the System Info, Switch Setup, IP Setup and Port Setup screens. 5.1 Overview The System Info screen displays general Prestige information (such as firmware version number).

  • Page 37: Introduction To Vlans

    P-871H Series User’s Guide The following table describes the labels in this screen. Table 9 System Info LABEL DESCRIPTION System Name This field displays the descriptive name of the Prestige for identification purposes. OS F/W This field displays the version number of the Prestige 's current firmware including the Version date created.

  • Page 38: Igmp Snooping

    P-871H Series User’s Guide 5.4 IGMP Snooping A layer-2 device can passively snoop on IGMP Query, Report and Leave (IGMP version 2) packets transferred between IP multicast routers/switches and IP multicast hosts to learn the IP multicast group membership. It checks IGMP packets passing through it, picks out the group registration information, and configures multicasting accordingly.

  • Page 39: Figure 13 Switch Setup

    P-871H Series User’s Guide Figure 13 Switch Setup The following table describes the labels in this screen. Table 10 Switch Setup LABEL DESCRIPTION VLAN Type Choose 802.1Q or Port Based. The VLAN Setup screen changes depending on whether you choose 802.1Q VLAN type or Port Based VLAN type in this screen.

  • Page 40: Ip Setup

    P-871H Series User’s Guide Table 10 Switch Setup (continued) LABEL DESCRIPTION Unknown Specify the action to perform when the Prestige receives an unknown multicast Multicast frame. Select Drop to discard the frame(s). Select Flooding to send the frame(s) to the destination device.

  • Page 41: Port Setup

    P-871H Series User’s Guide 5.7 Port Setup Click Basic Setting and then Port Setup in the navigation panel to enter the port configuration screen. Figure 15 Port Setup The following table describes the labels in this screen. Table 12 Port Setup...

  • Page 42: Login Setup

    P-871H Series User’s Guide Table 12 Port Setup (continued) LABEL DESCRIPTION Apply Click Apply to save the settings. Cancel Click Cancel to reset the fields to your previous configuration. 5.8 Login Setup Use the Logins screen to change the Prestige’s administrator login password.
  • Page 43 P-871H Series User’s Guide Chapter 5 Basic Setting...

  • Page 44: Chapter 6 Vlan

    P-871H Series User’s Guide H A P T E R VLAN The type of screen you see here depends on the VLAN Type you selected in the Prestige Setup screen. This chapter shows you how to configure 802.1Q tagged and port-based VLANs.

  • Page 45: Select The Vlan Type

    P-871H Series User’s Guide Please refer to the following table for common VLAN terminology. Table 14 IEEE 802.1q Terminology VLAN PARAMETER TERM DESCRIPTION VLAN Type Permanent VLAN This is a static VLAN created manually. Dynamic VLAN This is a VLAN configured by a GVRP registration/ deregistration process.

  • Page 46: Static Vlan

    P-871H Series User’s Guide Figure 17 Prestige Setup: Select VLAN Type 6.3 Static VLAN Use a static VLAN to decide whether an incoming frame on a port should be • sent to a VLAN group as normal depends on its VLAN tag.

  • Page 47: Configure A Static Vlan

    P-871H Series User’s Guide Figure 18 VLAN: VLAN Status The following table describes the labels in this screen. Table 15 VLAN: VLAN Status LABEL DESCRIPTION The Number of This is the number of VLANs configured on the Prestige. VLAN Index This is the VLAN index number.

  • Page 48: Figure 19 Vlan: Static Vlan

    P-871H Series User’s Guide • sent to a VLAN group as normal depends on its VLAN tag. • sent to a group whether it has a VLAN tag or not. • blocked from a VLAN group regardless of its VLAN tag.

  • Page 49: Configure Vlan Port Settings

    P-871H Series User’s Guide Table 16 VLAN: Static VLAN (continued) LABEL DESCRIPTION This field displays the ID number of the VLAN group. Click the number to edit the VLAN settings. Active This field indicates whether the VLAN settings are enabled (Yes) or disabled (No).

  • Page 50: Configure A Port-Based Vlan

    P-871H Series User’s Guide Port-based VLANs are specific only to the Prestige on which they were created. Note: When you activate port-based VLAN, the Prestige uses a default VLAN ID of 1. You cannot change it. The port-based VLAN setup screen is shown next. The CPU management port forms a VLAN with all Ethernet ports.

  • Page 51: Table 18 Port Based Vlan Setup

    P-871H Series User’s Guide Table 18 Port Based VLAN Setup LABEL DESCRIPTION Setting Wizard Choose All connected or Port isolation. All connected means all ports can communicate with each other, that is, there are no virtual LANs. All incoming and outgoing ports are selected. This option is the most flexible but also the least secure.

  • Page 52: Broadcast Storm Control

    P-871H Series User’s Guide H A P T E R Broadcast Storm Control This chapter introduces and shows you how to configure the broadcast storm control feature. 7.1 Broadcast Storm Control Overview Broadcast storm control limits the number of broadcast frames that can be stored in the Prestige buffer or sent out from the Prestige.
  • Page 53 P-871H Series User’s Guide Table 19 Broadcast Storm Control (continued) LABEL DESCRIPTION Apply Click Apply to save your changes back to the Prestige. Cancel Click Cancel to begin configuring this screen afresh. Chapter 7 Broadcast Storm Control...

  • Page 54: Chapter 8 Maintenance

    P-871H Series User’s Guide H A P T E R Maintenance This chapter explains how to configure the maintenance screens that let you maintain the firmware and configuration files. 8.1 The Maintenance Screen The Maintenance screen allows you to reset the VDSL chips and lines and restart your Prestige.

  • Page 55: Reboot System

    P-871H Series User’s Guide 1 In the Maintenance screen, click the Click Here button next to Load Factory Defaults to clear all Prestige configuration information you configured and return to the factory defaults. The following message appears. Figure 26 Load Factory Default: Conformation 2 Click OK to display the screen shown next.

  • Page 56: Filename Conventions

    P-871H Series User’s Guide This section shows some examples of uploading to or downloading files from the Prestige using FTP commands. First, understand the filename conventions. 8.2.1 Filename Conventions The configuration file (also known as the romfile or ROM) contains the factory default settings in the screens such as password, Prestige setup, IP Setup, etc..

  • Page 57: Gui-Based Ftp Clients

    P-871H Series User’s Guide 4 Enter your password as requested (the default is “1234”). 5 Enter to set transfer mode to binary. 6 Use to transfer files from the computer to the Prestige, for example, transfers the firmware on your computer (firmware.bin) to the firmware.bin ras...

  • Page 58: Chapter 9 Mac Table

    P-871H Series User’s Guide H A P T E R MAC Table 9.1 MAC Table Overview The MAC Table screen (a MAC table is also known as a filtering database) shows how frames are forwarded or filtered across the Prestige’s ports. It shows what device MAC address, belonging to what VLAN group (if any) is forwarded to which port(s) and whether the MAC address is dynamic (learned by the Prestige) or static.

  • Page 59: Viewing The Mac Table

    P-871H Series User’s Guide Figure 29 MAC Table Flowchart 9.2 Viewing the MAC Table Click Management, MAC Table in the navigation panel and click on a Sort by button. Figure 30 MAC Table The following table describes the labels in this screen.

  • Page 60: Chapter 10 Introduction To Cli

    P-871H Series User’s Guide H A P T E R Introduction to CLI This chapter introduces Command Line Interface (CLI) and gives a summary of commands available. 10.1 Overview In addition to the web configurator, you can use line commands to configure the Prestige. It is recommended that you use the web configurator for everyday management of the Prestige and that you use line commands for advanced Prestige diagnosis and troubleshooting.

  • Page 61: Command Conventions

    P-871H Series User’s Guide 10.2.1 Command Conventions The system uses a one-level command structure. You must type the full command every time, as follows. 192.168.1.1> <command> For instance, the following example displays current VLAN status. 192.168.1.1> sys sw vlan status The conventions for typing in most CI commands are shown next.

  • Page 62: Command Summary

    P-871H Series User’s Guide 10.3 Command Summary The following tables are summaries of the commands available in the Prestige together with a brief description of each command. See the related section in this User’s Guide for more background information. Table 22 Command Summary...
  • Page 63 P-871H Series User’s Guide Table 22 Command Summary (continued) COMMAND DESCRIPTION Clears port-based VLAN. vlan clear <incoming port> <outgoing port> Sets port-based VLAN set <incoming port> <outgoing port> Displays VLAN status. status type <802.1q | Sets VLAN mode. port-based> All “sys sw vlan1q” commands relate to IEEE 802.1Q Tagged vlan1q VLAN configuration.

  • Page 64: Chapter 11 Command Examples

    P-871H Series User’s Guide H A P T E R Command Examples This chapter describes some commands in more detail. 11.1 Overview These are commands that you may use frequently in configuring and maintaining your Prestige. 11.2 config save Syntax: config save This command saves the current configuration.

  • Page 65: Sys Sw Bmstorm Enable

    P-871H Series User’s Guide This command sets the administrator login password (up to 32 printable ASCII characters). The following example sets the login password to 54321. Figure 34 sys password Command Example ras> sys password 54321 11.5 sys sw bmstorm enable Syntax: sys sw bmstorm enable <threshold(0|1|2|3)>...

  • Page 66: Sys Sw Port Enable

    P-871H Series User’s Guide 11.7.1 sys sw port enable Syntax: sys sw port enable <port> This command activates a port. The following example activates port one. Figure 37 sys sw port enable Command Example ras> sys sw port enable 1 11.7.2 sys sw port speed...

  • Page 67: Sys Sw Qos Defpri

    P-871H Series User’s Guide 11.7.4 sys sw qos defpri Syntax: sys sw qos defpri <port> <0 .. 7> This command sets the default ingress priority for a port. This priority value is added to incoming frames without a (802.1p) priority queue tag.

  • Page 68: Sys Sw Vlan1Q Port Status

    P-871H Series User’s Guide Figure 42 sys sw vlan type Command Example ras> sys sw vlan type port-based ras> sys sw vlan status VLAN type = Port-based VLAN map: Port 1: O X X X Port 2: X O X X...

  • Page 69: Sys Sw Vlan1Q Svlan List

    P-871H Series User’s Guide 11.7.9 sys sw vlan1q svlan list Syntax: sys sw vlan1q svlan list This command displays static VLAN settings. The following figure shows an example. Figure 45 sys sw vlan1q svlan list Command Example ras> sys sw vlan1q svlan list 802.1Q VLAN Static Entry:...

  • Page 70: Figure 47 Sys Sw Vlan1Q Status Command Example

    P-871H Series User’s Guide Figure 47 sys sw vlan1q status Command Example ras> sys sw vlan1q status 802.1Q VLAN Setup : Management VLAN ID = 1 ras> Chapter 11 Command Examples...
  • Page 71 P-871H Series User’s Guide Chapter 11 Command Examples...

  • Page 72: Setting Up Your Computer's Ip Address

    P-871H Series User’s Guide Appendix A Setting up Your Computer’s IP Address All computers must have a 10M or 100M Ethernet adapter card and TCP/IP installed. Windows 95/98/Me/NT/2000/XP, Macintosh OS 7 and later operating systems and all versions of UNIX/LINUX include the software components you need to install and use TCP/IP on your computer.

  • Page 73: Installing Components

    P-871H Series User’s Guide Figure 48 WIndows 95/98/Me: Network: Configuration Installing Components The Network window Configuration tab displays a list of installed components. You need a network adapter, the TCP/IP protocol and Client for Microsoft Networks. If you need the adapter: 1 In the Network window, click Add.

  • Page 74: Configuring

    P-871H Series User’s Guide 3 Select Microsoft from the list of manufacturers. 4 Select Client for Microsoft Networks from the list of network clients and then click 5 Restart your computer so the changes you made take effect. Configuring 1 In the Network window Configuration tab, select your network adapter's TCP/IP entry and click Properties 2 Click the IP Address tab.

  • Page 75: Verifying Settings

    P-871H Series User’s Guide Figure 50 Windows 95/98/Me: TCP/IP Properties: DNS Configuration 4 Click the Gateway tab. • If you do not know your gateway’s IP address, remove previously installed gateways. • If you have a gateway IP address, type it in the New gateway field and click Add.

  • Page 76: Figure 51 Windows Xp: Start Menu

    P-871H Series User’s Guide Figure 51 Windows XP: Start Menu 2 In the Control Panel, double-click Network Connections (Network and Dial-up Connections in Windows 2000/NT). Figure 52 Windows XP: Control Panel 3 Right-click Local Area Connection and then click Properties.

  • Page 77: Figure 53 Windows Xp: Control Panel: Network Connections: Properties

    P-871H Series User’s Guide Figure 53 Windows XP: Control Panel: Network Connections: Properties 4 Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and then click Properties. Figure 54 Windows XP: Local Area Connection Properties 5 The Internet Protocol TCP/IP Properties window opens (the General tab in Windows XP).

  • Page 78: Figure 55 Windows Xp: Internet Protocol (Tcp/Ip) Properties

    P-871H Series User’s Guide • Click Advanced. Figure 55 Windows XP: Internet Protocol (TCP/IP) Properties 6 If you do not know your gateway's IP address, remove any previously installed gateways in the IP Settings tab and click OK. Do one or more of the following if you want to configure additional IP addresses: •...

  • Page 79: Figure 56 Windows Xp: Advanced Tcp/Ip Properties

    P-871H Series User’s Guide Figure 56 Windows XP: Advanced TCP/IP Properties 7 In the Internet Protocol TCP/IP Properties window (the General tab in Windows XP): • Click Obtain DNS server address automatically if you do not know your DNS server IP address(es).

  • Page 80: Verifying Settings

    P-871H Series User’s Guide Figure 57 Windows XP: Internet Protocol (TCP/IP) Properties 8 Click OK to close the Internet Protocol (TCP/IP) Properties window. 9 Click Close (OK in Windows 2000/NT) to close the Local Area Connection Properties window. 10 Close the Network Connections window (Network and Dial-up Connections in Windows 2000/NT).

  • Page 81: Figure 58 Macintosh Os 8/9: Apple Menu

    P-871H Series User’s Guide Figure 58 Macintosh OS 8/9: Apple Menu 2 Select Ethernet built-in from the Connect via list. Figure 59 Macintosh OS 8/9: TCP/IP 3 For dynamically assigned settings, select Using DHCP Server from the Configure: list. Appendix A...

  • Page 82: Verifying Settings

    P-871H Series User’s Guide 4 For statically assigned settings, do the following: • From the Configure box, select Manually. • Type your IP address in the IP Address box. • Type your subnet mask in the Subnet mask box. • Type the IP address of your Prestige in the Router address box.

  • Page 83: Verifying Settings

    P-871H Series User’s Guide Figure 61 Macintosh OS X: Network 4 For statically assigned settings, do the following: • From the Configure box, select Manually. • Type your IP address in the IP Address box. • Type your subnet mask in the Subnet mask box.

  • Page 84: Using The K Desktop Environment (Kde)

    P-871H Series User’s Guide Note: Make sure you are logged in as the root administrator. Using the K Desktop Environment (KDE) Follow the steps below to configure your computer IP address using the KDE. 1 Click the Red Hat button (located on the bottom left corner), select System Setting and click Network.

  • Page 85: Using Configuration Files

    P-871H Series User’s Guide • If you have a dynamic IP address click Automatically obtain IP address settings with and select dhcp from the drop down list. • If you have a static IP address click Statically set IP Addresses and fill in the Address, Subnet mask, and Default Gateway Address fields.

  • Page 86: Figure 66 Red Hat 9.0: Dynamic Ip Address Setting In Ifconfig-Eth0

    P-871H Series User’s Guide 1 Assuming that you have only one network card on the computer, locate the ifconfig- configuration file (where is the name of the Ethernet card). Open the eth0 eth0 configuration file with any plain text editor.

  • Page 87: Figure 69 Red Hat 9.0: Restart Ethernet Card

    P-871H Series User’s Guide Figure 69 Red Hat 9.0: Restart Ethernet Card [root@localhost init.d]# network restart Shutting down interface eth0: [OK] Shutting down loopback interface: [OK] Setting network parameters: [OK] Bringing up loopback interface: [OK] Bringing up interface eth0: [OK]...

  • Page 88: Ip Subnetting

    P-871H Series User’s Guide P P E N D I X IP Subnetting IP Addressing Routers “route” based on the network number. The router that delivers the data packet to the correct destination host uses the host ID. IP Classes An IP address is made up of four octets (eight bits), written in dotted decimal notation, for example, 192.168.1.1.

  • Page 89: Subnet Masks

    P-871H Series User’s Guide Since the first octet of a class “A” IP address must contain a “0”, the first octet of a class “A” address can have a value of 0 to 127. Similarly the first octet of a class “B” must begin with “10”, therefore the first octet of a class “B”...

  • Page 90: Example: Two Subnets

    P-871H Series User’s Guide Since the mask is always a continuous number of ones beginning from the left, followed by a continuous number of zeros for the remainder of the 32 bit mask, you can simply specify the number of ones instead of writing the value of each octet. This is usually specified by writing a “/”...

  • Page 91: Table 28 Subnet 1

    P-871H Series User’s Guide Note: In the following charts, shaded/bolded last octet bit values indicate host ID bits “borrowed” to form network ID bits. The number of “borrowed” host ID bits determines the number of subnets you can have. The remaining number of host ID bits (after “borrowing”) determines the number of hosts you can have...

  • Page 92: Example: Four Subnets

    P-871H Series User’s Guide Example: Four Subnets The above example illustrated using a 25-bit subnet mask to divide a class “C” address space into two subnets. Similarly to divide a class “C” address into four subnets, you need to “borrow” two host ID bits to give four possible combinations of 00, 01, 10 and 11. The subnet mask is 26 bits (11111111.11111111.11111111.11000000) or 255.255.255.192.

  • Page 93: Example Eight Subnets

    P-871H Series User’s Guide Table 33 Subnet 4 NETWORK NUMBER LAST OCTET BIT VALUE IP Address 192.168.1. IP Address (Binary) 11000000.10101000.00000001. 11000000 Subnet Mask (Binary) 11111111.11111111.11111111. 11000000 Subnet Address: Lowest Host ID: 192.168.1.193 192.168.1.192 Broadcast Address: Highest Host ID: 192.168.1.254 192.168.1.255...

  • Page 94: Subnetting With Class A And Class B Networks

    P-871H Series User’s Guide Subnetting With Class A and Class B Networks. For class “A” and class “B” addresses the subnet mask also determines which bits are part of the network number and which are part of the host ID.
  • Page 95 P-871H Series User’s Guide IP Subnetting...

  • Page 96: Appendix Cascii Characters

    P-871H Series User’s Guide Appendix C ASCII Characters This appendix tells you about ASCII (American Standard Code for Information Interchange) characters. ASCII Code Computers use ASCII code to represent binary (0 or 1) as letters and other characters. The ASCII code is a list that contains all the letters in the alphabet plus other additional characters.
  • Page 97 P-871H Series User’s Guide Appendix C...

  • Page 98: Index

    P-871H Series User’s Guide Index Numerics Syntax convention CLI (Command Line Interface) Communications 110V AC Compliance, FCC 230V AC config save 802.1P priority Configuration file Restore Connecting Cables Console port 18, 20 Copyright Correcting Interference Corrosive Liquids Accessories Covers Airflow...
  • Page 99 P-871H Series User’s Guide Rules, Part 15 FCC Rules Feature Hardware Lightning File Transfer using FTP Liquids, Corrosive command example Lockout Filename convention Login Filtering database Password Finland, Contact Information Login Setup Firmware Logins Flow control Back pressure IEEE802.3x France, Contact Information...
  • Page 100 P-871H Series User’s Guide Port status Port-based VLAN All connected Safety Warnings Port isolation Separation Between Equipment and Receiver Setting Wizard Service 3, 4 Power Service Personnel Power Adaptor Shock, Electric Power Cord Spain, Contact Information Power Outlet Static VLAN...
  • Page 101 P-871H Series User’s Guide 43, 46 Number of possible VIDs Priority frame VID (VLAN Identifier) Viewing Certifications VLAN 36, 43 Introduction Number of VLANs Port number Port settings Port-based VLAN Static VLAN Status Tagged Type 38, 44 VLAN (Virtual Local Area Network)
