- Page 1 P630M ADSL USB Modem User’s Guide February 2001...
-
Page 2: Copyright
ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. -
Page 3: Zyxel Limited Warranty
Prestige 630 ADSL USB Modem ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two (2) years from the date of purchase. During the warranty period and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor and to whatever extent it shall deem necessary to restore the product or... -
Page 4: Information For Canadian Users
Prestige 630 ADSL USB Modem Information for Canadian Users The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective operation and safety requirements. The Industry Canada does not guarantee that the equipment will operate to a user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. -
Page 5: Federal Communications Commission (Fcc) Interference Statement
Prestige 630 ADSL USB Modem Federal Communications Commission (FCC) Interference Statement This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operations. -
Page 6: Customer Support
RMA/Repair hotline +49-2405-6909-99 ftp.europe.zyxel.com Regular Mail ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, HsinChu, Taiwan. ZyXEL Communications Inc., 1650 Miraloma Avenue, Placentia, CA 92870, U.S.A. ZyXEL Communications A/S, Columbusvej 5, 2860 Soeborg, Denmark. ZyXEL Communications Services GmbH.,... -
Page 7: Table Of Contents
Copyright ...ii ZyXEL Limited Warranty... iii Information for Canadian Users...iv Federal Communications Commission (FCC) Interference Statement ...v Customer Support ...vi List of Tables ...ix List of Figures ...ix What is ADSL? ...x What is USB?...xi Device Drivers ...xii Features ...xiii About This Manual ...xiv Chapter 1 Software Setup and Modem Installation... - Page 8 Prestige 630 ADSL USB Modem Update Modem Software ...2-2 2.3.1 Procedure ...2-2 Remove Software...2-3 2.4.1 Procedure ...2-3 Chapter 3 Control Panel Application ...3-1 Procedure ...3-1 Chapter 4 Modify TCP/IP Networking Options ...4-1 WAN USB Driver...4-1 4.1.1 Microsoft Windows 98 ...4-1 4.1.2 Microsoft Windows 2000 ...4-3 4.1.3...
- Page 9 Prestige 630 ADSL USB Modem List of Tables Table 1-1 Required Information... 1-1 Table 1-2 Front Panel LED Descriptions ... 1-6 Table 5-1 Troubleshooting Table... 5-1 List of Figures Figure 1-1 Communications Settings Window ... 1-3 Figure 1-2 Setup Complete Window... 1-4 Figure 1-3 Back Panel Connections ...
-
Page 10: What Is Adsl

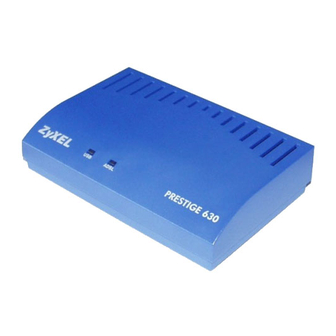

Prestige 630 ADSL USB Modem Your Prestige 630 ADSL USB Modem Congratulations on the purchase of your new modem! Your modem combines the super-fast speed of state- of-the-art ADSL (Asynchronous Digital Subscriber Line) technology with the ease of setup and operation facilitated by a Plug and Play USB (Universal Serial Bus) interface. -
Page 11: What Is Usb
USB (Universal Serial Bus) is an external interface data communication standard for a peripheral bus that was developed by Intel and Microsoft . USB is commonly referred to as a Plug and Play - meaning that your computer will instantly recognize (auto-detect) your new device (your Prestige). Plug and Play means that you require no technical expertise to install your device, installation times are greatly reduced and that you simply plug your USB cable in and follow a limited set of easy-to-understand automatically generated instructions. -
Page 12: Device Drivers
Prestige 630 ADSL USB Modem Two types of device drivers are provided for your new modem: WAN (Wide Area Network) and LAN (Local Area Network). The proper choice of driver depends on the combination of operating system and protocol. WAN (RFC 2364) Driver - this driver causes the modem to resemble a dial-up modem. Call establishment takes place through Dial-Up Networking. -
Page 13: Features
The ZyXEL USB ADSL Modem provides the following features: Compliant with Universal Serial Bus Specification Revision 1.1 USB bus-powered; an external power supply is not required Supports the Microsoft Compatible with all T1.413, G.DMT and G.Lite compliant CO DSLAM equipment Software upgradeable Includes a Microsoft Windows checking the status of the connection... -
Page 14: About This Manual
Prestige 630 ADSL USB Modem A practical and comprehensive tool, this manual provides information about modem installation and operation. Ensure optimal comprehension by familiarizing yourself with the Syntax Conventions listed next. Syntax Conventions “Type” means for you to type one or more characters and press the carriage return. “Select” or “Choose”... -
Page 15: Chapter 1 Software Setup And Modem Installation
Prestige 630 ADSL USB Modem Chapter 1 Software Setup and Modem Installation This chapter guides you through the process of installing and configuring your software and hooking up your modem. Your modem supports WAN and LAN software drivers. See the previous section on Device Drivers to find out what drivers you should use with your Windows OS (Operating System). -
Page 16: Software Setup
Prestige 630 ADSL USB Modem Information you may need before beginning software installation: Name Server Information Dynamic assignment (no information required) Static assignment (you need the following information): The Virtual Path Identifier number identifies virtual paths between users or between users and networks. The Virtual Channel Identifier number identifies virtual channels between users or between users and networks. -
Page 17: Figure 1-1 Communications Settings Window
Step 3. Read the license agreement and click Yes. Step 4. If your service provider is not listed, highlight Other Service Provider and click Next > to continue. Step 5. At the Select Driver Type window, highlight the driver you want to install and click Next >. Step 6. -
Page 18: Modem Installation
Prestige 630 ADSL USB Modem necessary; ZyXEL has tested the software with this OS. Click Yes to allow the Step 8. The Setup Complete window indicates successful completion of the installation process. Step 9. Proceed to the Modem Installation section (shown next). Modem Installation For Windows 98 SE applications, you may need the Windows... -
Page 19: 1.3.2 Procedure
Do not connect your USB device until you have installed the driver software for your computer as described at the beginning of this chapter. 1.3.2 Procedure Step 1. Attach the rectangular end of the USB cable into the back of your computer and the square end of the USB cable into the back of your Prestige (see figures below). -
Page 20: Front Panel Leds
Prestige 630 ADSL USB Modem For Windows 2000 applications, the Found New Hardware Wizard window indicates the modem has been installed. Click Finish. Step 2. Follow the Windows instructions to get your new settings to take affect. Once you restart your computer, installation of the ZyXEL USB Modem is complete. Front Panel LEDs The LED indicators on the front panel indicate the operational status of the Prestige 630. - Page 21 Prestige 630 ADSL USB Modem link is up or connected. This LED blinks when the link is not ready or has failed. Software Setup and Modem Installation...
-
Page 23: Chapter 2 Dsl Modem Installer
This chapter shows you how to customize your communication settings, update modem software Install your software and modem (see previous chapter) before proceeding. Introduction You can perform many functions through the DSL Modem Installer window. The following explains how to find this window. 2.1.1 Procedure Step 1. -
Page 24: Customize Your Communication Settings
Prestige 630 ADSL USB Modem Customize Your Communication Settings This section describes how to customize your VPI, VCI, Encapsulation and Modulation settings. 2.2.1 Procedure Step 1. In the DSL Installer window shown previously, click Settings. Step 2. From the Communication Settings window (see previous chapter), configure the following fields: VPI, VCI, Encapsulation and Modulation type. -
Page 25: Remove Software
Step 3. In the window shown next, highlight the location of the Setup files and click OK. Figure 2-2 Select installation location Window Step 4. Click OK at the message that informs you not to unplug the USB modem cable until “after the install wizard has finished”. - Page 26 Prestige 630 ADSL USB Modem If in some versions you get a screen that says not to unplug the USB cable until after the Install Wizard has finished, just click OK and continue. Step 4. At the Setup Complete window, remove any disks from their drives and click Finish. Restart your computer when prompted.
-
Page 27: Procedure
This chapter shows you how to configure and check the performance of the Modem/ADSL When the control panel application is open, the monitor window updates every 2 seconds. The figures shown next May differ from what you see because ZyXEL Control Panel functionality is continually being upgraded and improved. -
Page 28: Figure 3-2 Zyxel Adsl Modem Window - System Info Tab
Prestige 630 ADSL USB Modem Step 3. This window displays the Driver / Firmware Release numbers and the Control Panel Version. Figure 3-2 ZyXEL ADSL Modem Window - System Info Tab Step 4. This window displays the Modulation, Encapsulation and VPI/VCI values Figure 3-3 ZyXEL ADSL Modem Window - Configuration Tab The preceding window may vary depending on your operating system and driver type. -
Page 29: Chapter 4 Modify Tcp/Ip Networking Options
Modify TCP/IP Networking Options This chapter shows you how to modify networking options for WAN and LAN. TCP/IP settings are automatically set-up during the software installation process. Use the following OS specific procedures to change TCP/IP settings (if necessary) for WAN and LAN. Procedures detail statically assigned, as opposed to dynamically assigned, information. -
Page 30: Figure 4-1 Zyxel Adsl Connection Window - Server Types Tab
Prestige 630 ADSL USB Modem Step 4. Use this window to reach your TCP/IP settings. Figure 4-1 ZyXEL ADSL Connection Window - Server Types Tab Step 4. Use this window to configure your TCP/IP settings. Change the default gateway by leaving this box blank. -
Page 31: Microsoft Windows 2000
Step 5. Click OK to confirm changes and end this TCP/IP option modification session. Figure 4-3 ZyXEL ADSL WAN Connection Properties Window - Networking Tab 4.1.2 Microsoft Windows Procedure Step 1. From your computer desktop, right-click the My Network Places icon and select Properties. Step 2. -
Page 32: Figure 4-4 Zyxel Adsl Wan Connection Properties Window - Networking Tab
Prestige 630 ADSL USB Modem Step 3. Use this window to reach the IP Protocol Properties window. Select Internet Protocol (TCP/IP) and click Properties. Figure 4-4 ZyXEL ADSL WAN Connection Properties Window - Networking Tab Step 4. Use this window to configure your IP Protocol Properties. Figure 4-5 Internet Protocol (TCP/IP) Properties Window Click here and type the IP address that your service... -
Page 33: Microsoft Windows Me
Step 5. At the ZyXEL ADSL WAN Connection Properties window, click OK to confirm changes and end this TCP/IP option modification session. 4.1.3 Microsoft Windows Procedure Step 1. From your computer desktop, double-click the My Computer icon. Step 2. From the My Computer window, double-click the Dial-Up Networking icon. Step 3. -
Page 34: Lan Usb Driver
Prestige 630 ADSL USB Modem Step 5. Use this window to configure your TCP/IP settings. Change the default gateway by leaving this box blank. Step 6. Click OK at the next window. LAN USB Driver 4.2.1 Microsoft Windows Procedure Step 1. Click Start!Settings!Control Panel and then double-click on the Network icon. -
Page 35: Figure 4-8 Network Window - Configuration Tab
Step 2. Use this window to reach your LAN TCP/IP networking properties. Figure 4-8 Network Window - Configuration Tab Step 3. Use this window to configure TCP/IP Properties. Figure 4-9 TCP/IP Properties Window - IP Address Tab Modify TCP/IP Networking Options Prestige 630 ADSL USB Modem Highlight TCP/IP - >ZyXEL USB ADSL... -
Page 36: Microsoft Windows 2000
Prestige 630 ADSL USB Modem Step 4. Use this window to add or remove gateways. Consult with your network administrator to determine the appropriate addresses for your needs. Figure 4-10 TCP/IP Properties Window - Gateway Tab Step 5. Click OK to confirm changes and end this TCP/IP option modification session. Step 6. -
Page 37: Figure 4-11 Local Area Connection 2 Properties Window - General Tab
Step 3. Use this window to reach your LAN TCP/IP networking properties. Figure 4-11 Local Area Connection 2 Properties Window - General Tab Modify TCP/IP Networking Options Prestige 630 ADSL USB Modem Highlight Internet Protocol (TCP/IP). Then click Properties. -
Page 38: Microsoft Windows Me
Prestige 630 ADSL USB Modem Step 4. Use this window to configure TCP/IP properties. Figure 4-12 Internet Protocol (TCP/IP) Properties Window - General Tab Step 5. At the next window, click OK to confirm changes and end this TCP/IP option modification session. -
Page 39: Figure 4-13 Network Window - Configuration Tab
Step 2. Use this window to reach TCP/IP properties. Figure 4-13 Network Window - Configuration Tab Step 3. Use this screen to configure TCP/IP properties. Figure 4-14 TCP/IP Properties Window - IP Address Tab Step 4. Click OK and then click Yes to restart your computer. Modify TCP/IP Networking Options Prestige 630 ADSL USB Modem Highlight TCP/IP... -
Page 41: Chapter 5 Troubleshooting
PROBLEM None of the LEDs are on when I turn on the Prestige. I cannot access the Prestige via my computer. I cannot connect to the Internet. Troubleshooting Troubleshooting This chapter covers potential problems and the possible solutions. Table 5-1 Troubleshooting Table CORRECTIVE ACTION Make sure your USB cable is properly connected to your Prestige. -
Page 43: Glossary
10BaseT The 10-Mbps baseband Ethernet specification that uses two pairs of twisted-pair cabling (Category 3 or 5): one pair for transmitting data and the other for receiving data. ADSL Asymmetrical Digital Subscriber Line is an asymmetrical technology, meaning that the downstream data rate is much higher than the upstream data rate. - Page 44 Prestige 630 ADSL USB Modem The DCE sits between the DTE (data terminal equipment) and a transmission circuit such as a phone line. DHCP Dynamic Host Configuration Protocol automatically assigns IP addresses to clients when they log on. DHCP centralizes IP address management on central computers that run the DHCP server program.
- Page 45 to the IEEE 802.3 Ethernet standard, including adaptations with data rates of 10 Mbits/sec and 100 Mbits/sec over coaxial cable, twisted-pair cable, and fiber-optic cable. The latest version of Ethernet, Gigabit Ethernet, has a data rate of 1 Gbit/sec. (Frequently Asked Questions) -- FAQ’s are documents that list and answer the most common questions on a particular subject.
- Page 46 Prestige 630 ADSL USB Modem the gatekeepers into the Internet. Local Area Network is a shared communication system to which many computers are attached. A LAN, as its name implies, is limited to a local area. This has to do more with the electrical characteristics of the medium than the fact that many early LANs were designed for departments, although the latter accurately describes a LAN as well.
- Page 47 Point to Point Protocol. PPP encapsulates and transmits IP (Internet Protocol) datagrams over serial point-to-point links. PPP works with other protocols such as IPX (Internetwork Packet Exchange). The protocol is defined in IETF (Internet Engineering Task Force) RFC 1661 through 1663. PPP provides router-to-router, host-to-router, and host-to-host connections.
- Page 48 Prestige 630 ADSL USB Modem Cable Single User Account. The Prestige's SUA (Single User Account) feature allows multiple user Internet access for the cost of a single ISP account - see also NAT. Transmission Control Protocol handles flow control and packet recovery and IP providing basic addressing and packet-forwarding services.
- Page 49 Prestige 630 ADSL USB Modem two major meanings - First, loosely used: the whole constellation of resources that can be accessed using Gopher, FTP, HTTP, Telnet, USENET, WAIS and some other tools. Second: the universe of hypertext servers (HTTP servers). Glossary...
-
Page 51: Index
About ADSL ...x About This Manual ... xiv ADSL ...x Advantages of ADSL ...x Advantages of USB... xi Always on ...x asymmetric...x Asymmetric Digital Subscriber Line...x asymmetric operation...x CE Certification ...v certification ...v collaborative computing...x compatability and compliance... xiii Contacting Customer Support ... vi control panel... - Page 52 Prestige 630 ADSL USB Modem Online Registration ... iii Plug and Play ...xi power supply...xiii private, secure channel...x protocol...xii Release numbers ... 3-2 repair... iii Required for Software Installation... 1-1 RJ-11...xiii Service ... iii Setup icon ... 1-2 Software Setup... 1-2 Software Setup and Modem Installation...
