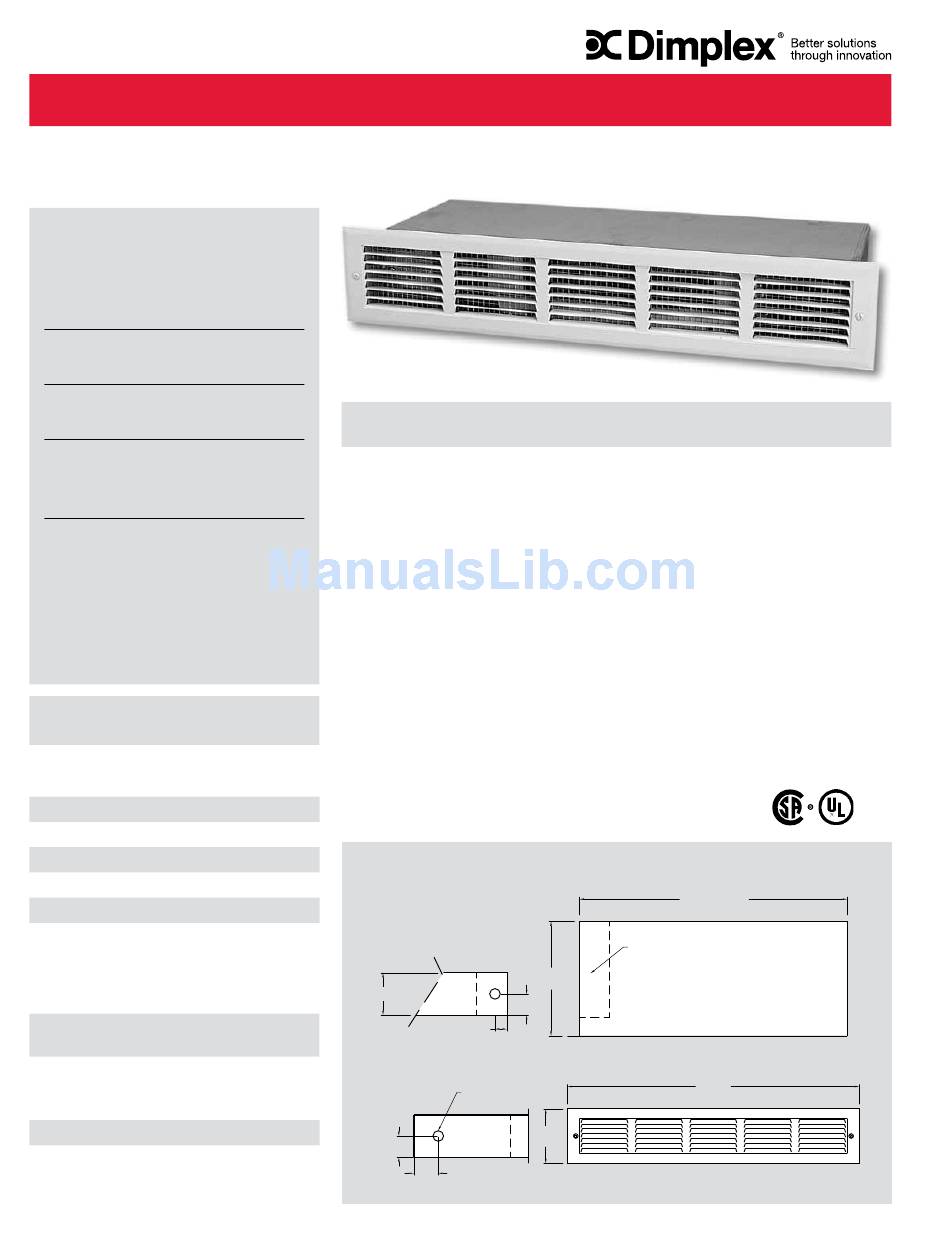

Dimplex CKHA Series Features And Specifications

CKHA Series
Kick Space Heater
Low-profile fan-forced heater that provides comfort in places where space is limited (i.e. under-counter, stair riser etc.).
Features
• Single model offers flexible
wattage output with voltage
selection
• Makes an economical floor
warmer
• Superior finned tubular
element design
• Automatic primary and
secondary reset thermal
cutout for safety
• Pilot light will activate if unit
trips on high limit
Applications
• Kitchen or bathroom
under-cabinet, stair riser
Ordering Guide
Cat. No. Watts BTU
CKHA20D31 450 1535
900 3071
1350 4606
1800 6142
900/675 3071/2303
1800/1350 6142/4606
Note: Standard colour is Black – To order White add "W"
at end of Cat. No. Factory wired at 240/208V for
900/675W
Control Options (field installed)
Tamperproof Thermostat Kits
Cat. No. Description
CKHATD13 Single pole thermostat
CKHATD23 Double pole thermostat
Note: Thermostats are adjustable by slotted screw
adjustment through front grille only
14 | RESIDENTIAL HEATERS

Specifications

Voltage
Wattage
Colour
Airflow
Finish
Construction
Heating Element
Controls & Wiring
Weight
Volts (kg/lbs.)
Warranty
120 6.4/14
120
Dimensions
120
120
240/208
240/208
LEFT SIDE BACK VIEW
89mm[3 1/2"]
45mm
[1 3/4"]
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
120, 240/208V
Five outputs ranging from 450W to 1800W
Black or White
80 CFM
Specially formulated polyester powder coating process is applied to the
front panel which resists fading and abrasion.
The enclosure is constructed of 20 gauge steel. Horizontal mount only.
The Kick Space heater has four totally enclosed nickel chromium
resistance elements with steel sheaths. The elements are complete
with spiral steel fins that are brazed to the steel sheath to provide
excellent heat transfer.
The Kick Space heater is factory wired for 240/208V @ 900/675W and is
field convertible for 240/208V @ 1800/1350W, 120V @ 450, 900, 1350,
or 1800W configuration. The unit is controllable from a line voltage wall
thermostat or field installed built-in tamperproof single or double pole
thermostat kit.
One year warranty on complete unit.
CSA certified and UL approved.
241mm
S
[9 1/2"]
45mm
S
[1 3/4"]
25mm[1"]
LEFT SIDE
22mm[7/8"] DIA. K.O.
2 PLACES
114mm
[4 1/2"]
51mm
[2"]
TOP VIEW
562mm[22 1/8"]
WIRING
JUNCTION BOX
FRONT VIEW
613mm
[24 1/8"]
