Jet J-CK350-2 Operating Manual

Non-ferrous manual cold saw
Hide thumbs Also See for J-CK350-2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
This .pdf document is bookmarked

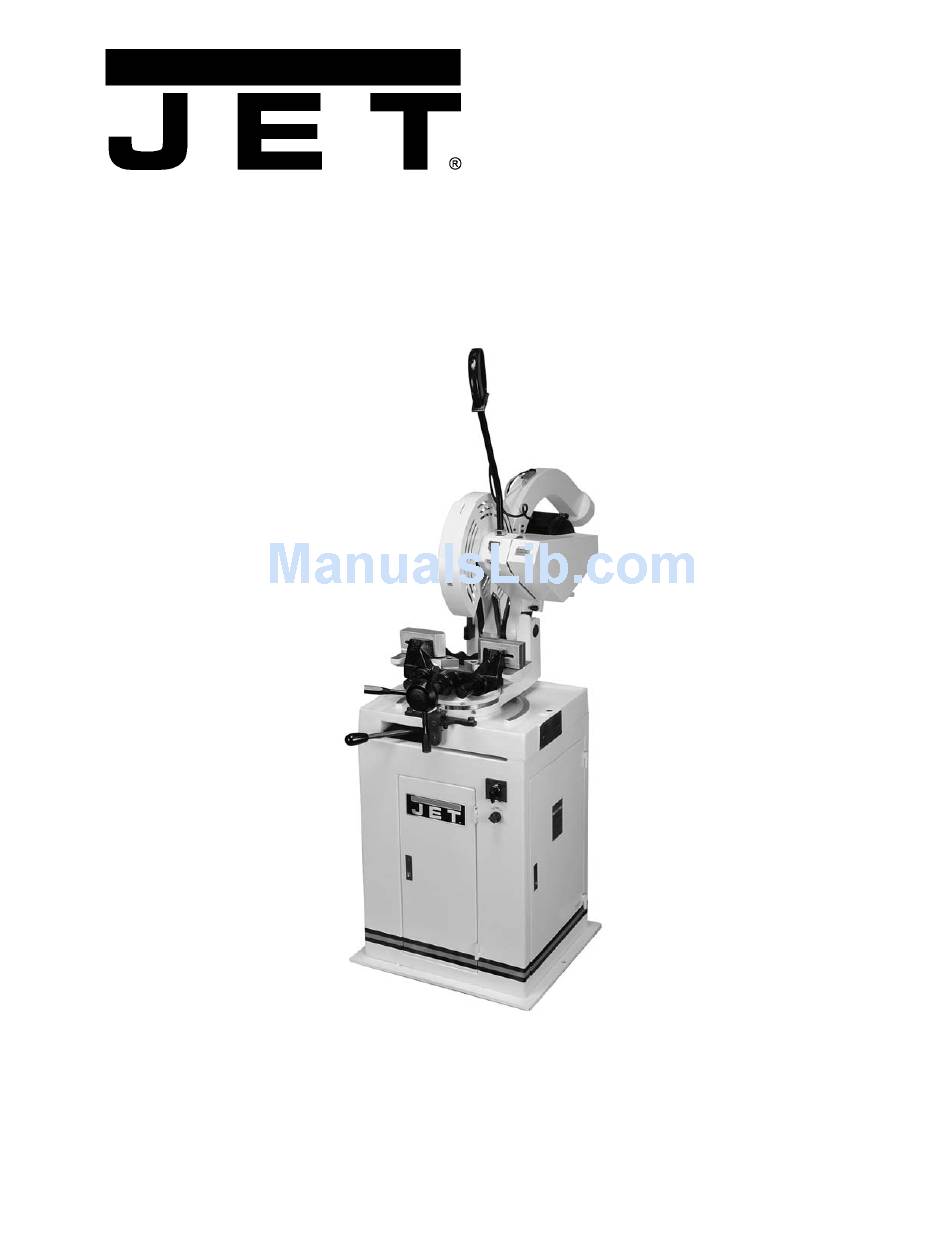

Operating Instructions and Parts Manual
Non-Ferrous Manual Cold Saw
Models: J-CK350-2, J-CK350-4
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-414203
Ph.: 800-274-6848
Revision B 02/2011
www.waltermeier.com
Copyright © 2011 Walter Meier (Manufacturing) Inc.

Advertisement

Table of Contents
loading

Related Manuals for Jet J-CK350-2

Summary of Contents for Jet J-CK350-2

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Non-Ferrous Manual Cold Saw Models: J-CK350-2, J-CK350-4 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414203 Ph.: 800-274-6848 Revision B 02/2011 www.waltermeier.com Copyright © 2011 Walter Meier (Manufacturing) Inc.

  • Page 2: Warranty And Service

    Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your local WMH Tool Group distributor, or visit waltermeier.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW stands for Metalworking, WW stands for Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below.

  • Page 3: Table Of Contents

    Table of Contents Warranty and Service ..........................2 Table of Contents ............................ 3 Warnings ..............................4 Introduction ............................. 5 J-CK350 Features ........................... 6 Specifications ............................6 Features ..............................7 Miter Cutting Head ..........................7 Miter Position Lock ..........................7 Self-centering Vise ..........................7 Blade Lock ............................

  • Page 4: Warnings

    Warnings 1. Read and understand the entire owner’s manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3.

  • Page 5: Introduction

    23. Make your workshop child proof with padlocks, master switches or by removing starter keys. 24. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury. 25. Maintain a balanced stance at all times so that you do not fall into the blade or other moving parts. Do not overreach or use excessive force to perform any machine operation.

  • Page 6: J-Ck350 Features

    J-CK350 Features Specifications Model.................J-CK350-2..........J-CK350-4 Stock Number..............414203..........414207 Disc Blade Disc diameter ............14" (350mm).......... 14" (350mm) Hole diameter ............1.3" (32mm)........... 1.3" (32mm) Blade thickness ..........0.14" (3.4mm)........0.14" (3.4mm) Cutting Speed Blade Speed (RPM) ..........1750/3500..........1750/3500 Motor Motor ................

  • Page 7: Features

    Features Miter Cutting Head The miter cutting head is the unit that cuts the material and consists of a cast iron base, blade support unit and guard, transmission unit, and motor. The depth of cut is set by adjusting the depth cut stop.

  • Page 8: Installation

    Failure to comply may result in serious injury! Figure 5 J-CK350-2 is rated at 220V. J-CK350-4 is rated at 440V. These machines are not supplied with a plug. Use a plug and outlet rated at least 20 amps.

  • Page 9: Operation

    Operation Miter Adjustment To adjust the miter position follow the steps Before using the machine: below while referring to Figure 10: Check that safety devices, such as blade 1. Move the miter position lock (A) to the right guards, are in position and work perfectly to release.

  • Page 10: Maintenance

    Changing the Saw Blade Maintenance The cold saw must not be Maintenance Requirements connected the power source when changing saw blades. Failure to comply may result in serious injury! All maintenance must be carried out with the power switched off. To change the saw blade: Failure to comply may result in serious 1.

  • Page 11: Lubrication

    Lubrication For long life and trouble-free operation, it is essential that this machine be kept well lubricated. The vise and leadscrew should be oiled daily. Pivot joints and bearings should be greased weekly. Recommended lubricants Grease fittings Texaco Starplex 2 or equivalent Vice and Leadscrew Regal R &...

  • Page 12: Blades

    resulting in poor cutting (same situation with soft Blades materials), greater shearing stress and hence breakage of the blade. When using the J-CK350 cold saw, it is A larger pitch should be chosen when, as a important to select the correct type of blade for result of the shape of the piece to be cut, the the material to be cut.
  • Page 13 Teeth Shape ”C” TYPE SHARPENING (HZ) Coarse toothing with roughing tooth raked on both sides and non--raked finishing tooth – The roughing tooth is about 0.3 mm higher. Coarse toothing with roughing tooth and finishing tooth – Used in saws with pitch greater than or equal to 5 mm for cutting ferrous and non-ferrous materials with solid or solid-profiled Figure 19...

  • Page 14: Troubleshooting

    Troubleshooting Troubleshooting – Blade and Cutting Problems Problem Probable Cause Solution Incorrect lubricant/coolant fluid Ensure proper coolant flow. Check the cutting speed, feed speed and air pressure Material too hard parameters and the type of blade you are using. With a new blade it is necessary to start cutting at half feeding speed.

  • Page 15: Parts

    Troubleshooting Troubleshootiong – Machine Fault & Operating Problems Problem Probable Cause Solution Check: the phases; the cables; the plug; the socket. Electrical power supply Also check that the motor connections are in place. Check that the voltages are present both on the input Transformer and output.
  • Page 16 Stand Assembly Index No. Part No. Description Size 1 ....FK350-601 ....Cabinet Stand..................1 2 ....CK350-002 ....Air Unit ....................1 3 ....FK350-603 ....Cam Switch ................... 1 4 ....FK350-604 ....Magnetic Switch ..................1 5 ....FK350-605 ....Overload Relay ..................1 6 ....

  • Page 17: Stand Assembly

    Stand Assembly...

  • Page 18: Head Assembly

    Head Assembly Index No. Part No. Description Size 1 ....J-CK350-201 ....Head Body .................... 1 2 ....CK350-202 ....Spindle ....................1 3 ....CK350-203 ....Spindle Housing ..................1 4 ....CK350-204 ....Blade Flange ..................1 6 ....CK350-206 ....Collar ....................1 7 ....
  • Page 19 Head Assembly...

  • Page 20: Base Assembly

    Base Assembly Index No. Part No. Description Size 1 ....FK350-101 ....Base ...................... 1 2 ....FK350-102 ....Hinge Body .................... 1 3 ....FK350-103 ....Locking Mount ..................1 4 ....FK350-104 ....Release Handle ..................1 5 ....FK350-105 ....Pin......................1 6 ....
  • Page 21 Base Assembly...

  • Page 22: Manual Vise Assembly

    Manual Vise Assembly Index No. Part No. Description Size ....FK350-300 ....Complete Vise Assembly (includes index #1-32) ........1 ....J-FK350-301 ....Base ...................... 1 2 ....J-FK350-302 ....Front Vise Jaw (LH Thread) ..............1 3 ....FK350-303 ....Tip ......................1 4 ....
  • Page 23 Manual Vise Assembly...

  • Page 24: Guard Assembly

    Guard Assembly Index No. Part No. Description Size 1 ....J-CK350-401 ....Guard A ....................1 2 ....J-CK350-402 ....Guard B ....................1 3 ....J-CK350-403 ....Chute ....................1 4 ....J-CK350-404 ....Belt Guard ..................... 1 5 ....CK350-405 ....Plate ...................... 2 6 ....
  • Page 25 Guard Assembly...

  • Page 26: Ck350 Mist Coolant Assembly

    CK350 Mist Coolant Assembly Index No. Part No. Description Size 1 ....CK350-701 ....Coolant Block ..................1 2 ....CK350-702 ....Coolant Nipple ..................1 3 ....CK350-703 ....Coolant Nozzle ..................1 4 ....CK350-704 ....Valve Bracket ..................1 5 ....CK350-705 ....Switch Dog .................... 1 6 ....
  • Page 27 CK350 Mist Coolant Assembly...

  • Page 28: In-Feed Table

    In-Feed Table Index No. Part No. Description Size 1 ....FK350-701 ....Bracket ....................1 2 ....FK350-702 ....Stand ....................1 3 ....FK350-703 ....Leveling Foot ..................2 4 ....TS-154010 ....Hex Nut M16 ..................2 5 ....FK350-705 ....Angle Rail ....................2 6 ....

  • Page 29: Out-Feed Table

    Out-Feed Table Index No. Part No. Description Size 1 ....FK350-801 ....Guide Block ..................EA 2 ....FK350-802 ....Guide Rail ..................EA 3 ....TS-1502051 .....Socket Head Cap Screw ........M5x20 ..... EA 4 ....FK350-804 ....Stopper Base..................EA 5 ....TS-1502051 .....Socket Head Cap Screw ........M5x20 ..... EA 6 ....

  • Page 30: Stock Stop Assembly

    Stock Stop Assembly Index No. Part No. Description Size 1 ....FK350-501 ....Block ..................... 1 2 ....FK350-502 ....Shaft ..................... 1 3 ....FK350-503 ....Stop Rod ....................1 4 ....FK350-504 ....Scale (Inch) ................... 1 6 ....FK350-506 ....Handle..............M8x30 ......2 7 ....

  • Page 31: Wiring Diagram

    Wiring Diagram...
  • Page 32 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Ph.: 800-274-6848 www.waltermeier.com...
