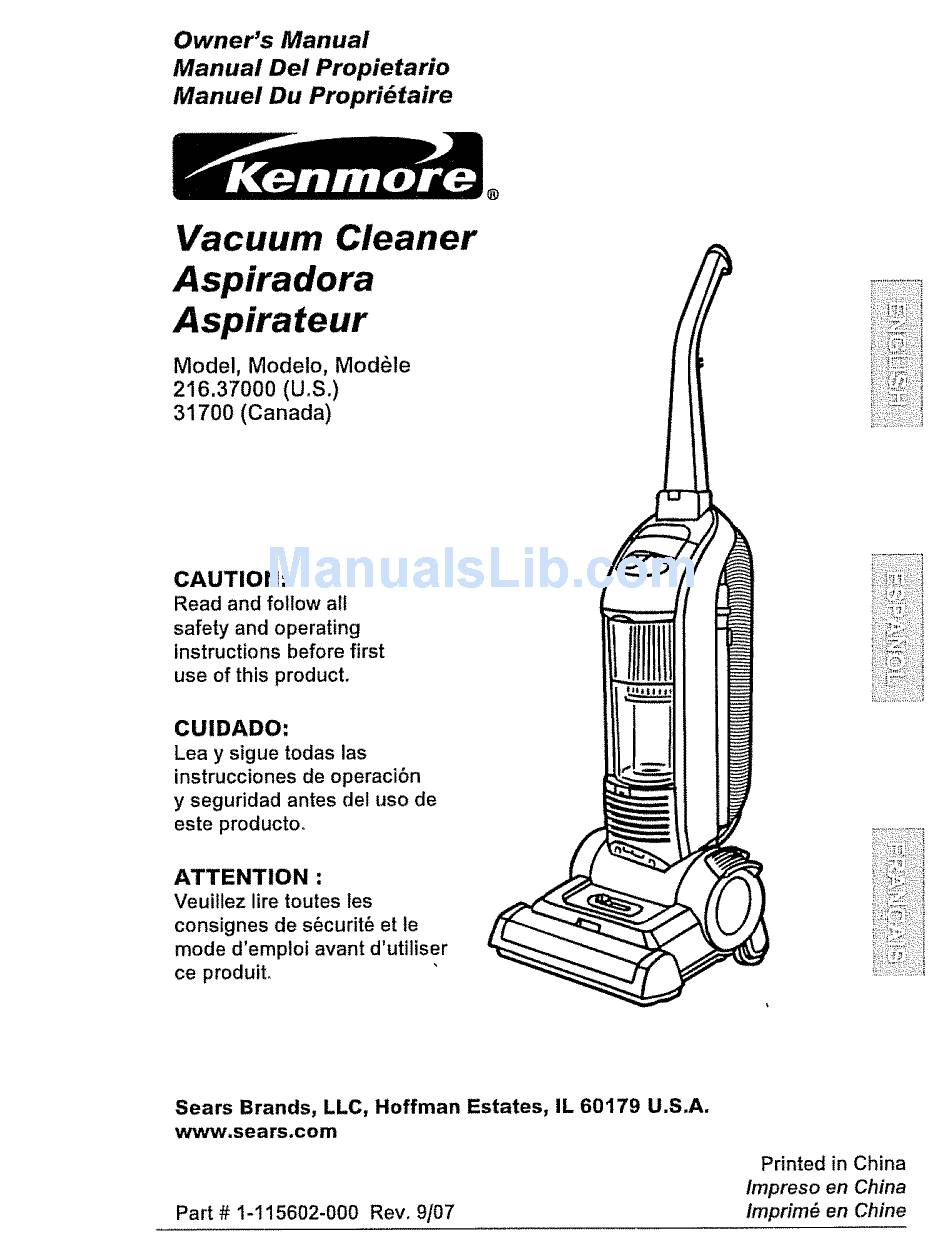

Manual Del Propietario Manuel Du Propri_taire Vacuum Cleaner Aspiradora Aspirateur Model, Modelo, Mod61e 216.37000 (U.S.) 31700 (Canada) CAUTION: Read and follow all safety and operating instructions before first use of this product, CUIDADO: Lea y sigue todas las instrucciones de operaci6n...
Page 2
Service ..(back page) Please read this guide° It will help you assemble and operate your new Kenmore vacuum cleaner in the safest and most effective way. For more information about vacuum cleaner care and operation, call your nearest Sears store.
Page 3
Sears store, Sears Parts & Repair Service Center, or other Kenmore outlet for free repair, If this appliance is ever used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.
Page 4
Your safety is important to us. To WARNING reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precautions including the following: READ ALL INSTRUCTIONS Do not handle plug or IN THIS MANUAL BEFORE appliance...
Page 5
WARNING: The cords, wires, and/or Using improper voltage may result in damage to the motor and possible cables supplied with this product injury to the user. Proper voltage is contains chemicals, including lead or listed on the cleaner plate. lead compounds, known to the state of California to cause cancer and birth defects or other reproductive...
Page 6
It is important to know your vacuum cleaner's parts and features to assure its proper and safe use. Review these before using your vacuum cleaner° Part No. ,Style No. In U.S, K30OO00000 DCF-5 Pleated Filter item ,,H, Belt 1-860140-600 UB-11 Dirt container release latch...
Page 7
Use this list to verify that Make sure the quick release upper you have received all the components cord hook (A) is in the upright position. your new Kenmore vacuum cleaner, Remove the wire tie from the power cord, HANDLE...
Page 8
EXTENSION WAND PLACEMENT Place the crevice toot (A) in the top of the extension wand. Place the extension wand (B) in the wand holder on the side of the vacuum cleaner. OPERATING INSTRUCTIONS 1. Turn the _r cord hook 2. Detach the power cord to either ;e the plug from the power cord.
Page 9
HEIGHT ADJUST LEVER Rotate the handle and adjust it to the desired position for (A) storing the upright, Slide the height adjustment lever to match (B) operating the cleaner, and (C) to clean the surface being cleaned, IMPORTANT: under furniture. NOTE: Rotating brush For easiest adjustment, place cleaner in...
Page 10
Choose any of the handy accessories or use the hose alone. Simply push the CAUTION attachment firmly onto the end of the wand or hose handle° To remove tool, twist and pull apart gently. Brush agitator continues to rotate while hose is removed or in use and at all times while cleaner is on.
Page 11
Tap the filter on the inside of a garbage can to remove excess dust and dirt from filter, Electrical Shock and Personal Injury Hazard Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical shock personal injury...
Page 12
Return dirt container Return lid to dirt by latching to base container and lock of unit° into ptace, Align arrow on lid with arrow on dirt container and twist to "LOCK" position. Remove exhaust filter from cover, Hold exhaust filter under running water to WARN ....
Page 13
Rotate/pivot the nozzle guard and pull off. Electrical Shock and Personal Injury Hazard Disconnect electrical supply before servicing or cleaning the unit, Failure to do so could Lift and remove result in electrical shock brushrolL Dispose personal injury from vacuum old belt.
Page 14
To secure nozzle Secure by aligning guard, rotate lock B in the base siots_ counterclockwise to the locked position, To reattach nozzle Slide lock A to the guard, rotate/pivot back into position, right to the locked position WARNING Electrical Shock and Personal Do not use a bulb rated over 9W Injury...
Page 15
Review this table to find do-it-yourself solutions for minor performance problems. service needed, other than maintenance described in this Owner's Manual, should be performed by a Sears or other qualified service agent. WARNING Cleaner won't run Plug unit in firmly. Power cord not firmly plugged tnto OUfietr Blown fuse or tripped breaker,...
Page 16
Congratulations on making a smart purchase° Your new Kenmore product is designed and manufactured for years of dependable operation° But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.
Page 17
Your Home lawn and garden equipment, or heating and cooling systems, For repair-in your home- of allmajor brand appliances, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner's manuals that you need to do-it-yourself. _: :__ For Sears professional installation...
