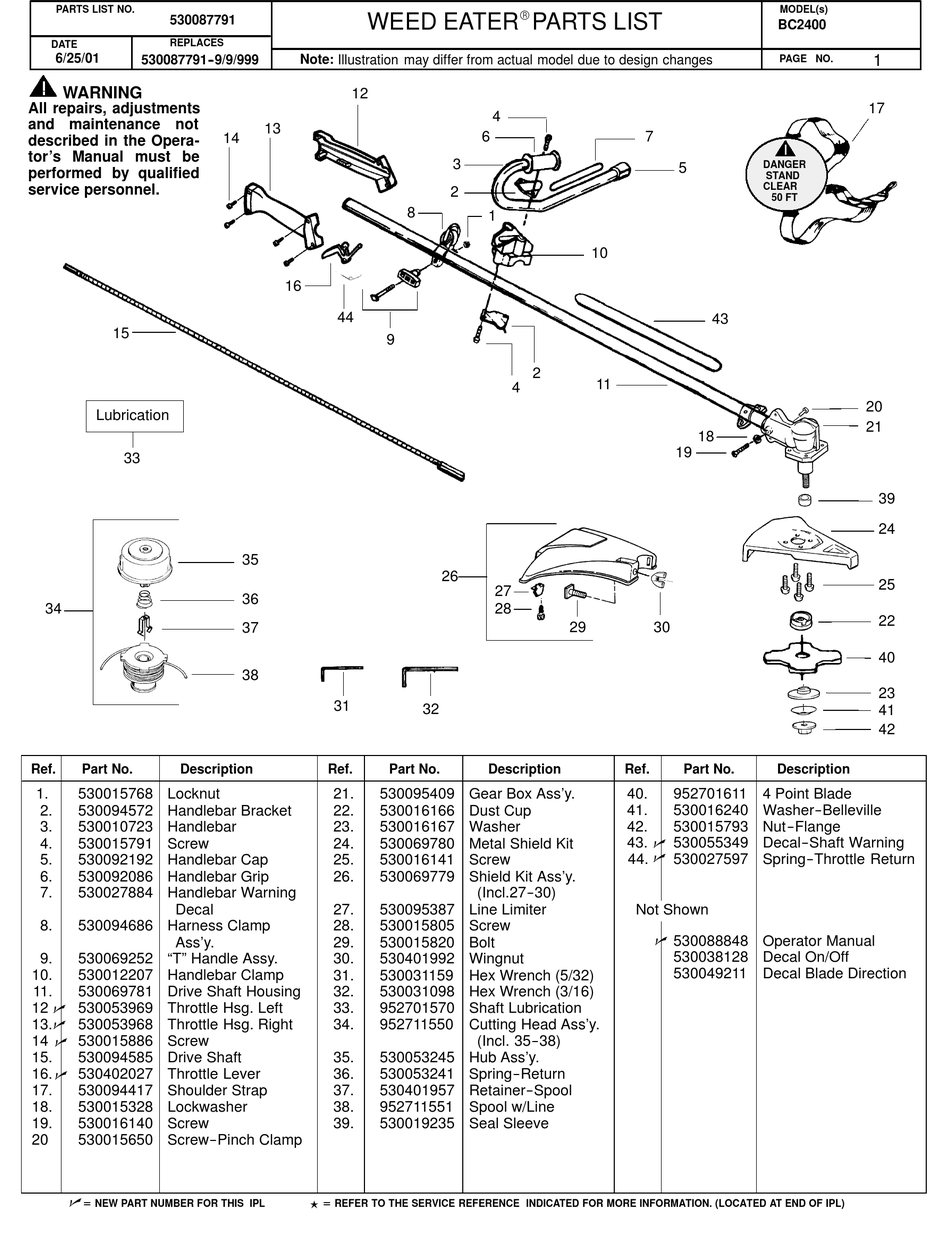

Weed Eater BC2400 Parts List

PARTS LIST NO.
530087791
REPLACES
DATE
6/25/01
530087791- -9/9/999
WARNING
All repairs, adjustments
and maintenance not
described in the Opera-
tor's Manual must be
performed by qualified
service personnel.
15
Lubrication
33
34
Ref. Part No. Description
1. 530015768 Locknut
2. 530094572 Handlebar Bracket
3. 530010723 Handlebar
4. 530015791 Screw
5. 530092192 Handlebar Cap
6. 530092086 Handlebar Grip
7. 530027884 Handlebar Warning
Decal
8. 530094686 Harness Clamp
Ass'y.
9. 530069252 "T" Handle Assy.
10. 530012207 Handlebar Clamp
11. 530069781 Drive Shaft Housing
12 530053969 Throttle Hsg. Left
n
13. n 530053968 Throttle Hsg. Right
14 530015886 Screw
n
15. 530094585 Drive Shaft
16. 530402027 Throttle Lever
n
17. 530094417 Shoulder Strap
18. 530015328 Lockwasher
19. 530016140 Screw
20 530015650 Screw--Pinch Clamp
n =
NEW PART NUMBER FOR THIS IPL
WEED EATER PARTS LIST
PARAMOUNT
POULAN PRO
Note: Illustration may differ from actual model due to design changes
12
13
14
16
44
9
35
36
37
38
31
Ref. Part No.
21. 530095409 Gear Box Ass'y.
22. 530016166 Dust Cup
23. 530016167 Washer
24. 530069780 Metal Shield Kit
25. 530016141 Screw
26. 530069779 Shield Kit Ass'y.
27. 530095387 Line Limiter
28. 530015805 Screw
29. 530015820 Bolt
30. 530401992 Wingnut
31. 530031159 Hex Wrench (5/32)
32. 530031098 Hex Wrench (3/16)
33. 952701570 Shaft Lubrication
34. 952711550 Cutting Head Ass'y.
35. 530053245 Hub Ass'y.
36. 530053241 Spring--Return
37. 530401957 Retainer--Spool
38. 952711551 Spool w/Line
39. 530019235 Seal Sleeve
=
K
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
R R
R R
R

PARTS LIST

POULAN PARTS LIST
PARTS LIST
4
6
3
2
8
1
2
4
26
27
28
29
32
Description
(Incl.27--30)
(Incl. 35--38)
7
5 DANGER
STAND
CLEAR
10
43
11
18
19
30
Ref. Part No.
40. 952701611 4 Point Blade
41. 530016240 Washer--Belleville
42. 530015793 Nut--Flange
43. 530055349 Decal--Shaft Warning
n
44. n 530027597 Spring--Throttle Return
Not Shown
n 530088848 Operator Manual
530038128 Decal On/Off
530049211 Decal Blade Direction
MODEL(s)
BC2400
1
PAGE NO.
17
50 FT
20
21
39
24
25
22
40
23
41
42
Description
