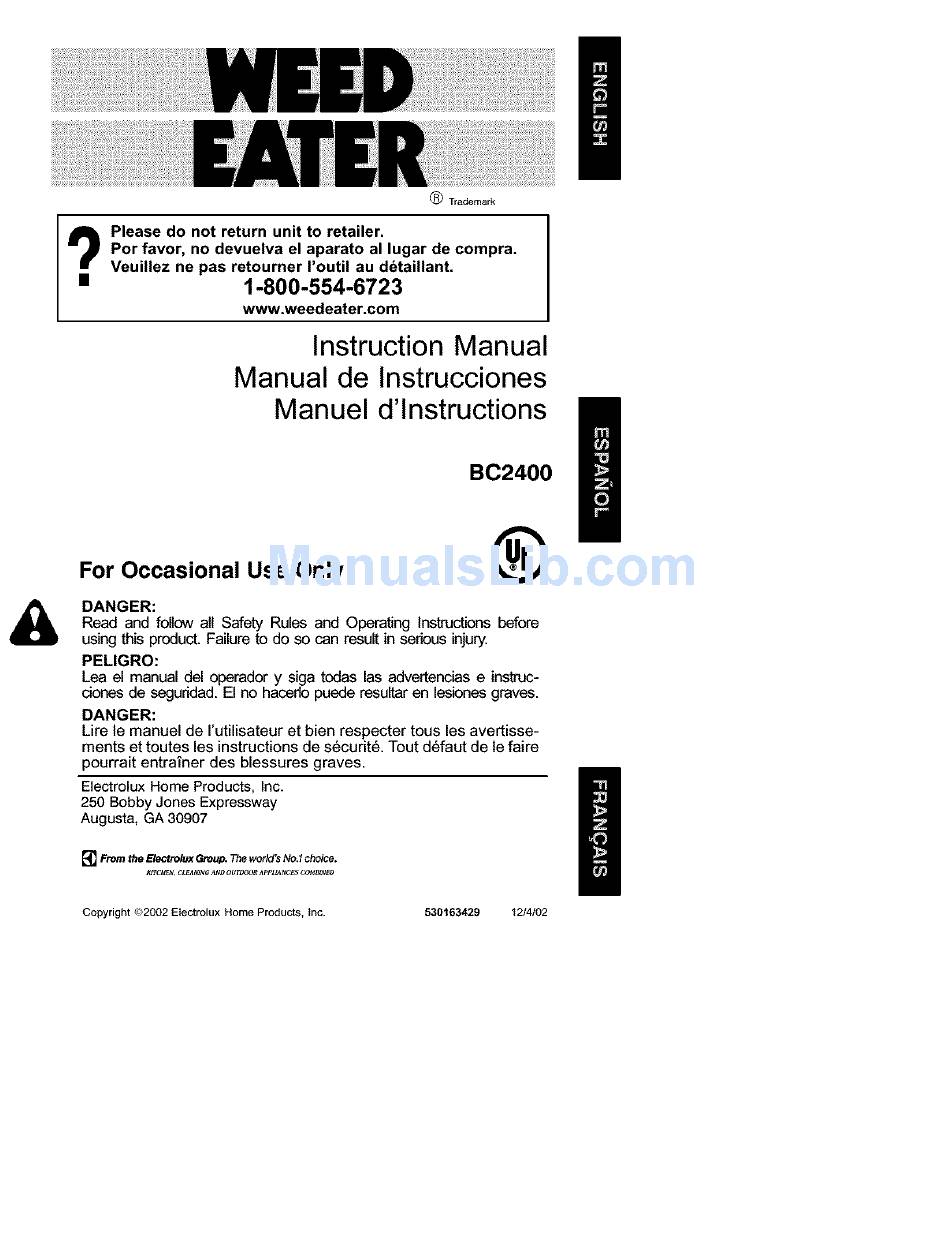

Page 1 _Trademark Por favor, no devuelva el aparato al lugar de compra. Please do not return unit to retailer. Veuillez ne pas retourner I'outil au ddtaillant. • 1-800-554-6723 www.weedeater.com Instruction Manual Manual de Instrucciones Manuel d'lnstructions BC2400 ® For Occasional Use Only...
Page 2 WARNING: When using gardening appliances, basic safety precautions must al- ways be followed to reduce the risk of fire and serious injury. DANGER: This power tool can be d Zone dangerous! This unit can cause serious injury including amputation or blindness to the op- erator and others.
Page 3 • Keep handles free of oil and fuel • Always store gasoline in a container • Always use the handlebar and a properly proved for flammable liquids. adjusted shoulder strap with a blade (see CUTTING SAFETY ASSEMBLY). _WARNING: Inspect the area to be UNIT/MAINTENANCE SAFETY cut before each use.
Page 4 operate in a locale where such regulations ex- ing screen will not require any service. After ist, you are legally responsible for maintaining 50 hours of use, we recommend that your the operating condition of these parts. Failure muffler be serviced or replaced by your autho- to do so is a violation of the law.
Page 5 screwdriver. Remove both washers and blade. Secure shoulder strap clamp by tighten- To remove metal shield, loosen and remove the ing screws with a hex wrench. four mounting screws. See ATTACHING THE METAL SHIELD and INSTALLATION OF THE METAL BLADE for illustrations. Be sure to store HARNESS all parts and instructions for future use.
Page 6 ASSEMBLY INFORMATION - WEED INSTALLATION OF THE METAL BLADE BLADE I_WARNIN_: Wear protective gloves when handling or performing maintenance on the blade to avoid injury. The blade is sharp and can CL_yOU even when it is not moving. WARNING: Do not use any blades, or fastening hardware other than the washers and nL_Sshown in the following illustrations.
Page 7 10. Remove the screwdriver. 11. Turn blade by hand. If the blade binds against the shield, or appears to be un- even, the blade is not centered, and you must reinstall. NOTE: To remove blade, insert screwdriver into aligned holes. Un4hread the nut and re- Tighten blade nut firmly With a wrench while move parts.
Page 8 more times. Move the choke lever to the Never use engine or carburetor cleaner prod- ucts in the fuel tank or permanent damage HALF CHOKE position and pull the starter may occur. rope until the engine runs, but no more than See the STORAGE section for additional 6 pulls.
Page 9 • Keep u nit b elow w aist level. hard objects (rock, gravel, fence posts, etc.), • Keep s houlder strap p ad centered onyour which can damage the trimmer head, become left s houlder and danger sign centered entangled in the line, or be thrown causing a your b ack.
Page 10 MOWING - Your trimmer is ideal for mowing in places conventional lawn mowers cannot reach. In the mowing position, keep the line parallel to the ground. Avoid pressing head into the ground as this can scalp the ground and damage the tool. Mowing •...
Page 11 RECOMMENDED CUTTING POSITION 4tb WARNING: The operator or others must not try to clear away cut material with the Cut using the 2 engine running or the blade turning to avoid o'clock to 4 o'clock serious injury. Stop engine and blade before position of the 4 o'clock removing materials wrapped around blade or...
Page 12 Line exit holes Line in Notch • Engine will not idle when the throttle released. • The trimmer head or blade moves/spins idle. Make adjustments with the unit supported so the cutting attachment is off the ground and will not make contact with any object. Hold the unit by hand while running and making ad- Line in Notch...
Page 13 OTHER • At the beginning of the next season, use only fresh fuel having the proper gasoline to • Do not store gasoline from one season to oil ratio• another. • Replace your gasoline can if it starts to rust. TROUBLESHOOTING TABLE WARNING:...
Page 14 ELECTROLUX HOME PRODUCTS, INC., er predelivery setup or normal adjustments warrants to the original purchaser that each explained in the instruction manual. THIS WARRANTY GIVES YOU SPECIFIC new Weed Eater® brand gasoline tool or at- tachment is free from defects in material and LEGAL RIGHTS,...
Page 15 warranted part which is not scheduled for re- use of add -on or modified parts. HOW TO FILE placement as required maintenance, or which is A CLAIM: if you have any questions regarding scheduled only for regular inspection to the ef- your warranty rights and responsibilities, fect of "repair or replace as necessary"...
