ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the two
included hex keys, assembly requires a phillips screwdriver
wrenches

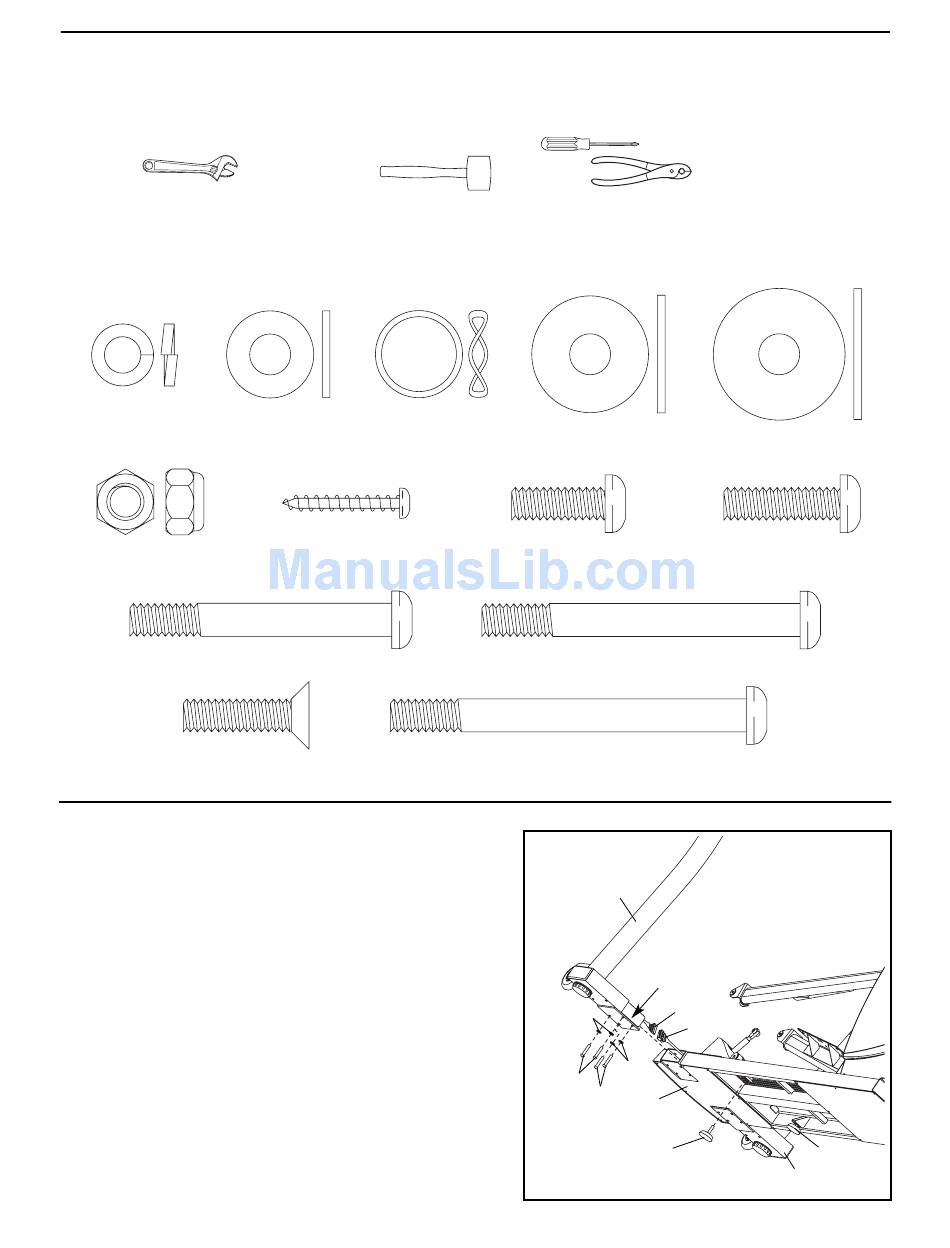

Use the drawings below to identify the small parts used for assembly. The number in parenthesis below each
drawing is the key number of the part, from the PART LIST on page 25. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled.
M8 Split
M8 Washer
Washer
(101)–12
M8 Nylon
Locknut (102)–12
M8 x 56mm Button Screw (108)–4
M8 x 23mm Flat
Head Screw (88)–6
1. Remove the Pivot Arms (not shown) and the plastic
inserts from the Left and Right Uprights (4, 3). Identify
the Left Upright (4) and hold it near the Frame (1).
While another person lifts the left side of the elliptical
exerciser, connect the Extension Wire Harness (76) to
the Lower Wire Harness (77).
Insert the Left Upright (4) into the Frame (1), and
attach it with two M8 x 56mm Button Screws (108),
two M8 x 68mm Button Screws (110), and four M8
Split Washers (101); make sure not to pinch the
Wire Harnesses (76, 77). Tighten a Frame Cushion
(32) into the Frame (1) as indicated.
While another person lifts the right side of the Frame
(1), attach the Right Upright (3) to the Frame in the
same way. (Note: There are no wire harnesses on the
right side.) Tighten the other Frame Cushion (32) into
the other side of the Frame (1).
, a rubber mallet
Wave Washer
(100)–2
(94)–6
M4 x 25mm
Screw (105)–4
, and pliers
M8 x 25mm
Washer (95)–2
M8 x 20mm Button
Screw (113)–2
M8 x 68mm Button Screw (110)–8
M8 x 76mm Button Bolt (112)–4
1
4
101
101
108
110
5
, two adjustable
.
M8 x 28mm
Washer (99)–4
M8 x 25mm Button
Screw (81)–2
Do not pinch the
wire harnesses
during this step.
Plastic
Insert
76
77
1
32
32
3
