SWINGARM

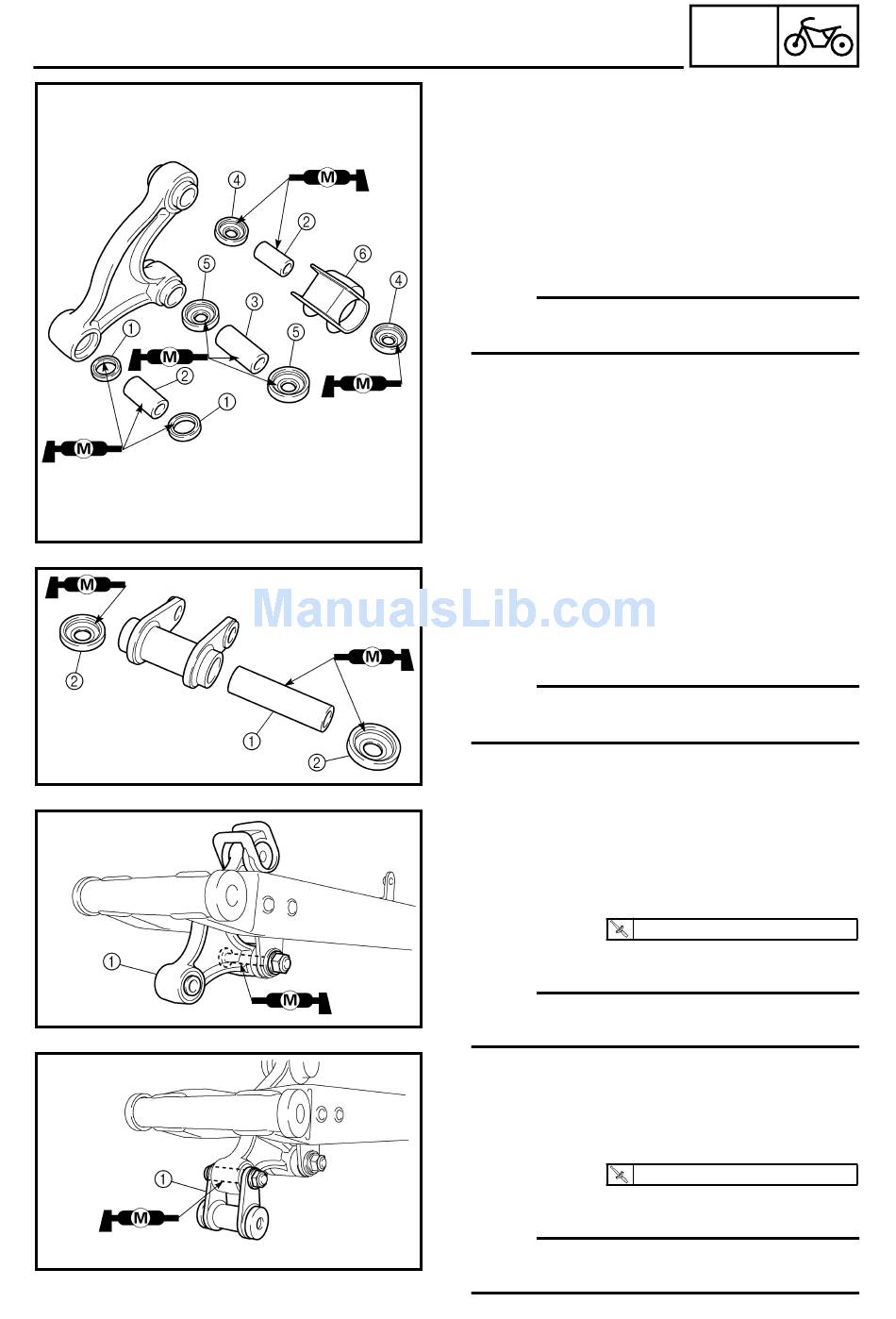

2. Install:
Oil seals 1
G
Collars 2
G
Bushing 3
G
Dust covers 4
G
Dust covers 5
G
Rubber boot 6
G
On relay arm.
NOTE:
Apply the molybdenum disulfide grease on the
bushing, collar, oil seal lip and dust cover lip.
3. Install:
Collar 1
G
Dust covers 2
G
On connecting arm.
NOTE:
Apply the molybdenum disulfide grease on the
collar and dust cover lip.
4. Install:
Relay arm 1
G
Bolt (relay arm)
G
Plain washer
G
Nut (relay arm)
G
On swingarm.
NOTE:
Apply the molybdenum disulfide grease on the
bolt (relay arm).
5. Install:
Connecting arm 1
G
Bolt (connecting arm)
G
Plain washer
G
Nut (connecting arm)
G
On relay arm.
NOTE:
Apply the molybdenum disulfide grease on the
bolt (connecting arm).
5 - 59
CHAS
53 Nm (5.3 m · kg, 38 ft · lb)
35 Nm (3.5 m · kg, 25 ft · lb)
