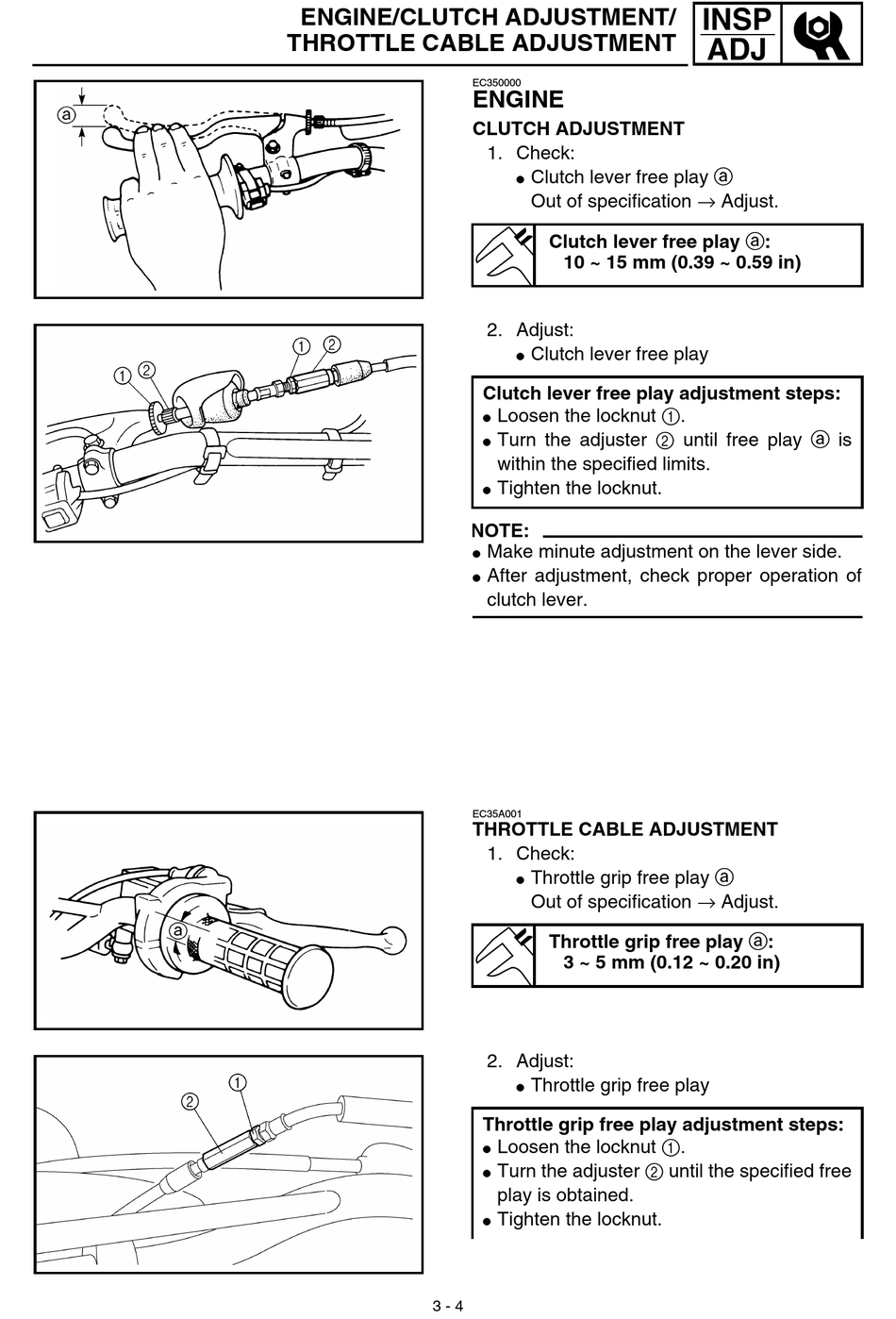

ENGINE/CLUTCH ADJUSTMENT/
THROTTLE CABLE ADJUSTMENT
3 - 4
EC350000
ENGINE
CLUTCH ADJUSTMENT
1. Check:
Clutch lever free play a
G
Out of specification → Adjust.
Clutch lever free play a:
10 ~ 15 mm (0.39 ~ 0.59 in)
2. Adjust:
Clutch lever free play
G
Clutch lever free play adjustment steps:
Loosen the locknut 1.
G
Turn the adjuster 2 until free play a is
G
within the specified limits.
Tighten the locknut.
G
NOTE:
Make minute adjustment on the lever side.
G
After adjustment, check proper operation of
G
clutch lever.
EC35A001
THROTTLE CABLE ADJUSTMENT
1. Check:
Throttle grip free play a
G
Out of specification → Adjust.
Throttle grip free play a:
3 ~ 5 mm (0.12 ~ 0.20 in)
2. Adjust:
Throttle grip free play
G
Throttle grip free play adjustment steps:
Loosen the locknut 1.
G
Turn the adjuster 2 until the specified free
G
play is obtained.
Tighten the locknut.
G
