Yamaha TT-R125(R) Owner's Service Manual page 386

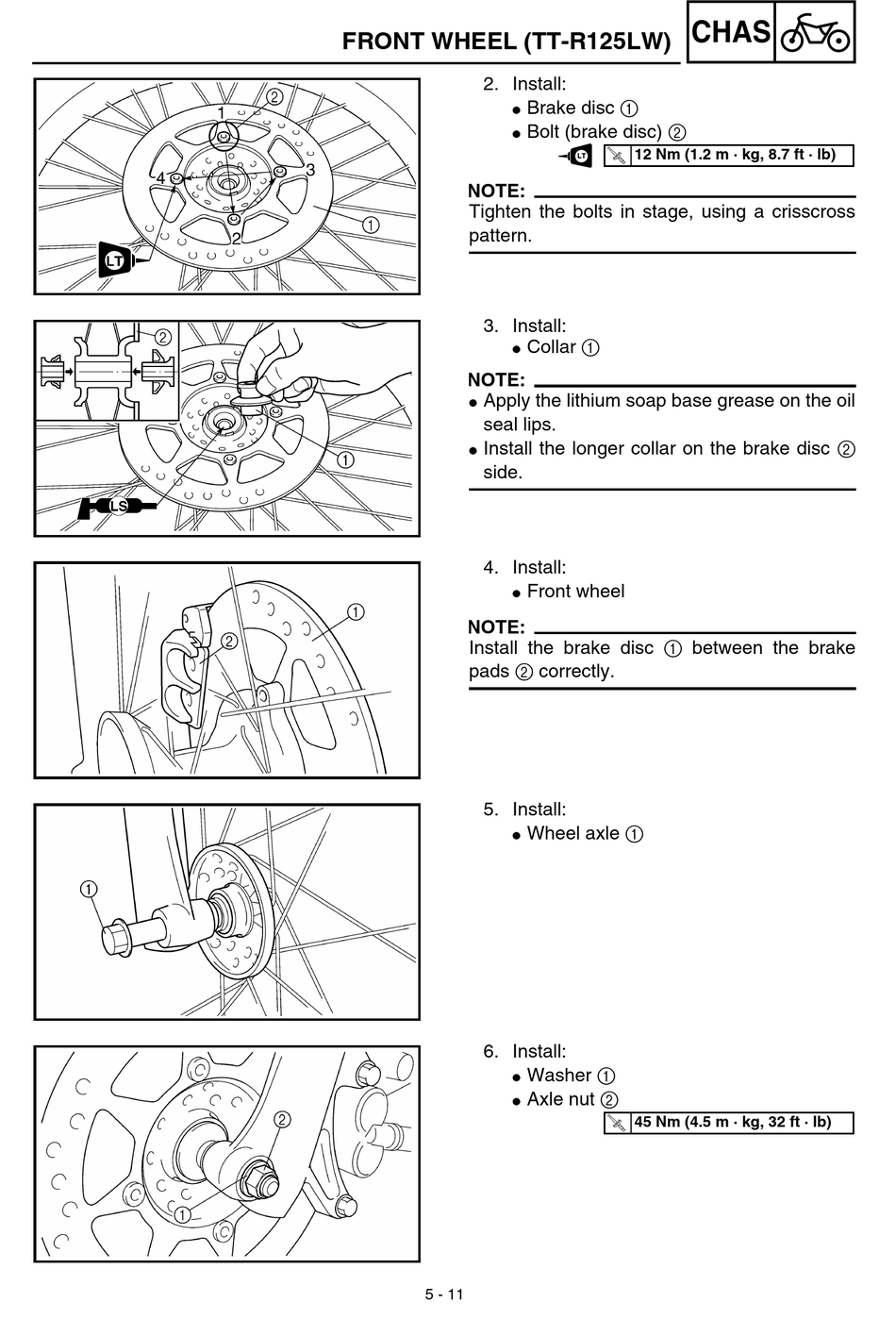

FRONT WHEEL (TT-R125LW)
2. Install:
NOTE:
Tighten the bolts in stage, using a crisscross
pattern.
3. Install:
NOTE:
Apply the lithium soap base grease on the oil
G
seal lips.
Install the longer collar on the brake disc 2
G
side.
4. Install:
NOTE:
Install the brake disc 1 between the brake
pads 2 correctly.
5. Install:
6. Install:
5 - 11
Brake disc 1
G
Bolt (brake disc) 2
G
12 Nm (1.2 m · kg, 8.7 ft · lb)
LT
Collar 1
G
Front wheel
G
Wheel axle 1
G
Washer 1
G
Axle nut 2
G
45 Nm (4.5 m · kg, 32 ft · lb)
CHAS
