Invacare IRC 1730 Operator's Manual

Compressor nebulizer system
Hide thumbs Also See for IRC 1730:
Table of Contents

Advertisement

Quick Links

Download this manual

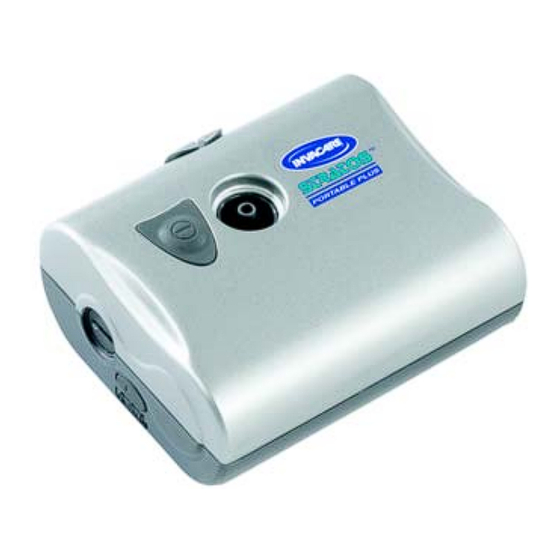

Operator's Manual
Stratos™Portable Plus
Compressor Nebulizer
System
Model Number: IRC 1730
Dealer: This manual MUST be given to the end user.
User: BEFORE using this product, read this manual and save
for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com

Advertisement

Table of Contents
loading

Related Manuals for Invacare IRC 1730

Summary of Contents for Invacare IRC 1730

  • Page 1 Operator’s Manual Stratos™Portable Plus Compressor Nebulizer System Model Number: IRC 1730 Dealer: This manual MUST be given to the end user. User: BEFORE using this product, read this manual and save for future reference. For more information regarding Invacare products, parts, and services,...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS SPECIAL NOTES ..........5 INTRODUCTION ..........6 REGISTER YOUR PRODUCT ......7 FEATURES ............8 TYPICAL PRODUCT PARAMETERS ....9 SUPPLEMENTAL INFORMATION ..... 10 Compressor..................10 Extension Cords................10 HANDLING ........... 11 Shipping Instructions................. 11 Unpacking....................
  • Page 3 TABLE OF CONTENTS TABLE OF CONTENTS Battery Specifications ............... 21 Conditioning the Battery..............23 Using the Battery................24 Charging the Battery ................ 25 SECTION 4—CLEANING AND DISINFECTING ... 27 Cleaning the Nebulizer ..............27 Cleaning the Mouthpiece..............29 Changing the Nebulizer ..............29 Cleaning the Compressor ...............
  • Page 4 ACCESSORIES WARNING Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. Stratos™Portable Plus Part No 1150755...

  • Page 5: Special Notes

    SPECIAL NOTES SPECIAL NOTES Signal words are used in this manual and apply to hazards or  unsafe practices which could result in personal injury or  property damage. Refer to the table below for definitions of  the signal words. SIGNAL MEANING WORD Danger indicates an imminently hazardous situation which, if DANGER not avoided, will result in death or serious injury. Warning indicates a potentially hazardous situation which, if WARNING not avoided, could result in death or serious injury. Caution indicates a potentially hazardous situation which, if CAUTION not avoided, may result in property damage.

  • Page 6: Introduction

    INTRODUCTION INTRODUCTION Your Invacare Stratos Portable Plus Compressor Nebulizer  System is the latest in portable compressor nebulizer  technology. The purpose of the nebulizer system is to convert  your liquid medication into a fine mist that can be drawn into  your lungs to relieve your respiratory condition. The  nebulizer system is very portable and lightweight. For even  greater convenience, ask your dealer about the optional  battery pack that is sold separately. To maximize your benefit from the nebulizer system, we  recommend you read and understand the information in the  operating manual. By following your doctor’s advice and  these simple instructions, the nebulizer system will become a  valuable part of your daily treatment routine. Stratos™Portable Plus Part No 1150755...

  • Page 7: Register Your Product

    Please have your model number and purchase date available to complete your registration. Any registration information you submit will only be used by Invacare Corporation and protected as required by applicable laws and regulations. Part No 1150755 Stratos™Portable Plus...

  • Page 8: Features

    FEATURES FEATURES Compressor Outlet On/Off Button Inlet Air Filter AC/DC Power Outlet Stratos™Portable Plus Part No 1150755...

  • Page 9: Typical Product Parameters

    TYPICAL PRODUCT PARAMETERS TYPICAL PRODUCT PARAMETERS SOUND LEVEL: 58 dBA OPERATING 50°F - 104°F (10°C to 40°C); 10 to 95% RH TEMPERATURE RANGE: FOAM INTAKE FILTER: Expanded Polyurethane SAFETY SYSTEMS: High temperature compressor shutdown. REGULATORY LISTING: In compliance with EN 60601-1 DIMENSIONS WITHOUT BATTERY: 5.1 x 3.6 x 1.6 inches (13cm x 9cm x 4cm)

  • Page 10: Supplemental Information

    SUPPLEMENTAL INFORMATION SUPPLEMENTAL INFORMATION Compressor If the unit shuts down frequently or fails to start, you may  have a low voltage situation.  Low voltage can also be suspected when: • The compressor fails to start or motor does not get up to  full power or speed. • Other motor operated appliances fail to operate properly  or too many motor operated appliances are on same  circuit. Extension Cords Make certain extension cord is in good condition. Make  certain extension cord wire is NOT LESS than 18 gauge for 25  feet. Stratos™Portable Plus Part No 1150755...

  • Page 11: Handling

    HANDLING HANDLING Shipping Instructions The shipping container has been designed to assure  protection of this device. If this device is to be reshipped by common carrier, it should  be packed in the same carton. Unpacking 1. Check for any obvious damage to the carton or its  contents. If damage is evident, DO NOT use. Notify  carrier/Invacare or your local Invacare dealer. 2. Remove all the loose packing from the carton. 3. Carefully remove all the components from the carton. NOTE: Retain carton and packing materials for use in shipping or  storing the unit until use is required. Inspection 1. Examine exterior for nicks, dents, scratches or other  damage. Inspect all components. Part No 1150755 Stratos™Portable Plus...

  • Page 12: Section 1-Important Safeguards

    SECTION 1—IMPORTANT SAFEGUARDS SECTION 1—IMPORTANT SAFEGUARDS WARNING SECTION 1 - IMPORTANT SAFEGUARDS contains important information for the safe operation and use of this product. CAUTION “Caution: Federal law restricts this device to sale or rental by  or on order of a physician, or any other practitioner licensed  by the law of the State in which he/she practices to use or  order the use of this device.” When using electrical products, especially when children are  present, basic safety precautions should ALWAYS be  followed, including the following. READ ALL INSTRUCTIONS BEFORE USING Stratos™Portable Plus Part No 1150755...

  • Page 13: To Reduce The Risk Of Electrocution

    SECTION 1—IMPORTANT SAFEGUARDS DANGER Risk of electric shock. DO NOT disassemble. Refer servicing  to qualified service personnel. FIRE RISK ‐ DO NOT use this product in an oxygen enriched  environment (i.e – oxygen tent). To Reduce the Risk of Electrocution: ALWAYS unplug this product IMMEDIATELY after using. DO NOT use while bathing. DO NOT place or store product where it can fall or be pulled  into a tub or sink. DO NOT reach for product that has fallen into water. Unplug  IMMEDIATELY. DO NOT place in or drop into water or other liquid. DO NOT reach for a product that has fallen into water.  Unplug IMMEDIATELY. Part No 1150755 Stratos™Portable Plus...
  • Page 14 SECTION 1—IMPORTANT SAFEGUARDS WARNING To Reduce the Risk of Burns, Electrocution, Fire and Injury to Persons: This product should NEVER be left unattended when  plugged in. Close supervision is necessary when this product is used by,  on, or near children and physically challenged individuals. Use this product only for its intended use as described in this  manual and only with the prescribed medication. Use this  product only under physician’s direction. NEVER operate this product with a damaged cord or plug, if  it is not working properly, if it was dropped or damaged, or if  it was dropped into water. Call qualified service personnel for  examination and repair. Keep the nebulizer tubing, system power cord, and unit away  from heated or hot surfaces, including space heaters, electric  blankets, stoves and similar electrical appliances. NEVER drop or insert objects into any opening or hose. NEVER use while sleeping or drowsy. Stratos™Portable Plus Part No 1150755...
  • Page 15 SECTION 1—IMPORTANT SAFEGUARDS WARNING NEVER block the air openings of the product or place it on a  soft surface, such as a bed or couch, where the air openings  may be blocked. Keep the air openings free from lint, hair and  the like. Blocked openings may cause the unit to shut down.  Contact dealer IMMEDIATELY. The Stratos Portable Plus Compressor Nebulizer System uses  the surrounding air to effectively administer the prescribed  medication through the nebulizer. The user and administrator  should be aware of surroundings so as not to have  contaminated air filtered through the compressor nebulizer  system. (Examples can be air contaminated with paint or  cleaning fumes, weed killer, car exhaust, smoking, etc.)  DO NOT use the Stratos Portable Plus Compressor Nebulizer  System in these environments. Otherwise, serious bodily  injury may occur. This unit is oil‐less. DO NOT lubricate. This equipment is NOT suitable for use in the presence of a  flammable anesthetic mixture with air or with nitrous oxide. DO NOT operate the compressor while it is still in the  carrying case. Part No 1150755 Stratos™Portable Plus...
  • Page 16 SECTION 1—IMPORTANT SAFEGUARDS WARNING When not administering treatment, keep out of the reach of  small children. Some of the parts of the nebulizer system are  small enough for children to swallow. The tubing may  present a strangulation hazard NEVER touch the unit with wet hands. DO NOT pull on the power cord to unplug the unit from an  electrical outlet. DO NOT overload wall outlets. Pump maintenance MUST be performed by a qualified  service technician. SAVE THESE INSTRUCTIONS Stratos™Portable Plus Part No 1150755...

  • Page 17: Section 2-Operating Instructions

    SECTION 2—OPERATING INSTRUCTIONS SECTION 2—OPERATING INSTRUCTIONS WARNING Remove the compressor from the carrying case before use. DO NOT operate unit without filter. Avoid operating this product in a dusty environment. Otherwise, premature compressor wear could occur. Setup NOTE: For this procedure, refer to FIGURE 2.1 on page 18. 1. Wash your hands before you begin the treatment  procedure.
  • Page 18 SECTION 2—OPERATING INSTRUCTIONS WARNING DO NOT exceed the maximum allowed quantity of six ml of medication. The maximum capacity of the nebulizer medication cup is 6 ml. CAUTION NEVER pour medication into the compressor outlet. Damage to the compressor will occur. 5.

  • Page 19: Treatment Instructions

    AC adapter into the electrical outlet. 12. To use the nebulizer system with the DC auto adapter,  connect the DC auto adapter to the power outlet on the  side of the nebulizer compressor system. Connect the auto  adapter plug of the DC cord to the auto adapter receptacle. DANGER To avoid the risk of possible electrical shock, the nebulizer system MUST be operated on the specified power source. Treatment Instructions NOTE: For this procedure, refer to FIGURE 2.2 on page 20. NOTE: The Invacare Stratos Portable Plus Nebulizer System has  been designed for intermittent use. Normal treatment time should be  five to ten minutes. Turn off the nebulizer system after 30 minutes  of use and allow the device to cool down 30 minutes before turning  it on again. Part No 1150755 Stratos™Portable Plus...
  • Page 20 SECTION 2—OPERATING INSTRUCTIONS 1. Sit in a relaxed and upright position.  2. Turn on the device by pushing the On/Off button.  3. Begin treatment by  placing the nebulizer  mouthpiece between  your teeth and close your  mouth. Inhale deeply and  slowly as the aerosol  begins to flow and then  exhale slowly. FIGURE 2.2 Using the 4. When treatment is  Nebulizer completed, turn off the  nebulizer system and  unplug the power  adapter. 5. Remove the mouthpiece from the nebulizer. 6. Remove the nebulizer and follow the cleaning  instructions. Refer to Cleaning and Disinfecting on  page 27. Stratos™Portable Plus Part No 1150755...

  • Page 21: Section 3-Batteries

    Battery operation may vary due to charge conditions and care. WARNING Use only the original batteries supplied by Invacare. Carefully follow the instructions for operating the unit. Any other kind of use constitutes an improper use and is therefore dangerous. Invacare cannot be held liable for any damage caused by improper, incorrect or unreasonable use.
  • Page 22 SECTION 3—BATTERIES CAUTION In case of failure and/or malfunction, turn the unit off and read the operating manual. DO NOT attempt to open the plastic case or to replace any components. DO NOT short circuit battery contacts. Make sure battery contacts DO NOT come in contact with keys, coins or other metal objects.

  • Page 23: Conditioning The Battery

    SECTION 3—BATTERIES Conditioning the Battery NOTE: The definition of conditioning the battery is simply charging  the battery for a full six hour cycle before the initial use of the  product. 1. Disconnect the battery from the compressor. 2. Connect the power cable (AC) or auto adapter cable (DC)  to the battery. 3. Charge the battery for a full six hour cycle. The orange light will indicate if the battery is properly  charging. Battery charging to full capacity is dependent upon  many factors. Charging of the battery requires at least 6 hours.  Failure to condition the battery prior to its first use may result  in a reduced battery life expectancy. To assure maximum life  performance of the battery after conditioning, leave the  battery connected to a power source when not in use.  The battery operation time depends upon the charge  condition of the battery, the temperature, the storage time of  the battery prior to use, the amount of medication used for  treatment, and the number of charge/discharge cycles. The  manufacturer of the battery recommends the battery be  conditioned every one or two months. Part No 1150755 Stratos™Portable Plus...

  • Page 24: Using The Battery

    SECTION 3—BATTERIES Using the Battery 1. Before connecting the  battery pack shift the  Cover grey contacts cover on  the bottom of the  Direction compressor to its side  Arrow position, following the  direction arrow. Refer to  FIGURE 3.1Contact Cover FIGURE 3.1 on page 24. 2. Press the battery and compressor together until the release  button on the front of the battery clicks. Refer to FIGURE  3.2 on page 25 3. Gently pull the compressor and battery pack in opposite  directions to ensure the tabs have seated properly. 4. To remove the battery pack, press the release button on the  front of the battery pack while pulling the battery and  compressor apart. NOTE: The GREEN light on the battery will not illuminate while  the nebulizer is being powered. The ORANGE light flashes when the  battery power level is low. When the ORANGE light flashes,  immediately find an alternative power source (i.e. a wall socket). Stratos™Portable Plus Part No 1150755...

  • Page 25: Charging The Battery

    SECTION 3—BATTERIES Recess Compressor (hidden from view) Hook Battery Release Connect Cable HERE Button FIGURE 3.2 Using the Battery Charging the Battery NOTE: For this procedure, refer to Refer to FIGURE 3.2 on page 25. 1. Press in the release button on the front of the battery pack  and separate the battery from the compressor.  2. Connect the power cable (AC) to the AC adapter and cable  provided with your STRATOS Portable Plus Compressor. 3. Connect the AC adapter and cable to the battery. 4. Plug the power cable into the appropriate power source. Part No 1150755 Stratos™Portable Plus...
  • Page 26 SECTION 3—BATTERIES The ORANGE light will turn on indicating that the charging  cycle has begun. The battery will reach full charge after at  least six hours. Completion of the charge cycle is indicated by  a GREEN battery light. Full charge will provide up to ninety  minutes of operation. NOTE: In order to ensure maximum performance of the battery,  keep the battery plugged in and charging when not in use. This will  not overcharge or damage the battery. NOTE: The battery must be plugged into a power source for the  battery to charge. The battery will not charge when it is attached to  the compressor nebulizer system. NOTE: Never leave the battery connected to either power cable  when the cable is disconnected from the power source. This will  cause the battery to discharge. Stratos™Portable Plus Part No 1150755...

  • Page 27: Section 4-Cleaning And Disinfecting

    • Clean the nebulizer before initial operations. • Clean the nebulizer after each aerosol treatment. • ALWAYS use fresh cleaning solution. • DO NOT towel dry the nebulizer components after cleaning. NOTE: Your physician and/or an Invacare dealer may specify  certain cleaning procedures. If so, follow their recommendations. If  not, clean according to the following instructions: 1. Remove the nebulizer and mouthpiece from the tubing. Part No 1150755 Stratos™Portable Plus...
  • Page 28 SECTION 4—CLEANING AND DISINFECTING 2. Disassemble nebulizer chamber by turning  counterclockwise and separating. 3. Fill two plastic containers or bowls: A. Washing: Hot water/detergent solution. B. Soaking: Hot water/vinegar solution (one part vinegar  to three parts water). 4. Thoroughly clean the nebulizer and mouthpiece in hot  water/detergent solution. 5. Remove from the water/detergent solution and rinse with  clear hot tap water. 6. Soak in hot water/vinegar solution for 30 minutes. 7. Rinse with hot tap water again and air dry thoroughly. NOTE: If using medical disinfectant cleaners, follow  manufacturer’s instructions carefully. 8. Keep the outer surface of the tubing dust‐free by wiping  regularly. The nebulizer air tubing does not have to be washed internally  because only filtered air passes through the tubing. Stratos™Portable Plus Part No 1150755...

  • Page 29: Cleaning The Mouthpiece

    SECTION 4—CLEANING AND DISINFECTING Cleaning the Mouthpiece 1. Boil the mouthpiece in water for a maximum of five  minutes or autoclave at a maximum of 121° C for ten  minutes. 2. Allow the mouthpiece to air dry. 3. Once dry, the mouthpiece may be stored inside the  nebulizer top. Changing the Nebulizer The nebulizer is designed for single patient use. The nebulizer MUST be replaced after a long period of  inactivity, or when it is obstructed by dry medication, dust,  etc. The reusable nebulizer should last from six months to one  year with general use. The disposable nebulizer should last 30  days. Cleaning the Compressor DANGER DO NOT remove outer case of this unit. Removing the case creates a serious electrical shock hazard. All disassembly and maintenance of this unit MUST be done by a qualified technician.
  • Page 30 SECTION 4—CLEANING AND DISINFECTING WARNING Unplug unit before cleaning. DO NOT clean using abrasive cleaners. DO NOT submerge in water to clean. Clean outer case with damp cloth. CAUTION If fluid gets into the area around the compressor outlet, wipe the area off with a dry cloth and let the nebulizer sit on its front end for five minutes.

  • Page 31: Section 5-Maintenance

    All disassembly MUST be performed by an authorized Invacare service center. WARNING All maintenance on your Invacare Stratos Portable Plus Nebulizer system MUST be performed by an authorized Invacare service center. Maintenance manuals and parts lists are available through Invacare upon request.

  • Page 32: Storage

    Filter Care The accessible filter MUST be replaced after one month of use  or when it turns GREY. The filter should be replaced if the  nebulizer has been in storage for three months or longer. CAUTION Use only the filters provided with the Invacare Stratos Portable Plus Nebulizer device. DO NOT use cotton or any other material. DO NOT wash or clean the filter. Use only Invacare filters. DO NOT operate without a air filter.

  • Page 33: Section 6-Troubleshooting

    SECTION 6—TROUBLESHOOTING SECTION 6—TROUBLESHOOTING PROBLEM SOLUTION Nebulizer overheats. The Turn the unit OFF for a minimum of 40 nebulizer has an internal minutes to allow the nebulizer to cool. thermal protector to prevent the device from overheating. If the internal temperature reaches the preset level, the unit will automatically shut down, and...
  • Page 34 SECTION 6—TROUBLESHOOTING PROBLEM SOLUTION Nebulizer does not work, The thermal protector has been activated due and the light indicator is red. a. The device operating outside the conditions outlined in this manual. b. The device has been operating near heat sources or in hot environments.

  • Page 35: Limited Warranty

    Invacare warrants this product when purchased new and unused to be free from defects in materials and workmanship for a period of three years from date of purchase from Invacare or a dealer, except that for batteries, the warranty period is six months;...
  • Page 36 LIMITED WARRANTY telephone number identified on the back cover of this manual. Upon receiving notice of an alleged defect in a product, Invacare will issue a serialized return authorization. It shall be the responsibility of the purchaser to pack the product(s) or part(s) in an appropriate manner to avoid shipping damage and return the product(s) or part(s), at the purchaser’s expense, to either...
  • Page 37 TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. SOME STATES DO NOT ALLOW THE EXCLUSION OR...
  • Page 38 NOTES NOTES Stratos™Portable Plus Part No 1150755...
  • Page 39 NOTES NOTES Part No 1150755 Stratos™Portable Plus...
  • Page 40 All rights reserved. Trademarks are One Invacare Way identified by the symbols ™ and ®. All Elyria, Ohio USA trademarks are owned by or licensed 44036-2125 to Invacare Corporation unless 800-333-6900 otherwise noted. ©2008 Invacare Corporation In Florida Part No 1150755 Rev B- 10/08 2101 E.
