Bosch D223A Series Manual

Intrusion Alarm Systems | D223A Series LCD Keypads
D223A Series LCD Keypads
www.boschsecurity.com

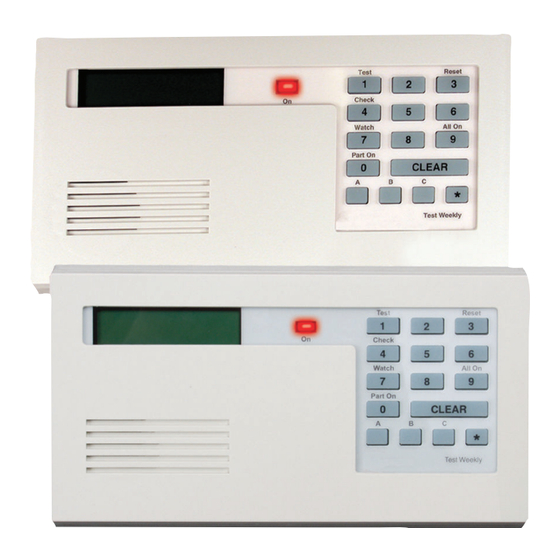

The D223A Series Keypads have displays that are
strategically placed, easy to read, and bright enough to
be visible from a distance. Most users can operate the
keypad with confidence after only a few minutes of
instruction, eliminating the need for extensive training
sessions.
Functions
Individual Color-coded Lights
The keypads have the following lights to indicate
system status:
• Red light indicating the system is On
• Yellow light indicating the system is On with No Delay
• Red lights indicate each of the eight sensor loops
• Green light indicating the system is "All On"
• Green light indicating the system is "Part On"
• Green light indicating overall system operation is okay
Programmable Idle and Point Text
Text that shows in the display when the system is idle
is programmable. The text used to identify up to 24
points is also programmable allowing clear
identification of the sensor that is in alarm or trouble.
Step Outside excursion feature provides easy to use
u
bypass and restoral of entry points
Exit Only function allows users to exit when the
u
system is On with No Delay without turning the
system Off
Programmable idle and point text
u
Text leads user through the system
u
Coded Sounder
The sounder uses coded tones to provide alarm,
trouble, watch, entry and exit delay, error, and other
annunciation. Some tones can be enabled, disabled,
and otherwise altered by programming.
Three Programmable Emergency Keys
Along with the eleven action keys, there are three
programmable keys that can be programmed for
specific functions, such as Emergency, Fire, or Panic.
Single key operation controls many of the basic
functions. All of the keys illuminate during entry delay
and when a key is pressed. Custom labeling is
provided for all the keys except the "CLEAR" key.
Certifications and approvals
Region Certification
USA UL AMCX: Central Station Alarm Units
(UL1610, UL1635), AOTX: Local Alarm
Units (UL464, UL609), APAW: Police
Station Alarm Units (UL365, UL464),
APOU: Proprietary Alarm Units
(UL1076), NBSX: Household Burglar
Alarm System Units (UL1023), UTOU:
Control Units and Accessories - House-
hold System Type (UL985)
