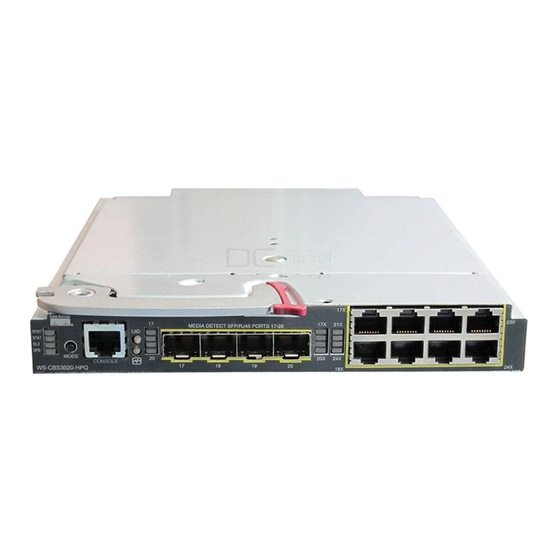

HP Cisco Catalyst Blade Switch 3020 Overview
Hp bladesystem c-class solution overview
Hide thumbs
Also See for Cisco Catalyst Blade Switch 3020:
- Release note (34 pages) ,
- Frequently asked questions (4 pages) ,
- Release note (23 pages)
Table of Contents
Advertisement
Quick Links
HP BladeSystem c-Class
Solutions Overview
Abstract
This document describes setup requirements and procedures for HP BladeSystem c-Class servers. HP assumes you are qualified in the servicing of
computer equipment and trained in recognizing hazards in products with hazardous energy levels.
Part Number: 413339-006
March 2012
Edition: 6
