CONNECTING DRYER POWER CORD
(cont.)

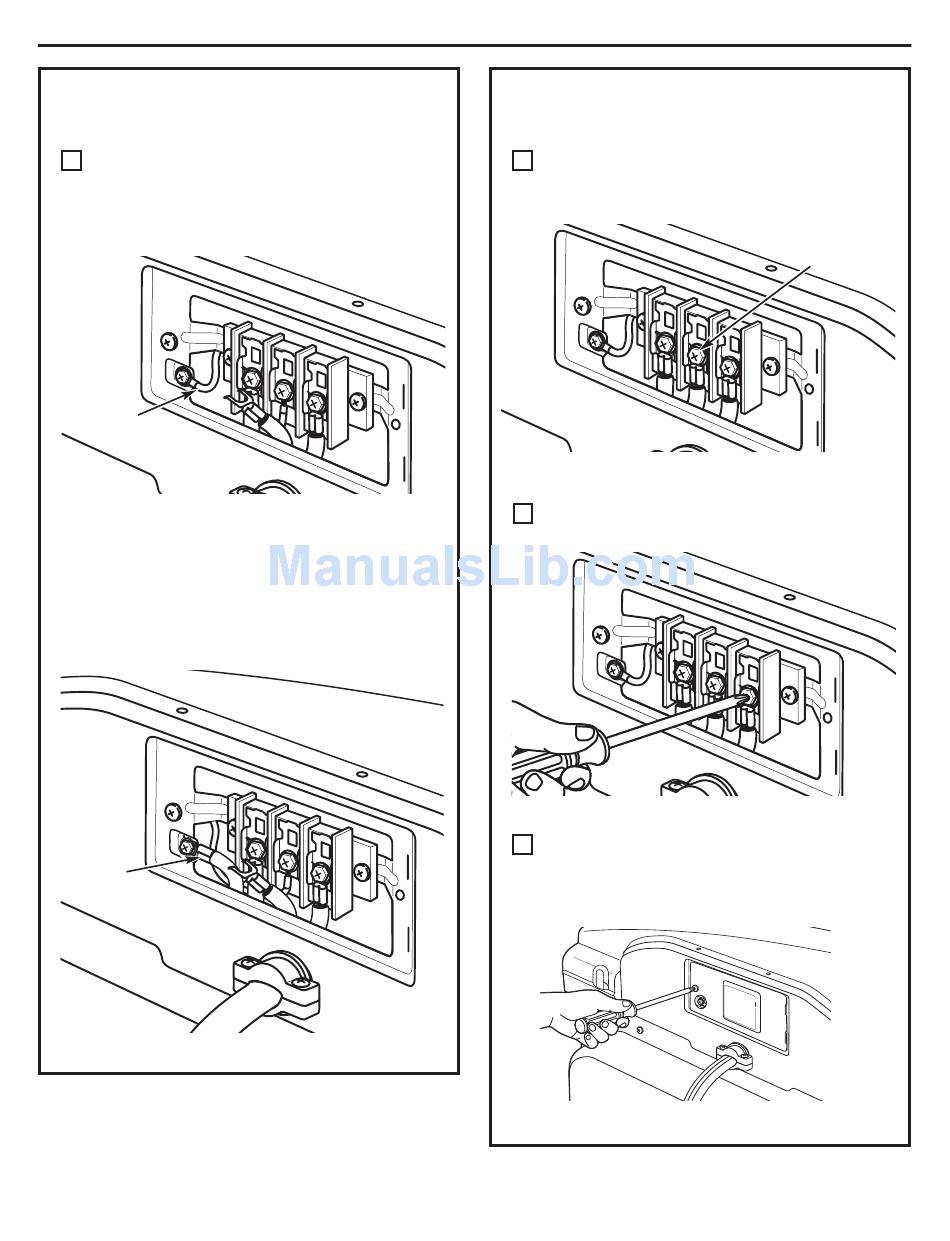

For 3-wire Connection ONLY:
D
Be sure the dryer's green ground wire
is connected to green ground screw on
cabinet rear.
Ground
Wire
(3-wire Connection Shown)
For 4-wire Connection ONLY:
Remove the dryer's ground wire from behind
the green ground screw and connect it to the
center screw of the terminal block.
Attach ground wire of power cord to the
cabinet with the green ground screw.
Power
Cord
Ground
Wire
(4-wire Connection Shown)
Installation Instructions
23
CONNECTING DRYER POWER CORD
(cont.)
For 3-wire and 4-wire Connection: Connect
E
the neutral (center line on 3-wire, white line
on 4-wire) line to the center of terminal block.
(3-wire Connection Shown)
For 3-wire and 4-wire Connection: Tighten all
F
terminal block screws completely.
(3-wire Connection Shown)
For 3-wire and 4-wire Connection: Reinstall the
G
terminal block access cover.
IMPORTANT: Do not leave the access cover off.
(3-wire Connection Shown)
Connect
center
screw
