GSM2260N
GE Spacemaker
Under-the-Sink Dishwasher
®
Dimensions and Installation Information (in inches)
Note: Undersink dishwashers can be installed only
under sinks and not under other appliances.
Plumbing—Hot Water Only: Use 3/8" O.D. copper
tubing or 1/2" O.D. plastic tubing minimum inlet
line. Water valve has 3/8" internal threads. Hand
cut-off valve is recommended.
Electrical: Fuse circuit with 15 amp or 20 amp
standard fuse or circuit breaker. Total amp load is
8.6. Dishwasher operates on 120V, 60HZ power,
Two-wire cable (14 Ga. Min.) with ground must be
installed.
Specifications: Inlet water temperature
recommended—minimum 120°F at dishwasher.
Inlet water pressure required—15 to 120 lbs./sq.
inch.
Note: All rough-in, both plumbing and electrical,
must be completed before the dishwasher is
installed. All plumbing and electrical work must be
in accordance with local codes.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
or
™
®
Spacemaker Dishwasher Dimensions
(Pub. 1-G003 pg. 132B) May 12, 1993

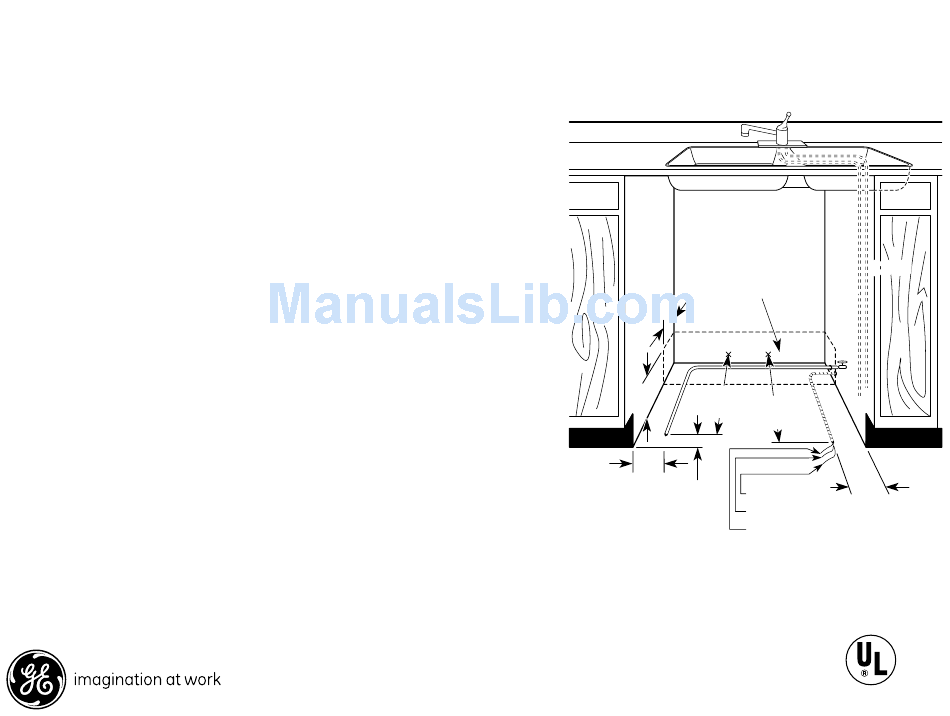

DW PLUMBING/ELECTRICAL
ROUGH-IN (IN INCHES)
FRONT VIEW
Plumbing and
wiring must enter
within this area
from either side,
rear or bottom
4
6
19" From
wall
2" From
cabinet
2" From
floor
Specification Created 10/07
Cold
Hot
Cable 24"
from wall
3
Ground
Black (line)
White (neutral)
Listed by
Underwriters
Laboratories
350512
Advertisement
Related Manuals for GE Spacemaker GSM2260NSS
Summary of Contents for GE Spacemaker GSM2260NSS
- Page 1 For answers to your Monogram, GE Profile ® ™ ® appliance questions, visit our website at geappliances.com or call GE Answer Center ® service, 800.626.2000. DW PLUMBING/ELECTRICAL ROUGH-IN (IN INCHES) FRONT VIEW Plumbing and wiring must enter...
- Page 2 GSM2260N GE Spacemaker Under-the-Sink Dishwasher ® Note: A close-fitting elbow or special shallow sink strainer is necessary to provide clearance between sink drain and dishwasher. Dishwasher furnished with 1/2" I.D. drain hose, 78" long. If using copper tubing, 2" length of 1/2" I.D. rubber hose must be provided to connect copper tubing to pump outlet.
- Page 3 GSM2260N GE Spacemaker Under-the-Sink Dishwasher ® Cabinet Rough-In Note: Either single- or double-bowl sink may be used, centered or offset, as shown in the front view illustration. The 20-1/2" maximum dimension from wall to front of sink bowl must be accurate if dishwasher is to fit properly under sink.
- Page 4 Motor - Runs quietly and efficiently to keep the kitchen peaceful ™ and quiet • HotStart Option - Preheats water before the main wash cycle for dependable ™ performance every time • Model GSM2260NSS - Stainless steel GSM2260NSS Specification Created 10/07 350512...
