OWNER'S MANUAL
DRYER
Please read this manual carefully prior to use.
Keep it for future reference.
Write down model name and serial number of your product.
Have all these details ready when you call for servicing.
RC8011A / RC8011B /RC8011C / RC8011D
TD-C800E / TD-C809E
RC8011A1 / RC8011B1 /RC8011C1 / RC8011D1
TD-C803E
P/NO. : MFL32312591
Advertisement
Table of Contents
Related Manuals for LG RC8011A
Summary of Contents for LG RC8011A
- Page 1 Keep it for future reference. Write down model name and serial number of your product. Have all these details ready when you call for servicing. RC8011A / RC8011B /RC8011C / RC8011D TD-C800E / TD-C809E RC8011A1 / RC8011B1 /RC8011C1 / RC8011D1 TD-C803E P/NO.
-
Page 2: Table Of Contents
Ultra big Capacity Drum The Ultra big 8.0kg capacity drum on this LG Dryer allows you to dry your washing in larger loads than ever before Lower Energy Consumption Energy LG dryers use less energy than conventional dryers due to the cutting-edge technology we have applied to the drying system and to the heat control mechanism. -
Page 3: Safety Instructions
afety Instructions To help reduce any risk of electric shock, fire, or other personal or property injury when using your dryer, please follow basic safety instructions. WARNING Serious injury or death may occur when not observing the following rules. Not allowed actions. •... - Page 4 afety Instructions • Do not use damaged power • Prevent pets biting the dryer. cord, plug and socket. Pets may die from an It may cause a fire or an electric shock or electric shock. the appearance of the washer affected.
- Page 5 afety Instructions • If this appliance is supplied from a cord extension set or an electrical connector, portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture. It may cause an electric shock, a fire, malfunction and deformation. •...
-
Page 6: Installation Instructions
Stacking Installation Instructions The LG Dryer can be placed on the top of a front loading washing machine. They MUST be fixed with stacking kit (See the next page). This installation must be conducted by an experienced installer in order to secure robust installation of both washer and dryer. -
Page 7: Installation Procedure
3. Assemble the stacking kit as following. • Peel the protective film from the double-sided tape on This dryer may only be stacked on top of an LG wash- the bracket for your size washer. er. DO NOT attempt to stack this dryer on any other •... -
Page 8: Additional Grounding Procedure
nstallation Instructions Earthing Instructions Note This appliance must be earthed. in the event of For better drying performance, Please keep the malfunction or breakdown, earthing will reduce the rear of product distance from wall. risk of electric shock by providing a path of least resistance for the electric current. -
Page 9: Level The Dryer
nstallation Instructions Level the Dryer 1. Leveling the dryer prevents undesirable noise and vibration. Place your dryer in solid and level Area. When placing your dryer in an solid and level area where water is not dripping and freezing, flammable materials are not stored. 2. -

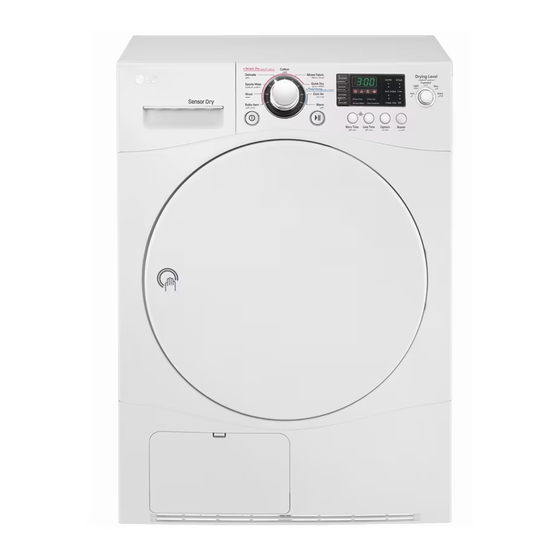

Page 10: Appearance & Design
& Design RC8011A / RC8011B / RC8011C / RC8011D / TD-C800E / TD-C809E Control Panel Water Container Glass Door Condenser Cover Air Ventilation Grill RC8011A1 / RC8011B1 / RC8011C1 / RC8011D1 / TD-C803E Control Panel Water Container Opaque Door... -
Page 11: Control Panel
& Design Control Panel RC8011A / RC8011B / RC8011C / LED Display RC8011D / TD-C800E • Time Display • Indicator Lamps & Left Time Program Selector Drying Level • Iron • Light • Standard • Very • Extra Additional Function Buttons •... -
Page 12: Operating Your Dryer
perating Your Dryer Cycle Selection Table Drying Electronic Sensor Dry Course Level Towels, dressing gowns Extra For thick and quilted fabrics and bed linen Cotton Cycles Terry towels, tea towels, Very For thick and quilted fabrics which do not need to be ironed (Note) Select the towels, bed linen gentle cycle by... - Page 13 After removing the packaging, please carry out the following checks to ensure the LG Dryer is correctly installed and ready for use. 1. Check the dryer is well balanced by using a spirit level. If not, adjust the feet of the LG Dryer until the machine is balanced.
- Page 14 perating Your Dryer 5. Close the door. Select the desired Before you close the door, make sure fabrics cycle. are well placed inside and that foreign objects, especially flammable ones, are not caught around door. CAUTION Be careful not to trap laundry in between the loading door and rubber seal.
-
Page 15: Additional Functions
Functions RC8011A / RC8011B / RC8011C / RC8011D / TD-C800E TD-C809E RC8011A1 / RC8011B1 / RC8011C1 / RC8011D1 / TD-C803E... -
Page 16: Time Delay
dditional Functions Drum Light/Hand Iron Time Delay You can use the Time Delay function to delay the Drum Light (Glass Door) finishing time of drying cycle. - During operating cycle, you can see the Maximum Time Delay is 19 hours. drum inside by choosing drum light function. -
Page 17: Child Lock
dditional Functions Child Lock ( For the safety of your children, press More Time and Less Time buttons at the same time for about 3 seconds. You can see “ ” sign on LED window. Note For “ ” off, press More Time and Less Time buttons at the same time for about 3 seconds. -
Page 18: Caring For Your Dryer
aring for Your Dryer How important care and cleaning is~ Empty Water Container It’s not very difficult to care for your dryer. All you have Condensed water is collected to water container to do is to follow the information below. You should empty the water container after every Clean Lint Filter use. - Page 19 aring for Your Dryer Condenser Condenser is also a very important part for efficient drying performance result so it needs a special care from you. It is recommended that condenser be cleaned three or four times a year or when the condenser clean lamp blinks. 3.
-
Page 20: Moisture Sensor
aring for Your Dryer Ventilation Grille and Cool Air 3. Connect drain hose Inlet Grille to the kit. Vacuum the front ventilation grill 3~4 time a year to make sure there must be no build-up of lints or dirts which cause improper intake air flow. Moisture Sensor? This device senses the moisture remaining in the contents of the laundry during operation... -
Page 21: Additional Tips For Smart Use
dditional Tips for Smart Use Drying Guide Capacity for laundry type Course Capacity of Dryer Iron Cotton Light Standard Mixed Standard Fabric 1.5kg Delicate 1.5kg Special Sports Wear Fabrics Wool Bulky Item 1.5kg Woolen Article Below are fabric care labels. Dry woolens in "wool"... -
Page 22: Spare Parts
4. The model No. and the serial No. - fig : Washer top plate size 550 of your dryer. - fig : Washer top plate size 600 5. The date of purchase. If stacking is needed, you must stack the dryer upon LG washing machine. -
Page 23: Troubleshooting Guidelines
roubleshooting Guidelines Troubleshooting Tips To save you time and money, the following page will help answer your questions before service call. Questions What to do Dryer doesn't work 1. Check dryer is plugged in. 2. Check "Start" button is pressed. 3. - Page 24 roubleshooting Guidelines Error Mode • : LED displays “ ” in case of the door open. The door must be closed and start Button must be pressed for re-operation. • : If display errors continue to occur, unplug the power cords and then call the Service Center.
-
Page 25: Technical Data
echnical Data 850 mm 640 mm 600 mm Weight : 50 kg Ventilation Requirement Electrical Requirements Alcove or Volts Hertz Watts Closet under counter Closet door must Ensure air flow Australia, 240 V 50 Hz 2250 W have 2(louvered) of 112 cu.ft./min New Zealand openings, each through dryer... -
Page 26: What Is Not Covered
echnical Data What is not covered. Service trips to your home to instruct you on the product. If the product is connected to any voltage other than that shown on the rating plate. If the fault is caused by accidents, neglects, misuses or Acts of God. If the fault is caused by reasons except for normal domestic use or use in accordance with the owner's manual.
