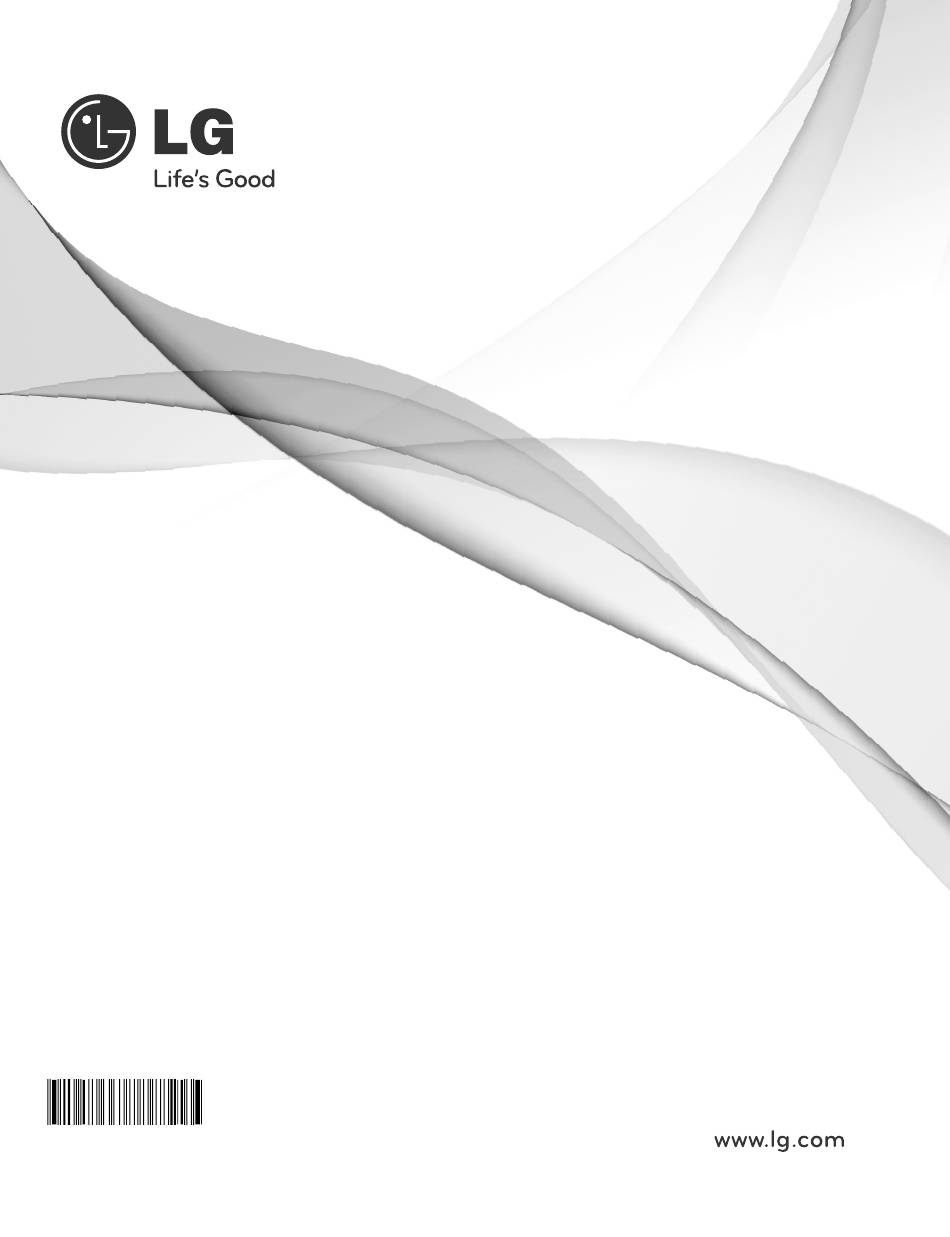

- Page 1 OWNER’S MANUAL LG DRYER Please read this manual carefully before operating your dryer and retain it for future reference. RC8043AZ/BZ/CZ RC8043A1Z/B1Z/C1Z P/NO. : MFL67708616...
-
Page 2: Table Of Contents
Ultra big Capacity Drum The Ultra big 8.0kg capacity drum on this LG Dryer allows you to dry your washing in larger loads than ever before Lower Energy Consumption Energy LG dryers use less energy than conventional dryers due to the cutting-edge technology we have applied to the drying system and to the heat control mechanism. -
Page 3: Safety Instructions
afety Instructions To help reduce any risk of electric shock, fire, or other personal injury or property damage when using your dryer, please follow basic safety instructions. WARNING Serious injury or death may occur when not observing the following rules. Hazards •... - Page 4 afety Instructions • Do not use if power cord, • Keep pets away from the dryer plug or socket is damaged Pets may damage the dryer, May cause fire or electric or may receive an electric shock shock • Do not install or store the •...
- Page 5 afety Instructions • If this appliance is supplied from a cord extension set or an electrical connector, portable outlet device must be positioned so that is not subject to splashing or ingress of moisture. It may cause an electric shock, a filre, malfunction and deformation. •...
-
Page 6: Installation Instructions
Stacking Installation Instructions Your LG dryer can be placed on top of a front loading washing machine and securely fixed with a stack- ing kit (see following page for instructions). This installation must be conducted by an experienced installer to ensure it has been installed correctly. - Page 7 • Do not operate if the dryer is disassembled. This dryer may only be stacked on top of an LG wash- 3. Align the stacking kit holes and the rear cover er. DO NOT attempt to stack this dryer on any other holes.
- Page 8 nstallation Instructions Earthing Instructions Note This appliance must be earthed. in the event of For better drying performance, Please keep the malfunction or breakdown, earthing will reduce the rear of product away from wall. risk of electric shock by providing a path of least resistance for the electric current.
- Page 9 nstallation Instructions Level the Dryer 1. Levelling the dryer prevents undesirable noise and vibration. Place your dryer on a solid, level floor Place the dryer in an area free from flamma- ble materials, condensation and not liable to freezing. 2. If the dryer is not properly level, adjust the front levelling legs as necessary.
-
Page 10: Appearance & Design
ppearance & Design RC8043AZ/BZ/CZ RC8043A1Z/B1Z/C1Z Control Panel Water Container Glass Door Opaque Door Condenser Cover Air Ventilation Grill Control Panel LED Display RC8043AZ/BZ/CZ • Time Display Time Control Buttons Program Selector • Indicator Lamps & Time Remaining • More time •... -
Page 11: Operating Your Dryer
perating Your Dryer Cycle Selection Table Sensor Dry Cycle Laundry type Drying Level Course Detail Towels, dressing gowns For thick and quilted fabrics Extra Cotton Cycles and bed linen Note Note Select the Terry towels, tea towels, For thick and quilted fabrics that do not need to be Very towels and bed linen ironed... - Page 12 After removing the packaging, please carry out the following checks to ensure the LG Dryer is correctly installed and ready for use. (see installation instructions) 1. Check the dryer is well balanced by using a spirit level. If not, adjust the feet of the LG Dryer until the machine is balanced.
- Page 13 perating Your Dryer 5. Close the door. Select the desired Before you close the door, make sure fabrics cycle. are well placed inside and that foreign objects, especially flammable ones, are not caught around door. CAUTION - Be careful not to trap laundry between the loading door and rubber seal.
- Page 14 perating your dryer Rack Dry The dryer Rack is placed inside the dryer like the picture. Remove and discard packing material before use, The Rack Dry is designed for use with items that Note you do not want to tumble dry including sweaters and delicate fabrics.
-
Page 15: Additional Functions
dditional Functions RC8043AZ/BZ/CZ RC8043A1Z/B1Z/C1Z Time Delay Favorite You can use the Time Delay function to delay If you have a series of settings that you the finishing time of drying cycle. always seem to come back to, you can Maximum Time Delay is 19 hours. store this as a unique drying programme. - Page 16 dditional Functions Option Anti-Crease The Anti Crease function prevents creases Gentle that are formed when the laundry is not - This function shortens or lengthens the cycle unloaded promptly at the end of the drying time by increasing or decreasing cycle.
-
Page 17: Caring For Your Dryer
aring for Your Dryer Care and Cleaning is very Important Empty Water Container Condensed water is collected in the water contain- It’s not difficult to care for your dryer but it is important that you do care for it. Follow the instructions below Clean Lint Filter Empty the water container after every use. - Page 18 aring for Your Dryer Condenser Condenser is also a very important part for efficient drying performance result so it needs a special care from you. It is recommended that condenser be cleaned three or four times a year or when the condenser clean lamp blinks. 1.
- Page 19 aring for Your Dryer Ventilation Grille and Cool Air 3. Connect drain hose Inlet Grille to the kit. Vacuum the front ventilation grille 3-4 times a year to make sure there is no build up of lint or dirt that could cause improper air flow Moisture Sensor? The device senses the moisture level of the...
-
Page 20: Additional Tips For Smart Use
dditional Tips for Smart Use Drying Guide & Energy consumption Display Drying Time PROGRAMME Ca. of Dryer Energy Consumption (Including Cooling Time) 97 min 3.55 kWh Iron 8 kg Light* 103 min 4.49 kWh Cotton 8 kg Standard 115 min 8 kg 4.52 kWh Standard... - Page 21 550mm and 600mm for If stacking is needed, you must stack both. the dryer upon LG washing machine. In order to do this, stacking kit must If stacking is needed, you must stack be purchased separately from LG the dryer upon LG washing machine.
-
Page 22: Troubleshooting Guidelines
roubleshooting Guidelines Troubleshooting Tips To save you time and money, the following page will help answer your questions before service call. Questions What to do Dryer won’t run 1. Check dryer is plugged in. 2. Check "Start" button is pressed. 3. - Page 23 roubleshooting Guidelines Error Mode • : LED displays “ ” in case of the door open. The door must be closed and start Button must be pressed for re-operation. • : If error message continues to occur, unplug the power cord and call the Service Centre for advice.
-
Page 24: Using Smartdiagnosis
sing SmartDiagnosis Note SmartDiagnosis™ function is available only for the products with a SmartDiagnosis™ mark. In case of a mobile phone with static option, the smart diagnosis function might not operate. ax. 10 mm Using SmartDiagnosis™ • Only use this feature when instructed to do 3. -
Page 25: Technical Data
echnical Data 3” (8cm) 60 in. 850mm (387 cm 60 in. (387 cm 3” (8cm) 640mm 1” 24” 1” (2.5 cm) (61.0 cm) (2.5 cm) 600mm Weight : 50 kg Ventilation Requirement Electrical Requirements Alcove or Volts Hertz Watts Closet undercounter 220-240 V 50 Hz... -
Page 26: Warranty
arranty Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
