QuickSpecs

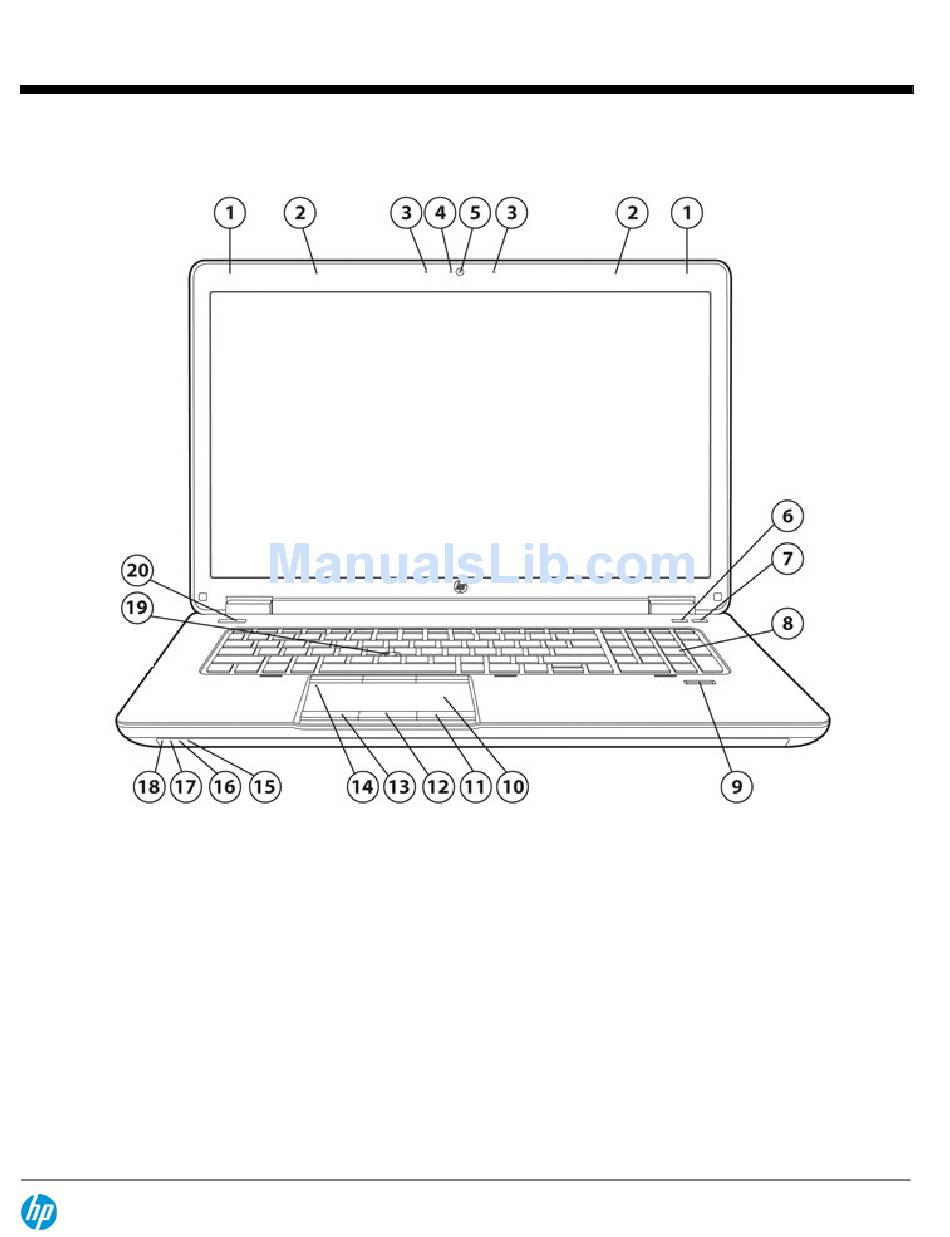

Overview
1.
WWAN antennas (2)
2.
WLAN antennas (2)
3.
Internal microphones (2)
4.
Webcam light (with webcam)
5.
Optional 720p HD Webcam
6.
Wireless button
7.
Volume mute button
8.
Numeric keypad
9.
Fingerprint reader (select models only)
10.
Touchpad with scroll zone
DA - 14723 Worldwide — Version 9 — December 12, 2013
HP ZBook 17 Mobile Workstation
11.
Right Touchpad button
12.
Center Touchpad button
13.
Left Touchpad button
14.
Touchpad on/off button with LED
15.
Hard drive light
16.
AC adapter/Battery light
17.
Power light
18.
Wireless light
19.
Pointstick
20.
Power button
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ZBook 17

Summary of Contents for HP ZBook 17

  • Page 1 QuickSpecs HP ZBook 17 Mobile Workstation Overview WWAN antennas (2) Right Touchpad button WLAN antennas (2) Center Touchpad button Internal microphones (2) Left Touchpad button Webcam light (with webcam) Touchpad on/off button with LED Optional 720p HD Webcam Hard drive light...
  • Page 2 QuickSpecs HP ZBook 17 Mobile Workstation Overview Security cable slot Memory card reader USB 2.0 port Audio-out (headphone) jack/Audio in (microphone) jack DisplayPort USB 3.0 ports (2) Thunderbolt port* Optical drive (select models only) USB 3.0 charging port VGA port...
  • Page 3 QuickSpecs HP ZBook 17 Mobile Workstation Overview Battery bay Service door release lock Battery release latch Service door release latch SIM slot for WWAN (select models)* Vents Docking connector Service Door Accessory battery connector * SIM slot is accessed through battery bay DA - 14723 Worldwide —...
  • Page 4 Optional integrated wireless 3G or 4G (LTE) mobile broadband module support Two dedicated drive slots. Choice of tool free capable, user-removable hard drive up to 1 TB with HP 3D DriveGuard protection, or SATA 6 Gb/s 128/180/512 GB*** Solid State Drive or 256 GB SED Solid State Drive Security features including HP Client Security Manager, with central management Low halogen****, ENERGY STAR qualified and EPEAT Gold registered in the U.S.

  • Page 5: Operating System

    QuickSpecs HP ZBook 17 Mobile Workstation Features OPERATING SYSTEM Preinstalled Windows 8 Pro 64* Windows 8 64* Windows 7 Professional 32 (available through downgrade rights from Windows 8 Pro)** Windows 7 Professional 64*** SuSE Linux Enterprise (SLED 11) SP2 64bit FreeDOS * Not all features are available in all editions of Windows 8.
  • Page 6 NVIDIA Quadro K5100M with 8 GB dedicated GDDR5 video memory Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable NVIDIA Optimus Technology supported NOTE: NVIDIA Quadro mobile professional graphics support up to five independent displays when using an HP Advanced Docking station (sold separately). DISPLAY Internal 17.3"...

  • Page 7: Flash Cache Module

    Port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz DVI-D (single link) Video signal available through DVI port in optional HP Docking Station (sold separately) as well as through DP to DVI adapters to use without the optional HP Docking Station supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.

  • Page 8: Optical Drives

    QuickSpecs HP ZBook 17 Mobile Workstation Features STORAGE AND DRIVES mSATA Storage Bay 128GB mini-card Solid State Drive (coming soon) (NOTE: cannot be combined with the mSATA Flash Cache Module) Primary Storage Bay Hard Drives 320/500/750 GB 7200 rpm SMART SATA II...
  • Page 9 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. With Windows Starter 32- bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.
  • Page 10 Optional backlit keyboard with Function key control to toggle backlit brightness setting - off/full/half brightness The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, function keys, and 19.05 x 19.05 mm key pitch (center-to-center spacing).
  • Page 11 Drive Encryption (FIPS 140-2) DigitalPersona Fingerprint Driver HP File Sanitizer (Activated via Wizard) Drive Encryption (FIPS 140-2) HP Client Security (incl. Cred Mgr and Password Mgr) HP File Sanitizer (Activated via Wizard) HP SpareKey HP Client Security (incl. Cred Mgr and Password Mgr)
  • Page 12 HP Recovery Manager Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 36 GB (for Windows 7) of system and up to 36 GB (for Windows 8) disk is reserved for system recovery software.
  • Page 13 Or you can even permanently destroy data on your hard drive in preparation for your system disposal or redeployment with Secure Erase. This hardware-based solution encrypts and decrypts data as it is written or read from the hard drive and is supported by HP Drive Encryption+. You get faster encryption performance than that of software- based encryption solutions.
  • Page 14 Up to TBD weeks * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the HP ST09 Extended Life Notebook Battery or HP BB09 Ultra Extended Life Notebook Battery.

  • Page 15: Weights And Dimensions

    Features ENVIRONMENTAL US Energy Star ® IT ECO declaration EPEAT Gold where HP registers commercial desktop products. See http://www.epeat.net for registration status in your country US Federal Energy Management Program (FEMP) NOTE: This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks.

  • Page 16: Service And Support

    On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.

  • Page 17: System Unit

    Japan VCCI Compliance BSMI CE Marking Compliance * Configurations of the HP ZBook 17 that are ENERGY STAR qualified are identified as HP ZBook 17 ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
  • Page 18 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications DISPLAY 17.3-inch HD+ SVA LED Dimensions (W x H) 15.0 x 8.5 in (38.2 x 21.5 cm) anti-glare Diagonal Size 17.3 in (43.9 cm) Surface Treatment Anti-glare Contrast Ratio 300:1 (min) Refresh Rate...
  • Page 19 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications 17.3-inch FHD UWVA LED Dimensions (W x H) 15.0 x 8.5 in (38.2 x 21.5 cm) anti-glare Dreamcolor Diagonal Size 17.3 in (43.9 cm) Surface Treatment Anti-glare Contrast Ratio 600:1 (min) Refresh Rate...
  • Page 20 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications 750 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 750 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 21 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications 500 GB 5400 rpm SATA Drive Weight 0.25 lbs (115g) FIPS* Hard Drive (Planned Capacity 500 GB to be available in Oct. Height 0.28 in (7 mm) 2013) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 22 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications 320 GB 7200 rpm SATA Drive Weight 0.25 lbs (115 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 23 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications SATA 6 Gb/s 180 GB, 2.5- Drive Weight 78 Grams inch Solid State Drive Capacity 180 GB Height 0.276 in (7 mm) Width 2.76 in (70 mm) Interface SATA Gen 3 (6 Gb/s)
  • Page 24 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications DVD-ROM Drive Access Times Random < 140 ms CD (typical) < 160 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM 8X-DVD Transfer Mode UDMA Mode 5 Interface Gen 1 SATA Supported Media (read)
  • Page 25 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications Blu-ray ROM DVD+/-RW Access Times Random <190 ms CD-ROM (typical) SuperMulti DL Drive < 180ms DVD-ROM (typical) <230 ms BD-ROM (typical) Max Data Transfer Rate 24X CD-ROM 8X DVD-ROM 24X CD-R 16X CD-RW...
  • Page 26 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications 6X BD-ROM 6X BD-R 2X BD-RE Transfer Mode UDMA Mode 5 Interface Gen 1 SATA Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW.
  • Page 27 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications Intel® I217-LM Gigabit Ethernet Features 10 Mbit/s operation (10BASE-T; IEEE 802.3; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) Network Connection 1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023. Clauses 40) IEEE 802.3u Auto-Negotiation (Automatic Speed Selection)
  • Page 28 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications HP hs3110 HSPA+ Mobile Technology/Operating Modes: WCDMA/HSDPA/HSUPA/HSPA+/AWS/GSM/EDGE/GPRS Penta-band WCDMA/HSDPA/HSUPA/HSPA+/AWS: 850/900/1900/2100/AWS Broadband Module Bands GSM/GPRS/EDGE: 850/900/1800/1900 MHz Wireless Protocol GSM/GPRS/EDGE: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 - MSC9.
  • Page 29 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications Maximum Data Rates LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload) DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload) HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload) EDGE: 236.8 kbps (Download), 236.8 kbps (Upload) GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

  • Page 30: Maximum Power Consumption

    QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications HP lt4112 LTE/HSPA+ Technology/Operating LTE FDD all bands with diversity: 2100 MHz (Band I), 1900 MHz (Band II), 1800 MHz (Band III), 850 MHz (Band V), 2600 MHz (Band VII), 900 MHz (Band VIII),...
  • Page 31 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications Intel Dual Band Wireless- Wireless LAN Standards IEEE 802.11a IEEE 802.11b AC 7260 802.11 ac (2x2) IEEE 802.11g WiFi + BT 4.0 combo IEEE 802.11n Adapter* IEEE 802.11ac Interoperability Wi-Fi certified Frequency Band 802.11b/g/n...
  • Page 32 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications Receiver Sensitivity 802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm (11 Mbps) 802.11a/g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm...
  • Page 33 Combo Adaptor* Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 802.11b/g/n 2.402 - 2.482 GHz DA - 14723 Worldwide — Version 9 — December 12, 2013 Page 33...
  • Page 34 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications 802.11a/n 4.9 - 4.95 GHz (Japan) 5.15 - 5.25 GHz 5.25 - 5.35 GHz 5.47 - 5.725 GHz 5.825 - 5.850 GHz Antenna Structure 2 transmit; 2 receive (2x2) Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps...
  • Page 35 5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista. HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology Bluetooth Specification 4.0+EDR Compliant Dimensions 1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
  • Page 36 * In countries where 802.11n is not allowed, this capability is not enabled. Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz and 5GHz Antenna Structure 2 transmit;...
  • Page 37 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications FAST) Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2 Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows Vista and XP only.
  • Page 38 (2x2) + Bluetooth 4.0 LE IEEE 802.11n Combo Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 802.11b/g/n 2.402 - 2.482 GHz 802.11a/n 4.9 - 4.95 GHz (Japan) 5.15 - 5.25 GHz...
  • Page 39 5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista. HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology Bluetooth Specification 4.0+EDR Compliant Dimensions 1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
  • Page 40 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications Electrical Interface USB 2.0 compliant Microsoft Windows Plug and Play compliant Bluetooth Software Broadcom Bluetooth for Windows Supported Microsoft Windows Bluetooth Software Link Topology Point to Point, Multipoint Pico Nets up to 7 slaves...
  • Page 41 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications Audio Output Quality Frequency Response 20 Hz - 20 kHz Signal to Noise Ratio >85 dB Total Harmonic Distortion 0.01% Noise Floor -110 dB Play/Record Sampling 8 kHz - 48kHz Rate(s) 16, 20 or 24-bit...

  • Page 42: Warranty

    QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications HP 200W Slim Smart AC Dimensions 6.77 x 3.80 x 1.0 in (172 x 96 x 25.4 mm) Adapter Weight 1.65 lb (748 g) Input 100 to 240 VAC Input Efficiency 87% min at 115 VAC...
  • Page 43 QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications HP Long Life 8-cell Dimensions (H x W x L) 0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm) Lithium-Ion Battery (75 Weight (max) 0.99lb (0.442 kg) WHr) Cells/Type 8-cell; Lithium-Ion...

  • Page 44: Environmental Data

    Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR®...
  • Page 45 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2011/65/EC. information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).

  • Page 46: Hewlett-Packard

    HP and Recycling sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers.

  • Page 47: Country Of Origin

    QuickSpecs HP ZBook 17 Mobile Workstation Technical Specifications COUNTRY OF ORIGIN China DA - 14723 Worldwide — Version 9 — December 12, 2013 Page 47...

  • Page 48: Options And Accessories (Sold Separately And Availability May Vary By Country)

    HP 8 GB DDR3L-1600 1.35V SODIMM H6Y77AA#xxx Cases HP Business Backpack (fits up to 17.3") H5M90AA HP Professional Slim Top Load Case (fits up to 17.3" H4J91AA HP Essential Messenger Case (up to 17.3") H1D25AA HP Business 4 Wheel Roller Case (fits up to 17.3")
  • Page 49 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
