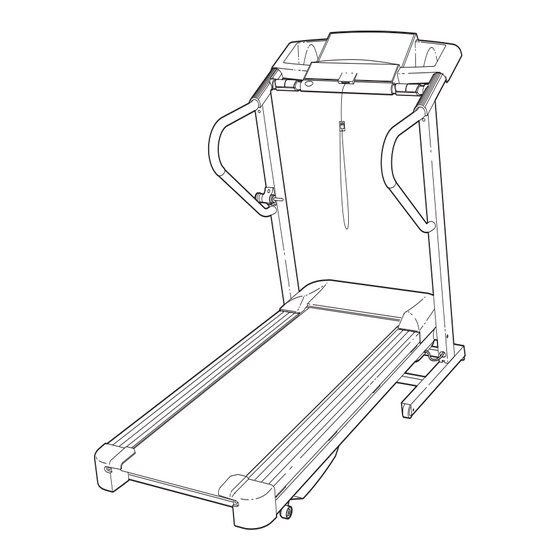

Model No. WETL28805.1
Serial No.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts,
please call:
08457 089 009
or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and in-
structions in this manual before
using this equipment. Save this
manual for future reference.
Serial
Number
Decal
USER'S MANUAL

Advertisement

loading

Related Manuals for Weslo Cadence 1000 Fm

Summary of Contents for Weslo Cadence 1000 Fm

  • Page 1 Model No. WETL28805.1 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call: 08457 089 009 or write: ICON Health &...

  • Page 2: Table Of Contents

    ORDERING REPLACEMENT PARTS ..........Back Cover Note: A PART IDENTIFICATION CHART, an EXPLODED DRAWING, and a PART LIST are attached in the centre of this manual. WESLO is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure ASTA approved BS1362 type should be fitted that all users of this treadmill are adequately to the fuse carrier.
  • Page 4 22. Inspect and properly tighten all parts of the this manual. Never remove the motor hood un- treadmill regularly. less instructed to do so by an authorised ser- vice representative. Servicing other than the 23. Never insert any object into any opening. procedures in this manual should be performed by an authorised service representative only.

  • Page 5: Before You Begin

    ® CADENCE ing this manual, please call our Customer Service 1000 FM treadmill. The CADENCE 1000 FM treadmill Department at 08457 089 009. To help us assist you, combines advanced technology with innovative design please note the product model number and serial num- to help you get the most from your exercise in the pri- ber before contacting us.

  • Page 6: Assembly

    ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton.
  • Page 7 3. Hold an Upright Spacer (59) against one side of the Frame (96) as shown. Insert a 4” Frame Bolt (54) into the indicated hole in the Upright Spacer and the Frame. Next, tighten a 3/4” Tek Screw (9) into the Upright 55 12 Spacer and the Frame.
  • Page 8 6. Attach the end of the ground wire to the small hole in the side of the Right Handrail (40) with a Silver Ground Screw (66). Ground Wire 7. Set the console assembly onto the Left and Right Handrails (13, 40). Be careful not to pinch the Wire Console Assembly Harness (65).
  • Page 9 9. Press the Wire Harness (65) into the indicated track in the Console Base (67). (Note: If there is a cylinder on the Wire Harness that will not fit into the track, press as much of the Wire Harness as possible into the track.) Next, insert the excess Wire Harness into the large hole in the side of the Right Handrail (40).

  • Page 10: Operation And Adjustment

    OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT Your treadmill features a walking belt coated with high-performance lubricant. IMPORTANT: Never apply sili- cone spray or other substances to the walking belt or the walking platform. Such substances will deterio- rate the walking belt and cause excessive wear. HOW TO PLUG IN THE POWER CORD This product must be earthed.
  • Page 11 Clip FEATURES OF THE CONSOLE To use the manual mode of the console, follow the steps beginning on page 12. To use a preset pro- gram, see page 14. The treadmill console offers a selection of features designed to make your workouts more effective and enjoyable.
  • Page 12 HOW TO TURN ON THE POWER As you exercise, change the speed of the walking belt as desired by pressing the Speed increase Plug in the power cord and decrease buttons. Each time a button is (see page 11). Next, locate pressed, the speed setting will change by 0.1 the on/off switch on the mph.
  • Page 13 Incline display—This that the walking belt display shows the in- has moved, and the cline level of the tread- Time/Pace display will mill. show the total number of hours that the tread- mill has been used. Time/Pace display— Important: If a “d” ap- When the manual mode is selected, this pears in the Speed dis-...
  • Page 14 Listen to your favorite FM radio station if HOW TO USE A PRESET PROGRAM desired. Insert the key into the console. Press the Power button to turn on the radio. Next, press the Tune buttons to select the desired FM See HOW TO TURN ON THE POWER on page radio station.
  • Page 15 When only three seconds remain in the first seg- Current Segment column, an additional indicator ment of the program, both the Current Segment may appear or disappear in those columns as well.) Note: When the next segment of the pro- column and the column to the right will flash, and gram begins, the treadmill will automatically a series of tones will sound.

  • Page 16: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per- manently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill.

  • Page 17: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
  • Page 18 Locate the Reed Switch (16) and the Magnet (10) on 3 mm the left side of the Pulley (101). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 3 mm (1/8 in.).

  • Page 19: Conditioning Guidelines

    CONDITIONING GUIDELINES is to burn fat, adjust the speed and incline of the tread- WARNING: mill until your heart rate is near the lowest number in Before beginning this your training zone. or any exercise program, consult your physi- cian. This is especially important for individu- For maximum fat burning, adjust the speed and incline als over the age of 35 or individuals with pre- of the treadmill until your heart rate is near the middle...
  • Page 20 PART IDENTIFICATION CHART Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference. 1/4” Star 5/16” Star Wheel Nut (64)–2 #10 Star 3/8” Star Washer (45)–4 Washer (57)–4 Washer (108)–2 Washer (55)–2 Silver Ground...
  • Page 21 PART LIST—Model No. WETL28805.1 R1105A No. Qty. Description No. Qty. Description No. Qty. Description Hood 1” Bolt Frame U-nut #8 Washer 1/4” Washer 8” Cable Tie Foot Rail 1/4” Star Washer Incline Stop Bracket Belt Guide Latch Housing Rear Wheel Bolt 1/2”...

  • Page 23: Ordering Replacement Parts

    To help us assist you, please be prepared to give the following information: • the MODEL NUMBER of the product (WETL28805.1) • the NAME of the product (WESLO CADENCE 1000 FM treadmill) • the SERIAL NUMBER of the product (see the front cover of this manual) •...
