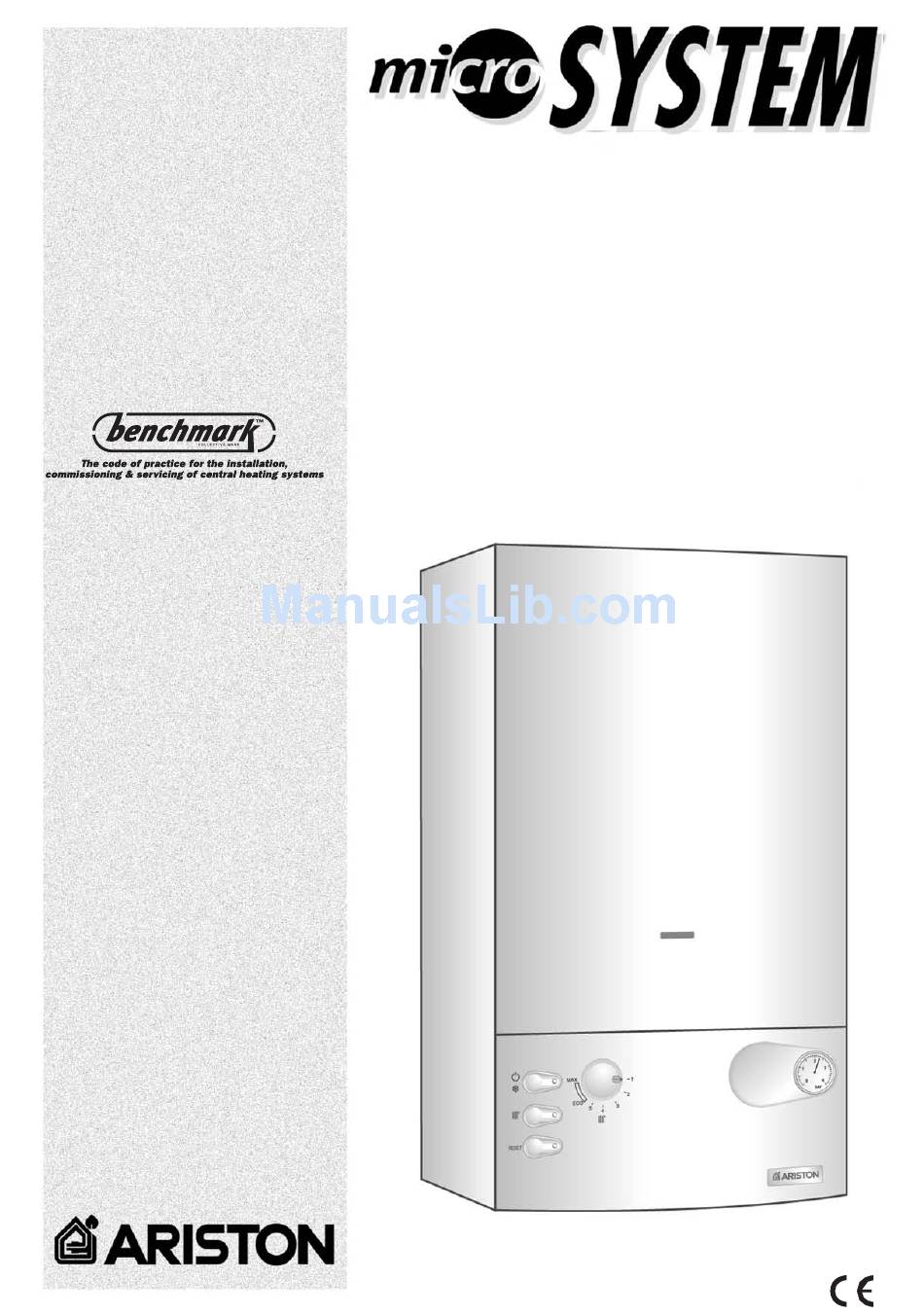

- Page 1 Installation Instructions Type C Boilers G.C.N: 41-116-04 LEAVE THESE INSTRUCTIONS WITH THE END-USER Country of destination: GB/IE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION 1.1 G ENERAL NSTRUCTIONS 1.2 O VERALL INSTALLATION 2.1 D ELIVERY 2.2 R EFERENCE TANDARDS 2.3 S ITING THE PPLIANCE 2.4 O VERALL IMENSIONS 2.5 C LEARANCES 2.6 M OUNTING THE PPLIANCE 2.7 E LECTRICAL ONNECTION 2.8 G ONNECTION... -
Page 3: General Instructions
Read the instructions and recommendations in these Installation Instructions ENERAL NSTRUCTIONS carefully to ensure proper installation, use and maintenance of the appliance. Keep this manual in a safe place. You may need it for your own reference while our Servicing Centre technicians or your installer may need to consult it in the future. This is an appliance for the production of central heating (C.H.). -
Page 4: Overall View
VERALL EGEND Flue connector Combustion chamber hood Main heat exchanger Safety thermostat Combustion chamber Combustion chamber insulation panel Detection electrode Ignition electrodes Burner Regulation thermostat Frost thermostat Pump pressure switch Safety valve (3 bar) Automatic By-pass Gas valve Spark generator Boiler drain valve Circulation pump with automatic air release valve Expansion vessel... -
Page 5: Siting The Appliance
BS 7593 Treatment of water in domestic hot water central heating systems BS 5546 Installation of hot water supplies for domestic purposes BS 5440-1 Flues BS 5440-2 Air supply BS 5449 Forced circulation hot water systems BS 6798 Installation of gas fired hot water boilers of rated input not exceeding 60kW BS 6891 Installation of low pressure gas pipe up to 28mm... -
Page 6: Overall Dimensions
The type C appliances (in which the combustion circuit, air vent intake and combustion chamber are air-tight with respect to the room in which the appliance is installed) can be installed in any type of room. Secondary ventilation is not required with this boiler. The boiler must be installed on a solid, non-combustible, permanent wall to prevent access from the rear. -
Page 7: Gas Connection
Warning, this appliance must be earthed. . 2.2 External wiring must be correctly earthed, polarised and in accordance with relevant regulations / rules. In GB this is the current I.E.E. WIRING REGULATIONS. In IE reference should be made to the current edition of the ETCI rules. This boiler is supplied for connection to a 220 - 240 V~ 50 Hz supply. -
Page 8: Flue Connection
PASS The appliance includes an automatic by-pass valve, which protects the main heat exchanger in case of reduced or interrupted water circulation through the heating system, due to the closing of thermostatic valves or cock-type valves within the system. YSTEM ESIGN This boiler is suitable only for sealed systems. - Page 9 In cold or humid weather water vapour may condense on leaving the flue terminal. The effect of such “steaming” must be considered. If the terminal is less than 2 metres above a balcony, above ground or above a flat roof to which people have access, then a suitable terminal guard must be fitted. When ordering a terminal guard, quote the appliance model number.
-
Page 10: Room Thermostat Connection
ABLE Maximum Risk of Condensation Forming Exhaust Restrictor Extension Type ø 44 mm Piping not insulated Piping insulated 10 RFFI Exhaust/Air ø 44 ø 44 restrictor NO restrictor restrictor NO restrictor Coaxial C12 (xx) L min = 0.5 m C32 (xx) L = 5 m Systems NONE... - Page 11 . 2.12 . 2.13...
-
Page 12: Gas And Water Circuits
(D.H.W.). Cylinders of different CYLINDER capacities can be used depending on site requirements (see T 3.1 for a ABLE selection of ARISTON unvented cylinders). PORT AND PORT ALVE NSTALLATIONS 2 port valve installation 3 port valve installation . - Page 13 . 3.3 Wiring to 2 port valve installation using an external 2 channel programmer Type Danfoss FP715 Type Honeywell ST6400C Wiring to 3 port valve installation using an external 2 channel programmer Type Danfoss FP715 Type Honeywell ST6400C . 3.4 When using a 3 port valve installation in conjunction with an unvented cylinder it will be necessary to use a 2 port valve on the cylinder flow connection in addition to the 3- port valve to satisfy Building Regulations.
-
Page 14: Domestic Hot Water Priority Kit
10 RFFI Cylinder The kit (ARISTON part number 706329) can be obtained from an ARISTON supplier. Contract STI 125 Indirect Possible The kit consits of: Comfort STI 125 Indirect Possible 1) Electronic module able to plug into the boiler’s P.C.B;... -
Page 15: Control Panel
Close all air release valves on the central heating system. Gradually open valve(s) at the filling point (filling-loop) connection to the central heating system until water is heard to flow, do not open fully. Open each air release tap starting with the lowest point and close it only when clear water, free of air, is visible. -
Page 16: Removing The Front Panel
In order to access the inside of the boiler, it is necessary to EMOVING THE unscrew the fastening screws “A” of the control panel located on RONT ANEL the lower part of the panel itself. The control panel moves downward and when pulled forward rotates on two lateral hinges. -
Page 17: Combustion
4. Press the reset button “E” for the lighting system; the spark will light the main burner. If the burner does not light the first time, repeat the procedure. 5. Check the minimum and maximum pressure values for the gas going to the bur ner ;... -
Page 18: Draining The System
FROST DEVICE The boiler is equipped with a device that, in the event of the water temperature going below 6°C, the burner ignites at the minimum power until the boiler water reaches a temperature of 16°C. This device operates only if the boiler is functioning perfectly and: - the system pressure is sufficient;... -
Page 19: E Lectrical
HANGING THE The boiler can be converted to use either methane (natural) gas (G20) YPE OF or LPG (G30 - G31) by an Authorised Service Centre. The operations that must be performed are the following: 1. Replace the jets on the main burner (see table in section 5); 2. -
Page 20: Technical Information
TECHNICAL INFORMATION 10 RFFI CE Certification 0063BL4994 Heat Input max kW 11.6 Heat Output max kW 10.5 Efficiency of Nominal Heat Input 81.3 Efficiency at 30% of Nominal Heat Input 79.2 Heat Loss to the Casing (∆T=50°C) Flue Heat Loss with Burner Operating Flue Heat Loss with Burner Off Maximum Discharge of Fumes (G20) Kg/h...
