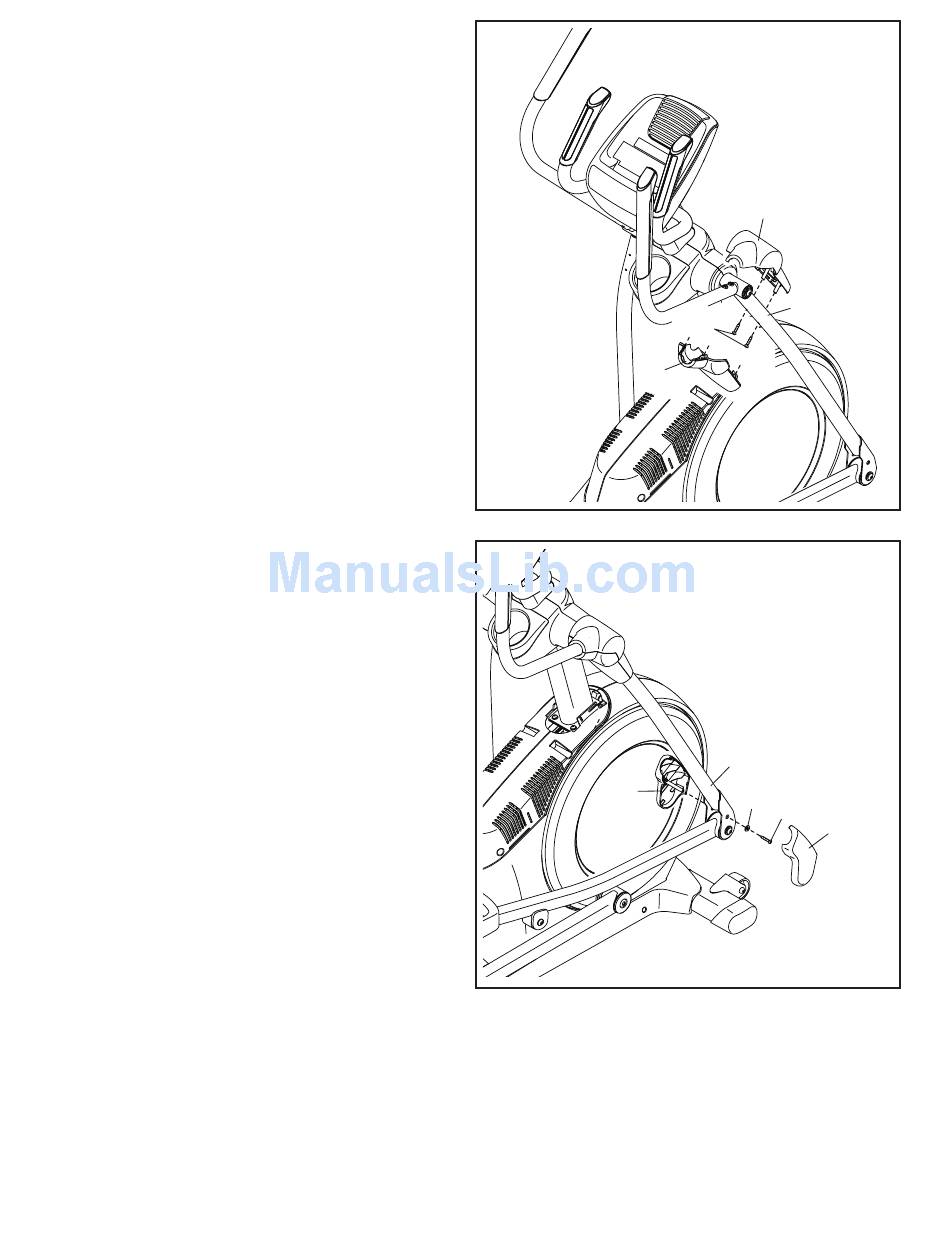

15. Identify the Right Upper Body Arm Front Cover
(65) and orient it as shown.
Attach the Right Upper Body Arm Front Cover
(65) to the Right Upper Body Leg (60) with two
M4 x 16mm Screws (101).
Identify the Right Upper Body Arm Rear Cover
(66) and orient it as shown.
Attach the Right Upper Body Arm Rear Cover
(66) around the Right Upper Body Leg (60) by
pressing it onto the Right Upper Body Arm Front
Cover (65).
Repeat this step on the other side of the
elliptical.
16. Identify the Right Upper Body Leg Inner Cover
(83) and orient it as shown.
Attach the Right Upper Body Leg Inner
Cover (83) to the Right Upper Body Leg (60)
with an M4 x 16mm Screw (101) and an M5
Washer (32).
Identify the Right Upper Body Leg Outer Cover
(69) and orient it as shown.
Attach the Right Upper Body Leg Outer Cover
(69) around the Right Upper Body Leg (60) by
pressing it onto the Right Upper Body Leg Inner
Cover (83).
Repeat this step on the other side of the
elliptical.
