Pro-Form 410 Treadmill Trainer User Manual page 9

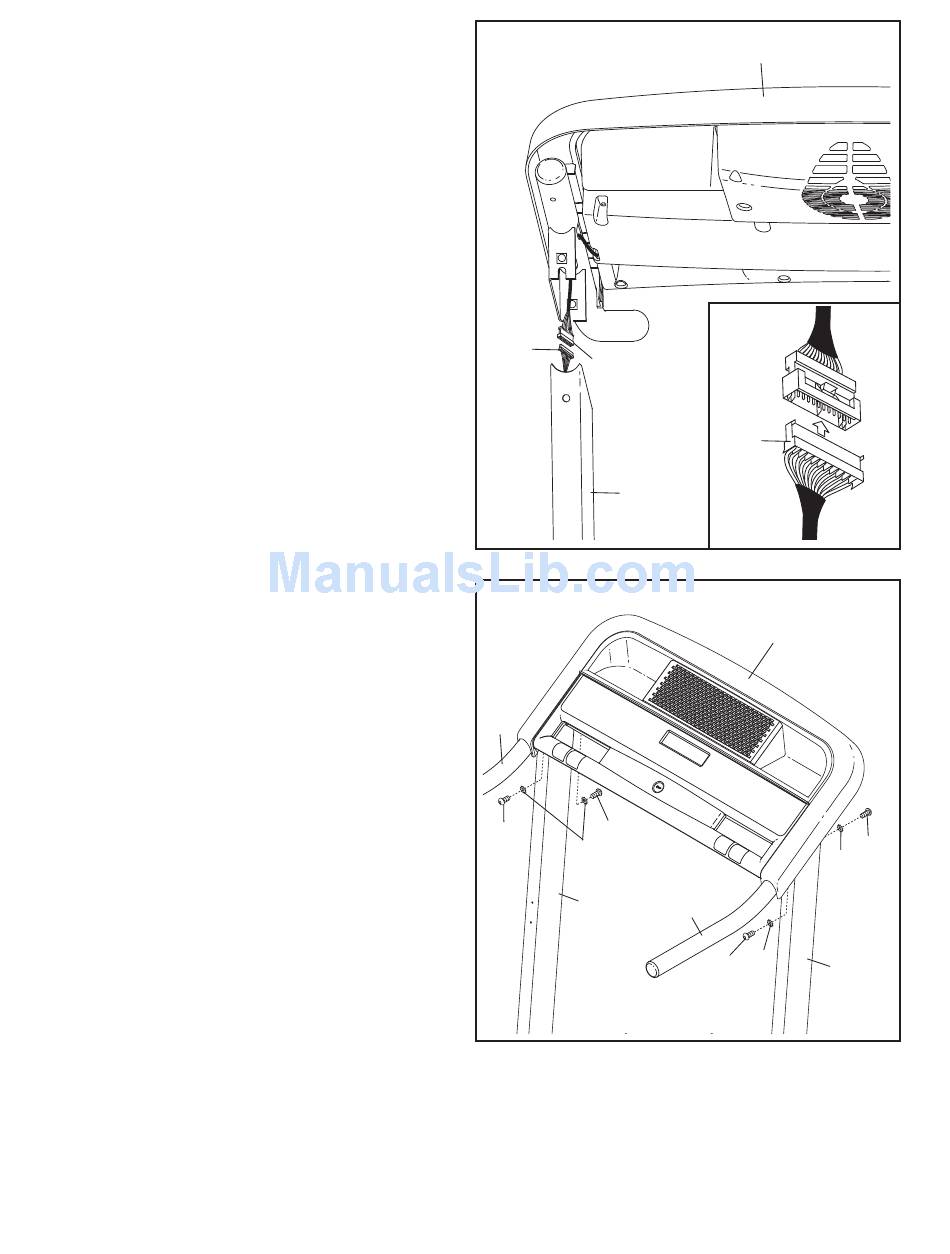

8. Have a second person hold the console assembly
near the Right Upright (78). Remove the wire tie
from the Upright Wire (77).
Connect the Upright Wire (77) to the console
wire. Make sure to connect the connectors
properly (see the inset drawing). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector and
try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, insert the connectors into
the Right Upright (78).
Set the console assembly on the Right Upright
(78) and the Left Upright (not shown). Make sure
that no wires are pinched.
9. Finger tighten two M8 x 25mm Bolts (6) with two
M8 Star Washers (10) into the Left Upright (73)
and the Left Handrail (89).
Next, finger tighten two M8 x 25mm Bolts (6)
with two M8 Star Washers (10) into the Right
Upright (78) and the Right Handrail (90). Then,
tighten all four Handrail Bolts.
8
77
Console Wire
78
9
89
6
6
10
73
9
Console Assembly
77
Console
Assembly
10
90
10
6
78
6
