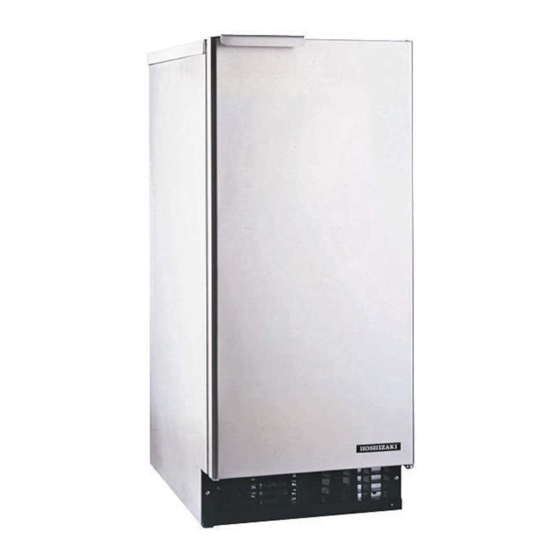

Hoshizaki C-101BAH Parts List

Self-contained cubelet
Hide thumbs Also See for C-101BAH:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Instruction Manual
Hoshizaki
Hoshizaki America, Inc.
"A Superior Degree
of Reliability"
www.hoshizaki.com
Self-Contained Cubelet
Models
C-101BAH
C-101BAH-DS
C-101BAH-AD
C-101BAH-ADDS
PARTS LIST
Number: 71350
Issued: 8-2-2013

Advertisement

Table of Contents
loading

Related Manuals for Hoshizaki C-101BAH

Summary of Contents for Hoshizaki C-101BAH

  • Page 1 Hoshizaki Hoshizaki America, Inc. Self-Contained Cubelet Models C-101BAH C-101BAH-DS C-101BAH-AD C-101BAH-ADDS PARTS LIST “A Superior Degree of Reliability” www.hoshizaki.com Number: 71350 Issued: 8-2-2013...

  • Page 2: Table Of Contents

    B. Refrigeration Circuit ......................6 C. Ice Making Unit ......................... 8 D. Water Circuit ........................10 E. Control Box Assembly...................... 12 F. Door Assembly ......................... 13 C-101BAH, C-101BAH-AD ....................13 C-101BAH-DS, C-101BAH-ADDS ..................14 G. Accessories & Labels ...................... 15...

  • Page 3: Auxiliary Codes

    Auxiliary Codes C-101BAH May 2013 C-101BAH-DS June 2013 C-101BAH-AD May 2013 C-101BAH-ADDS June 2013 Auxiliary Code Breakdown The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from "A"...

  • Page 4: Main Assembly

    A. Main Assembly C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS 4 4a 6 6a 9 9a 15 15a 16 17 For Doors, see Section "F"...
  • Page 5 Title: A. Ice Flaker Assembly Model: C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS Required Number Index Material or Description Model Number Part Number Front Panel C-101BAH 3X6433-01 C-101BAH-DS C-101BAH-AD 3X6433-02 C-101BAH-ADDS Top Panel 2A2849G01 Louver 2H5560-01 Spout 2A6636-01 Thumbscrew 415949G12 Packing 427151-01 Bin Control Bulb Holder...

  • Page 6: Refrigeration Circuit

    B. Refrigeration Circuit C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS 6a 6b...
  • Page 7 Title: B. Refrigeration Circuit Model: C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS Required Number Index Material or Description Model Number Part Number Compressor 455942-01 Rubber Grommet 438844-01 Slotted Washer 4A5590-01 Cotter Pin 8907-0105 PTC Relay 456252-01 Motor Protector 456254-01 Condenser 2H5586-01 Fan Motor...

  • Page 8: Ice Making Unit

    C. Ice Making Unit C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS 2a 2b 1 1a 1b...
  • Page 9 Title: C. Ice Making Unit Model: C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS Required Number Index Material or Description Model Number Part Number Gear Motor 2U0147-01 Socket Head Cap Screw 8×95, SS 7S12-0895 Split Lock Washer M8, SS 7L22-0800 Evaporator 364138G01 Split Lock Washer...

  • Page 10: Water Circuit

    D. Water Circuit C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS...
  • Page 11 Title: D. Water Circuit Model: C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS Required Number Index Material or Description Model Number Part Number Inlet Water Valve 4A5251-05 Drain Valve 4A5530-03 Float Switch 435490-01 Water Supply Pipe 4A5216G05 Rubber Gasket 413854-03 Reservoir 2A6586-01 Reservoir Cover...

  • Page 12: Control Box Assembly

    E. Control Box Assembly C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS Title: E. Control Box Assembly Model: C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS Required Number Index Material or Description Model Number Part Number C-101BAH Control Box Cover 4A5267-01 C-101BAH-DS C-101BAH-AD 4A4498-01 C-101BAH-ADDS Gear Motor Capacitor...

  • Page 13: Door Assembly

    F. Door Assembly C-101BAH, C-101BAH-AD Title: F. Door Assembly Model: C-101BAH, C-101BAH-AD Required Number Index Material or Description Model Number Part Number Door Assembly (includes items 1 C-101BAH 2H5585A04 through 6) C-101BAH-AD 2H5585A05 C-101BAH Door (includes item 2) 2H5577G01 C-101BAH-AD...

  • Page 14: C-101Bah-Ds, C-101Bah-Adds

    F. Door Assembly C-101BAH-DS, C-101BAH-ADDS 5 5a 6 6a Title: F. Door Assembly Model: C-101BAH-DS, C-101BAH-ADDS Required Number Index Material or Description Model Number Part Number Door Assembly (includes items 1 C-101BAH-DS 2A3683A03 through 4) C-101BAH-ADDS 2A3683A04 Door C-101BAH-DS 2A3578G01...

  • Page 15: Accessories & Labels

    G. Accessories & Labels C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS Title: G. Accessories & Labels Model: C-101BAH, C-101BAH-DS, C-101BAH-AD, C-101BAH-ADDS Required Number Index Material or Description Model Number Part Number Scoop 204336-01 Control Label 3A7575-01 Hoshizaki Emblem 4A2112-01 Drain Elbow For use with...
