• 620 TV Lines of Resolution
• Hercules DSP Engine
• 1/3" Sony SuperHAD II CCD
• 3.6mm Fixed and 2.8~12mm IR Corrected DC Auto-Iris Lens
Options
• Available with 35 IR LEDs (120' Range)
• Advanced OSD Functions: WDR, 3D DNR, DSS, DIS, Sens-up,
Motion Detection, Privacy
• IP68 Waterproof Rated
• Secondary Video Output with Cable Included
• 3-Axis Mount for Optimum Viewing Angle
• Dual Voltage 12VDC/24VAC Operation

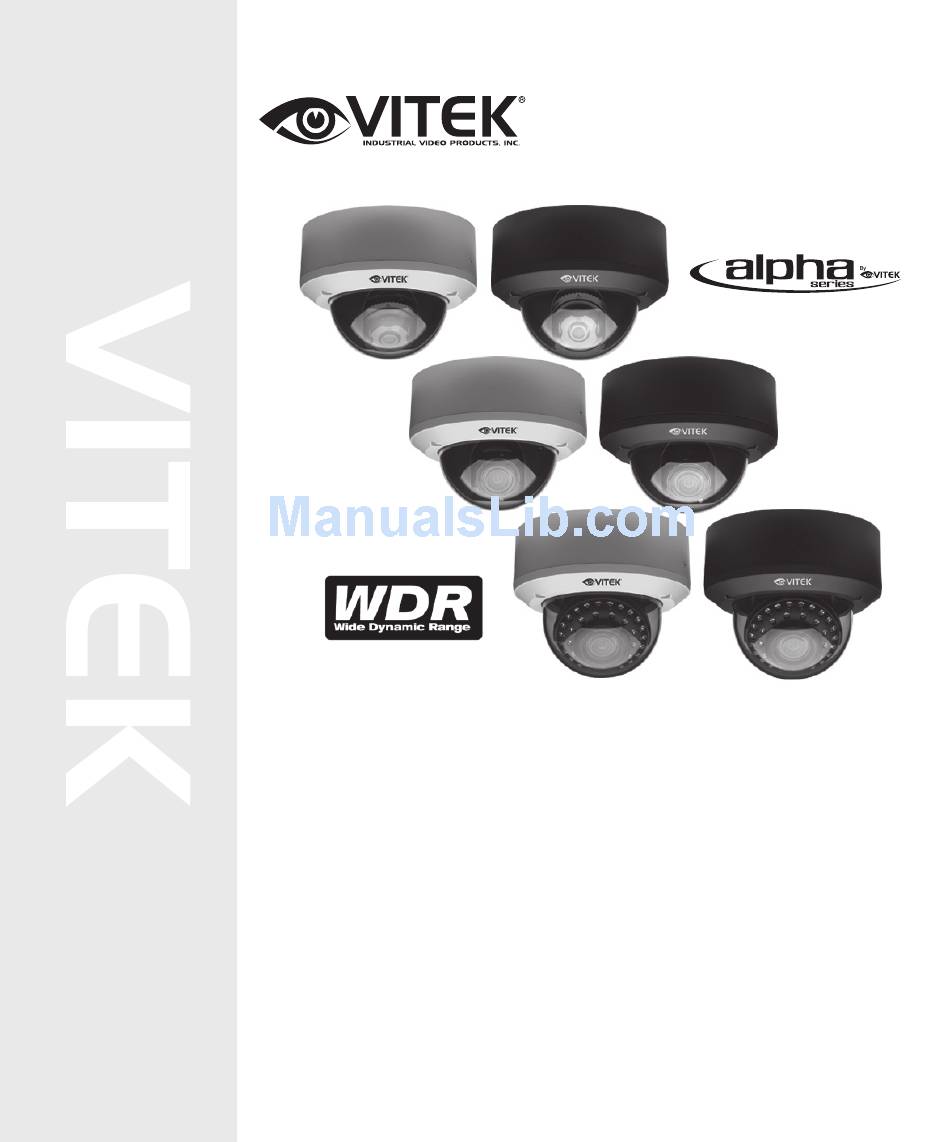

Alpha Series Vandal
Resistant High Resolution
WDR Dome Cameras
Advertisement
Related Manuals for Vitek VTD-A4F/VW
Summary of Contents for Vitek VTD-A4F/VW
- Page 1 Alpha Series Vandal Resistant High Resolution WDR Dome Cameras • 620 TV Lines of Resolution • Hercules DSP Engine • 1/3” Sony SuperHAD II CCD • 3.6mm Fixed and 2.8~12mm IR Corrected DC Auto-Iris Lens Options • Available with 35 IR LEDs (120’ Range) •...
-
Page 2: Box Contents
BOX CONTENTS BOX CONTENTS BOX CONTENTS BOX CONTENTS BOX CONTENTS 1) Dome Camera 1) Dome Camera 1) Dome Camera 1) Dome Camera 1) Dome Camera 2) Mounting Accessories 2) Mounting Accessories 2) Mounting Accessories 2) Mounting Accessories 2) Mounting Accessories 3) This instruction Manual &... -
Page 3: Available Models / Accessories
Conduit Plug Qty: 1 Qty: 1 AVAILABLE MODELS / ACCESSORIES AVAILABLE MODELS / ACCESSOR VTD-A4F/VW VTD-AV4F/IB / VTD-AV4F/IW Vandal Resistant High Resolution WDR Dome Camera with White Base. 620TVL Vandal Color Dome Camera with Fixed Lens. VTD-A4F/VB Vandal Resistant High Resolution WDR Dome Camera with Black Base. - Page 4 VTD-A4F/V INSTALLATION GUIDE PATTERN...
-
Page 5: Vtd-A2812/V Installation
VTD-A2812/V INSTALLATION GUIDE PATTERN... -
Page 6: Vtd-Ar2812/V Installation
VTD-AR2812/V INSTALLATION VTD-AR2812/IB / VTD-AR2312/IW INSTALLATION GUIDE PATTERN... -
Page 7: Osd Operation
OSD OPERATION OSD OPERATION... - Page 8 OSD OPERATION OSD OPERATION OSD MENU TREE (Option) RETURN ID DISPLAY...
- Page 9 OSD OPERATION OSD OPERATION...
- Page 10 OSD OPERATION OSD OPERATION You can control shutter speed manually. -DC IRIS LENS: 1/60 (1/50) ~ 1/100000 Adjustable -MANUAL LENS: AUTO, 1/60 (1/50) ~ 1/100000 Adjustable 1/100FLC: Select this when you experience picture flicker, which can happen (1/120FLC) when there is a clash with the frequency of the installed lighting.
- Page 11 OSD OPERATION OSD OPERATION The Wide Dynamic Range feature improves the overall picture balance beyond the Backlight Compensation feature. It creates an optimal balance of brightness and color by combining images from a bright area (high shutter speed) and images from a dark area (low shutter speed).
- Page 12 OSD OPERATION OSD OPERATION a cleaner...
- Page 13 OSD OPERATION OSD OPERATION...
- Page 14 OSD OPERATION OSD OPERATION * Suggested Specification...
- Page 15 OSD OPERATION OSD OPERATION...
- Page 16 OSD OPERATION OSD OPERATION...
- Page 17 OSD OPERATION OSD OPERATION...
- Page 18 OSD OPERATION OSD OPERATION...
- Page 19 OSD OPERATION OSD OPERATION...
- Page 20 OSD OPERATION OSD OPERATION (Optional)
- Page 21 OSD OPERATION OSD OPERATION ID DISPLAY,...
- Page 22 OSD OPERATION...
- Page 23 DIMENSIONS...
-
Page 24: Specifications
SPECIFICATIONS VTD-AF4/V Image Device 1/3” Sony SuperHAD II CCD Resolution 620 TV Lines Min. Illumination 0.1 Lux at F1.2 (Color) / 0.0001 Lux (Sense up x256) Effective Pixels 811 (H) x 508 (V) 410K pixels S/N Ratio More Than 52dB (AGC Off) Shutter AUTO / MANUAL (1/60sec~1/100,000sec) White Balance... - Page 25 SPECIFICATIONS VTD-A2812/V Image Device 1/3” Sony SuperHAD II CCD Resolution 620 TV Lines Min. Illumination 0.1 Lux at F1.2 (color) / 0.0001Lux (Sense up x256) Effective Pixels 811(H) x 508(V) 410K pixels S/N Ratio More Than 52dB (AGC Off) Shutter AUTO / MANUAL (1/60sec ~ 1/100,000sec) White Balance ATW / AWC / PUSH / MANUAL (Adjustable)
- Page 26 SPECIFICATIONS VTD-AR2812/V Image Device 1/3” Sony SuperHAD II CCD Resolution 620 TV Lines IR LEDs 35 LEDs at 850nm Min. Illumination 0 Lux (IR ON) Effective Pixels 811(H) x 508(V) 410K pixels S/N Ratio More Than 52dB (AGC Off) Shutter AUTO / MANUAL (1/60sec ~ 1/100,000sec) White Balance ATW / AWC / PUSH / MANUAL (Adjustable)
- Page 27 VTM-LCDP Series 15”, 17“, and 19” Professional LCD Monitors with Looping BNC Inputs • 15”, 17“, and 19” Professional LCD Display Panels • Designed for continuous 24/7 operation • VGA, Looping BNC Composite, and S-Video Video Inputs. DVI & HDMI Inputs on 17“ & 19” Versions •...
- Page 28 VT-H Series 4, 8, and 16 Channel Digital Video Recorders with H.264 Compression The Alpha Series VT-H Series Digital Recorders combine the latest H.264 Compression technology with stability and simple operation. H.264 Compression is the next generation of MPEG4 allowing up to 50% smaller file sizes for increased storage capability and/or resolution as well as a more fluid internet transmission speed.
- Page 29 NOTES...
- Page 30 NOTES...
- Page 31 NOTES...
- Page 32 VITEK LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
