Vitek VTD-AR2D4FN Quick Start Manual

Package Includes
Box Contents

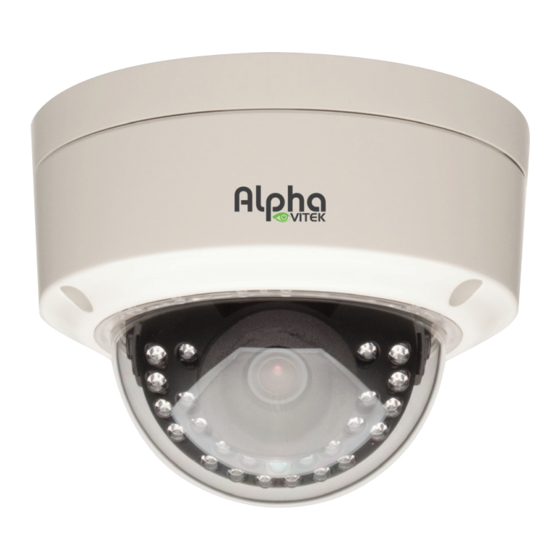

VTD-AR2D4FN IP Infrared Dome camera
Mounting Accessories
1. Box Contents
Mini CD
1) VTD-AR2D4FN IP Infrared Dome camera
2) Mounting Accessories
3) Mini CD
Included Accessories
Hex L-wrench
2. Included Accessories
1
3mm Hex L-wrench
Qty: 1
mounting screws
Wall mounting screws
3
Qty: 3
Anchors
ors
If necessary, use the anchor to help secure
essary, use the anchor to help secure the self tapping screws.
3
the self tapping screws.
Qty: 3
Mini CD with Product Documentation
CD with Product Documentation
1
Qty: 1
VTD-AR2D4FN Layout
External View
Dimensions
MEASUREMENTS: INCHES
Layout
External View
a
Dome Base
b
Dome Cover
c
Dome Polycarbonate Bubble
d
IR LEDs
e
Lens
ALPHA Series: VTD-AR2D4FN
ⓑ
ⓐ Dome Base
ⓑ Dome Cover
ⓒ Dome Polycarbonate Bubble
ⓒ
6
2
Internal View
a
b
c
f 3-Axis Mounting Gimbal
g
Rubber Gasket
h IP Reset Button
Lens Release Clamps
i
j
Micro SD Card Slot
h i
3
Connections
d
e
f
g
j
QUICK START GUIDE
VTD-AR2D4FN
2.4 MegaPixel Dome Camera with
3.6mm Fixed Iris Lens & 60' IR LEDs
• 1/2.9" Sony® CMOS
• 2.4 MegaPixel With full 1080p/720p Output
• Up to 30fps live view @ 1920x1080 (1080p)
• Built in 3.6mm Megapixel Fixed Iris Lens
• Automatic True Day/Night
• H.264/MJPEG Dual Streaming
• 24 IR LEDs with up to 60' Range
• Micro SD memory card slot for Local recording
• Advanced OSD Functions: Motion Detection &
Privacy Masking
• Heavy Duty IP66 rated weather/vandal resistant
aluminum construction
• Designed for Ceiling Mount Applications
• 12VDC & PoE (Power over Ethernet) Operation
Specifications & installation procedure subject to change without notice.
Visit www.vitekcctv.com for the most current information available.
Ethernet Cable
12 VDC Power
Supply
4
