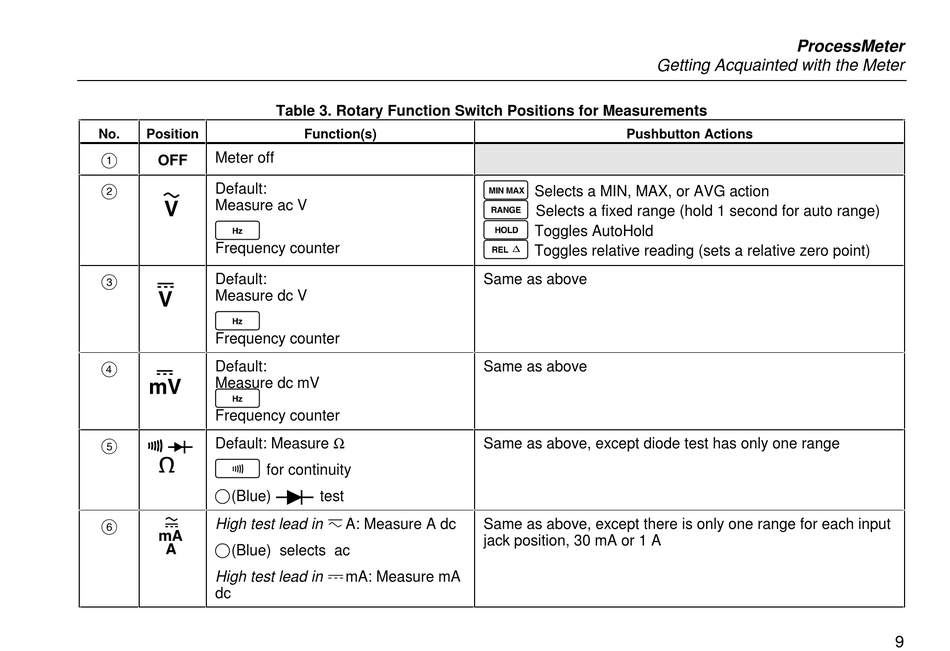

Table 3. Rotary Function Switch Positions for Measurements
No. Position
Meter off
OFF
Default:
S
Measure ac V
h
Frequency counter
Default:
T
Measure dc V
h
Frequency counter
Default:
U
Measure dc mV
h
Frequency counter
V
Default: Measure
G
for continuity
J(Blue) D test
W
High test lead in cA: Measure A dc
J(Blue) selects ac
High test lead in dmA: Measure mA
dc
Function(s)
Getting Acquainted with the Meter
Pushbutton Actions
M
Selects a MIN, MAX, or AVG action
R
Selects a fixed range (hold 1 second for auto range)
H
Toggles AutoHold
r
Toggles relative reading (sets a relative zero point)
Same as above
Same as above
Same as above, except diode test has only one range
Same as above, except there is only one range for each input
jack position, 30 mA or 1 A
ProcessMeter
