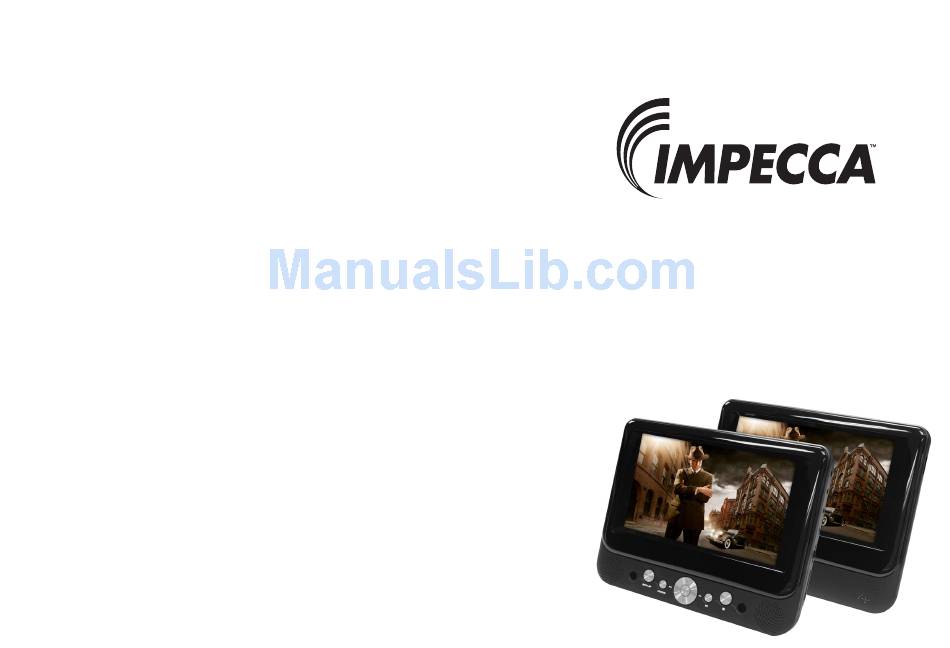

- Page 1 DVPDS720 User's Manual...
-
Page 2: Table Of Contents
Safety Precaution Table Of Contents Thank you for choosing our portable DVD player. It includes a 7” wide screen and a DVD player. The unit applies the latest state of art electronics and is designed for use at home, Safety Precaution in hotels and in offices for relaxation. -
Page 3: Package
Package Main Unit Controls 7 '' LCD Monitor & DVD Player Remote Control with battery Audio/Video Cable AC/DC Power Adapter Cigarette Lighter Adapter User Manual Earphone CLOSE DC+Audio/Video Cable 5 6 7 8 1. Open knob 9. DC IN 9-12V 2. -
Page 4: System Connection
System Connection Connecting to the monitor The unit can also be connected to the external LCD monitor. Powering and installation Connect the unit to power by AC/DC adapter or cigarette lighter adapter. Then connect the unit DC OUT jack to DC IN 9-12V Jack of the LCD Monitor by a DC/AV Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the main unit, then plug the other end into the AC power receptacle. -
Page 5: The Remote Control
The Remote Control Connecting with external Speaker The unit can be connected with external speaker. Please see the following illustration DC IN 9-12V AV OUT DC OUT AV CABLE Not supplied AUDIO IN VIDEO IN AMPLIFIER RC-M42E 1. Number button 11. -
Page 6: Basic Operation
Basic Operation The Use of Remote Control Please put the battery into the remote control as per below illustration Xvid MPEG4 SVCD Playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3. In the Source Mode ,you can press " "," ",to select and "OK"... - Page 7 Repeat playing of favorite scene Fast forward and fast backward MPEG4 SVCD When playing disc of DVD, MPEG4,SVCD, VCD, CD, the unit can search forward or MPEG4 SVCD backward. 1. Press , the unit will search forward. Press it repeatedly ,the unit will play at 2, 4, 8, 16, 32 times of speed.
- Page 8 Playing a JPG file Zoom in/ out 1. Place a into the tray, the unit will start reading and play. 2. Press “MENU” to browse JPG files. 3. Press to select a JPG file and press “ OK ” button to confirm. MPEG4 SVCD Note: you can press MENU to return to the folder list.
- Page 9 SD/MMC/USB main menu Browser mode 00 00 03 43 001/008 \Ctyy\ ..TRACK01 TRACK02 TRACK03 TRACK04 TRACK05 After Enter the SD/MMC or USB, the system will show Main Menu which includes 4 Function ICONS. You can select them by " "and press "OK"...
- Page 10 When playing JPEG : Movie mode 1.To rotate the picture counter-clockwise, press " "; Press " " to rotate the picture clockwise 2. Press OSD button when viewing pictures, you can select different refresh mode as follows: . from top to bottom 001/006 .
-
Page 11: System Setup
System Setup CD RIP Ripping Selected track Press”Setup”button,the main menu will be displayed on the screen Track Progress Setup Menu Main Page Track 01 In the General Setup Page, Press button to highlight Total Progress this item. General Setup Press OK button to access. Video Setup Press button to select the setting. -
Page 12: Preference Page
Video Setup Page Preference Setup Disc Menu Video Setup TV Type: This function allows you to choose the menu language Audio stored on the disc. TV Type PAL TV Enter this option to select TV type(PAL,NTSC) Subtitle Quality NTSC TV Disc Menu English The default is English. -
Page 13: Specification
Troubleshooting Specification Compatible disc: DVD/VCD/CD/Mp3/MPEG4 Signal system: PAL/NTSC PROBLEM SOLUTION Panel size: 7 inch Frequency response: 20 Hz to 20 kHz Make sure the machine is connected properly. No sound or Video output: 1 Vp-p/75 Ohm, unbalanced Make sure all cables are securely inserted into distorted sound Audio output: 1.4Vrms/10kOhm the appropriate jacks.
