Summary of Contents for Edimax BR-6258n

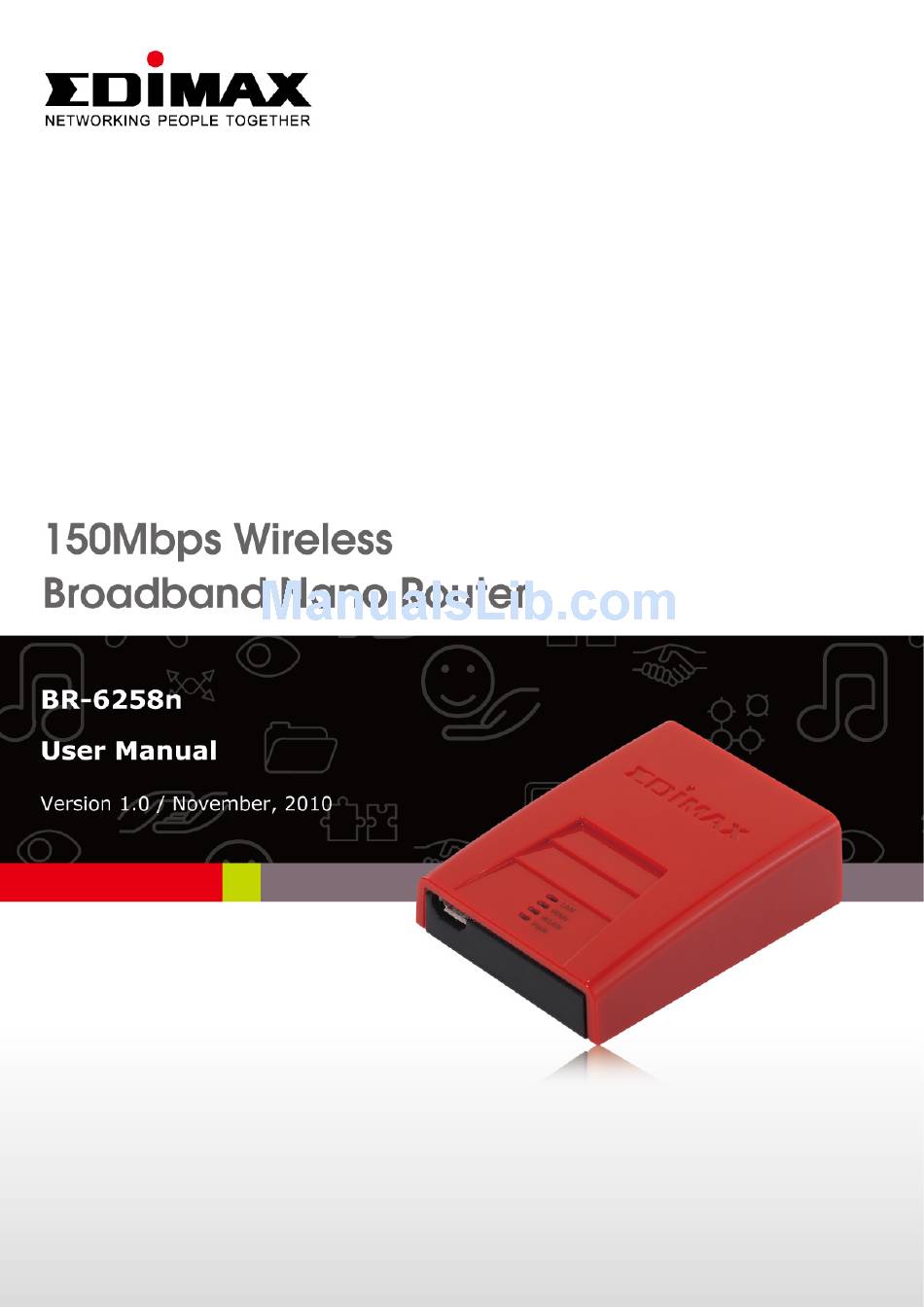

Page 1 ...
Page 2 COPYRIGHT Copyright © Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd. Edimax Technology Co., Ltd. makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability, or fitness for any particular purpose. Any software described in this manual is sold or licensed as is. Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right to revise this publication and to make changes from time to time in the contents hereof without the obligation to notify any person of such revision or changes. The product you have purchased and the setup screen may appear slightly different from those shown in this QIG. For more information about this product, please refer to the user manual on the CD‐ROM. The software and specifications are subject to change without notice. Please visit our website www.edimax.com for updates. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Linux Open Source Code Certain Edimax products include software codes developed by third parties, which are subject to the GNU General Public License (GPL) or GNU Lesser General Public License (LGPL). Please see the GNU (www.gnu.org) website for the terms and conditions of each license. The GNU GPL and GNU LGPL software codes used in Edimax products are distributed without any warranty and are subject to the copyrights of their respective authors. The firmware files for this product can be found under the “Download” page at the Edimax website (www.edimax.com). 1 ...
Page 3: Table Of Contents
CONTENTS CHAPTER I: PRODUCT INFORMATION ....................... 4 1‐1 Introduction and Safety Information .................... 4 1‐2 Safety Information .......................... 5 1‐3 System Requirements .......................... 6 1‐4 Package Contents .......................... 7 1‐5 Getting familiar with your new wireless broadband router .............. 8 CHAPTER II: SYSTEM AND NETWORK SETUP .................... 1 0 2‐1 Establishing a network connection .................... 1 0 2‐2 Setting client computers to obtain IP addresses automatically ............ 1 2 2‐2‐1 Windows 95/98/Me IP address setup ...
Page 4 3‐4‐3 MAC Address Filtering ...................... 8 8 3‐4‐4 WPS (Wi‐Fi Protected Setup) Settings .................. 9 0 3‐5 Advance Settings .......................... 9 2 3‐5‐1 QoS ............................ 9 3 3‐5‐2 DDNS ............................ 9 7 3‐5‐3 Port Forwarding ........................ 1 00 3‐5‐4 DMZ ............................ 1 02 3‐6 NAT .............................. 1 04 3‐6‐1 Virtual Server ........................ 1 05 3‐6‐2 Special Applications ...................... 1 08 3‐6‐3 UPnP Settings ........................ ...
Page 5: Chapter I: Product Information
CHAPTER I: PRODUCT INFORMATION 1‐1 Introduction and Safety Information Thank you for purchasing the Edimax BR‐6258n Wireless Broadband Nano Router! This miniature router is the ideal choice for anyone who is constantly on the go. With the Edimax BR‐6258n Wireless Broadband Nano Router, all your computers and network devices can share a single, high‐speed xDSL/cable Internet connection. Its easy installation procedure also allows any computer user to set up a network environment in a matter of minutes. With built‐in IEEE 802.11b/g/n wireless network capability, all your computers and wireless‐enabled network devices (PDAs, cell phones, game consoles, etc.) can be connected to this broadband router without additional cabling. Its IEEE 802.11n capability also allows you to enjoy the fastest wireless experience ever! With a compatible wireless card installed, your PC can transfer files at up to 150Mbps! The Edimax BR‐6258n Wireless Broadband Nano Router makes setting up wireless security a breeze. With the WPS (Wi‐Fi Protected Setup) function, you can set up wireless security in just seconds! Just press the WPS button on WPS‐compatible wireless devices and you will have a secure wireless connection in no time. Other features: High throughput Internet access 1 LAN port (10/100M) and 1 WAN port (10/100M) IEEE 802.11b/g/n WLAN capable Supports DHCP (server/client) for easy client IP‐address setup Advanced network and security features like DMZ, virtual servers, access control, firewall, and other special applications Allows you to monitor the DHCP client log, system log, security log, and device/connection status Easy‐to‐use, web‐based GUI for network configuration and management Remote management Auto‐MDI/MDI‐X function 4 ...
Page 6: Safety Information
1‐2 Safety Information Please follow the following safety instructions to ensure your safety: 1. This router is designed for indoor use only. DO NOT place this router outdoors. 2. DO NOT put this router in or near hot or humid places like the kitchen, bathroom, or a car parked in the sun. 3. Disconnect any connected cables from the router before pulling the router with force. 4. If you want to hang this router on the wall or place it somewhere high, please make sure it is firmly secured. Edimax’s warranty does not cover damages caused by misuse. 5. Please keep this router and its accessories out of the reach of children. 6. DO NOT put this router on paper, cloth, or other flammable materials. 7. DO NOT disassemble this router. Disassembling this router will invalidate the warranty. Please contact your dealer if you experience any problems. 8. If this router gets wet or falls into water when it is powered, DO NOT touch it with your bare hands. Disconnect the power plug from the wall socket immediately, or contact an experienced technician for help. 9. Should your router or power supply overheat and burn out, switch the electrical power off or disconnect the power plug from the wall socket immediately, and call your dealer for help. 5 ...
Page 7: System Requirements
1‐3 System Requirements Internet connection via an xDSL or cable modem with an RJ‐45 Ethernet port Computer or network devices with a wired or wireless network interface card Web browser (Microsoft Internet Explorer, Mozilla Firefox, Opera, or Safari) An available AC power socket (100‐240V, 50/60Hz) 6 ...
Page 8: Package Contents
1‐4 Package Contents Before you start using this router, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): BR‐6258n broadband router (1 pcs) Quick installation guide (1 pcs) CDROM with multi‐language setup wizard, multi‐language quick installation guide, and user manual (1pcs) 5V 1A USB power adapter (1 pcs) Ethernet cable (1 pcs) USB cable (1 pcs) 7 ...
Page 9: Getting Familiar With Your New Wireless Broadband Router
1‐5 Getting familiar with your new wireless broadband router Top Panel LED Name Light Status Description PWR On Router switched on and correctly powered Off Router not powered (or not correctly powered) WLAN On Wireless connectivity activated Off Wireless connectivity not activated Flashing Wireless LAN activity (transferring data) or WPS mode activated (LED flashes once every second) WAN On WAN port connected Off WAN port not connected ...
Page 10 Item Name Description Micro‐USB Port Connects to USB power adapter or computer via USB cable Back Panel Item Name Description LAN Port Connects to computer or other web devices WAN Port Connects to cable/xDSL modems Side Panel Item Name Description Reset/WPS Resets the router to factory default settings or starts WPS Button function (press this button and hold for 10 seconds to clear all ...
Page 11: Chapter Ii: System And Network Setup
CHAPTER II: SYSTEM AND NETWORK SETUP 2‐1 Establishing a network connection Please follow the following instructions to build a network connection between your new broadband router, computers, and other network devices: 1. Connect your xDSL or cable modem to the “WAN” port with an Ethernet cable. 2. Connect your computer to the “LAN” port. 10 ...
Page 12 3. You can power this router through either a computer or a wall socket. To power the router through a computer, connect the USB cable to the micro‐USB port on the front panel, and then connect the cable to a computer. Use the USB power adapter to power the router through a wall socket. 4. Please check all the LEDs on the top panel. The “PWR” and “WAN” LEDs should be on. The “LAN” LED should be on if the computer is connected and correctly powered. If you encounter any problems, please make sure that all your devices are connected and powered correctly. 11 ...
Page 13: Setting Client Computers To Obtain Ip Addresses Automatically
2‐2 Setting client computers to obtain IP addresses automatically Before you start configuration procedures, your computer must be able to get an IP address automatically (set to use dynamic IP addresses). If your computer is set to use a static IP address, or if you are unsure, please follow the following instructions to configure your computer to use dynamic IP addresses: Windows 95/98/Me (see section 2‐2‐1) Windows 2000 (see section 2‐2‐2) Windows XP (see section 2‐2‐3) Windows Vista (see section 2‐2‐4) 12 ...
Page 14: Windows 95/98/Me Ip Address Setup
2‐2‐1 Windows 95/98/Me IP address setup 1. Click the “Start” button (it should be located at the lower‐left corner of your screen), then click “Control Panel”. Double‐click the “Network” icon, and the “Network” window will appear. Select “TCP/IP”, and then click “Properties”. 13 ...
Page 15 2. Select “Obtain an IP address from a DHCP server”, then click “OK”. 14 ...
Page 16: Windows 2000 Ip Address Setup
2‐2‐2 Windows 2000 IP address setup 1. Click the “Start” button (it should be located at the lower‐left corner of your screen), then click “Control Panel”. Double‐click the “Network and Dial‐up Connections” icon, and then double‐click “Local Area Connection”. When the “Local Area Connection Properties” window appears, select “Internet Protocol (TCP/IP)”, and then click “Properties”. 15 ...
Page 17 2. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. 16 ...
Page 18: Windows Xp Ip Address Setup
2‐2‐3 Windows XP IP address setup 1. Click the “Start” button (it should be located at the lower‐left corner of your screen), then click “Control Panel”. Double‐click the “Network and Internet Connections” icon, click “Network Connections”, then double‐click “Local Area Connection”. When the “Local Area Connection Properties” window appears, click “Properties”. 17 ...
Page 19 2. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. 18 ...
Page 20: Windows Vista Ip Address Setup 1
2‐2‐4 Windows Vista IP address setup 1. Click the “Start” button (it should be located at the lower‐left corner of your screen), then click “Control Panel”. Click “View Network Status and Tasks”, and then click “Manage Network Connections”. Right‐click “Local Area Network”, then select “Properties”. When the “Local Area Connection Properties” window appears, select “Internet Protocol Version 4 (TCP/IPv4)” and then click “Properties”. 19 ...
Page 21 2. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. 20 ...
Page 22: Connecting To Broadband Router Via Web Browser
2‐3 Connecting to broadband router via web browser You can access the broadband router’s web‐based configuration interface via any connected computer with a web browser (Internet Explorer 5.x or above, Firefox, Opera, or Safari). 1. Please input “192.168.2.1” in the web browser’s address bar and press “Enter”. 2. You should see the following authentication window. NOTE: If you cannot access the broadband router’s web‐based configuration interface, the IP address you have inputted may be incorrect. If you have previously changed the router’s IP address, please input the one you have designated. 3. Please input “admin” in the “User name” field and “1234” in the “Password” field. Click the “OK” button to enter the web configuration interface. 21 ...
Page 23 4. The first page you see after logging in is “Home”. You can see all the current settings and other system information here. System Model Displays this broadband router’s model name (useful when you need technical service) Up Time Displays the amount of time this router has been switched on Hardware Version Displays this broadband router’s hardware version (useful when you need technical service) Boot Code Displays this broadband router’s boot code version (useful Version when you need technical service) Runtime Code Displays this broadband router’s runtime code version (useful Version when you need technical service) 22 ...
Page 24 Internet Connection IP Address Mode Displays how this broadband router currently obtains IP addresses IP Address Displays the IP address of the WAN connection Subnet Mask Displays the subnet mask of the WAN connection Default Gateway Displays the IP address of the WAN connection’s default gateway MAC Address Displays the physical address of the WAN port Primary DNS Displays the IP address of the first DNS server Secondary DNS Displays the IP address of the second (backup) DNS server Wireless Configuration Mode Displays the operation mode of the wireless access point ESSID Displays the name of the access point Channel Number Displays the channel number of the wireless network Security Displays the security authentication mode of the access point LAN Connection IP Address Displays the IP address of the LAN connection Subnet Mask Displays the subnet mask of the LAN connection DHCP Server Displays the status of the internal DHCP server MAC Address ...
Page 25 The SSID, the up time, the IP address of the LAN connection, and the runtime code is always displayed on the top of the webpage. 24 ...
Page 26 If this router’s DHCP server function is enabled, please follow the following instructions to find this router’s IP address: 1. Click the “Start” button, then click “Run”. 2. Input “cmd”, and then click “OK”. 25 ...
Page 27 3. Input “ipconfig”, then press “Enter”. Use the IP address following “Default Gateway” to access this router’s web‐based configuration interface. Please note that the IP address you find may be different from this illustrated example. NOTE: If there is no IP address following “Default Gateway”, or if the address following “IP Address” begins with “169”, please try the following procedures: Recheck the cable connection between the computer and the router. Go to the beginning of this chapter and recheck every step of the setup procedure. If both of the above fails, reset the broadband router. 26 ...
Page 28: Using "Quick Setup
2‐4 Using “Quick Setup” This broadband router’s “Quick Setup” allows you to set up basic parameters in a few simple steps. The following instructions illustrate how to use the “Quick Setup” menu: 1. Click “Quick Setup” after logging in. 2. Configure automatic time synchronization settings, and then click “Next”. Item Name Description Set Time Zone Please select the time zone of your country or region. If you cannot find your country/region, please select another country/region whose time zone is the same as yours. Time Server This router supports NTP (Network Time Protocol) for Address automatic time and date setup. Input the host name or IP address of the NTP server here. If you do not know the host name, please ask the network administrator or use “pool.ntp.org”. Daylight Saving If your country/region uses daylight saving time, please check the “Enable Function” box, and select the start and end date. 27 ...
Page 29 3. Choose your Internet connection type. Refer to the following list for further instructions: Dynamic IP (See section 2‐4‐1) Static IP (See section 2‐4‐2) PPPoE (See section 2‐4‐3) PPTP (See section 2‐4‐4) L2TP (See section 2‐4‐5) NOTE: If you are not sure which your Internet connection type is, please contact your Internet service provider. 28 ...
Page 30: Using "Dynamic Ip" As Broadband Connection Type
2‐4‐1 Using “Dynamic IP” as broadband connection type 1. If your Internet service provider assigns IP addresses to you automatically through DHCP (Dynamic Host Configuration Protocol), select “Dynamic IP”. Item Name Description Host Name Input the host name of your computer here. This is optional and only required if your ISP asks you to do so. MAC Address If your ISP only permits computers with certain MAC addresses to access the Internet, input your computer’s MAC address here. Press “Clone Mac address” to fill the MAC address field with your computer’s MAC address automatically. 2. Click “OK” to complete setup. 3. When the following message appears, click “Apply” to save the changes and restart the broadband router. The router will take about 30 seconds to restart. 29 ...
Page 31: Using "Static Ip" As Broadband Connection Type
2‐4‐2 Using “Static IP” as broadband connection type 1. If your ISP is providing you Internet access via a fixed IP address, select “Static IP”. Generally, your ISP will provide you with such information as IP address, subnet mask, gateway address, and DNS address. Item Name Description Fixed IP Address Input the IP address assigned by your ISP here. Subnet Mask Input the subnet mask assigned by your ISP here. DNS Address Input the DNS address assigned by your ISP here. Default Gateway Input the default gateway assigned by your ISP here. Some ISPs may call this “Default Route”. NOTE: You must use the addresses provided by your ISP. Inputting incorrect values will cause malfunction. 2. Click “OK” to complete setup. 3. When the following message appears, click “Apply” to save the changes and restart the broadband router. The router will take about 30 seconds to restart. 30 ...
Page 32: Using "Pppoe" As Broadband Connection Type
2‐4‐3 Using “PPPoE” as broadband connection type 1. If your ISP is providing you Internet access via PPPoE (Point‐to‐Point Protocol over Ethernet), select “PPPoE”. Item Name Description User Name Input the user name assigned by your ISP here. Password Input the password assigned by your ISP here. Service Name Give this Internet service a name (optional). MTU Input the MTU value of your network connection here. If you do not know, use the default value. Connection Type Please specify a connection type here. There are 3 options: 1. “Continuous” keeps the Internet connection alive all the time. 2. “Connect on Demand” only connects to the Internet when you initiate Internet connection. 3. “Manual” connects to the Internet only when the “Connect” button on this page is clicked, and disconnects when the “Disconnect” button is clicked. Idle Time Out Specify the amount of time the router waits before shutting down an idle connection. This option is only available when “Connect on Demand” is selected. 2. Click “OK” to complete setup. ...
Page 33 3. When the following message appears, click “Apply” to save the changes and restart the broadband router. The router will take about 30 seconds to restart. 32 ...
Page 34: Using "Pptp" As Broadband Connection Type
2‐4‐4 Using “PPTP” as broadband connection type 1. Select “PPTP” if your ISP is providing you Internet access via PPTP (Point‐to‐Point Tunneling Protocol). 2. If your ISP is providing you dynamic IP addresses, select “Obtain an IP address automatically” (refer to 2‐4‐1 for setup details). If your ISP is providing you a static IP address, select “Use the following IP address” (refer to 2‐4‐2 for setup details). NOTE: These settings must be configured according to your Internet service. Please contact your Internet service provider if you are not sure what to select. 3. Configure the “PPTP Settings” section. 33 ...
Page 35 Item Name Description User ID Input the user name assigned by your ISP here. Password Input the password assigned by your ISP here. PPTP Gateway Input the PPTP gateway assigned by your ISP here. Connection ID Give this connection a name (optional). MTU Input the MTU value of your network connection here. If you do not know, use the default value. BEZEQ‐ISRAEL Check the “Enable” box if you are in Israel and using BEZEQ network services. Connection Type Please specify a connection type here. There are 3 options: 1. “Continuous” keeps the Internet connection alive all the time. 2. “Connect on Demand” only connects to the Internet when you initiate Internet connection. 3. “Manual” connects to the Internet only when the “Connect” button on this page is clicked, and disconnects when the “Disconnect” button is clicked. Idle Time Out Specify the amount of time the router waits before shutting down an idle connection. This option is only available when “Connect on Demand” is selected. 4. Click “OK” to complete setup. 5. When the following message appears, click “Apply” to save the changes and restart the broadband router. The router will take about 30 seconds to restart. ...
Page 36: Using "L2Tp" As Broadband Connection Type
2‐4‐5 Using “L2TP” as broadband connection type 1. Select “L2TP” if your ISP is providing you Internet access via L2TP (Layer‐2 Tunneling Protocol). 2. If your ISP is providing you dynamic IP addresses, select “Obtain an IP address automatically” (refer to 2‐4‐1 for setup details). If your ISP is providing you a static IP address, select “Use the following IP address” (refer to 2‐4‐2 for setup details). NOTE: These settings must be configured according to your Internet service. Please contact your Internet service provider if you are not sure what to select. 3. Configure the “L2TP Settings” section. 35 ...
Page 37 Item Name Description User ID Input the user name assigned by your ISP here. Password Input the password assigned by your ISP here. L2TP Gateway Input the L2TP gateway assigned by your ISP here. MTU Input the MTU value of your network connection here. If you do not know, use the default value. Connection Type Please specify a connection type here. There are 3 options: 1. “Continuous” keeps the Internet connection alive all the time. 2. “Connect on Demand” only connects to the Internet when you initiate Internet connection. 3. “Manual” connects to the Internet only when the “Connect” button on this page is clicked, and disconnects when the “Disconnect” button is clicked. Idle Time Out Specify the amount of time the router waits before shutting down an idle connection. This option is only available when “Connect on Demand” is selected. 4. Click “OK” to complete setup. 5. When the following message appears, click “Apply” to save the changes and restart the broadband router. The router will take about 30 seconds to restart. 36 ...
Page 38: Chapter Iii: General Setup
CHAPTER III: GENERAL SETUP You can perform advanced configuration of this broadband router in “General Setup”. The following are instructions on how to use “General Setup”: 1. Click “General Setup” after logging in. 2. All available setup items will appear as a list under ‘General Setup’ tab: 3. Refer to the following list for further instructions: System (See section 3‐1) WAN (See section 3‐2) LAN (See section 3‐3) Wireless ...
Page 39 3‐1 System You can setup basic system settings of this broadband router in ‘System’ menu: Please select the setting item you wish to set, then click ‘Apply’ button to proceed. You can also click ‘Previous’ button to back to ‘System’ menu. 38 ...
Page 40: Time Zone
3‐1‐1 Time Zone You can change the time zone settings of this broadband router. It’s important to have correct date and time setting if you need to read system log and use build‐in firewall functions. The descriptions of every setting item are listed as follow: Item Name Description Time Zone Please select a time zone of the country or region of your residence here. If you can’t find the country / region of your residence here, please select a city / region which time zone is the same with the country / region of your residence. Time Server Address This load‐balance router supports NTP (Network Time Protocol). NTP server will provide correct time for this router to setup the date and time of the router automatically. Please input the host name or IP address of NTP server here. If you don’t know the host name or IP address of time server, please ask network administrator or use ‘pool.ntp.org’ as time server. Daylight Savings If the country / region of your residence use daylight saving time, please check ‘Enable Function’ box, and select the beginning and ending date of daylight time saving. 39 ...
Page 41: Password Settings
3‐1‐2 Password Settings You can change the web login password of this broadband router. If you keep using the default password ‘1234’, other people may access the configuration interface without your permission. Please change the password as soon as possible. The descriptions of every setting item are listed as follow: Item Name Description Current Password Please input current password here. New Password Please input new password here. Confirmed Password Please input new password here again for confirmation. After you inputted current and new password, click ‘Apply’ to save changes, or you can click ‘Cancel’ to keep current password untouched. Please note that you’ll be asked for username and password for login again if you changed password. 40 ...
Page 42: Remote Management
3‐1‐3 Remote Management If you need to manage this broadband router outside of your LAN (i.e. from Internet), you can use this function to assign a remote IP address which is permitted to connect to this broadband router’s web management interface from Internet. If it’s not required for you to manage this broadband router from Internet, you can disable this function to improve security. The descriptions of every setting item are listed as follow: Item Name Description Host address Input the IP address of the remote host you wish to initiate a management access. Port You can define the port number this router should expect an incoming connection request. If you’re providing a web service (default port number is 80), you should try to use other port number. You can use the default port setting ‘8080’, or something like ‘32245’ or ‘1429’. (Any integer between 1 and 65534) Enabled Check this box to enable remote management function. When this box is unchecked, no one can access this broadband router’s management interface from Internet. Please click ‘Apply’ to save changes in this page, or you can click ‘Cancel’ to discard all settings in this page. After you click ‘Apply’ button, you’ll see the following message: 41 ...
Page 43 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. To setup other items now and restart broadband router later, click ‘Continue’. 42 ...
Page 44: Wan
3‐2 WAN You can setup WAN (Wide Area Network, i.e. Internet) connections of this broadband router in ‘WAN’ menu: Please select the WAN connection type you wish to use to setup Internet connection, and click ‘Apply’ to save changes you made. If you’re not sure which connection type you should use, please contact your ISP’s service hotline and ask for help. You’ll not be able to connect to Internet with wrong connection type. 43 ...
Page 45: Dynamic
3‐2‐1 Dynamic IP Dynamic IP means your ISP will assign an IP address to you automatically by ‘DHCP’ (Dynamic Host Configuration Protocol). Dynamic IP is often used by cable modem Internet connection. Here are descriptions of every setup items: Item Name Description Host Name Please input the host name of your computer, this is optional, and only required if your service provider asks you to do so. MAC address Please input MAC address of your computer here, if your service provider only permits computer with certain MAC address to access internet. If you’re using the computer which used to connect to Internet via cable modem, you can simply press ‘Clone Mac address’ button to fill the MAC address field with the MAC address of your computer. 44 ...
Page 46 If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 45 ...
Page 47: Static
3‐2‐2 Static IP Some ISP will give you a fixed IP address, and ask you to use this IP address to establish Internet connection. In this case, you have to select this connection type to establish connection with your ISP. Please note that if your ISP is assigning a fixed IP address to you by DHCP or PPPoE, do not select this connection type. Please contact your ISP’s service hotline to make sure you really need to use static IP as connection type. Here are descriptions of every setup items: Item Name Description IP address assigned by Please input IP address assigned by your your by your service service provider. provider Subnet Mask Please input subnet mask assigned by your service provider. DNS address Please input the IP address of DNS server provided by your service provider. Service Provider Please input the IP address of DNS server Gateway Address provided by your service provider. You must use the addresses provided by your Internet service ...
Page 48 If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 47 ...
Page 49: Pppoe
3‐2‐3 PPPoE If your ISP requires you to establish Internet connection by PPPoE (Point‐to‐Point Protocol over Ethernet), you can use this connection type to establish Internet connection. Here are descriptions of every setup items: Item Name Description User Name Please input user name assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here. Service Name Please give a name to this Internet service, this is optional. MTU Please input the MTU value of your network connection here. If you don’t know, you can use default value. Connection Type Please select the connection type of Internet connection you wish to use. There are 3 options: ‘Continuous’ ‐ keep internet connection alive, do not disconnect. ’Connect on Demand’ ‐ only connects to Internet when there’s a connect attempt, Manual ‐ only connects to Internet when ‘Connect’ button on this page is pressed, and disconnects when ‘Disconnect button is ...
Page 50 minute(s). This option is only available when connection type is ‘Connect on Demand’. If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 49 ...
Page 51: Pptp
3‐2‐4 PPTP If your ISP requires you to use PPTP (Point‐to‐Point Tunneling Protocol) to establish connection, you can select this connection type to establish Internet connection. PPTP requires two kinds of setting: WAN interface setting (setup IP address) and PPTP setting (PPTP user name and password). Here we start from WAN interface setting first: Select the type of how you obtain IP address from your service provider here. You can choose ‘Obtain an IP address automatically’ (equal to DHCP, please refer to ‘Cable Modem’ section above), or ‘Use the following IP address’ (i.e. static IP address). WAN interface settings must be correctly set, or the Internet connection will fail even those settings of PPTP settings are correct. Please contact your Internet service provider if you don’t know what you should fill in these fields. Now please go to PPTP settings section: Here are descriptions of every setup items: 50 ...
Page 52 Item Name Description User ID Please input user ID (user name) assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here. PPTP Gateway Please input the IP address of PPTP gateway assigned by your Internet service provider here. Connection ID Please input the connection ID here, this is optional and you can leave it blank. MTU Please input the MTU value of your network connection here. If you don’t know, you can use default value. BEZEQ‐ISRAEL Check ‘Enable’ box if you’re using BEZEQ network service in Israel. Do not check this box if you’re using other Internet service provider. Connection Type Please select the connection type of Internet connection you wish to use. There are 3 options: ‘Continuous’ ‐ keep internet connection alive, do not disconnect. ’Connect on Demand’ ‐ only connects to Internet when there’s a connect attempt, ...
Page 53 If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 52 ...
Page 54: L2Tp
3‐2‐5 L2TP If your ISP requires you to use L2TP (Layer‐2 Tunneling Protocol) to establish connection, you can select this connection type to establish Internet connection. L2TP is another popular connection method for xDSL and other Internet connection types, and all required setting items are the same with PPTP connection. Like PPTP, there are two kinds of required setting, we’ll start from ‘WAN Interface Settings’: Please select the type of how you obtain IP address from your service provider here. You can choose ‘Obtain an IP address automatically’ (equal to DHCP, please refer to ‘Dynamic IP’ section above), or ‘Use the following IP address’ (equal to static IP address, please refer to ‘PPPoE’ section above). WAN interface settings must be correctly set, or the Internet connection will fail even those settings of L2TP settings are correct. Please contact your Internet service provider if you don’t know what you should fill in these fields. Now please go to L2TP settings section: Here are descriptions of every setup items: 53 ...
Page 55 Item Name Description User ID Please input user ID (user name) assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here. L2TP Gateway Please input the IP address of PPTP gateway assigned by your Internet service provider here. MTU Please input the MTU value of your network connection here. If you don’t know, you can use default value. Connection Type Please select the connection type of Internet connection you wish to use. There are 3 options: ‘Continuous’ ‐ keep internet connection alive, do not disconnect. ’Connect on Demand’ ‐ only connects to Internet when there’s a connect attempt, Manual ‐ only connects to Internet when ‘Connect’ button on this page is pressed, and disconnects when ‘Disconnect button is pressed. Idle Time Out Please specify the time to shutdown internet connect after no internet activity is detected in minute(s). This option is only available when connection type is ‘Connect on Demand’. ...
Page 56 If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 55 ...
Page 57: Wisp
3‐2‐6 WISP WISP (Wireless ISP) is a connection method which establishes Internet connection by wireless network. In this mode, BR‐6258n broadband router will act as a wireless client and connect to another wireless access point to establish Internet connection. Here are descriptions of every setup items: Item Name Description WISP Enable or disable WISP function. ESSID Input the ESSID (i.e. the name of wireless access point) of your ISP’s access point. Channel Number Select the wireless channel number of wireless access point you wish to connect. Site Survery Click this button to scan for wireless access points in range: Select a wireless access point from the list (click ‘Select’ of the access point), and click ‘Done’ button located at the bottom of this window. If the wireless access point you wish to connect is not in the list, click ‘Refresh’ one or more times to rescan for wireless access points. Security According to the security settings of the wireless 56 ...
Page 58 access point you with to connect, you’ll be prompted to input WEP key / WPA passphrase so you can pass the security check of access point. A correct WEP key / WPA passphrase is required to connect to wireless access point with security setting. Please ask your wireless ISP for correct WEP key / WPA passphrase. If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 57 ...
Page 59: Lan (Wired)
3‐3 LAN (Wired) You can setup Wired LAN (Local Area Network) connections of this broadband router in ‘LAN’ menu. This broadband router has 4 LAN ports and they’ll all use the same LAN IP address settings. Please also note that both wired and wireless LAN uses the same LAN IP address settings, too. LAN settings split into 3 sections: LAN IP, DHCP Server, and Static DHCP leases. Please refer to corresponding sections below for detailed setup instructions. 3‐3‐1 Before you start: Suggestions for deciding an IP address Before all computers using wired Ethernet connection (i.e. those computers connect to this router’s LAN port 1 to 4 by Ethernet cable) or wireless connection can communicate with each other and access internet, they must have a valid IP address. There are two ways to assign IP addresses to computers: static IP address (set the IP address for every computer manually), and dynamic IP address (IP address of computers will be assigned by router automatically. It’s recommended for most of computers to use dynamic IP address, it will save a lot of time on setting IP addresses for every computer, especially when there are a lot of computers in your network; for servers and network devices which will provide services to other computer and users that come from Internet, static IP address should be used, so other computes can locate the server. This broadband router has a built‐in DHCP (Dynamic Host Configuration Protocol) server, and can help you to assign IP addresses to your client computers. Almost all network computers / devices manufactured after year 1995 are compatible with DHCP, and you can let this broadband router to assign the IP address to client computers / devices for you. 58 ...
Page 60 Suggestions on IP address numbering plan: If you have no idea on how to define an IP address plan for your network, here are some suggestions. 1. A valid IP address has 4 fields: a.b.c.d, for most of home and company users, it’s suggested to use 192.168.c.d, where c is an integer between 0 and 254, and d is an integer between 1 and 254.
Page 61: Lan
3‐3‐2 LAN IP You can use this setting to assign an IP address to the LAN interface of this broadband router. Here are descriptions of every setup items: Item Name Description IP address Please input the IP address of this broadband router’s LAN interface. Subnet Mask Please input subnet mask for this network. 802.1d Spanning Tree If you wish to activate 802.1d spanning tree function, select ‘Enabled’ for setup item ‘802.1d Spanning Tree’, or set it to ‘Disabled’. DHCP Server If you want to activate DHCP server function of this router, select ‘Enabled’, or set it to ‘Disabled’. Lease Time Please select the lease time for every DHCP leases here. You can select the time period from the dropdown list, and the DHCP client will be forced to obtain a new IP address from this broadband router after this period of time. You can select ‘Forever’ if you’re using this broadband router with only few computers (less than 30 computers) Recommended Value if you don’t know what to fill: IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 802.1d Spanning Tree: Disabled...
Page 62 3‐3‐3 DHCP Server You can use this setting to decide the range of IP address leases. Here are descriptions of every setup items: Item Name Description Start IP Please input the start IP address of the IP leases range. End IP Please input the end IP address of the IP leases range. Domain Name If you wish, you can also input the domain name for your network. This is optional. DNS1 address Input the IP address of DNS server provided by your ISP here. This field is REQUIRED. DNS2 address Input another IP address of DNS server provided by your ISP here. This field is optional and you can leave it blank. Recommended Value if you don’t know what to fill: ...
Page 63: Static Dhcp Leases
3‐3‐4 Static DHCP Leases If you wish to assign a fixed IP address to certain computers / devices by DHCP, you can use this function to establish a MAC‐to‐IP address table here, so you can assign a specific IP address to a specific computer / network device by its MAC address. Here are descriptions of every setup items: Item Name Description Enable Static DHCP Check this box to enable this function, Leases otherwise uncheck it to disable this function. MAC Address Input the MAC address of the computer or network device (total 12 characters, with character from 0 to 9, and from a to f, like ‘001122aabbcc’). IP address Input the IP address you want to assign to this computer or network device. Add After you inputted MAC address and IP address pair, click this button to add the pair to static DHCP leases table. Clear Click this button to remove texts in MAC address and IP address field. 62 ...
Page 64 All MAC‐to‐IP address entries will be listed in this page, and this broadband router supports up 16 static DHCP leases: To delete one or more entries listed here, please check the box of the mapping entry (under ‘Select’), and click ‘Delete Selected’ button. If you wish to delete all mapping entries, click ‘Delete All’ button. To deselect all checked boxes, click ‘Reset’ button. When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 63 ...
Page 65: Wireless
3‐4 Wireless You can setup Wireless LAN connection parameters of this broadband router in ‘Wireless’ menu: Please select one setting in this menu, then click ‘Apply’ to proceed. If you wish to go back to previous page, click ‘Previous’. 64 ...
Page 66: Basic Settings
3‐4‐1 Basic Settings You can set basic settings of wireless LAN here. Please select the working mode of this broadband router from ‘Mode’ dropdown list first: a. AP: Standard wireless AP (access point). b. Station‐Infrastructure: This broadband router acts as both wireless communication client and server ‐ connects to another wireless access point as client, and serves other wireless clients as server. c. AP Bridge‐Point to Point: Connect this router with another broadband router, to expand the scope of network. d. AP Bridge‐Point to Multi‐Point: Connect this router with up to four other broadband routers, to expand the scope of network. e. AP Bridge‐WDS: Connect this router with up to four WDS‐capable broadband routers, to expand the scope of network. f. Universal Repeater: This broadband router will repeat other wireless access point’s signal to extend its wireless signal coverage, and also acts as a wireless access point to serve other wireless clients. 65 ...
Page 67 3‐4‐1‐1 AP Mode In AP mode, the following settings will appear: Here are descriptions of every setup items: Item Name Description Band Please select the radio band from one of following options: 2.4 GHz (B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (N): 2.4GHz band, only allows 802.11n wireless network client to connect this router (maximum transfer rate 300Mbps). 2.4 GHz (B+G): 2.4GHz band, only allows 802.11b and 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients). 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to maximize compatibility. ESSID This is the name of broadband router. You can ...
Page 68 maximum 32 characters. ESSID is used to identify your own broadband router from others when there are other broadband routers in the same area. Default SSID is ‘default’, it’s recommended to change default ESSID value to the one which is meaningful to you, like myhome, office_room1, etc. Channel Number Please select a channel from the dropdown list of ‘Channel Number’, available channel numbers are 1 to 13. You can choose any channel number you want to use, and almost all wireless clients can locate the channel you’re using automatically without any problem. However, it’s still useful to remember the channel number you use, some wireless client supports manual channel number select, and this would help in certain scenario when there is some radio communication problem. Associated Clients Click ‘Show Active Clients’ button to show the list of all connected wireless clients. You can click ‘Refresh’ in new window to get latest list again, or click ‘Close’ to close the window. Please note that if you have pop‐up blocker installed, you may have to disable it or tell your pop‐up blocker to allow the popup window, or you will not be able to see the wireless client list window. TIPS: You can try to change channel number to another one if you think the data transfer rate is too slow, or keep having problem while transferring the file over wireless network.
Page 69 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. You can click ‘Continue’ to continue on other settings without restart the broadband router, however, the changes you made will not take effect before you restart the broadband router. 68 ...
Page 70 3‐4‐1‐2 Station‐Infrastructure In Station‐Infrastructure mode, you can select a wireless access point to become its wireless client, and also acts as wireless access point to serve other wireless clients. If you have the access privilege of other wireless access point nearby, and you wish to use that access point to access Internet, you can use this connection type: Here are descriptions of every setup items: Item Name Description Band Please select the radio band from one of following options (must be the same with the wireless access point you wish to connect): 2.4 GHz (B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (N): 2.4GHz band, only allows 802.11n wireless network client to connect this router (maximum transfer rate 300Mbps). 2.4 GHz (B+G): 2.4GHz band, only allows 802.11b and 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients). 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to ...
Page 71 maximize compatibility. ESSID This is the name of broadband router. You can type any alphanumerical characters here, maximum 32 characters. ESSID is used to identify your own broadband router from others when there are other broadband routers in the same area. Default SSID is ‘default’, it’s recommended to change default ESSID value to the one which is meaningful to you, like myhome, office_room1, etc. Site Survey Click ‘Select Site Survey’ and a popup window will appear. All reachable wireless access points will be shown in the window. Select the wireless access point you wish to connect from the list, and click ‘Done’. If the wireless access point you wish to connect is not listed, you can click ‘Refresh’ to rescan. If you still can’t find the wireless access point you wish to connect, please move the broadband router to the place nearer to the access point you wish to connect. WLAN MAC Some wireless access points will only allow clients with certain MAC address to establish connection. In this case, you can input the MAC address that will be accepted by the wireless access point you wish to connect here. You can also click ‘Clone MAC’ button to use the MAC address of your computer (the one you used to connect to the web management interface currently). Auto MAC Clone If you wish to use the MAC address of wired LAN interface of this broadband router, select ‘Enable’, or select ‘Disable’ to not to use the MAC address of the wired LAN interface of this broadband router. ...
Page 72 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. You can click ‘Continue’ to continue on other settings without restart the broadband router, however, the changes you made will not take effect before you restart the broadband router. 71 ...
Page 73 3‐4‐1‐3 AP Bridge: Point to Point In this mode, you can use this broadband router as a wireless network bridge and let all computers connected to the LAN ports of both wireless access points to communicate with each other. This mode supports only one wireless access point peer. Please note that when you select this mode, this broadband router will act as wireless bridge only, and will not accept other wireless clients. Also, you can connect to the wireless access point with the same functionality only. If you wish to connect to the wireless access points made by other manufacturer, please select ‘AP Bridge‐WDS’ mode if the wireless access point you wish to connect supports WDS. Here are descriptions of every setup items: Item Name Description Band Please select the radio band from one of following options (must be the same with the wireless access point you wish to connect): 2.4 GHz (B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (N): 2.4GHz band, only allows 802.11n wireless network client to connect this router (maximum transfer rate 300Mbps). 2.4 GHz (B+G): 2.4GHz band, only allows 802.11b and 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients). 72 ...
Page 74 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to maximize compatibility. Channel Number Select the channel number you wish to use; both access points must use the same channel. MAC address 1 Input the MAC address of another wireless access point (the one you wish to connect). Set Security Click ‘Set Security’ button to set security functions of this wireless connection to improve security. Please refer to chapter 3‐2‐1‐7 for detailed instructions. When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. You can click ‘Continue’ to continue on other settings without restart the broadband router, however, the changes you made will not take effect before you restart the broadband router. 73 ...
Page 75 3‐4‐1‐4 AP Bridge: Point to Multi‐Point In this mode, you can use this broadband router as a wireless network bridge and let all computers connected to the LAN ports of all wireless access points to communicate with each other. This mode supports up to four wireless access point peers. Please note that when you select this mode, this broadband router will act as wireless bridge only, and will not accept other wireless clients. Also, you can connect to the wireless access point with the same functionality only. If you wish to connect to the wireless access points made by other manufacturer, please select ‘AP Bridge‐WDS’ mode if the wireless access point you wish to connect supports WDS. Here are descriptions of every setup items: Item Name Description Band Please select the radio band from one of following options (must be the same with the wireless access point you wish to connect): 2.4 GHz (B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (N): 2.4GHz band, only allows 802.11n wireless network client to connect this router (maximum transfer rate 300Mbps). 2.4 GHz (B+G): 2.4GHz band, only allows 802.11b and 802.11g wireless network client 74 ...
Page 76 to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients). 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to maximize compatibility. Channel Number Select the channel number you wish to use; all access points must use the same channel. MAC address 1 to 4 Input the MAC address of other wireless access points (the access points you wish to connect). Set Security Click ‘Set Security’ button to set security functions of this wireless connection to improve security. Please refer to chapter 3‐2‐1‐7 for detailed instructions. When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. You can click ‘Continue’ to continue on other settings without restart the broadband router, however, the changes you made will not take effect before you restart the broadband router. 75 ...
Page 77 3‐4‐1‐5 AP Bridge: WDS In this mode, this broadband router acts as both wireless communication bridge and wireless access point. This broadband router can establish communication with up to four WDS‐compatible wireless access points, and let all computers connected to the LAN ports of every wireless access points communicate with each other. The broadband router is able to serve other wireless clients and acts as a wireless access point at the same time. Here are descriptions of every setup items: Item Name Description Band Please select the radio band from one of following options (must be the same with the wireless access point you wish to connect): 2.4 GHz (B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (N): 2.4GHz band, only allows 802.11n wireless network client to connect this router (maximum transfer rate 300Mbps). 2.4 GHz (B+G): 2.4GHz band, only allows 802.11b and 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients). 76 ...
Page 78 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to maximize compatibility. ESSID This is the name of broadband router. You can type any alphanumerical characters here, maximum 32 characters. ESSID is used to identify your own broadband router from others when there are other broadband routers in the same area. Default SSID is ‘default’, it’s recommended to change default ESSID value to the one which is meaningful to you, like myhome, office_room1, etc. Channel Number Select the channel number you wish to use; all access points must use the same channel. Associated Clients Click ‘Show Active Clients’ button to show the list of all connected wireless clients. You can click ‘Refresh’ in new window to get latest list again, or click ‘Close’ to close the window. Please note that if you have pop‐up blocker installed, you may have to disable it or tell your pop‐up blocker to allow the popup window, or you will not be able to see the wireless client list window. MAC address 1 to 4 Input the MAC address of other wireless access points (the access points you wish to connect). Set Security Click ‘Set Security’ button to set security functions of this wireless connection to ...
Page 79 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. You can click ‘Continue’ to continue on other settings without restart the broadband router, however, the changes you made will not take effect before you restart the broadband router. 78 ...
Page 80 3‐4‐1‐6 Universal Repeater In this mode, this broadband router acts as a wireless repeater. It will repeat the signal of the wireless access point you specified, to extend its wireless coverage. The broadband router will still accept wireless clients when in this mode. Here are descriptions of every setup items: Item Name Description Band Please select the radio band from one of following options (must be the same with the wireless access point you wish to connect): 2.4 GHz (B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps). 2.4 GHz (N): 2.4GHz band, only allows 802.11n wireless network client to connect this router (maximum transfer rate 300Mbps). 2.4 GHz (B+G): 2.4GHz band, only allows 802.11b and 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients). 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps). 79 ...
Page 81 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to maximize compatibility. ESSID This is the name of broadband router. You can type any alphanumerical characters here, maximum 32 characters. ESSID is used to identify your own broadband router from others when there are other broadband routers in the same area. Default SSID is ‘default’, it’s recommended to change default ESSID value to the one which is meaningful to you, like myhome, office_room1, etc. Channel Number Select the channel number you wish to use; all access points must use the same channel. Associated Clients Click ‘Show Active Clients’ button to show the list of all connected wireless clients. You can click ‘Refresh’ in new window to get latest list again, or click ‘Close’ to close the window. Please note that if you have pop‐up blocker installed, you may have to disable it or tell your pop‐up blocker to allow the popup window, or you will not be able to see the wireless client list window. Root AP SSID Please input the SSID of the wireless access point you wish to extend signal coverage. Site Survey Click ‘Select Site Survey’ and a popup window will appear. All reachable wireless access points will be shown in the window. Select the wireless access point you wish to connect from the list, and click ‘Done’. If the wireless access point you wish to connect is not listed, you can ...
Page 82 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. You can click ‘Continue’ to continue on other settings without restart the broadband router, however, the changes you made will not take effect before you restart the broadband router. 81 ...
Page 83: Security Settings
3‐4‐2 Security Settings In certain AP working modes, you can enable encryption to improve security level. When you click ‘Set Security’ button, the following window will appear: Please select an encryption method from ‘Encryption’ dropdown menu, and corresponding setting will appear: Disabled Encryption is disabled. It’s not recommended to disable encryption because other people may use certain wireless scanner to copy the data transferred over air. 82 ...
Page 84 WEP Select WEP to enable WEP (Wired Equivalent Privacy) encryption: Here are descriptions of every setup items: Item Name Description Key Length There are two types of WEP key length: 64‐bit and 128‐bit. Using ‘128‐bit’ is safer than ’64‐bit’, but will reduce some data transfer performance. Key Format There are two types of key format: ASCII and Hex. When you select a key format, the number of characters of key will be displayed. For example, if you select ’64‐bit’ as key length, and ‘Hex’ as key format, you’ll see the message at the right of ‘Key Format’ is ‘Hex (10 characters), which means the length of WEP key is 10 characters. Default Tx Key You can set up to four sets of WEP key, and you can decide which key is being used by default here. If you don’t know which one you should use, select ‘Key 1’. Encryption Key Input WEP key characters here, the number of characters must be the same as the number displayed at ‘Key Format’ field. You can use any alphanumerical characters (0‐9, a‐z, and A‐Z) if you select ‘ASCII’ key format, and if you select ‘Hex’ as key format, you can use characters 0‐9, a‐f, and A‐F. Enable 802.1x Check this box to enable 802.1x authentication ...
Page 85 Server IP address Input Radius authentication server’s IP address here. RADIUS Server Port Input Radius authentication server’s service port here. Generally it’s 1812. RADIUS Server Input the password of Radius server here. Password Please click ‘Apply’ to save changes, or click ‘Reset’ to clear the texts in all fields. If you click ‘Apply’, the following messages will appear: You can click ‘Continue’ to back to previous page and continue setting, or click ‘Apply’ to restart the broadband router so the changes will take effect. 84 ...
Page 86 WPA pre‐shared key WPA (Wi‐Fi Protected Access) is also an encryption method and is safer than WEP. It’s recommended to use WPA instead of WEP when you need to use encryption to protect your data security. Here are descriptions of every setup items: Item Name Description WPA Unicast Cipher Please select a type of WPA cipher suite. Suite Available options are: WPA (TKIP), WPA2 (AES), and WPA2 Mixed. You can select one of them, but you have to make sure your wireless client support the cipher you selected. Pre‐shared Key Format Select the type of pre‐shared key, you can select Passphrase (8 or more alphanumerical characters, up to 63), or Hex (64 characters of 0‐9, and a‐f). Pre‐shared Key Please input the WPA passphrase here. It’s not recommended to use a word that can be found in a dictionary due to security reason. Please click ‘Apply’ to save changes, or click ‘Reset’ to clear the texts in all fields. If you click ‘Apply’, the following messages will appear: You can click ‘Continue’ to back to previous page and continue setting, or click ‘Apply’ to restart the broadband router so the changes will take effect. 85 ...
Page 87 WPA RADIUS If you have RADIUS authentication server on your local network, you can authenticate the wireless clients by RADIUS server’s user database. Only authenticated clients can establish wireless connection with this broadband router. Here are descriptions of every setup items: Item Name Description WPA Unicast Cipher Please select a type of WPA cipher suite. Suite Available options are: WPA (TKIP), WPA2 (AES), and WPA2 Mixed. You can select one of them, but you have to make sure your wireless client support the cipher you selected. RADIUS Server IP Input the IP address of RADIUS authentication address server here. RADIUS Server Port Input the port number of RADIUS authentication server here. Most of RADIUS server will use port number 1812 and you can keep using default value. RADIUS Server Input the password of RADIUS authentication Password server here. 86 ...
Page 88 Please click ‘Apply’ to save changes, or click ‘Reset’ to clear the texts in all fields. If you click ‘Apply’, the following messages will appear: You can click ‘Continue’ to back to previous page and continue setting, or click ‘Apply’ to restart the broadband router so the changes will take effect. 87 ...
Page 89: Mac Address Filtering
3‐4‐3 MAC Address Filtering This function will help you to prevent unauthorized users from connecting to your wireless router; only those wireless devices who have the MAC address you assigned here can gain access to your wireless router. You can use this function with other security measures described in previous section, to create a safer wireless environment. Up to 20 MAC addresses can be assigned. To enable MAC address filtering, please check ‘Enable Wireless Access Control’ box in this page, the descriptions of other setting items are listed as follow: Item Name Description MAC address Input the MAC address you wish to add to the MAC address to the table. Comment You can input any text here as the comment of this MAC address, like ‘ROOM 2A Computer’ or anything. You can input up to 16 alphanumerical characters here. This is optional and you can leave it blank, however, it’s recommended to use this field to write a comment for every MAC addresses as a memory aid. Add Click ‘Add’ button to add the MAC address and associated comment to the MAC address filtering table. Clear Click ‘Clear’ to remove the value you inputted in MAC address and comment field. 88 ...
Page 90 All MAC address entries will be listed in this page: To delete one or more entries listed here, please check the box of the entry you wish to delete (Under ‘Select’), and click ‘Delete Selected’ button. If you wish to delete all mapping entries, click ‘Delete All’ button. When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 89 ...
Page 91: Wps (Wi-Fi Protected Setup) Settings
3‐4‐4 WPS (Wi‐Fi Protected Setup) Settings WPS (Wi‐Fi Protected Setup) provides a convenient way to establish the connection between this broadband router and wireless clients. Any WPS‐compatible wireless clients can establish secure connection with this broadband router with simple push‐button type configuration or PinCode type configuration. Here are descriptions of every setup items: Item Name Description Enable WPS Check this box to enable WPS function, uncheck it to disable WPS. WPS Status If the wireless security (encryption) function of this wireless router is properly set, you’ll see ‘Configured’ message here. If wireless security function has not been set, you’ll see ‘unConfigured’. Self PIN code This is the WPS PIN code of this wireless router. This code is useful when you need to build wireless connection by WPS with other WPS‐enabled wireless devices. SSID The SSID of this wireless router will be displayed here. Authentication Mode The wireless security authentication mode of this wireless router will be displayed here. Passphrase Key The WPA passphrase will be displayed as asterisk here. Config Mode Select the WPS configuration role of this broadband router. ...
Page 92 Registrar: This broadband router will act as WPS registrar and wait for wireless clients to send WPS configuration request. Enrollee: This broadband router will act as WPS enrollee and send WPS configuration request to other WPS registrar. Configure via Push Click ‘Start PBC’ to start Push‐Button type WPS Button configuration (PBC). Please push the WPS push‐button on other WPS‐compatible network devices to begin WPS configuration. You can also push the ‘WPS / Reset’ button located at the back of this broadband router to start PBC without using web configuration interface. Configure via Client Please input the PinCode displayed at the PinCode configuration software of WPS‐enabled wireless client, and click ‘Start PIN’ to establish connection with the wireless client. 91 ...
Page 93: Advance Settings
3‐5 Advance Settings This router provides various network functionalities like QoS and DDNS, and you can configure these functions in ‘Advanced Settings’ menu. 92 ...
Page 94: Qos
3‐5‐1 QoS Quality of service provides an efficient way for computers on the network to share the internet bandwidth with a promised quality of internet service. Without QoS, all computers and devices on the network will compete with each other to get internet bandwidth, and some applications which require guaranteed bandwidth (like video streaming and network telephone) will be affected, therefore an unpleasing result will occur, like the interruption of video / audio transfer. With this function, you can limit the maximum bandwidth or give a guaranteed bandwidth for a specific computer, to avoid said unpleasing result from happening. 3‐5‐1‐1 Basic QoS Settings 93 ...
Page 95 Here are descriptions of every setup items: Item Name Description Enable QoS Check this box to enable QoS function, uncheck it to disable QoS. Total Download You can set the limit of total download Bandwidth bandwidth in kbits. To disable download bandwidth limitation, input ‘0’ here. Total Upload You can set the limit of total upload bandwidth Bandwidth in kbits. To disable upload bandwidth limitation, input ‘0’ here. Rule Name Input a name for this QoS rule for identification purpose. This name should be unique and not the same with others. Bandwidth Set the speed limitation for this QoS rule: (1) (2) (3) ...
Page 96 rule. If only one port is involved, input a single number here (1 to 65535); if multiple ports are involved, input starting / ending port number in x‐y format (like 10‐20). Traffic Type If you’re creating a QoS rule for a specific type of traffic, you can select it from this menu and you don’t have to input port range above. Protocol Select the protocol type here (TCP or UDP). Add Click ‘add’ button to add a new QoS rule (detailed instructions will be given below). Reset If you want to erase all values you just entered. Click ‘Reset’ Edit If you want to modify the content of a specific rule, please check the ‘select’ box of the rule you want to edit, then click ‘Edit’ button. Only one rule should be selected a time! Delete Selected You can delete selected rules by clicking this button. You can select one or more rules to delete by check the ‘select’ the box of the rule(s) you want to delete a time. If the QoS table is empty, this button will be grayed out and cannot be clicked. Delete All By clicking this button, you can delete all rules currently listed in the QoS table. If the QoS table is empty, this button will be grayed out and cannot be clicked. Move Up Move selected rule up. First QoS rule will be proceed first, so you can move higher priority rules up. Move Down Move selected rule down. ...
Page 97 and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 96 ...
Page 98: Ddns
3‐5‐2 DDNS DDNS (Dynamic DNS) is a IP‐to‐Hostname mapping service for those Internet users who don’t have a static (fixed) IP address. It will be a problem when such user wants to provide services to other users on Internet, because their IP address will vary every time when connected to Internet, and other user will not be able to know the IP address they’re using at a certain time. This router supports DDNS service of following service providers: 3322 (http://www.3322.org/) DHS (http://www.dhs.org) DynDNS (http://www.dyndns.org/) ODS (http://ods.org) TZO (http://www.tzo.com/) GnuDIP (http://gnudip2.sourceforge.net/) DyNS (http://www.dyns.cx/) ZoneEdit (http://www.zoneedit.com) DHIS (http://www.dhis.org/) CyberGate (http://cybergate.planex.co.jp/ddns/) Please go to one of DDNS service provider’s webpage listed above, and get a free DDNS account by the instructions given on their webpage. After that, you can use the DDNS page to setup DDNS parameters to use DDNS service: 97 ...
Page 99 Here are descriptions of every setup items: Item Name Description Dynamic DNS If you want to enable DDNS function, please select ‘Enabled’; otherwise please select ‘Disabled’ Provider Select your DDNS service provider here. Domain Name Input the domain name you’ve obtained from DDNS service provider. Account / E‐Mail Input account or email of DDNS registration. Password / Key Input DDNS service password or key. If your DDNS provider is ‘DHIS’, the settings will be different: Here are descriptions of every setup items: Item Name Description HostID Please input the HostID you applied during DHIS registration. ISAddr Please input the ISAddr you applied during DHIS registration. Authentication Type Please select the DHIS user authentication type from dropdown menu: password or QRC. HostPass Please input the HostID you applied during DHIS registration. (This field will appear only when ...
Page 100 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 99 ...
Page 101: Port Forwarding
3‐5‐3 Port Forwarding This function allows you to redirect a single port or consecutive ports of Internet IP address to the same port of the IP address on local network. The port number(s) of Internet IP address and private IP address (the IP address on local network) must be the same. If the port number of Internet IP address and private IP address is different, please use ‘Virtual Server’ function. The port forwarding setting page looks like this: Here are descriptions of every setup items: Item Name Description Enable Port Check this box to enable port forwarding, and Forwarding uncheck this box to disable port forwarding. Private IP Input the IP address of the computer on local network which provides internet service. Computer name All computer names found by this broadband router on local network will be listed here. You can select the computer name and click ‘<<’ button to add selected computer’s IP address to ‘Private IP’ field. Please note that this list may not be able to list all computers on your local network. Type Select the type of connection, TCP or UDP. If you’re not sure, please select ‘Both’. Port Range Input the starting port number in the left field, and input the ending port number in the right ...
Page 102 Add Add the mapping to port forwarding table. Reset Remove all inputted values. All existing URLs will be displayed in ‘Current URL Blocking Table’: If you want to delete a specific port forwarding entry, check the ‘select’ box of the port forwarding entry you want to delete, then click ‘Delete Selected’ button. (You can select more than one port forwarding entries). If you want to delete all port forwarding entries listed here, please click ‘Delete All’ button or you can also click ‘Reset’ button to unselect all port forwarding entries. When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 101 ...
Page 103: Dmz
3‐5‐4 DMZ Demilitarized Zone (DMZ) is a special area in your local network. This area resides in local network, and all computers in this area uses private IP address, too. But these private IP addresses are mapped to a certain Internet IP address, so other people on Internet can fully access those computers in DMZ. The DMZ setting page looks like this: Here are descriptions of every setup items: Item Name Description Enable DMZ Check this box to enable DMZ function, uncheck this box to disable DMZ function. Public IP address You can select ‘Dynamic IP’ or ‘Static IP’ here. If you select ‘Dynamic IP’, you have to select an Internet connection session from dropdown menu; if you select ‘Static IP’, please input the IP address that you want to map to a specific private IP address. Client PC IP address Please input the private IP address that the Internet IP address will be mapped to. Type Select the type of connection, TCP or UDP. If you’re not sure, please select ‘Both’. Port Range Input the starting port number in the left field, and input the ending port number in the right field. If you only want to redirect a single port number, just fill the port number in the left field. Comment Please input any text to describe this mapping, up to 16 alphanumerical characters. Add ...
Page 104 NOTE: Please note that every public IP address can be mapped to a single Client PC IP address only. All existing DMZ entries will be displayed in ‘Current DMZ Table’: If you want to delete a specific DMZ entry, check the ‘select’ box of the DMZ entry you want to delete, then click ‘Delete Selected’ button. (You can select more than one DMZ entries). If you want to delete all DMZ entries listed here, please click ‘Delete All’ button or you can also click ‘Reset’ button to unselect all DMZ entries. When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 103 ...
Page 105: Nat
3‐6 NAT Network address translations solve the problem if sharing a single IP address to multiple computers. Without NAT, all computers must be assigned with a valid Internet IP address to get connected to Internet, but Internet service providers only provide very few IP addresses to every user. Therefore it’s necessary to use NAT technology to share a single Internet IP address to multiple computers on local network, so everyone can get connected to Internet. This broadband router supports four types of NAT functions, and the instructions of these functions will be given below. 104 ...
Page 106 3‐6‐1 Virtual Server This function allows you to redirect a port on Internet IP address (on WAN port) to a specified port of an IP address on local network, so you can setup an Internet service on the computer on local network, without exposing it on Internet directly. You can also build many sets of port redirection, to provide many different Internet services on different local computers via a single Internet IP address. 105 ...
Page 107: Virtual Server
Here are descriptions of every setup items: Item Name Description Enable Virtual Server Check this box to enable virtual server, and uncheck this box to disable virtual server. Private IP Input the IP address of the computer which provides Internet service. Computer name All computer names found by this broadband router on local network will be listed here. You can select the computer name and click ‘<<’ button to add selected computer’s IP address to ‘Private IP’ field. Please note that this list may not be able to list all computers on your local network. Private Port Input the port number of the IP address which provides Internet service. Type Select the type of connection, TCP or UDP. If you’re not sure, please select ‘Both’ Public Port Please select the port number of Internet IP address which will be redirected to the port number of local IP address defined above. Comment Please input any text to describe this mapping, up to 16 alphanumerical characters. Add Add the mapping to virtual server table. Reset Remove all inputted values. All existing virtual server mappings will be displayed in this page. To delete one or more mappings, check the box of the mapping, then click ‘Delete Selected’ button to remove the mapping. To delete all existing mappings, click ‘Delete All’ button. If you want to uncheck all ...
Page 108 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 107 ...
Page 109: Special Applications
3‐6‐2 Special Applications Some applications require more than one connection a time; these applications won’t work with simple NAT rules. In order to make these applications work, you can use this function to let these applications work. Here are descriptions of every setup items: Item Name Description Enable Check this box to enable support for special applications, and uncheck this box to disable this support. IP Address Input the IP address of the computer which is going to use the special application. Computer name All computer names found by this broadband router on local network will be listed here. You can select the computer name and click ‘<<’ button to add selected computer’s IP address to ‘IP Address’ field. Please note that this list may not be able to list all computers on your local network. TCP Port to Open Input the TCP port number required by the special application, the port number can be a single value, or a range (like 20‐50). If you need to input more than one port number and they’re not contiguous, list all port numbers here and separate them by comma ( , ). If the application does not use TCP port, leave it blank. UDP Port to Open Input the UDP port number required by the ...
Page 110 single value, or a range (like 20‐50). If you need to input more than one port number and they’re not contiguous, list all port numbers here and separate them by comma ( , ). If the application does not use UDP port, leave it blank. Comment You can input any text here to help you remember the purpose of this item. This is optional. Select Game This router comes with a numerous port mapping settings of network games. If the game you wish to set is listed here, you can select it from dropdown menu. After a game is selected, click ‘Add’ (the one next to ‘Select Game’ dropdown list) to add the connection parameters to all respective fields. Add Click this button to add a new port mapping rule to special applications table. Reset Click this button to remove all values in every field. All existing special application mappings will be displayed in this page. To delete one or more mappings, check the box of the mapping, then click ‘Delete Selected’ button to remove the mapping. To delete all existing mappings, click ‘Delete All’ button. If you want to uncheck all boxes, click ‘Reset’. 109 ...
Page 111 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 110 ...
Page 112: Upnp Settings
3‐6‐3 UPnP Settings BR‐6258n broadband router supports UPnP (universal plug‐and‐play), which allows other network devices to communicate with this broadband router to exchange information about network capability for intercommunication. After you made your choice, please click ‘Apply’ button: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 111 ...
Page 113: Alg Settings 1
3‐6‐4 ALG Settings ALG (Application Layer Gateway) is a kind of network connection ability support for specific network applications like game and instant online chat. Without ALG support, these applications will not be able to communicate with their server when working with BR‐6258n broadband router. All applications that require ALG support and compatible with this broadband router is listed here. You can check all applications you will use on local computer. After you made your choice, please click ‘Apply’ button: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 112 ...
Page 114: Static Routing
3‐6‐5 Static Routing In most cases, all your computers on local network will use default gateway (generally provided by your ISP) to access servers on Internet. However, if you have preferred network route you wish to redirect network traffic, you can use this function to create dedicated route for specific network destination and bypass default gateway. Most users will not require this function to access Internet. Here are descriptions of every setup items: Item Name Description Enable Static Routing Enable static routing function. Destination LAN IP Input destination network’s address here. Subnet Mask Input the subnet mask of destination network here. Default Gateway Input the IP address of the gateway which leads to this network here. Hop Count Input the hop count (the distance between destination network and this broadband router) here. Interface Input the interface which leads to destination network. Add Click to add this static route policy to static route table. Reset Click to clear all inputted texts. 113 ...
Page 115 If you want to delete a specific static route entry, check the ‘select’ box of the static route entry you want to delete, then click ‘Delete Selected’ button. (You can select more than one static route entries). If you want to delete all static route entries listed here, please click ‘Delete All’ button or you can also click ‘Reset’ button to unselect all static route entries. When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 114 ...
Page 116: Firewall
3‐7 Firewall This broadband router supports several firewall functions which will help you to protect your network and computer. In this chapter, instructions for using these functions will be given, so you can utilize these functions to protect your network from hackers and malicious intruders. 3‐7‐1 Access Control By using access control, you can restrict your computers from accessing improper website, or using disallowed applications. You can even only allow computers with certain MAC address to access the network, or deny the computers in the list from accessing Internet. MAC Filtering: Deny or allow access based on MAC address of client computer Here are descriptions of every setup items: Item Name Description Enable MAC Filtering Check this box to enable MAC address based filtering, and please select ‘Deny’ or ‘Allow’ to decide the behavior of MAC filtering table. If you select deny, all MAC addresses listed in filtering table will be denied from connecting Internet; if you select allow, only MAC addresses listed in filtering table will be able to connect to Internet. Client PC MAC address Please input the MAC address of computer or network device here, dash ( ‐ ) or colon ( : ) are not required. (i.e. If the MAC address label of your wireless device indicates ‘aa‐bb‐cc‐dd‐ee‐ff’ or ‘aa:bb:cc:dd:ee:ff’, just input ‘aabbccddeeff’ Computer Name All computer names found by this broadband 115 ...
Page 117 router on local network will be listed here. You can select the computer name and click ‘<<’ button to add selected computer’s IP address to ‘Private IP’ field. Please note that this list may not be able to list all computers on your local network. If you think some computer doesn’t appear in the list, select ‘Refresh’ and this broadband router will rescan for all computers attached to LAN port again. Comment You can input any text here as the comment of this MAC address, like ‘ROOM 2A Computer’ or anything. You can input up to 16 alphanumerical characters here. This is optional and you can leave it blank, however, it’s recommended to use this field to write a comment for every MAC addresses as a memory aid. Add Click ‘Add’ button to add the MAC address and associated comment to the MAC address filtering table. Reset Remove all inputted values. All MAC address entries will be listed in this page: To delete one or more entries listed here, please check the box of the mapping entry (under ‘Select’), and click ‘Delete Selected’ button. If you wish to delete all mapping entries, click ‘Delete All’ button. To deselect all checked boxes, click ‘Reset’ button. ...
Page 118 Please check ‘Enable IP Filtering Table’ box first, and select ‘Deny’ or ‘Allow’ to decide the behavior of IP filtering table (Deny the access of IP addresses in the list, or allow the access of IP addresses in the list). You have to click ‘Add PC’ button to add a new IP address to the list: Here are descriptions of every setup items: Item Name Description Client PC Description Please input any text to describe this IP address, up to 16 alphanumerical characters. Client PC IP address Please input the starting IP address in the left field, and input the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address. You also have to select the type of Internet services that will be applied to this access control rule from the list: 117 ...
Page 119 You can select multiple services here. If you wish to deny or allow all services of certain IP address(es), please select both ‘TCP’ and ‘UDP’. If the service you wish to deny or allow is not listed, you can use ‘User Define Service’ table to add a new service of your own: Here are descriptions of every setup items: Item Name Description Protocol Please select the protocol type of this service: TCP or UDP, or ‘Both’. Port Range Please input the port range if this service. For a single port number, just input the number of service port (like ‘110’). If this service consists multiple continuous ports, you can input ‘110‐120’ for port number 110 to 120, or ’110,115,120’ for port number 110, 115, and 120. Click ‘Add’ to add this IP address restriction rule to the list (and back to previous page), or click ‘Reset’ to clear all texts in every field. 118 ...
Page 120 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 119 ...
Page 121: Url Blocking
3‐7‐2 URL Blocking If you want to prevent computers in local network from accessing certain website (like pornography, violence, or anything you want to block), you can use this function to stop computers in local network from accessing the site you defined here. This function is useful for parents and company managers. Here are descriptions of every setup items: Item Name Description Enable URL Blocking Check this box to enforce URL Blocking, uncheck it to disable URL Blocking. URL/Keyword Input the URL (host name or IP address of website, like http://www.blocked‐site.com or http://11.22.33.44), or the keyword which is contained in URL (like pornography, cartoon, stock, or anything). Add Click ‘Add’ button to add the URL / keyword to the URL / Keyword filtering table. Reset Click ‘Reset’ to remove the value you inputted in URL/Keyword field. All existing URLs will be displayed in ‘Current URL Blocking Table’: If you want to delete a specific URL/Keyword entry, check the ‘select’ box of the MAC address you want to delete, then click ‘Delete Selected’ button. (You can select more than one URL/Keyword). If you want to delete all URL/Keyword listed here, please click ‘Delete All’ button, or you can also click ‘Reset’ button to unselect all URL/Keywords. 120 ...
Page 122 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 121 ...
Page 123: Dos
3‐7‐3 DoS Denial of Service (DoS) is a common attack measure, by transmitting a great amount of data or request to your Internet IP address and server, the Internet connection will become very slow, and server may stop responding because it is not capable to handle too much traffics. This router has a built‐in DoS attack prevention mechanism; when you activate it, the router will stop the DoS attack for you: Here lists four kinds of DoS attacks, please select the type of DoS attack you wish this broadband router to protect, and you can select multiple types of attacks. The descriptions of every DoS attack is listed below: Item Name Description Ping of Death Ping of Death is a special packet, and it will cause certain computer to stop responding. Check this box and the router will filter this kind of packet out. Discard Ping From Ping is a common and useful tool to know WAN the connection status of a specified remote network device, but some malicious intruder will try to fill your network bandwidth with a lot of PING request data packet, to make your internet connection become very slow, even unusable. Check this box and the router will ignore all inbound PING request, but when you activate this function, you will not be able to ping your own router from internet, too. Port Scan Some malicious intruder will try to use a ‘port scanner’ to know how many ports of your Internet IP address are open, and they can collect a lot of valuable information by doing ...
Page 124 so. Check this box and the router will block all traffics which are trying to scan your Internet IP address. Sync Flood This is another kind of attack, which uses a lot of fake connection request to consume the memory of your server, and try to make your server become unusable. Check this box and the router will filter this kind of traffic out. If you need to specify the details of every DoS attack, please click ‘Advanced Settings’ button, and the following settings will appear: The descriptions of every setup item are listed below: Item Name Description Ping of Death Set the threshold of when this DoS prevention mechanism will be activated. Please check the box of Ping of Death, and input the frequency of threshold (how many packets per second, minute, or hour), you can also input the ‘Burst’ value, which means when this number of ‘Ping of Death’ packet is received in very short time, this DoS prevention mechanism will be activated. Discard Ping From Check the box to activate this DoS prevention WAN mechanism. Port Scan Many kind of port scan methods are listed here, please check one or more DoS attack methods you want to prevent. 123 ...
Page 125 Sync Flood Like Ping of Death, you can set the threshold of when this DoS prevention mechanism will be activated. When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. 124 ...
Page 126: Chapter Iv: Status, Tools & Language
CHAPTER IV: STATUS, TOOLS & LANGUAGE 4‐1 Status In this menu, you can check the operation status of this broadband router. To view the status, follow the following instructions: 1. Click ‘Status’ tab from main menu: 2. The basic system information will be shown: You can check basic system information about this broadband router here. In addition, you can click other information about this broadband router by click status list under ‘Status’ tab: See detailed description for every kind of information below. 125 ...
Page 127: Internet Connection
4‐1‐1 Internet Connection This page shows the current status of Internet connection. 126 ...
Page 128: Device Status
4‐1‐2 Device Status This page shows current wireless LAN and wired LAN configuration. 127 ...
Page 129: System Log 1
4‐1‐3 System Log This page shows all logged system information. You can use scroll bar to view the logs, or click ‘Save’ to download the log file to your computer. You can also click ‘Clear’ to remove all logs, or click ‘Refresh’ to reload logs. 128 ...
Page 130: Security Log 1
4‐1‐4 Security Log This page shows all logged security‐related information. You can use scroll bar to view the logs, or click ‘Save’ to download the log file to your computer. You can also click ‘Clear’ to remove all logs, or click ‘Refresh’ to reload logs. 129 ...
Page 131: Active Dhcp Client
4‐1‐5 Active DHCP Client This page shows all current DHCP clients. You can click ‘Refresh’ to reload the list. 130 ...
Page 132: Statistics
4‐1‐6 Statistics This page shows the statistical information of network interfaces of this broadband router, and the total system uptime. 131 ...
Page 133: Tools
4‐2 Tools This broadband router comes with several tools that will help you to manage the configuration of broadband router, upgrade the firmware, and restart the broadband router. To use these tools, follow the following instructions: 1. Click ‘Tools’ tab. 2. The list of tools will appear: Please select the tool you wish to use, then click ‘Apply’ button. If you wish to go back to previous page, click ‘Previous’ button. 132 ...
Page 134: Configuration Tools
3‐9‐1 Configuration Tools In this page, you can backup and restore current system configuration, and reset all settings to factory default value. Here are descriptions of every setup items: Item Name Description Backup Settings Click ‘Save…’ button to download the current configuration as ‘config.bin’ file. Save this file on your computer to keep current configuration. If you want to keep more than one version of configuration file, please rename the configuration file to another name. Restore Settings Click ‘Browse...’ button to select a previously‐saved configuration file from your computer, then click ‘Upload’ to upload the configuration file to broadband router, and the configuration of broadband router will be replaced by the content of uploaded configuration file. Restore to Factory Click ‘Reset’ button to restore the settings of Default the broadband router to factory default value. A pop‐up message window will appear and ask you to confirm the reset. 133 ...
Page 135: Firmware Upgrade
3‐9‐2 Firmware Upgrade New firmware releases will provide new functions to this broadband router, and you can use firmware upgrade function to upgrade the firmware to new version. NOTE: It’s recommended to use wired Ethernet connection to upload the firmware file, please refrain from using wireless connection to upload the firmware file. Also, please do not switch the broadband router or computer ...
Page 136: Restart
3‐9‐3 Restart If you found that the broadband router is not functioning correctly, or responding slowly then usual, you can use this function to restart the broadband router, and this may correct the problem. Click ‘Apply’ button to restart the broadband router. You’ll be prompted to confirm the restart, click ‘OK’ to restart the broadband router. 135 ...
Page 137: Language
4‐3 Language This broadband router’s web‐based user interface supports several languages. You can change the display language by click ‘Language’ button in main menu. To change the display language, select ‘Language’ dropdown menu from upper‐right corner of main menu, and select the language you wish to use. 136 ...
