Summary of Contents for Gateway M250
-

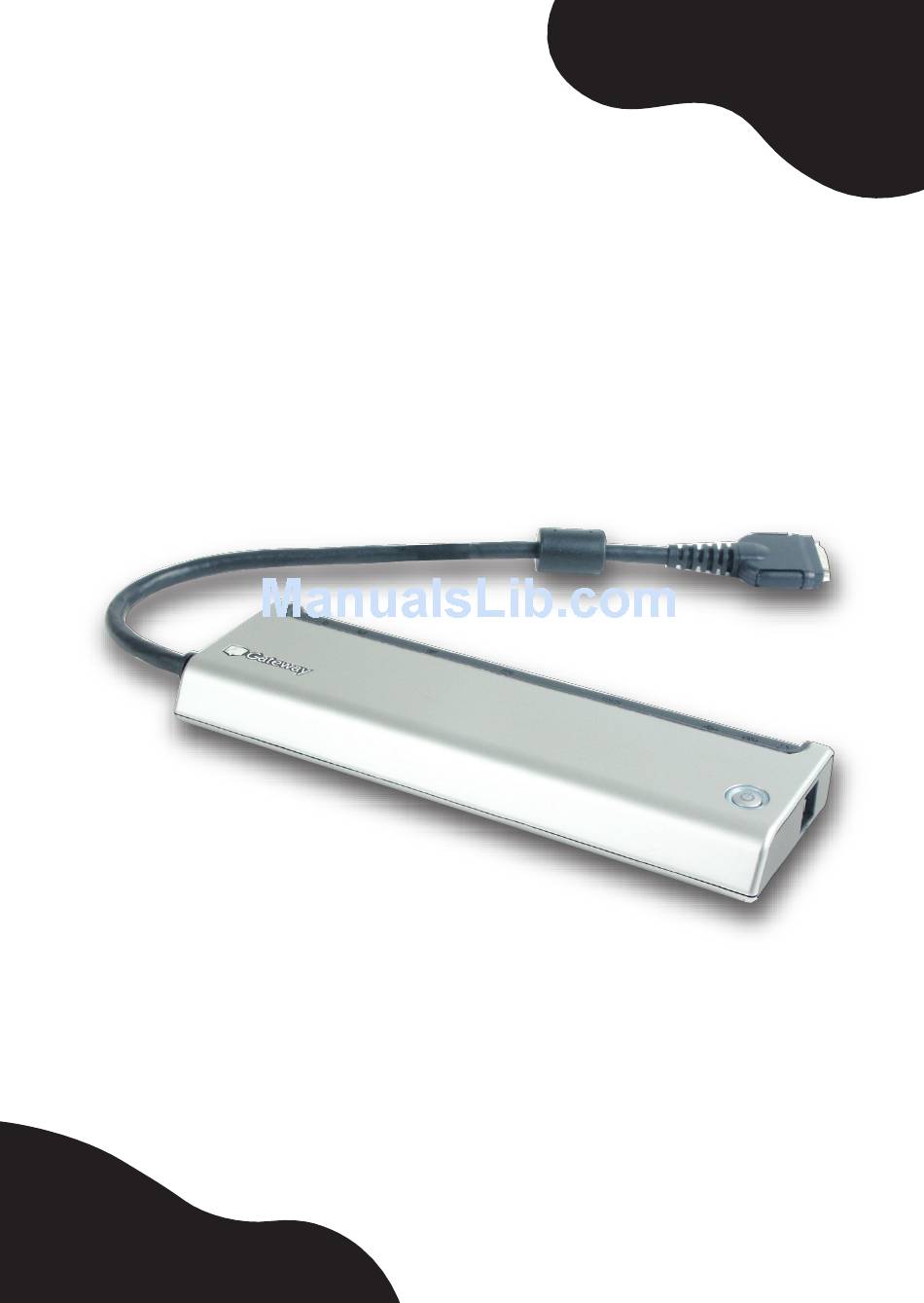

Page 1: User Guide
Gateway Port Replicator User Guide... -
Page 3: Using The Port Replicator
Using the Port Replicator • Identifying features • Connecting and disconnecting the port replicator... - Page 4 For more information about changing the power button mode, see “Changing Power-Saving Settings” in Using Your Computer which has been included on your hard drive. To access this guide, click Start, All Programs, then click Gateway Documentation. www.gateway.com Power button...
- Page 5 Right Component Icon USB ports ports Description Plug USB devices (such as a diskette drive, flash drive, printer, scanner, camera, keyboard, or mouse) into these ports. www.gateway.com Right...
- Page 6 Plug a 10/100/1000 Ethernet network cable into this jack. The other end of the cable can be plugged into a cable modem, DSL modem, access point, router, or an Ethernet network jack. Plug the AC adapter cable into this connector. www.gateway.com Monitor Ethernet port jack...
- Page 7 To attach your notebook to the port replicator: Connect the power cord to the AC adapter that was packaged with your port replicator. Connect the AC adapter to your port replicator’s power connector. For more information, see Connecting to the port replicator “Back” on page www.gateway.com...
- Page 8 Plug the power cord into a wall outlet. Connect external devices to the ports on the port replicator. Plug the port replicator into the port replicator jack on the notebook. Press the power button located on the top of the port replicator. www.gateway.com...
- Page 9 Virtual printer port for USB during the Windows printer installation. Windows will not be able to detect your printer if you make a different selection. Important This port replicator does not support Fast IR. www.gateway.com Connecting to the port replicator...
-
Page 10: Important Safety Information
Unplug the port replicator from the notebook. Important safety information Your Gateway port replicator is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this port replicator, it is important that the safety instructions marked on the port replicator and in the documentation are followed. -
Page 11: Regulatory Compliance Statements
The port replicator was dropped or the cabinet is damaged. ■ The port replicator performance changes. Replacement parts and accessories Use only replacement parts and accessories recommended by Gateway. Regulatory compliance statements United States of America Unintentional emitter per FCC Part 15 This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. -
Page 12: European Union Notice
EN55024 (IEC61000-4-2,3,4,5,6,8,11) Electromagnetic Immunity ■ EN61000-3-2 (IEC61000-3-2)-Power Line Harmonics ■ EN61000-3-3 (IEC61000-3-3)-Power Line Flicker ■ EN60950 (IEC60950) Product Safety Changes or modifications not expressly approved by Gateway could void the FCC compliance and negate your authority to operate the port replicator. www.gateway.com... -
Page 13: Japanese Notice
■ In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new Gateway equipment. Call Gateway to see if this program is available in your area. Important safety information... - Page 14 This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form, without prior consent in writing from Gateway. The information in this manual has been carefully checked and is believed to be accurate. However, changes are made periodically.
- Page 16 MAN M250/M280 DOCKING GDE R1 6/05...
