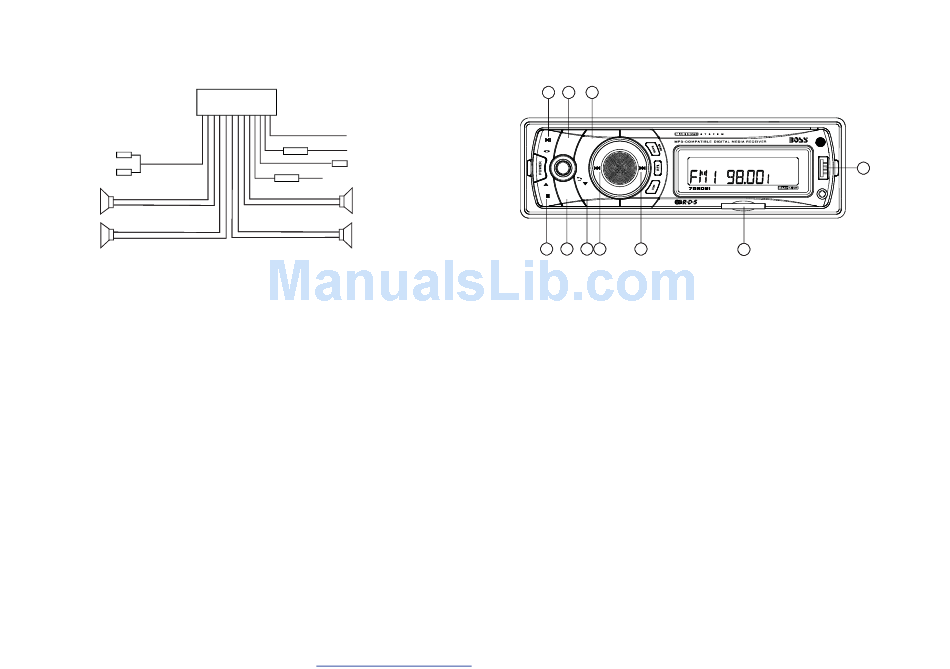

Wiring connection diagram

RED R
RCA LINE OUT
WHITE L
+
LEFT FRONT
WHITE
SPEAKER
-
4 OHM
WHITE/BLACK
+
GREEN
LEFT REAR
SPEAKER
-
GREEN/BLACK
4 OHM
PDF created with FinePrint pdfFactory trial version
BLUE (ANT)
0.5A FU SE
RED (ACC.12 volts)
BLACK (GROUND)
10A FUSE
YELLOW (CONSTANT 12 volts)
+
RIGHT FRONT
GRAY
SPEAKER
-
4 OHM
GRAY/BLACK
+
VIOLET
RIGHT REAR
SPEAKER
-
VIOLET/BLACK
4 OHM
Page 10
http://www.pdffactory.com
USB/SD Card (MP3 Playback) Controls
1 2 8
RPT
RDM
1 2 3 TA
MODE
ENTER
4 5 6
AF
+10
-10
3 4 5 7 6
To play tracks from a USB drive or SD card, insert the drive into the appropriate
port/slot on the faceplate. The display will show USB or CARD
indicating that the drive is being read.
The unit will display tracks when ready by file name (or, if created with ID3-tag
information, with Song Title, Artist and Album information) and will begin playing
the first track in the directory.
1.PLAY/PAUSE
Files will begin playback automatically upon insertion. To pause playback,
press this button. Press again to resume playback.
2.RPT(Repeat Play Mode)
Press this button to repeat the playback of all the files in the current folder
automatically. " RPT ON/OFF will be displayed. Press again to cancel. "
3. STOP
Pressing STOP will stop playback. To restart playback, press PLAY/PAUSE.
Playback will begin with the first song of the current folder directory (NOT the
track that was last playing).
4&5. -10 BUTTON
+10 BUTTON
To skip back or ahead 10 tracks in the current folder, press this button.
6&7.I<< and >>I (Skip back/skip forward, Fast rewind/fast forward)
Press these buttons to skip back or ahead one track.
10
AUX IN
9
" " " " ,
