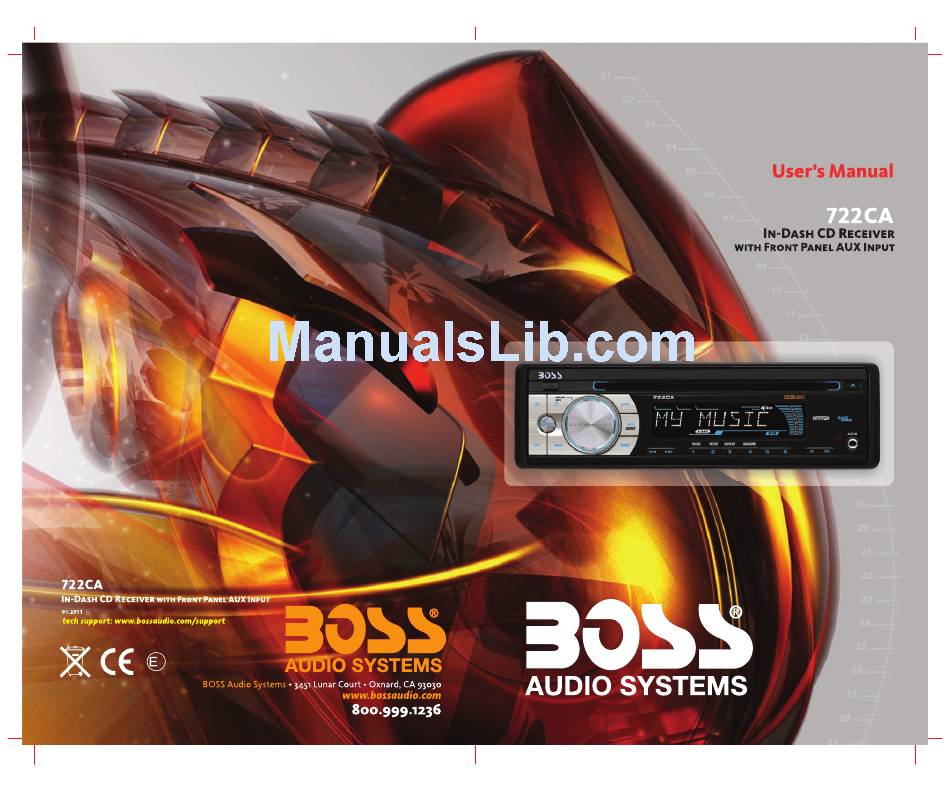

Boss Audio Systems 722CA User Manual

In-dash cd receiver with front panel aux input
Hide thumbs Also See for 722CA:
Table of Contents

Advertisement

Quick Links

See also: Manual Del Usuario
10 R - 02 1397
4

Advertisement

Table of Contents
loading

Related Manuals for Boss Audio Systems 722CA

Summary of Contents for Boss Audio Systems 722CA

  • Page 1 10 R - 02 1397...

  • Page 2: Installation

    1. INSTALLATION The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your customer car audio dealer or a company suppling kits. If you are not sure how to install this unit correctly, have it installed by a qualified technician. To attach the front panel back to the unit chassis, please insert the right side of the panel in the chassis until it is correctly engaged.

  • Page 3: Connecting The System

    2. CONNECTING THE SYSTEM CONNECTOR RCA-TO-RCA CABLE (not supplied) FIGURE 2 ISO CONNECTOR WIRING CHART WIRE COLOR FUNCTION/LABEL YELLOW BATTERY(+) BLUE CONNECT TO SYSTEM CONTROL TERMINAL OF THE POWER AMP OR AUTO ANTENNA RELAYCONTROL TERMINAL(max 150mA 12VDC) IGNITION(ACC) BLACK GROUND VIOLET RIGHT REAR SPEAKER (+) VIOLET/BLACK...

  • Page 4: Volume Knob

    3. THE MAJOR FUNCTION OF THIS UNIT Item (Power) MUTE (Release) AUDIO (Audio Menu) MENU (System Menu) VOLUME KNOB BAND SOURCE TUNE UP /DOWN FAST FORWARD /BACKWARD Decriptions Press this button or any other button on the front panel (except Release/Eject) to turn the unit on. Press this button again to turn the unit off.
  • Page 5 INFO (Subwoofer) SUBW EJECT PRESET NUMERIC BUTTONS (Auto Store) Under Tuner mode, press this button briefly to display the Clock time. Press and hold this button to turn On / Off the Subwoofer function. Press this button to eject the Disc. Under Tuner mode, short press the Numeric buttons　...
  • Page 6 4. ADJUST SYSTEM MENU SETTING Press MENU button to access into the System Menu. User can select the below functions: AREA (Tuner Frequency Spacing) This option allows the selection of the frequency spacing appropriate for your area. “AREA U.S.A” is the default setting.

  • Page 7: Reset The Unit

    5. EXTERNAL CONNECTION AND MEDIA PLAYER CONNECT THE AUX-IN Connect the external signal to AUX in jack located atthe front of the panel, then press Mode button to select Aux mode. Press Mode Button again to cancel Aux Mode and return to previous mode.
  • Page 8 6. THE FUNCTIONS OF REMOTE CONTROL No. Button Item MUTE POWER ON/OFF VOLUME KNOB SOURCE AUDIO MENU SYSTEM MENU AUTO STORE TUNE UP / DOWN FILE UP / DOWN FAST FORWARD /BACKWARD Decriptions Press this button to turn the mute On/Off. When the unit is power on, press this turn Off the unit.
  • Page 9 BAND BROWSE INFO SUBW (Subwoofer) PRESET NUMERIC BUTTONS Press this button to change between BAND FM1,FM2,FM3, or AM1(MW1) or AM2 (Mw2). Under the Disc/USB/SD media playback mode, short press this button is access into the Music Folder/File searching mode. Rotate the encoder knob to navigate thru Folder and File list.

  • Page 10: Troubleshooting

    7. TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. No power or no sound Car engine is not on. Turn the car engine on. Cable is not correctly connected.

  • Page 11: Product Information

    8. PRODUCT INFORMATION Power Supply Fuse Suitable Speaker Impedance Power output Pre-AMP output voltage Aux-In level Radio Frequency Range Usable Sensitivity -AM(MW) Frequency Range Usable Sensitivity Supported formats: CDROM Mode Supports CD, CDR and CDRW. Disc written by Packet Write (UDF) is not supported. Product information is subject to change without prior notice.
