Behringer CHORUS SPACE-C CC300 Manual

CHORUS SPACE-C CC300
Analog 3-Dimensional Sound Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER CHORUS SPACE-C CC300.
This ultimate effects pedal comes with 4 dedicated space presets that let you add a breathtaking third
dimension to your sound or instrument. Experience the secret weapon of professional recording studios.
The chorus effect adds a shifting detuned signal to the original, similar to playing in unison in a
group of instruments, and it is often used for dispersing sounds.

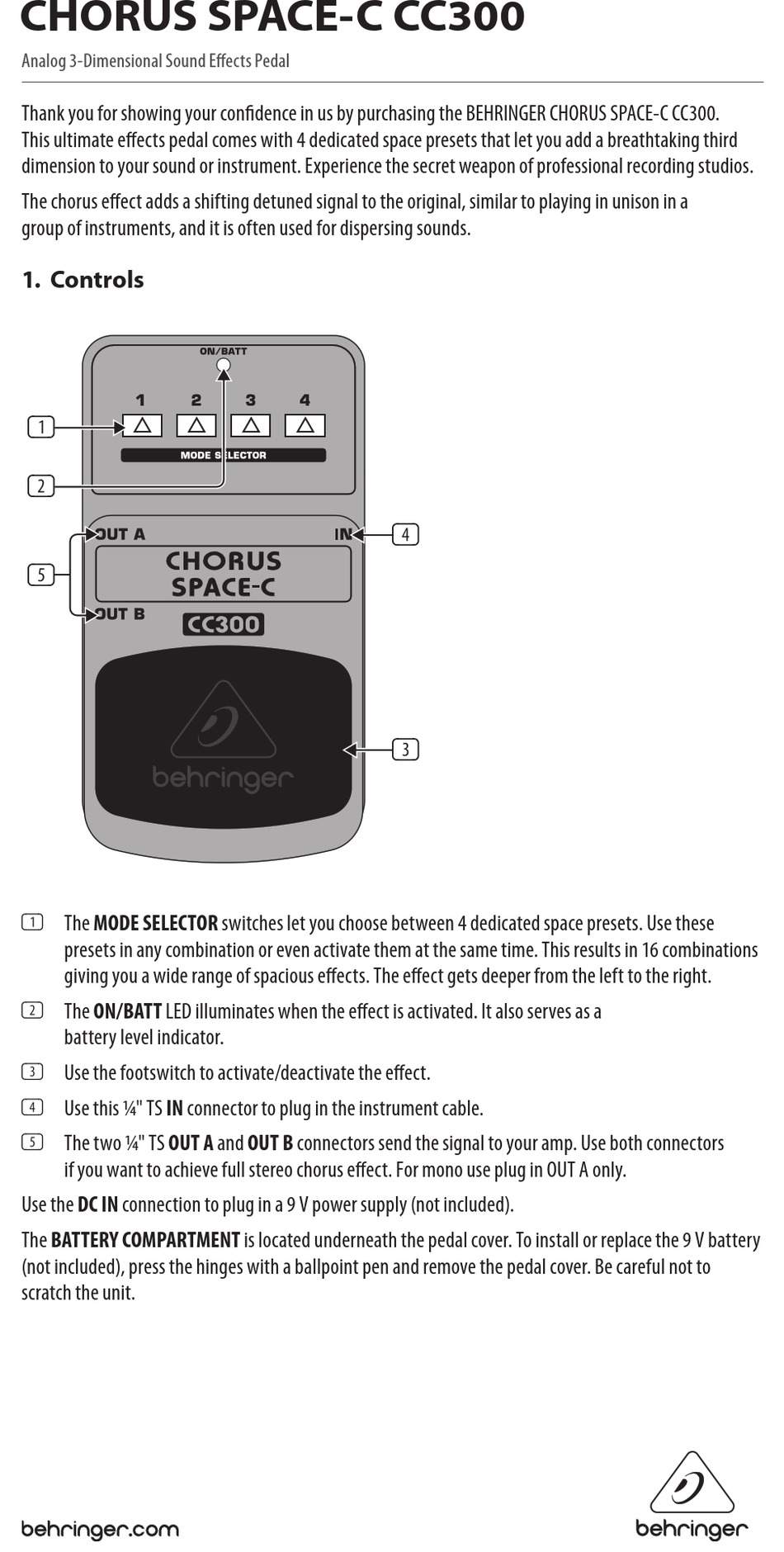

1. Controls
(1)
(2)
(5)
(1) The MODE SELECTOR switches let you choose between 4 dedicated space presets. Use these
presets in any combination or even activate them at the same time. This results in 16 combinations
giving you a wide range of spacious effects. The effect gets deeper from the left to the right.
(2) The ON/BATT LED illuminates when the effect is activated. It also serves as a
battery level indicator.
(3) Use the footswitch to activate/deactivate the effect.
(4) Use this 1/4" TS IN connector to plug in the instrument cable.
(5) The two 1/4" TS OUT A and OUT B connectors send the signal to your amp. Use both connectors
if you want to achieve full stereo chorus effect. For mono use plug in OUT A only.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery
(not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to
scratch the unit.
(4)
(3)
