Behringer CS400 Specification

COMPRESSOR/SUSTAINER CS400
Ultimate Dynamics Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER COMPRESSOR SUSTAINER
CS400. This ultimate effects pedal is specifically designed to achieve super-smooth compression and
endless sustain. Thanks to its high-performance features you can compress loud and boost low signals
without degrading the original sound.
A compressor limits the dynamic range of a signal. This means that signal peaks will be attenuated and
the level differences between loudest and softest playing are reduced. This results in a more powerful
and pressure-rich tone.

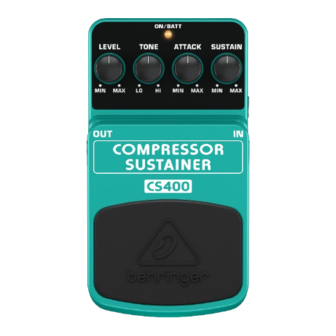

1. Controls
(2)
(1)
(5)
(8)
(1) The LEVEL control adjusts the output level.
(2) Turn up the TONE control to achieve more presence and sound clarity.
(3) The ATTACK control determines how fast the compressor reacts on the input signal.
The attack time is sweepable between slow and fast.
(4) The SUSTAIN control determines the amount of compression that results in long-lasting tones.
(5) The ON/BATT LED illuminates when the effect is activated. It also serves as a battery
level indicator.
(6) Use the footswitch to activate/deactivate the effect.
(7) Use this 1/4" TS IN connector to plug in the instrument cable.
(8) The 1/4" TS OUT connector sends the signal to your amp.
Use the DC IN connection at the front of the unit to plug in a 9V power supply (not included).
(3)
(4)
(7)
(6)
