Insignia NS-32D20SNA14 Quick Setup Manual

QUICK
SETUP GUIDE

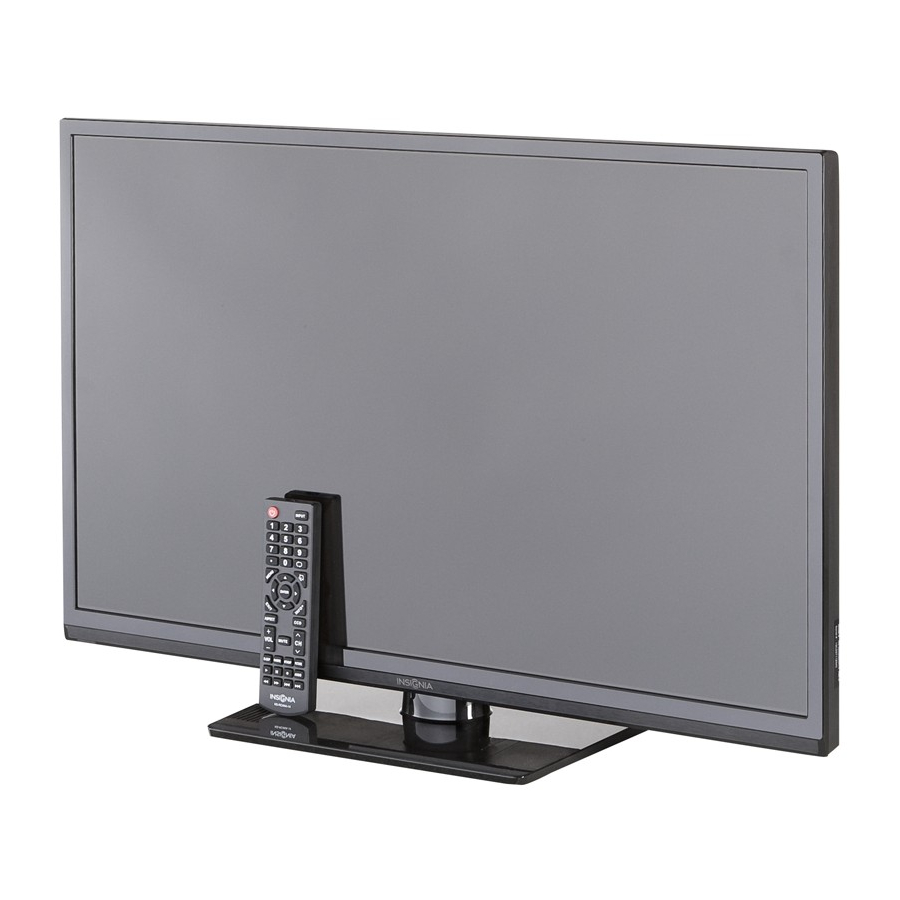

32" LED TV
NS-32D20SNA14
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
NS-RC6NA-14
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to
www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
M4 screws (12 mm length) (7 pcs.)
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
B Attach the stand column to your TV using the three provided M4 screws (12 mm).
C Attach the TV stand to the stand column with the four provided M4 screws (12 mm).
- OR -
How do I prepare my TV for wall mounting
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
B Attach the wall-mount bracket to your TV using the mounting holes on the
back of your TV. See the instructions that came with the wall-mount bracket
for information about how to correctly hang your TV.
Which cables do you have?
Your TV has several different jacks for connecting devices. For the
STOP! best video quality, use the best available connection. Use the cables
that came with your devices.
Do not plug your
power cable in until
all other devices have VIDEO QUALITY
been connected.
BEST
BETTER
Component video and analog audio
GOOD
Composite video and analog audio
GOOD
Note: You can use the HDMI2/DVI jack to connect a DVI device to your TV. Attach an
Remote control
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
and two AAA batteries
device's jack. See your online User Guide
HDMI (ARC, DVI).
Features
Front view
Power indicator
Remote control sensor
Stand column
Back view
TV stand
Note: Images do not necessarily represent the exact design of your television.
A
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as
a DVD or Blu-ray Disc player, game station, or camcorder?
Using an HDMI cable (BEST)
JACK TYPE CABLE CONNECTOR
HDMI video/audio
Coaxial video / audio
Using component cables
- OR -
Using an AV cable (GOOD)
Note: Connect the yellow video
cable to the green VIDEO/Y jack on
the back of your TV.
How do I connect my TV to an antenna or cable wall jack?
PC / DVI
L R VIDEO / Y P B P R VGA ANT / CABLE IN
AUDIO AUDIO IN
AV / COMPONENT IN PC IN
Before using your new product, please read these instructions to prevent any damage.
B
M4 (8 mm)
M4 (12 mm) screws
(BETTER)
Component
cable option
PC / DVI
L R VIDEO / Y P P VGA
AUDIO B R AUDIO IN ANT / CABLE IN
AV / COMPONENT IN PC IN
AV cable option
PC / DVI
VGA
L AUDIO R VIDEO / Y P B P R AUDIO IN ANT / CABLE IN
AV / COMPONENT IN PC IN
C
M4 (12 mm) screws
Multi-purpose jacks: You can plug
any device that uses HDMI into
either HDMI jack. However, certain
devices must be connected to the
HDMI ARC or DVI jack. See the
instructions that came with your ARC
or DVI device for more information.
AUDIO/VIDEO OUT
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
CABLE
OVER
