Insignia NS-32D220NA18 Quick Setup Manual

NS-32D220NA18_17-0119_QSG_V1_ENG_Final.ai 1 2/24/2017 2:51:26 PM NS-32D220NA18_17-0119_QSG_V1_ENG_Final.ai 1 2/24/2017 2:51:26 PM
INCLUDED ACCESSORIES
Remote control and
two AAA batteries
TV stands
C
M4 screws (12 mm length) (4 pcs.)
M
Y
CM
MY
CY
CMY
K
FIND YOUR USER GUIDE ONLINE!
On a computer, go to
www.insigniaproducts.com, enter your model
in the search box, then press ENTER.
Next to Features, click Support & Downloads,
then next to User Manual, click the language
you want.
STOP
Do not plug your power cord in until all other
devices have been connected.
Before using your new product, please read these
instructions to prevent any damage.
START HERE
1
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver
B Align the screw holes on the TV stands with the holes on the
A Place your TV face-down on a cushioned,
clean surface. bottom of your TV, then secure each stand to your TV with two
of the provided screws.
A
B
FEATURES
Remote control sensor
Power / Input button
AV IN
ANT/CABLE
IN
VIDEO L - AUDIO - R
Note: Images do not necessarily represent the exact design of your television.
M4 screws (12 mm length)
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player, game console, or tablet?
WHICH CABLES
Multi-purpose jacks: You can plug any device that uses HDMI into either HDMI jack.
DO YOU HAVE?
However, certain devices must be connected to the ARC jack. See the instructions
that came with your ARC device for more information.
HDMI
(BEST)
Best video quality
AV
(GOOD)
COAXIAL
(GOOD)
AV IN
VIDEO L - AUDIO -
Quick Setup Guide |

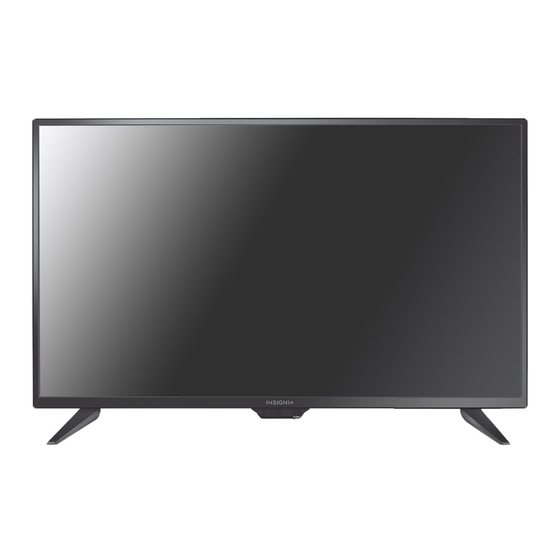

32" 720p 60Hz • LED TV
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A Carefully place your TV face-down on a cushioned, clean surface.
OR B See the instructions that came with your wall mount for more information
about how to correctly mount your TV.
A
B
Your TV has four VESA mounting holes on the back. If you attach a wall-mount
bracket to the back of your TV, the bracket must be securely attached, using
all four holes. If you do not use all four mounting holes, your TV may fall and
cause property damage or personal injury. See the documentation that came
with your wall-mount for complete mounting instructions.
AV IN ANT/CABLE
VIDEO L R IN
- AUDIO -
ANT/CABLE
IN
R
V1
FINAL
FOR PRINT
NS-32D220NA18
AUDIO/VIDEO OUT
CABLE
