1.1 UNPACKING
• Removeall packagingmaterial.
• Removeseparateaccessory box.
• Removethe generatorfrom carton.
1.1.1 ACCESSORY BOX
• 1-Owner's manual
• 1-Bottle of Oil SAE 30
• 3-Product RegistrationCards (English,Spanish, French)
• 1-Battery Charger(electric start only)
• 1-HandleAssembly
• 1-Frame Foot (E)
• 2-Never-FlatWheels (H)
• 1-Hardware bag (containingthe following):
- 2-LongCurved HeadBolts(A)
- 2-AcornNuts(B)
- 4-Flanged n uts (C)
- 2-Rubber F eet ( D)
- 2-ShortBolts(F)
- 2-AxlePins(G)
- 2-Washers (1)
- 2-Cotter P ins(J)
- 2-Flange Nuts(electric startonly)
1.2 ASSEMBLY
The generator requires some assembly prior to using it. If
problems arise when assembling the generator, please call the
GeneratorHetplineat 1-888-436-3722.
1.2.1 ASSEMBLING THEACCESSORY K IT
Refer to the instructions below and Figures 1A, 1B, and 1C to
install the handle,feet, and wheels. Note: the handle components
are already pre-assembled from the factory. The wheels are
designedto greatly improve the portability of the generator.You
will needthe following tools to properly install the accessory kit:
• Ratchetand a 13mm [1/2"] socket
• 13mm [1/2"] box wrench
• Needlenose pliers
Handle
1. Installthe handleassemblyto the frame by usingbolts (A) and
nuts (B).
Feet
2. Use nuts (C) to mount the rubber feet (D) to the foot bracket
(E).
3. Mount the foot bracket (E) to the frame with two bolts (F) and
nuts (C).
Wheels
4. Slide axle pin (G) through wheel (H), washer (I), and through
the bracket on the frame.
5. Secureaxle pin (G) to the frame with the cotter pin (J).
6. Use a pliers and bend one tab of cotter pin (J) outward to lock
into place.
7. Repeatsteps 5, 6, & 7 for other wheel.

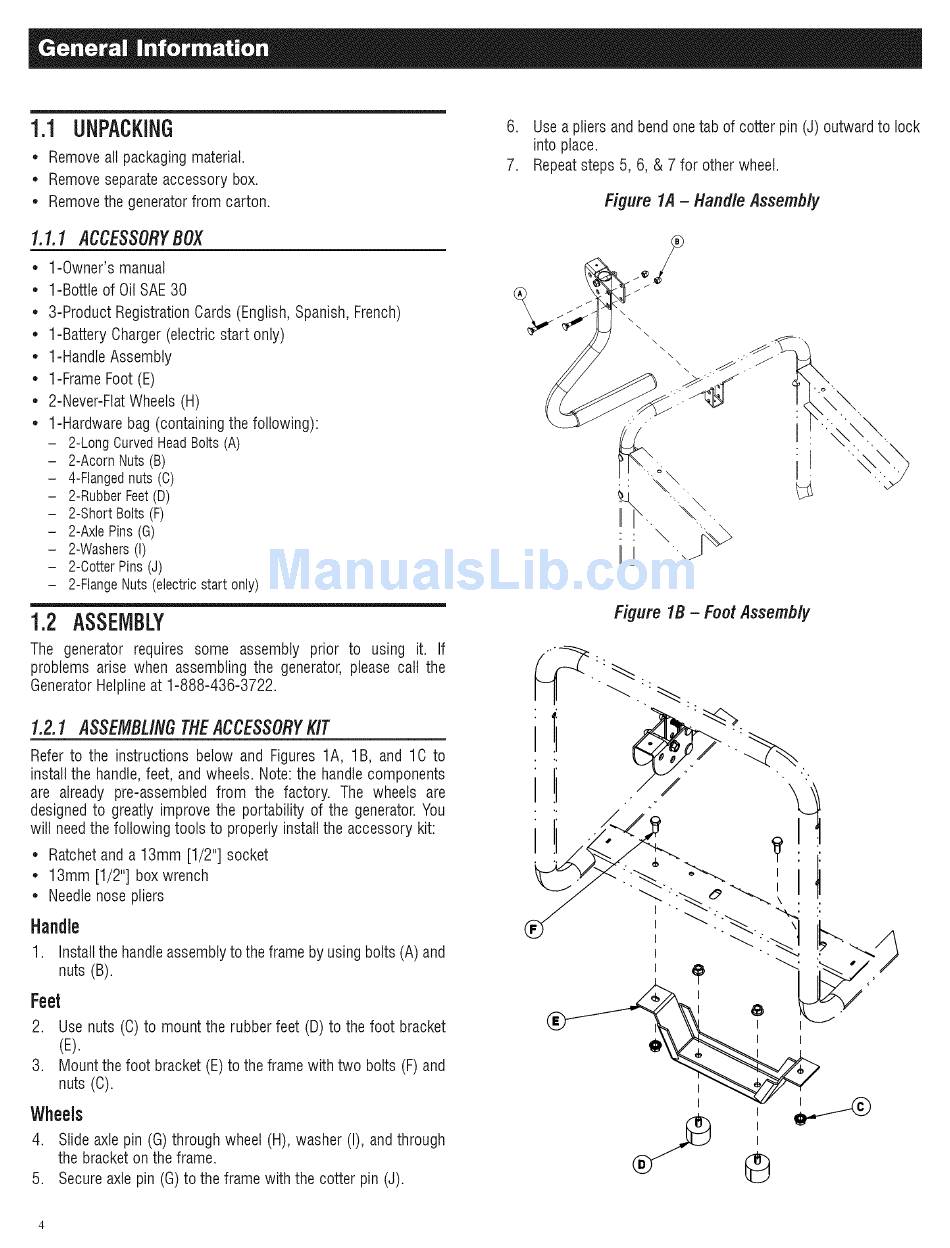

Figure 1A - Handle Assembly
Figure 1B - Foot Assembly
