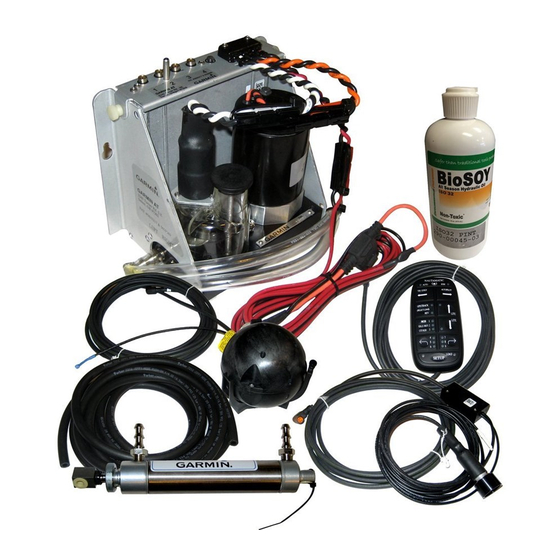

Garmin TR-1 Gold Quick Reference

Click
To engage GPS push and release [GPS Track] button
(Must plot a waypoint, route or steer to cursor).
For Man Overboard Maneuver press and release the
[MOB] button. (Williamson Turn)
Idle Resume (Factory Default), Zig-Zags.
Step Turns, Circles, and Remote Steer to port when
NOT in GPS Mode.
Orbit, Clover Leaf and Search to Port
when IN GPS Mode.
Press and hold the [SETUP] Button to see
what your buttons are set at.
To change from Idle/Resume to MOB you would: Press and hold [SETUP], then press the [MOB] button
twice, you will see the light change from #2 to #1.
Note: Boat Hydraulics too active, but the boat holds course? Try adjusting the Sea State Filter. This is adjustable at four levels, (1-4) factory default is set at the most active
(4). Press and release the [Setup] button, press the 1,2,3 button once to light up code #1, decrease this function by pressing the down arrow button until the setting is most
comfortable for your use. If you wish to save this setting, Press and Hold the [Select Load] button while pressing and releasing the deckmount On/Off switch.
For further assistance please call technical support at 1-866-559-0229
907-0002-00
TR-1 Gold Owner's Handheld Quick Reference
to go from Standby to Autopilot mode.
To autopilot in reverse: 1) Start from Standby 2) Press and
hold the [GPS REV] button 3) Press and release the [Auto/
Stby] button 4) Release the [GPS REV] button.
Increase throttle by pressing the [Up Arrow] button.
Decrease throttle by pressing the [Down Arrow] button.
The electric throttle runs in parallel with the tiller throttle,
this means that you can't reduce the RPM with the electric
throttle if the tiller throttle is set high. It is best to always
run with the tiller throttle set to idle.
Step Turns, Circles and Remote Steer to Starboard
when NOT in GPS Mode.
Orbit, Clover Leaf and Search to Starboard when
IN GPS Mode.
