Bose PowerMatch PM8500 Technical Data Sheet

PowerMatch
configurable power amplifier

Product Overview

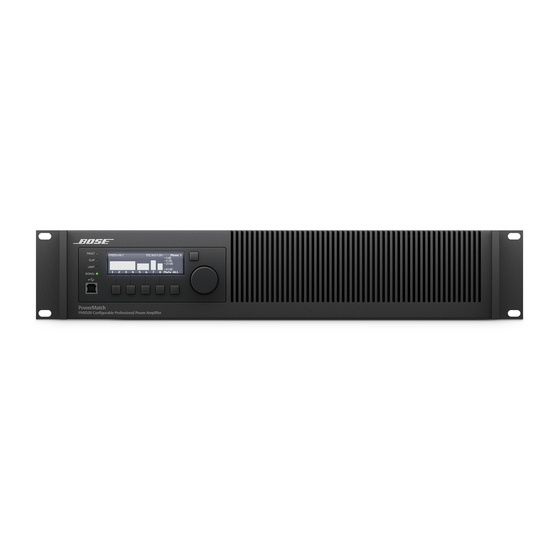

The Bose® PowerMatch PM8500 configurable professional
power amplifier provides concert-quality sound with a high
level of scalability and configurability. The PM8500 offers
multiple channel and power options, an integrated audio
DSP, front panel interface and USB connection. Ethernet-
equipped versions enable network configuration, control and
monitoring. An expansion slot supports inputs from optional
digital accessory cards. PowerMatch amplifiers utilize
numerous Bose technologies to deliver an unprecedented
combination of performance, efficiency, and ease of
installation—all in a reliable, proprietary design. Available
in two versions, the PM8500 provides USB connection for
single-unit setup and control using Bose ControlSpace®
V3.0 or higher software. The PM8500N adds Ethernet
connectivity for network control and monitoring of multiple
"N" version amplifiers.
Applications
Designed for a wide range of applications, including:
• Auditoriums
• Performing arts venues
• Theaters
• Houses of worship
• Arenas
• Hospitality venues
Bose Professional Systems Division
PM8500 / PM8500N
®

Key Features

• QuadBridge™ Technology – Allows each 4-channel
loudspeaker block to be configured as Mono, V-Bridge, I-
Share or Quad modes, allowing the total available power
of the amplifier block to be allocated to one or more output
channels. V-Bridge and Quad modes can drive either low
impedance or 70/100V loads.
• Bose® ControlSpace® Designer™ software – PowerMatch
amplifiers can be fully configured using ControlSpace
Designer software via the onboard front panel USB
connection, or the rear panel Ethernet connection (network
models only). Using ControlSpace Designer software you
can access additional features including: Parametric EQ
stages, load sweep of each output channel and auto standby.
ControlSpace Designer software is also used to integrate
network model PowerMatch amplifiers into larger control and
monitoring systems comprised of Bose ESP processors and
CC control centers.
• Auto-Standby/Auto-Wake function – When enabled, this
function automatically enters/exits Standby Mode, allowing the
system to consume less power.
• Dual voltage and current feedback loop – Proprietary
design combines Class-D efficiency with a unique current
and voltage feedback loop circuit that continuously monitors
and controls both the current and voltage delivered to the
loudspeaker load. Independent of power level and load
impedance, the amplifier consistently delivers the widest
possible dynamic range, frequency response and lowest
possible distortion.
• PeakBank™ power supply – Regenerative 4-quadrant power
supply enables higher power density while allowing the re-
use of energy from reactive loads that is normally wasted in
conventional Class-D designs. This highly efficient amplifier
design delivers sustainable and repeatable low frequency
response.
• Fast-tracking power factor correction (PFC) – Efficiently
manages the current drawn from the AC mains, allowing the
amplifier to drive loudspeakers to maximum output longer
without power fluctuation. PFC provides superior transient
response and functions at peak burst power much longer
than conventional Class-D amplifier designs to satisfy the
requirements of even the most demanding program material.
