Use and Care Manual
Assembly
and Operation
®

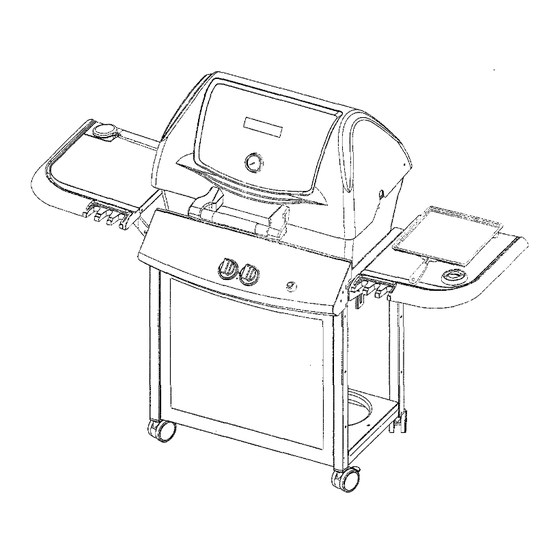

Liquid Propane Gas Grill
NO TOOL
ASSEMBLY
THIS GRILL IS FOR OUTDOOR
USE ONLY
CAUTION
Read and follow all Safety
Statements
,,
I Assembly
instructions,
and Use
A
I and Care Manual
Directions
before
,_
attempting
to assemble
and cook.
CAUTION
Some
parts may contain
sharp edges,
1
I
,_
wear protective
gloves if necessary.
I
W_G
Failure to follow all manufacturer's
instructions
could result
in serious
personal
injury andlor
property
damage.
Customer
Service
Toll Free
1-800-396-3838
To Installer/Assembler:
Leave these
instructions
with consumer.
To Consumer:
Keep this manual for future
reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A
www.sears.com
SP5319-37
