Page 1: Table Of Contents
Parts diagrams, bill of materials lists ......22 Three position brewbasket and touch screen display..7 Wiring diagrams............26 FETCO®, LUXUS®, EXTRACTOR®, INTERMITTENT BREW, and Driven To Innovation™ are trademarks or trade names of Food Equipment Technologies Company. © 2013 Food Equipment Technologies Company...
Page 2: Contact Information

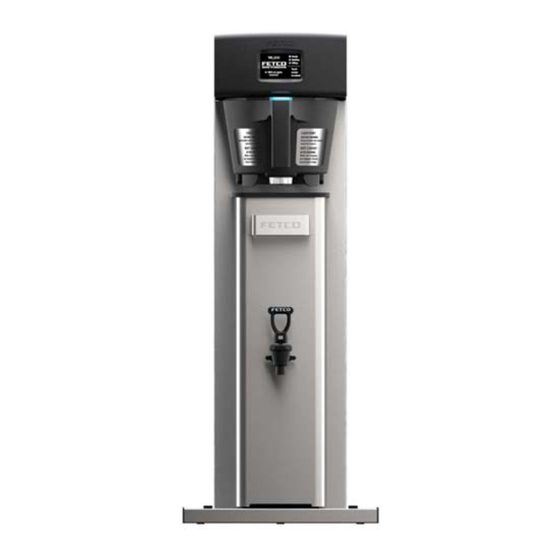

Internet: www.fetco.com Description & Features The TBS-2121 Iced Tea EXTRACTOR® series brewer features our universal spray over technology. The following variables are programmed for each of nine menus (3 batches Left, Center, Right positions) Brew volume Prewet percent (Percentage of the brew volume) Brew time Prewet delay (The time between prewetting and the brew cycle.)
Page 3: Specifications
195°F (91°C) ± 5° at sprayhead Ratio: TBS-2121 (user adjustable) factory setting automatically adds 2 gallons of cold water for a 1:2 ratio Iced Tea (one third hot / two thirds cold). Water Supply Pressure: Unit is factory calibrated to a stable, non-fluctuating water supply at 45 psi.
Page 4 Dimensions & Utility Connections—Rough-in drawings Rough-in TBS-2121 shown with two ITD-2135 3.5 gallon Dual Slim dispensers Utility Connections—TBS-2121...
Page 5: Installation
Here are the key points to consider before installation: Electrical: All FETCO brewers require an electrical ground wire. Installation without grounding is dangerous. Verify voltages, polarity, circuits, and circuit breaker access before attaching equipment. The electrical diagram is located in the Users Guide and online at www.fetco.com.
Page 6: Installation Instructions
2. Place the brewer on the counter or stand. 3. When the brewer is in position, level it front to back as well as side-to-side by adjusting the legs. 4. For Sweetener Delivery units, provide space near the TBS-2121 for the sweetener boxes Water Connection 1.
Page 7: Final Setup
2. Turn power on—by pressing the brewer’s main power switch (located on ■ Filling the lower right of the back of the equipment) 3. The water tank will begin filling. FETCO Home Screen #1 will read Touch “FILLING”. ©2013 all rights screen 4.
Page 8: Accessing Batch And Programming Menu Screens
(center shown) 9:22 reserved screen to unlock Touch and hold activated top, 11:35 This screen displays when the TBS-2121 middle or bottom (C1, C2, C3) is in standby mode recipe batch selector to begin 9:22 brew. FETCO home screen Operation screens...
Page 9 4. Do not attempt to move hot beverage equipment once it is filled. IMPORTANT: Drain equipment before moving. TBS-2121 Iced Tea brewers prepare 3-5 gallons/11.4-19 liters of tea in a single batch using very hot water. For safety, do not attempt to remove brew basket until the brew-dilution sequence is complete. .
Page 10: Operating Instructions
To brew a single 3 gallon batch of iced tea, using default recipe NOTES FETCO TBS-2121 series equipment is factory calibrated and preloaded with nine recipes and is ready to brew. 1) Place paper filter in brew basket -FETCO 15” X 5 ½ ”product # F001...
Page 11 Brewing-shown by touchscreen -The FETCO TBS_2121 has three brew basket positions with three-brew batch menu screen per position. -Each menu screen has three recipes preprogrammed with basic settings. -There are two permanent batches Left top (L1) and Right to (R2); any or all of the remaining seven may be withdrawn -Settings are adjustable and the names can be changed.
Page 12: Programming- Operator Access Programming
Programming- operator access programming Accessing programming category screens ■ Ready TBS_2121 To enter: Turn unit “OFF”. After 10 second delay, turn unit “ON”, □ Heating Home Screen will appear □ Filling Immediately place finger on right side-(grey) of screen and “HOLD” PROGRAM Screen (first below) will appear.
Page 13 PROGRAM Factory set Default Programming Range Notes Programming Items Batch 1 L* • Batch Summary Display Summary Choose from list: (Regular 1-16) • Batch Name L: 1 -OR- Write: any name 3.80 liter 3.80 liter Volume of HOT tea for •...
Page 14: Programming-Category Screens: Menu Tree
Liters • Volume Liters |_____________[]__| Gallons Liters 1:00 mm:ss 1:00 mm:ss Logo Timeout |_[]_______________| 0:00 5:00 Has FETCO # Write: Service Tel. Choose from list Can enter any number (800) 338-2699 as default Programming Factory set Programming Range INPUTS Notes...
Page 15: Test, Calibration And Flow Rate Adjustment
Programming Factory set Programming Range OUTPUTS Notes Items Default (display) TEST Opens valve to verify Dispense Valve • D. Valve Test (Press to test) Press To Test flow. Have container under brewbasket! < OUTPUTS > Scroll (left or right) from <Dispense Valve>...
Page 16 #3. < > Scroll up, Save, and Exit. OUTPUTS < > The TBS-2121 automatically readjusts the flow rate of Dispense Valve the dispense valve (or Left Dilution, Right Dilution, < > Sweetener if selected) D. Valve Calib. ml pm...
Page 17: Error Codes
Programming Factory set Programming Range OTHER Notes Items Default (display) Error Codes • Display Errors (Codes) Chart is below Reset !!Errors must be • Reset Errors (Reset) |_______________[]____| corrected and cleared!! Setup upload Brewer Copy ------------------------------------------------------------------------ • From SD to B. Brewer ---- |________________[]____...
Page 18: List Of Error Codes For Tbs-2121
Brewbasket must Insert brewbasket be in place INSERT BREW BASKET Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice...
Page 19: Instructions For Use
FETCO ITD-2135 3 gallon Ice Tea Dispenser Product D-064 Instructions for use -Remove dispenser cover before brewing, replace cover after brew is complete -To prevent overflow, make sure the dispenser is completely empty before brewing into it. -Discard old tea often during the day and make a fresh batch -Never keep tea overnight in this or any dispenser.
Page 20: Optional Tea Dispenser Instructions And Cleaning
SCREW, #8 X 1/2", FLAT HD, PH, SHEET METAL 1023.00178.00 DISPENSER COVER, TBS-2121 1074.00005.00 CLEANING BRUSH--Ice Tea Dispenser SHOWN Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to change by FETCO without notice...
Page 21: New June
Model Range NEW June 2013 Please see our website-www.fetco.com for the most up to date listings and additional parts and service information Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to change without notice.
Page 22: Parts Diagrams, Bill Of Materials Lists
Parts diagrams, bill of materials lists Drawing 1101.00142.00 TBS-2121 Assembly-No Sweetener...
Page 23 Drawing 1101.00142.00 TBS-2121 ASSEMBLY, NO SWEETENER, 1680 kW/120VAC Ref# Part number Description 1111.00033.00 WELDMENT, BODY TBS-2121 1102.00203.00 ASSEMBLY, SPRAY HOUSING, TBS-2121 1024.00017.00 O'RING, 3.739" ID X 0.070" CS, 70 DURO, BUNA 1083.00010.00 WASHER, #10 SCREW W/NEOPRENE-BONDED SEAL 1084.00006.00 NUT, 8-32 18-8 HEX MACHINE SCREW 1102.00113.00...
Page 24 Drawing 1104.00049.00 TANK ASSY, 1680W/120VAC, TBS-2121 Drawing 1104.00049.00 TANK ASSY, 1680W/120VAC, TBS-2121 Ref# PART NO DESCRIPTION 1114.00079.00 WELDMENT, TANK, TBS-2121 1107.00023.00 HEATER ASSY, IMMERSION, 1680W/120VAC 1024.00050.00 GROMMET, SILICONE, 11.4mm ID 1024.00062.00 GROMMET, SHORT, SILICONE, LEVEL AND TEMP PROBE 1112.00202.00 PROBE WELDMENT, WATER LEVEL 1.188" LONG 1102.00161.00...
Page 25 1057.00051.00 SPRING, DISPENSE VALVE 24VDC 1057.00022.00 DSV11 COIL AND FRAME ASSEMBLY, 24VDC 1082.00076.00 SCREW, #6-20 X 1/2", THRD FORM, P/H PHIL B013000B2 TBS-2121 Iced Tea Brew Basket Assembly, 16” X 6”( Three position) Part # DESCRIPTION 1023.00182.00 BREW BASKET, TBS-2121 1024.00060.00...
Page 26: Wiring Diagrams
Wiring diagrams...
