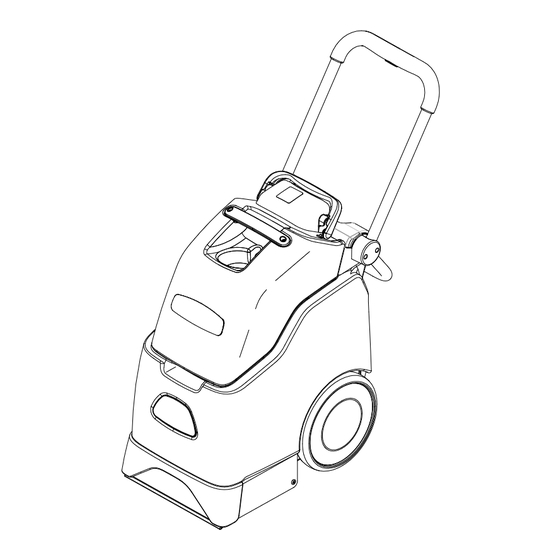

- Page 1 Mini Carpet Extractor (4 Gallon) Operating instructions (ENG) MODELS: MPRO 10080390 MPROEU 10080400 MPROGB 10080410 MPROAU 10080420 Read these instructions before using the machine. 86037780-AF 08/15/11...
-
Page 2: Machine Data Log & Overview
Machine Data Log & Overview OVERVIEW The carpet extractor is a mains powered, portable extractor intended for commercial use. The appliance sprays a cleaning solution onto the carpet, agitates the wet carpet, and then extracts the soiled solution back into the unit’s recovery tank. -
Page 3: Table Of Contents
Table of contents PARTS Machine Data Log & Overview ....2 Brush Deck ......24 Table of contents. -
Page 4: How To Use This Manual
How to Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • HOW TO USE THIS MANUAL machine. Levels of hazards are identified that could • SAFETY result in product damage, personal injury, or severe •... -
Page 5: Safety
Safety IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. To reduce the risk of fire, electric shock, or injury: Connect to a properly grounded outlet. - Page 6 Safety CONSIGNES IMPORTANTES DE SÉCURITÉ Lors de l'utilisation d'un appareil électrique, il faut toujours observer des précau- tions élémentaires,qui comprennent parmi celles-ci : LISEZ BIEN L'ENSEMBLE DES CONSIGNES AVANT D'UTILISER CET APPAREIL. Cette machine est pour l’utilisation commerciale. Pour réduire les risques d'incendie, d'électrocution ou de blessure : Raccordez l'appareil à...
-
Page 7: Hazard Intensity Level
Safety The following symbols are used throughout this guide as indicated in their descriptions HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death. - Page 8 LORS DE L'ENTRETIEN DE LA MACHINE : Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées Windsor homologuées. 86037780 MINI EXTRACTOR...
-
Page 9: Grounding Instructions
Safety THIS PRODUCT IS FOR COMMERCIAL 120 VOLT MODELS USE ONLY. This appliance is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug in "Fig. ELECTRICAL A". A temporary adaptor that looks like the adaptor in "Fig. -
Page 10: Safety Label Location
Safety Safety Label Location The following WARNING LABEL(S) are found on your cleaning unit. These labels point out important Warnings and Cautions which should be followed at all times. Failure to follow warnings and cautions could result in fatality, personal injury to yourself and/or others, or property damage. Follow these instructions carefully! DO NOT remove these labels. -
Page 11: Operation
Operation Technical Specifications MODEL ITEM MEASURE (1) 3 stage, 1.5hp 100 cfm (2.8cubic meters/min.) Vacuum Motor Waterlift - 120” (305cm) Floating Brush 10” (25.4cm) Main Jet Solution Pump Solenoid Style Accessory Solution Pump Solenoid Style Solution Capacity 4.6 Gal (17.3L) Recovery Capacity 3.9 Gal (14.7L) Brush Speed... -
Page 12: Inspection
Operation Chemicals Use only the suitable chemicals listed below. Using incompatible chemicals will damage the machine. To avoid electric shock use indoors only.To reduce risk Damages of this type are not covered under warranty. of fire, do not use volatile substances. Use only Carefully read ingredients on manufacturer's label cleaners intended for carpet application. -
Page 13: Controls & Components
Operation 7. Solution Tank Drain Hose Controls & Components 8. Accessory Tool Connection 1. Power and Operation Mode Switch Solution connection for accessory tools. Turns accessory tool on or machine on. 9. Accessory Hose Connection 2. Main Handle Hose connection for accessory tool. 3. -
Page 14: Filling The Solution Tank
Operation Filling The Solution Tank 4. Place recovery tank back on machine. Place dome on recovery tank. Make sure dome is 1. Release dome clamp. seated correctly to ensure proper vacuum seal. Clamp dome securely to recovery tank. 2. Lift upper recovery tank from machine and set aside. -
Page 15: Operating The Machine
Operation Operating the Machine 1. Vacuum the carpet and make sure it is cleared of 4. To operate the machine, pull straight back without surface debris before cleaning. pushing down on handle. Press the solution spray button to apply cleaning solution. 2. -
Page 16: Operating Machine With Accessory Tools
3. Turn on the switch in the accessory position. The application of cleaning solution is now controlled by This extractor is easily adapted for use with Windsor the lever on the accessory tool. accessory tools: Contact Customer Service for details. -
Page 17: Maintenance
Maintenance Protect From Freezing Periodic Maintenance If it becomes necessary to store in temperatures that 1. After every 25 hours of operation, flush a white could drop below 40°F, the pumping system, hoses and vinegar solution (ONE quart vinegar to two gallons valves must be protected from freezing with a methyl of water) or anti-browning solution (mixed as hydrate window washer antifreeze solution. -
Page 18: Maintenance Instructions
Maintenance Maintenance Instructions Only use the brushes provided with the appliance or those specified in the instruction manual. The Remove machine power cord from electrical use of other brushes may impair safety. source before making any adjustments or repairs to the machine. N'utilisez que les brosses fournies avec l'appareil ou celles qui sont spécifiées dans le manuel Retirez le cordon d'alimentation de la machine de la... -
Page 19: Brush Motor Removal
Maintenance Pump Removal Brush Motor Removal 1. Turn off switch and unplug machine. 1. Turn off switch and unplug machine. 2. Set the machine in its upright position. Remove the 2. Set the machine in its upright position. Remove the screws (2) in the back metal cover. -
Page 20: Vacuum Motor Removal
Maintenance Vacuum Motor Removal 1. Turn off switch and unplug machine. Vacuum Motor Carbon Brushes 2. Set the machine in its upright position. Remove End Cap the screws (2) in the back metal cover. Rotate the cover down and slide back releasing the tab under the machine from the main frame. -
Page 21: Troubleshooting
Maintenance Troubleshooting PROBLEM CAUSE SOLUTION No power, nothing runs. Is the cord plugged in. Plug in cord. Circuit breaker tripped in building. Reset breaker. Faulty switch. Call for service. Faulty power cord or pigtail. Call for service. Vacuum motor will not run. Vacuum circuit breaker tripped. - Page 22 Maintenance Troubleshooting Problem Cause Solution Squealing or grinding sound in Worn brush bearings Replace bearings. brush housing. Make several passes at right angles to each other. Carpet not getting clean Severe soil conditions Use a pre-spray. Carpet too wet Worn spray jet Replace spray jet which is producing a fine mist.
-
Page 23: Parts
PARTS 86037780 MINI EXTRACTOR... -
Page 24: Brush Deck
Brush Deck 86037780 MINI EXTRACTOR... - Page 25 Brush Deck SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86173020 70916 SCR, M5 X 10, PHMS, ISO7045, SS 86217390 270146 COVER, PULLEY, BRUSH DECK 86215260 11051 BELT, HTD 5MM 69T 9 WIDE 86223780 70896 SET SCR, M4 X 6LG, CP BLK 86223300 64115 PULLEY, BRUSH...
-
Page 26: Control Panel
Control Panel 86037780 MINI EXTRACTOR... - Page 27 Control Panel SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86007200 72162 SWITCH, DPDT 3-POSITION ROCKER 86002010 14942 BOOT, 3/8 CIRCUIT BREAKER 86173140 70945 SCR, KA40X16, PT OVAL, WN1412, PL 86217410 270152 COVER, CONTROLS TOP 86230140 14622 BREAKER, 1.5A CIRCUIT 115V ONLY 86001780 14308...
-
Page 28: Decal
Decal 86037780 MINI EXTRACTOR... - Page 29 Decal SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86221090 501128 LABEL, CONTROL PANEL 86221470 501208 LABEL, DOME ACCESSORY 86013720 LABEL, MINI EXT.INSTRUCTION 86037780 MINI EXTRACTOR...
-
Page 30: Frame & Wheels
Frame & Wheels 86037780 MINI EXTRACTOR... - Page 31 Frame & Wheels SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86215830 140897 BRKT, BRUSH HOUSING, 10 IN 86173010 70915 SCR, M4 X 16, SHCS, ISO4762, SS 86216290 140895 BUMPER, EXTRACTOR, FRONT 86218090 35360 GASKET, VAC SHOE 86225530 85086 VAC SHOE, 12 IN 86172630 57314...
-
Page 32: Handle
Handle 86037780 MINI EXTRACTOR... - Page 33 Handle SERIAL REF PARTNO. PRV NO. DESCRIPTION NOTES NO.FROM 86012660 SCR, KA40X25, PT OHCS,WN1452,PL 86218570 38342 HANDLE, GRIP BOTTOM 86225910 38343 WELDMENT, HANDLE TUBE 86218560 38341 HANDLE, GRIP TOP 86225140 72204 SWITCH, MICRO 86224650 730392 SPRING, LEVER 86216470 140922 BUTTON, SPRAY HANDLE 86219460 41553 HUB, SPLINE HANDLE...
-
Page 34: Solution
Solution 86037780 MINI EXTRACTOR... - Page 35 Solution SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86201110 250-78 PUMP, 110/120 60HZ FLOJET 115V ONLY 86201120 250-78A PUMP, 220/240V 50HZ FLOJET 230V ONLY 86240520 40097 HOSEBARB, 1/8MPT X 1/4 90D 86010640 87016 WASHER, #10 LOCK EXT STAR 86006770 70323 SCR, 10-32 X 1/4 PHTR PLTD...
- Page 36 Solution 86037780 MINI EXTRACTOR...
- Page 37 SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86219580 44106 JET, RT ANG, 1/4 BARB 86216810 270131 CLIP, SHAFT, 9-12MM 86219200 40114 HOSEBARB, 3/8MPT, 2 X 1/4. 1 X 3/8 86172950 70909 SCR, M5X12, SHCS, ISO4762, SS 86233150 20042 CLAMP, 3/8 HOSE (D-SLOT) 86219090 39728...
-
Page 38: Tank & Dome
Tank & Dome 86037780 MINI EXTRACTOR... - Page 39 Tank & Dome SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86225240 75471 TANK, SOLUTION, EXTRACTOR 86002390 20063 CLAMP, 1.75" WORM GEAR X .312 86011910 HOSE ASM, 1.5X34" VAC W/ELBOW 86291230 GASKET, DOME, MINI PRO 86217700 28070 DOME 86291170 DOME, PLATE INTERIOR 86291190 SCREEN, VACUUM INTAKE...
-
Page 40: Vacuum
Vacuum (GROUND WIRE) 86037780 MINI EXTRACTOR... - Page 41 Vacuum SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM SCR, KA40x20, PT OHS, WN1412, 86173000 70914 PLTD 86225480 53272 VAC MOTOR, 120V 5.7 3ST W/TUBE 115V ONLY 86308980 VAC MOTOR ASM, 230V MINIPRO 230V ONLY 86173220 70954 SCR, M6X12 PHCS, 12.5MM HD, SS 86217420 270703 COVER, VAC MOTOR...
-
Page 42: Wiring Diagram - Main 230V
Wiring Diagram - Main 230V 230V/50Hz 1 0 2 1 0 2 /1.4 /1.5 /1.5 /1.3 sw bn rt ˜ ˜ 86037780 MINI EXTRACTOR... - Page 43 Wiring Diagram - Main 230V REFERENCE DESCRIPTION 25 AMP FUSE 8 AMP CIRCUIT BREAKER 6 AMP CIRCUIT BREAKER MAIN RELAY MAIN SWITCH LINE ON/OFF/ACCESSARY SWITCH SEE SCHEMATIC FILTER FILTER FERRITE BEAD FERRITE BEAD FERRITE BEAD RECTIFIER BRUSH MOTOR VACUUM MOTOR PUMP MOTOR PUMP MOTOR 6 CONDUCTOR CABLE...
-
Page 44: Wiring Diagram-Control Panel 115V
Wiring Diagram-Control Panel 115V GROUND HANDLE SCREW MICRO SWITCH 3 CONDUCTOR 18 GUAGE BLACK SHEATH 6 CONDUCTOR 14/16 GUAGE CONNECTOR BLACK SHEATH STUD 11A BREAKER VAC MOTOR 1.5A BREAKER BRUSH MOTOR 3 CONDUCTOR 12 GUAGE YELLOW SHEATH TOP OF MACHINE MODE SWITCH P/N 880464... - Page 45 Wiring Diagram-Control Panel 115V SERIAL PARTNO. PRV NO. DESCRIPTION NOTES NO.FROM 86218840 41573 HARNESS, MAIN WIRE ASM, CONTROL PANEL 86226230 880464 JUMPER 86218830 41572 HARNESS, HANDLE 86226250 880466 WIRE, 14" BLACK/14 76010 86037780 MINI EXTRACTOR...
-
Page 46: Wiring Diagram-Vacuum, Brush Motor & Pump 115V
Wiring Diagram-Vacuum, Brush Motor & Pump 115V DASH LINE = PUMP BOX OUTLINE PUMP PUMP MAIN FULL BRIDGE RECT CONNECTOR BRUSH MOTOR STUD BOTTOM OF MACHINE MOTOR BACK COVER 86037780 MINI EXTRACTOR... - Page 47 Wiring Diagram-Vacuum, Brush Motor & Pump 115V SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86226250 88884 WIRE, 14" GRN/14 76008 X 76008 86223460 67499 RECTIFIER, 50A 1000V BRIDGE 86303670 WIRE ASM, 18 GA GRN 76008/76040 86303680 WIRE ASM, 18 GA GRN 76008/76042 86037780 MINI EXTRACTOR...
-
Page 48: Wiring Diagram-Control Panel 230V
Wiring Diagram-Control Panel 230V GROUND MICRO SCREW SWITCH 3 CONDUCTOR 18 GUAGE BLACK SHEATH 6 CONDUCTOR 14/16 GUAGE BLACK SHEATH 6A BREAKER VAC. MOTOR STUD .8A BREAKER BRUSH MOTOR FILTER 86305240 TOP OF MACHINE FUSE MODE SWITCH FRONT OF CONSOLE 3 CONDUCTOR 12 GUAGE "FORWARD... - Page 49 Wiring Diagram-Control Panel 230V SERIAL NO. REF PART NO. PRV NO. DESCRIPTION NOTES FROM 86218840 41573 HARNESS, MAIN 86218830 41572 HARNESS, HANDLE 86012400 WIRE ASM, 18GA 4" BLK 86012420 WIRE ASM, 18GA RED 86226250 880466 WIRE, 14" BLACK/14 76010 86012430 WIRE ASM, 18GA WHT 86012410 WIRE ASM, 18GA 4"...
-
Page 50: Wiring Diagram-Vacuum, Brush Motor & Pump 230V
Wiring Diagram-Vacuum, Brush Motor & Pump 230V DASH LINE = PUMP BOX OUTLINE PUMP PUMP MAIN FULL BRIDGE RECT BOTTOM OF FERRITE MACHINE BRUSH EMI FILTER MOTOR FERRITE MOTOR FERRITE BACK COVER 86037780 MINI EXTRACTOR... - Page 51 Wiring Diagram-Vacuum, Brush Motor & Pump 230V SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86226310 88884 WIRE, 14" GRN/18 76008 X 76008 86308960 ASM, FILTER EMI BRUSH 86223390 67488 RECTIFIER, 50A 600V BRIDGE 86303680 WIRE ASM, 18 GA GRN 76008/76042 86303670 WIRE ASM, 18 GA GRN 76008/76040 86302670...
-
Page 52: Hose Diagram
Hose Diagram (86219050) (PRV 39724) TO SOLUITON TANK (86219090) (PRV 39728) (86289330) (86219200) (PRV 40062) (PRV 40114) (86240430) (PRV 40083) (86012680) TO SOLUTION TANK (86219090) (PRV 39725) MAIN PUMP (86219080) (PRV 39727) (86240520) (86219580) (PRV 40097) (PRV 44106) ACCESSORY PUMP (86219070) (PRV 39726) ACCESSORY TOOL... -
Page 53: Spare Parts
Spare Parts SERIAL PART NO. PRV NO. DESCRIPTION NOTES NO. FROM 86216430 140912 BUSHING, BRUSH PRESSURE 86229010 09163 BEARING, BRUSH 86216040 02506 BRUSH, CHEVRON, 10 IN 86223350 64125 PULLEY, MOTOR 86223300 64115 PULLEY, BRUSH 86215260 11051 BELT, HTD 5MM 69T 9 WIDE 86247110 53146 MOTOR, 115V BRUSH DRIVE... -
Page 54: Serial Numbers
Serial Numbers REF. NO MODEL: SERIAL # MPRO, MPROEU, MPROGB, MPROAU:1008039000126 MPRO, MPROEU, MPROGB, MPROAU:1008039000001 86037780 MINI ETRACTOR...
