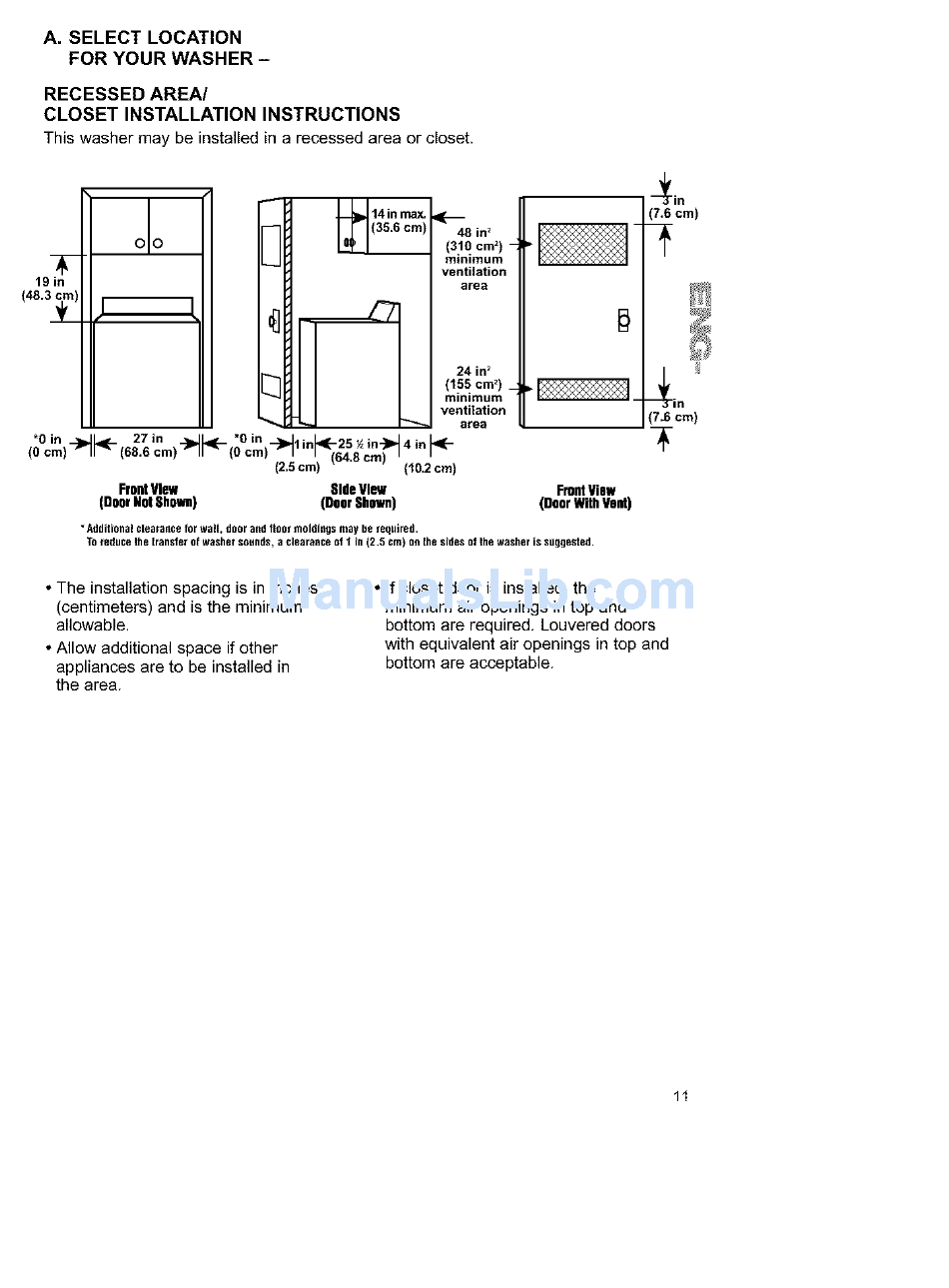

A. SELECT LOCATION
FOR YOUR WASHER -
RECESSED AREA/
CLOSET INSTALLATION INSTRUCTIONS
This washer may be installed in a recessed area or closet.
19 in
(48.3 _m',
oo
*0in ___ 27in __ *0in __ . _l_.t_ -_ " _l_-
lm 25_En 4In
(O cm) (68.6 cm) (O cm) 4 8 c
(2.5 crn) " " (10.2 cm)
Front V iew Side View
(Door N ot S hown) (Door S hown)
48 in 2
(310 cm 2)
minimum
ventilation
area
24 in 2
(t 55 cm 2) ,
minimum
ventilation
area
(7.6 cm)
_3_i n
(7J6 cm)
FrontView
(DoorWithVent)
* Additional clearance for wall, door and floor moldings may be required.
To reduce the lransfer of washe_ sounds, a clearance of I in (2.5 cm) on lhe sides ol the washer is suqgested.
• The installation spacing is in inches
(centimeters) and is the minimum
allowable.
• Allow additional space if other
appliances are to be installed in
the area.
• If closet door is installed, the
minimum air openings in top and
bottom are required, Louvered doors
with equivalent air openings in top and
bottom are acceptable.
