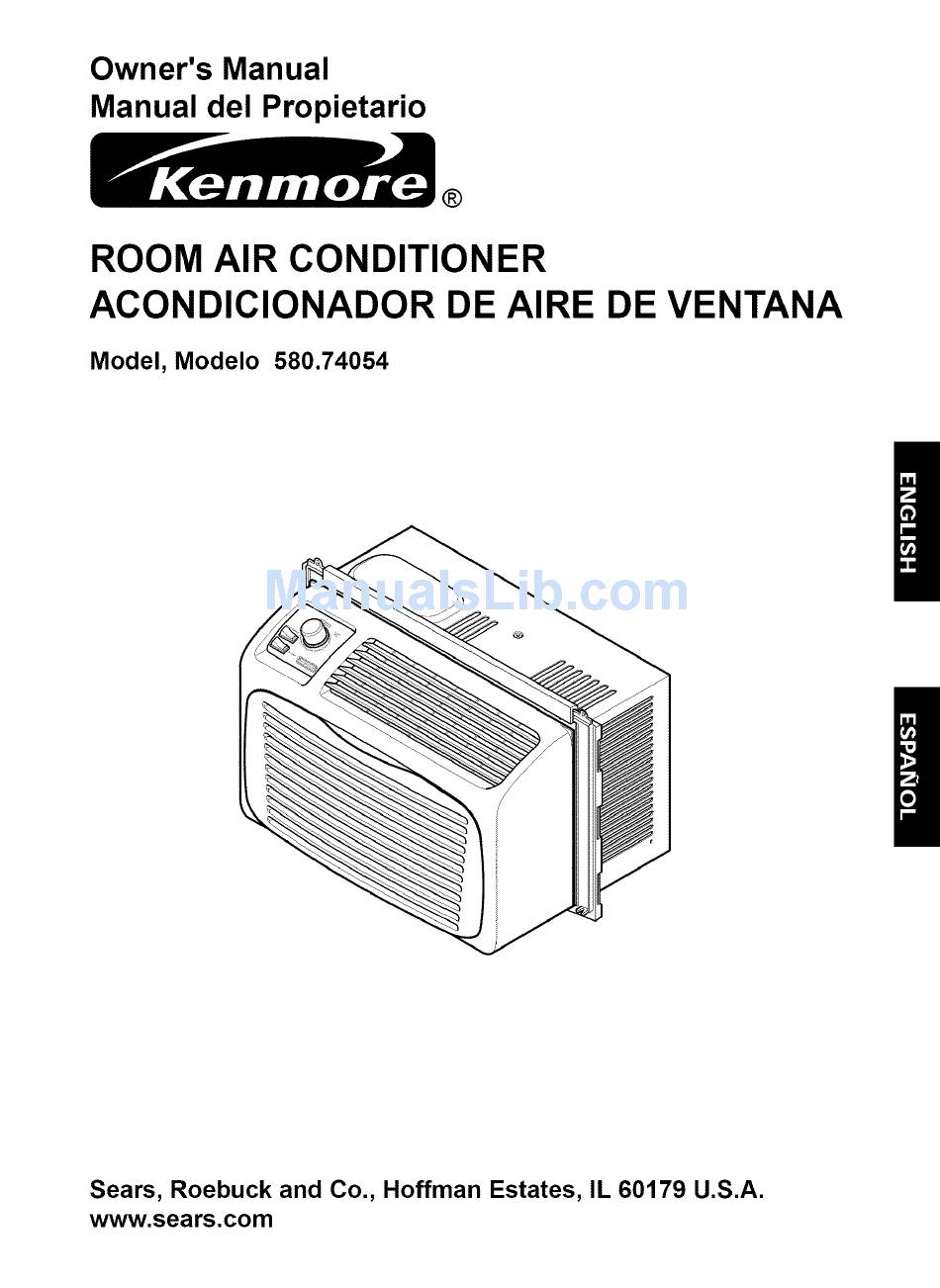

Owner's Manual Manual del Propietario ® ROOM AIR CONDITIONER ACONDICIONADOR DE AIRE DE VENTANA Model, Modelo 580.74054 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...
Hoffman Estates, IL 60179 U.S.A. normal room cooling according to instructions in this owner's manual, Sears will repair the sealed refrigeration system (consisting of refrigerant, connecting tubing, and compressor), free of charge, if defective in material or workmanship.
IMPORTANT SAFETY INSTRUCTIONS The safety instructions below will tell you how to use your room air conditioner to avoid harm to yourself damage to your ROOM AIR CONDITIONER. V!_W:_;t_II_[_ YOUR SAFETY Do not store or use gasoline or other flammable Avoid fire hazard or electric...
Page 4
OBSERVE A LL LOCAL CODES AND ORDINANCES. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD GROUND PRONG. ELECTRICAL GROUND IS REQUIRED ON THIS APPLIANCE. A 115-volt 60 Hz, AC only, 15A fused and Electrical Shock Hazard properly grounded electrical supply is required. Plug into a grounded 3 prong outlet.
INSTALLATION HARDWARE INSTALLATION REQUIREMENTS Your air conditioner will install into standard double hung windows with actual clear opening widths 21 to 35 inches (533mm to 889mm) (FIG. Lower sash must open sufficiently to allow a clear vertical opening of 12 inches (305mm).
INSTALLATION ATTACH L BRACKET Pick a location which will allow you to blow the cold • Use screws (ITEM A) to install the L brackets air into the area you want. Windows used for the outer sill as shown. See FIG. 5. installation must be strong enough...
INSTALL THE AIR CONDITIONER IN THE IF AIR CONDITIONER IS BLOCKED BY STORM WINDOW WINDOW FRAME • Carefully lift the air conditioner and slide it into the open • If storm window presents interference, fasten a 2" wide window. Make sure the bottom guide of the air wood strip to the inner window sill across the full width of conditioner drops into the notches of the L brackets.
HOW AND WHY Compressor Your room air conditioner provides the following The modern high efficiency functions to make hot weather living more compressor may have a high comfortable: pitched hum or pulsating noise that cycles on and off. • Cools and circulates room air.
FEATURES USING THE AIR CONDITIONER reduce the risk of fire, electric shock, or injury to persons, read the important SAFETY instructions section before operating this appliance. To begin operating the air conditioner after installation, follow these steps: 1. Plug in the air conditioner. (To prevent electrical hazards,...
AIR CONDITIONER FEATURES AIR DIRECTION ADJUSTMENT Using the Control Tabs, the air flow can be directed The controls featured in this manual to the left, right, straight ahead, or any combination representative of the many models available. Your of these directions.
AIR FILTER CLEANING HOW TO REMOVE THE FRONT GRILLE The Air Filter will become dirty as it removes dust from the inside air. It should be washed at least • Remove two screws securing the Front Grille. every 2 weeks. If the Air Filter remains full of dust,...
BEFORE CALLING FOR SERVICE Check the following list to be sure a service call is really necessary. A quick reference to this manual help you avoid an unneeded service call. THE AIR CONDITIONER WILL NOT OPERATE Check if... Then... Watt plug disconnected. Push plug firmly into watt outlet.
Page 14
DE UN ANO POR EL DISPOSICION CON SOLO PONERSE EN EQUlPO DE A!RE ACONDICIONADO CONTACTO CON EL CENTRO DE SERVlClO DE HABITACION SEARS AL 1-800-4-MY-HOME% Durante un aSo completo a partir de la fecha de compra, si este equipo de aire acondicionado...
Page 15
IMPORTANTES INSTRUCCIONES DE SEGURIDAD Las siguientes instrucciones de seguridad le indicaran c6mo usar su equipo de aire acondicionado habitaci6n para evitar daSos para usted mismo y para su EQUIPO DE AIRE ACONDICIONADO. _POR SU SEGURIDAD Evite los peligros de incendios y No almacene ni use gasolina u otros vapores...
Page 16
RESPETE TODOS LOS CODIGOS Y REGLAMENTOS. BAJO NINGUNA CIRCUNSTANCIA CORTE, QUITE O EVITE EL USO DE LA CONEXION A TIERRA DE ESTA CLAVIJA. ESTE APARATO NECESITA SER CONECTADO A TIERRA. Se requiere una alimentacion electrica CA, adecuadamente conectada a tierra con un Peligro de choqueelectrico fusible de 15A, de60 Hzyde 115V.
Page 17
INSTALACION PIEZAS DE MONTAJE REQUERIMIENTOS PARA INSTALACION Su equipo de aire acondicionado se instalaraen ventanas estandar de dobie panel con anchos de abertura tibre de 533 mm a 889mm (21 a 35 pulgadas). (Figura 1) Et marco inferiordebe abrirse 1osuficiente para permitir una abertura vertical libre de 305 mm (12 pulgadas).
Page 18
INSTALACION ACOPLE LA ESCUADRA • Instale las escuadras en la repisa exterior con el lado Escoja un lugar en el que el aparato de aire acondicionado soplara el corto de la escuadra apeyado contra la parte posterior aire frio al area que desea. Las ventanasque se utiiicenpara la de la repisa interior.
Page 19
SI EL ACONDICIONADOR DE AIRE ESTA BLOQUEADO INSTALE EL ACONDICIONADOR DE AIRE POR EL MARCO DE LA CONTRAVENTANA EN LA VENTANA • Si la contraventana interfiere, fije un liston de madera de 2" de • Levante cuidadosamente eI acondicionador de aire y ancho al alfeizar interior de la ventana, que atraviese la deslicelo en ta ventana abierta.
Page 20
COMO Y POR QUI -Compresor Su equipo de aire acondicionado de habitaci6n El moderno compresor de gran brinda las siguientes funciones para hacer que la eficiencia puede producir un ruido vida en climas calidos sea mas confortable: agudo de murmullo o un ruido de •...
Page 21
CARACTERJSTICAS USO DEL EQUlPO DE AIRE ACONDIClONADO _Para reducir el riesgo de incendio, descargas electrica o lesiones personales, lea las IMPORTANTES INSTRUCCIONES SEGURIDAD antes de operar este aparato. Para comenzar a utilizar el equipo de aire acondicionado, siga estos pasos: 1.
Page 22
CARACTERiSTICAS DEL EQUIPO AJUSTE PARA LA DIRECClON DEL AIRE DE AIRE ACONDICIONADO Usando las lengQetas de control, el flujo de aire puede dirigirse hacia la izquierda, la derecha, recto, Los controles que se explican en este manual o en cualquier combinacion de estas direcciones.
Page 23
LIMPIEZA DEL FILTRO DEL COMO QUlTAR LA PARRILLA AIRE FRONTAL El filtro del aire se ir& ensuciando a medida que va • Quite los dos tornillos que aseguran la parrilla atrapando el polvo proveniente del aire interior. frontal. preciso lavar el filtro del aire al menos cada dos •...
Page 24
ANTES DE LLAMAR PARA SERVICIO Cheque la siguiente lista para asegurarse si en realidad es necesario Ilamar para servicio. Una referencia rapida a este manual puede evitar una Ilamada para servicio innecesaria. EL EQUIPO DE AIRE ACONDICIONADO NO FUNClONA. El enchufenoesta conectado en latomade corrJente depared. Conecte el enchufe firmemente enlatomade corriente d e pared.
Sears has over 12,000 professional repair Sears cuenta con mas de 12.000 tecnicos profesionales specialists, who have access to over 4.5 million especialistas en reparaciones,...
