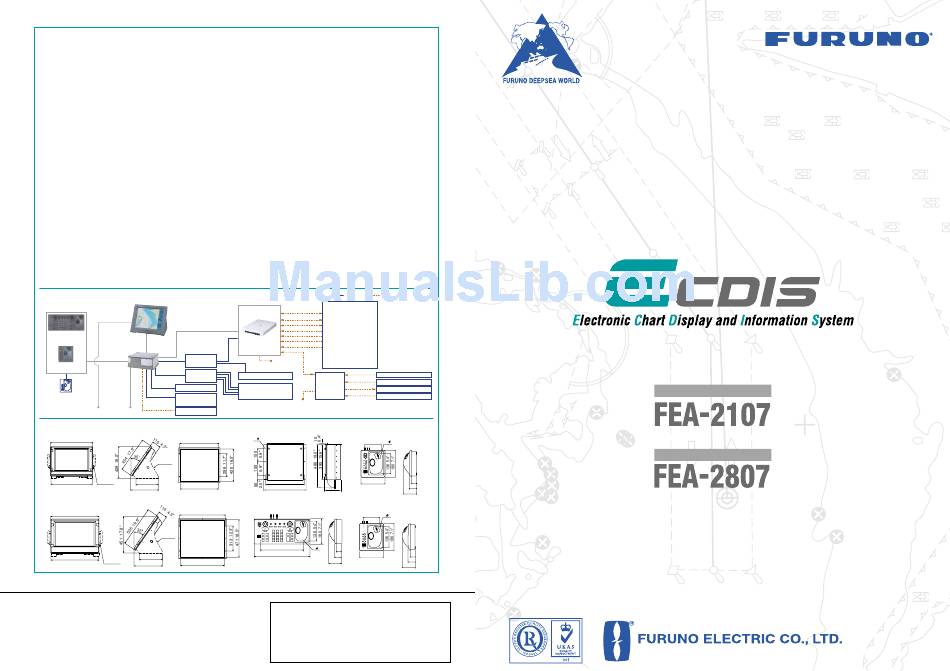

Furuno FEA-2807 Specifications

SPECIFICATIONS
Standards IMO Resolution A.817(19), IEC 61174 ed2
Display Unit FEA-2107: MU-201CE, 20.1" color LCD, SXGA (1280 x 1024 pixels)
FEA-2807: MU-231CE, 23.1" color LCD, UXGA (1600 x 1200 pixels)
Operating System Windows XP
Useable Charts IHO/S-57 v.3 vector chart, ARCS raster chart, C-MAP CM93 ed3*
*available in the near future
Presentation Modes True/Relative Motion Noth-up, True/Relative Motion Course-up
Relative Motion Head-up, Relative Motion Route-up
Display of data
Own ship : Position, SOG, COG, Heading
Route : Planned route, Monitoring route
ARPA targets : Range, Bearing, Speed, Course, CPA and TCPA
Others : EBL, VRM, Parallel index line, Cursor position, Navigation
and pilot data notebook
Route/Waypoint Route: more than 100 routes
Waypoints: 200 waypoints /route
Voyage Calculation The following data can be calculated
Range/Bearing to destination, TTG, ETA, Fuel consumption
Route Navigation Monitoring Off track, Waypoint, Arrival, Grounding, Depth
Alarms Off track, Channel limit, Waypoint approach, Depth
Other Functions Night/day presentation colors, ARPA target display, Radar overlay,
User chart function, Position optimization, MOB, Log book,
Pilot data function, Track control system (TCS)*
* Please contact the local dealers in your area for details.
Interface
Input/output
AIS : IEC 61162-2 (ABM, BBM)
Radar signal : Ethernet 100 Base-TX or RAW Video
Input
Gyrocompass : IEC 61162-1 (HDT) or Synchro
SDME (Speed log) : IEC 61162-1 (VBW) or Pulse type
EPFS : IEC 61162-1 (GLL, GGA, VTG, ZDA, DTM)
Echo Sounder : IEC 61162-1 (DBT, DPT)
Anemometer : IEC 61162-1 (MWV)
Water temp Indicator : IEC 61162-1 (MTW)
Current Indicator : IEC 61162-1 (VDR)
Output
Alarms : Relay output
Printer : Parallel
INTERCONNECTION DIAGRAM
Control Unit Display Unit
MU-201CE/
231CE
Ethernet 2.5 m
RCU-018
or
5/10 m
Processor Unit Ethernet
EC-1000C 10/20/30
HUB
HUB-100
10/20/30 m 10/20/30 m
RCU-015
HUB
HUB-100
1.5 m
1.5 m
5 m
Conning Monitor
Printer
Remote Control Unit
PP-510
RCU-016
100-230 VAC
Digitizer
Display Unit
MU-201CE 18.3 kg 40.4 lb
534 21.0"
506 19.9"
Bracket
(option)
526 20.7" Hand Grip 287 11.3"
(option)
490 19.3"
352 13.9"
MU-231CE 23.5 kg 51.8 lb
570 22.4"
598 23.5"
Bracket
(option)
287 11.3"
590 23.2"
Hand Grip
554 21.8"
352 13.9"
(option)
FURUNO U.S.A., INC. FURUNO ESPAÑA S.A. FURUNO SVERIGE AB
Camas, Washington, U.S.A. Madrid, Spain Västra Frölunda, Sweden
Phone: +1 360-834-9300 Phone: +34 91-725-90-88 Phone: +46 31-7098940
Fax: +1 360-834-9400 Fax: +34 91-725-98-97 Fax: +46 31-497093
FURUNO (UK) LIMITED FURUNO DANMARK AS FURUNO FINLAND OY
Denmead, Hampshire, U.K. Hvidovre, Denmark Espoo, Finland
Phone: +44 2392-230303 Phone: +45 36 77 45 00 Phone: +358 9 4355 670
Fax: +44 2392-230101 Fax: +45 36 77 45 01 Fax: +358 9 4355 6710
FURUNO FRANCE S.A. FURUNO NORGE A/S FURUNO POLSKA Sp. Z o.o.
Bordeaux-Mérignac, France Ålesund, Norway Gdynia, Poland
Phone: +33 5 56 13 48 00 Phone: +47 70 102950 Phone: +48
Fax: +33 5 56 13 48 01 Fax: +47 70 127021 Fax: +48 58 669 02 21
Power Supply
Display Unit: 100 - 230 VAC, 1 ø, 50/60 Hz
Processor Unit: 100 - 230 VAC, 1 ø, 50/60 Hz
LAN Adapter: 24 VDC
B Adapter: 24 VDC
Environment (IEC 60945 test method)
Temperature
All Units: -15˚C to +55˚C
Equipment List
Standard
1. Display Unit FEA-2107: MU201CE, FEA-2807: MU-231CE 1 unit
2. Control Head RCU-018 or
Trackball Control Unit RCU-015 (Specify when ordering)
3. Processor Unit EC-1000C
4. LAN Adapter EC-1010
5. Power Supply Cable for Processor Unit, 1.5 m
6. Power Supply Cable for Display Unit, 1.5 m
7. DVI Cable between Display Unit and Processor Unit, 5 m
8. Cable between Control Unit and Processor Unit, 10 m
9. LAN Cable, 2 m
10. Standard Spare Parts and Installation Materials
Option
1. LAN Adapter EC-1010
2. B Adapter EC-1020 for equipment with analog interface
3. Remote Control Unit RCU-016
4. Cable between Control Unit and
Remote Control Unit 03S9610, 1.5/10/20/30 m
5. Hub HUB-100
6. Radar Overlay Kit for FAR-21x5 series and FAR-28x5 series
7. Video Card for Conning Display Unit
8. Cable between Control Unit and Processor Unit, 20/30 m
9. DVI Cable between Display Unit and Processor Unit, 10 m
10. Armored LAN Cable OP03-186-10/20/30
11. Printer PP-510
12. USB-Parallel Printer Cable for PP-510
13. Hand Grip
14. Bracket
15. Connection Stand
16. Pedestal slim/standard Type
Option Shipyard Supply
AIS
LAN Adapter
Serial
Track Pilot *
EC-1010
AMWSS
250V-TTYCS
Route Backup
GPS Navigator
Anemometer
Echo Sounder
With 8 ports
Log/Dual Axis Log
*Up to two LAN
m Gyrocompass
adapters connectable
Engine Control
Water Temp Indicator
24 VDC
Alarms
250V-TTYCS-1T
x2
Gyrocompass (Synchro)
ECDIS for 2nd station
B Adapter
Log (200 p/nm)
250V-
x8
Radar/ARPA* TTYCS-1 EC-1020
Alarms
FAR-21x7 series
x8
FAR-28x7 series With 18 ports
Analog Sensors
250V-TTYCS/
*Up to four systems can
24 VDC MPYC
be connected
*Please contact the local dealers in your area for details.
Processor Unit Trackball Control Unit
EC-1000C 15 kg 33.1 lb RCU-015 2.4 kg 5.3 lb
6- 8
110 4.3" 4- 4
160 6.3"
440 17.3"
470 18.5"
179 7.1"
Control Head Remote Control Unit
RCU-018 3.7 kg 8.2 lb RCU-016 2.4 kg 5.3 lb
110 4.3" 4- 4
308 12.1" 4- 4
39 1.5"
398 15.7"
54 2.1" 160 6.3"
92 3.6"
TRADE MARK REGISTERED MARCA REGISTRADA
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
05015U Printed in Japan
58 669 02 20
1 unit
1 unit
1 unit
1 pc
1 pc
1 pc
1 pc
1 pc
1 set
35 1.4"
50 2.0"
89 3.5"
35 1.4"
50 2.0"
89 3.5"
20.1" color LCD
23.1" color LCD
The future today with FURUNO's electronics technology.
9-52 Ashihara-cho, Nishinomiya City, Japan Phone: +81 (0)798 65-2111
Fax: +81 (0)798 65-4200, 66-4622 URL: www.furuno.co.jp
Catalogue No. L-161b
