Clarion PN-2548N Instruction Manual

( PN-2530H )
( PN-2532D )
( PN-2548N )

SPECIFICATIONS

Tuner section
Tuning system: PLL synthesizer
Receive frequency: AM
FM
Intermediate frequency:
AM
FM
Quieting sensitivity: AM
FM
Separation: FM
S/N ratio: AM
FM
Auto stop sensitivity(DX):
AM
FM
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
530kHz to 1710kHz
87.9MHz to 107.9MHz
450kHz
10.7MHz
Less than 38dBu
Less than 15dBu
22+5/-7dB(1kHz)
More than 45dB
More than 50dB
42+6/-6dBu
(600kHz)
39+6/-6dBu
(1000kHz,1400kHz)
32+6/-6dBu
- 1 -

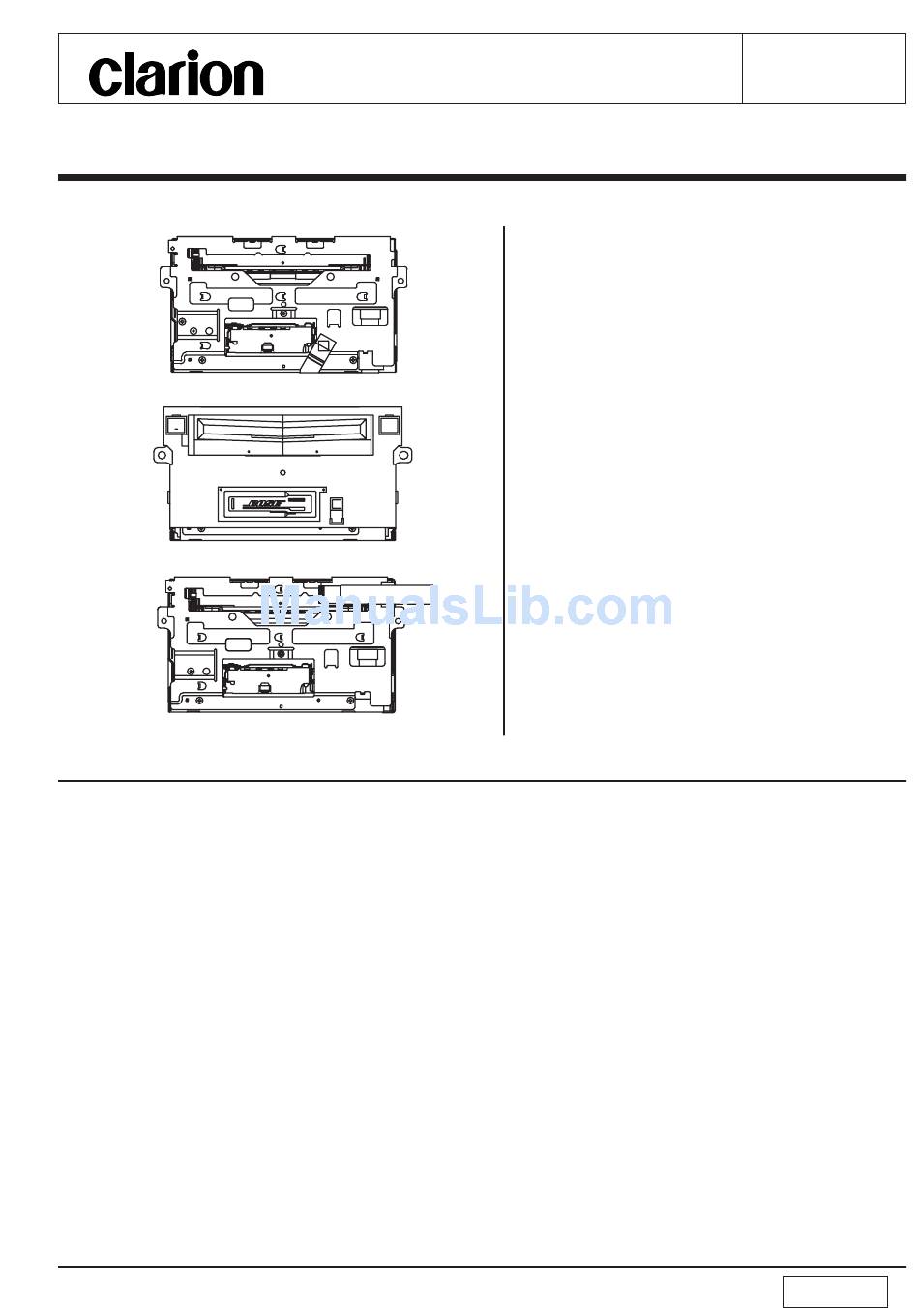

Service Manual
NISSAN Automobile Genuine
AM/FM Radio,6 CD changer,
Cassette Stereo
PN-2530H
Model
(Genuine No.28188 CA000)
PN-2532D
Model
(Genuine No.28188 7Y300)
PN-2548N
Model
(Genuine No.28188 CG000)
Cassette tape player section
Reproduction syatem: 4track,2channel,stereo
FF/REW time:
Wow & flutter:
Separation:
Crosstalk:
S/N ratio:
FF/REW time:
CD changer section
Separation:
S/N ratio:
Distortion:
Published by Service Dept.
298-6051-00 Feb.2003 P
Printed in Japan
auto reverse system
Less than 110sec.(C-60)
Less than 0.15%(W.R.M.S)
More than 35dB
More than 45dB
normal(120us)
More than 55dB(DOLBY B NR on)
More than 47dB(DOLBY B NR off)
chrome(70us)
More than 57dB(DOLBY B NR on)
More than 49dB(DOLBY B NR off)
110sec.(C-60)
More than 52dB(20kHz LPF)
More than 80dB
Less than 0.2%(20kHz LPF)
PN-2530H /
2532D / 2548N
