Replacing A Memory Module - Dell Vostro 1510 Service Manual

1 securing clips (2)

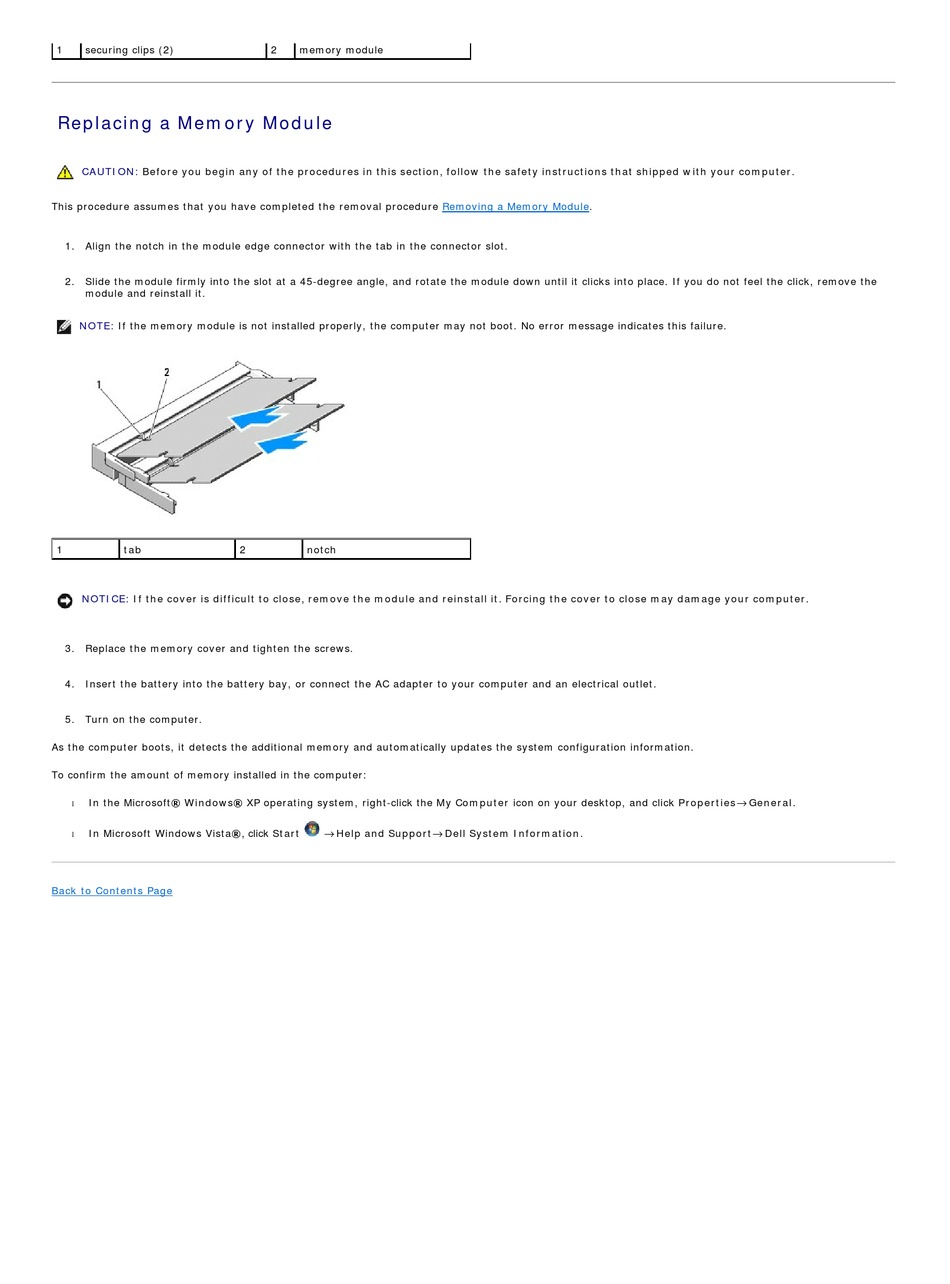

Replacing a Memory Module
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
This procedure assumes that you have completed the removal procedure
1. Align the notch in the module edge connector with the tab in the connector slot.
2. Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the
module and reinstall it.
NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.
1 tab
NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.
3. Replace the memory cover and tighten the screws.
4. Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.
5. Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system configuration information.
To confirm the amount of memory installed in the computer:
In the Microsoft® Windows® XP operating system, right-click the My Computer icon on your desktop, and click Properties® General.
l
In Microsoft Windows Vista®, click Start
l
Back to Contents Page
2 memory module
2 notch
® Help and Support® Dell System Information.
Removing a Memory Module.
