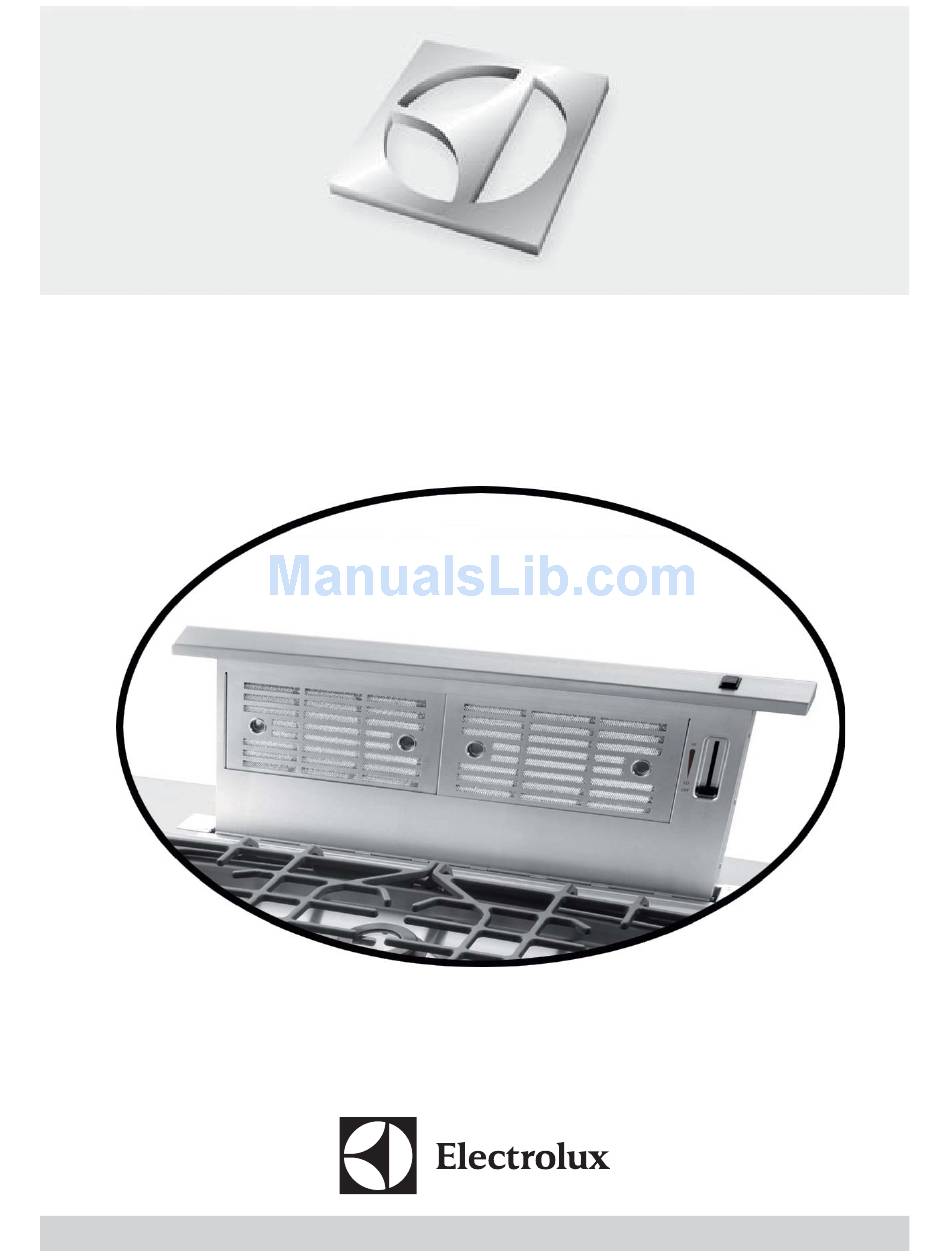

Page 1: Installation Instructions
Installation Instructions Remote Blower Assembly for Telescoping Downdraft Ventilation System (1600cfm) 316902918 (April 2012) -
Page 2: Table Of Contents
Finding Information Table of contents Please read & save this guide Finding Information ..........2 Thank you for choosing Electrolux, the new premium brand in home appliances. These Important Safety Instructions ........3 Installation Instructions are part of our commitment Shipping Pack............5 to customer satisfaction and product quality Dimensions .............6... -
Page 3: Important Safety Instructions
Important Safety Instructions What you need to know about safety instructions Warning and Important Instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating an appliance. - Page 4 EVACUATE AND CALL THE FIRE • This blower assembly is approved for use with DEPARTMENT. the following Electrolux Telescoping Downdraft • NEVER PICK UP A FLAMING PAN - You may Systems: EI30DD10KSA, EI36DD10KSA, be burned.
-
Page 5: Shipping Pack
Shipping Pack Remote Blower Mounting Hardware Instruction Manual... -
Page 6: Dimensions
(35.6 cm) 4-3/4” (12.1 cm) Discharge Adjustable Discharge List of Included Parts for model IMPORTANT EI16DDPRKS: Retain all packing and materials until the • (1) Blower telescoping downdraft and all components • (4) 1/4” Lag Bolts have been installed. Hardware Needed... -
Page 7: Planning
Planning Installation Planning Ductwork A qualifi ed technician must complete the installation Use galvanized or aluminum duct in 8” / 10” round or of this appliance. 3¼”x14” / 4”x14” / 4¾”x14” size, or a combination of both. PVC duct should be used if installing under a Carefully check the location where the remote blower poured concrete slab. -
Page 8: Installation Of Blower Assembly
Installation of Blower Assembly Remove the Blower Cover Remove the Blower Cover from the Main Blower Housing by removing the (16) silver hex head screws DO NOT attach the Main Blower Housing directly from the Blower Cover. Retain the screws. to wall board, ceiling panels, or other non-structural Remove the Wire box from the Main Blower Housing materials. -
Page 9: Mount Main Housing To Structure
Mount Main Housing to Structure When mounting the Main Blower Housing, the (4) When mounting the main blower housing, be sure lag bolts must be attached to joists or studs, or to fully engage the inlet collar of the blower with the other structural members. -
Page 10: Installation On Floor Joists
Installation on Floor Joists Inlet Metal Duct Discharge Romex or Duct Metal Conduit Floor Joists Main Blower Housing Lag Bolts must be 1/4” Lag Bolts (4) attached to joists, studs or structural members. Conduit / Romex Flooring Inlet Discharge Floor Joist 1/4”... -
Page 11: Installation On Ceiling Joists
Installation on Ceiling Joists 1/4” Lag Bolts (4) Ceiling Joist Discharge Inlet Conduit / Romex Ceiling... -
Page 12: Installation On Wall Studs
Installation on Wall Studs Conduit / Romex Inlet 1/4” Lag Bolts (4) Discharge Wall Wall Stud... -
Page 13: Installation On Exterior Wall
Installation on Exterior Wall The Outdoor Weather Kit WK-SP360 is required for outdoor installation. Outdoor Weather Kit Exterior Wall WK-SP360 (not included) Sealant Conduit / Romex Blower Cover Zinc Plated Inlet Phillips Screws 1/4” Lag Discharge Bolts (4) 4 3/4" x 14" Wall Stud Note: Minimum 18”... -
Page 14: Electrical Connections
Electrical Connections Remote Blower Electrical Connection Loosen the 3 terminal block screws. Insert the leads Before making any electrical connections, verify from the Romex cable into the terminal block and that the blower wheel spins freely. tighten the screws securing the leads in the terminal block. -
Page 15: Verifying Operation And Replacing Cover
Verifying Operation and Replacing Cover Verifying Proper Operation After making the required electrical connections, confi rm proper operation of the blower. 1. Temporarily re-install the remote blower cover, using 2 screws per side. 2. Turn on the power supply at the circuit breaker. 3. -
Page 16: Warranty
Warranty Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.
