Summary of Contents for Sony VPL-FX37

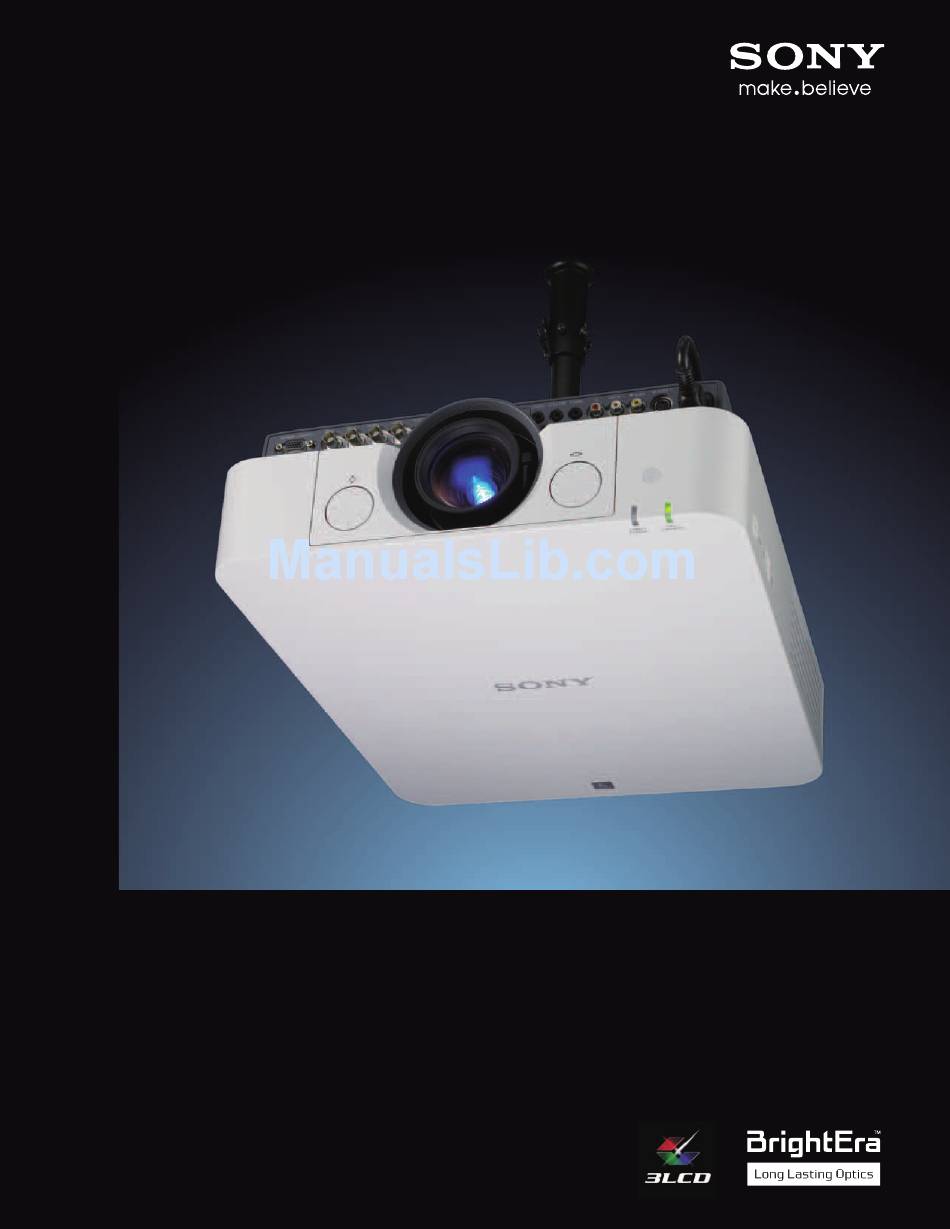

- Page 1 VPL-F Series Solid Installation Projector VPL-FX37 VPL-FX35 VPL-FX30...
- Page 2 (6,000, 5,000, and 4,200 lumens, correction, achieving smoother gradations and richer gray scale. respectively). * BrightEra with Long Lasting Optics is the Sony brand name for a new I/P Conversion and Film Mode generation of optical system, which uses a more advanced version of The video signal processing technology that Sony has Sony’s original BrightEra technology.
- Page 3 For applications where more than a standard lens is recommended lamp replacement time of approximately 5,000 needed, the VPL-FX37, VPL-FX35 and VPL-FX30 are compatible hours.* with the optional VPLL-Z1024 and VPLL-Z1032 accessory lenses VPL-FX30 designed for Sony’s current VPL-FX40 Series. 5000 hours VPL-FX40 3000 hours Conventional model...
-
Page 4: Other Features
Hassle-free Maintenance Presentation Functions Lamp and Filter Synchronized Maintenance Freeze Function When the air filter must be cleaned, a timely message is Freezes the projected image displayed on screen. The lamp and the filter are accessible from the same side, so their maintenance can be performed Digital Zoom Function without uninstalling the projector. -
Page 5: Optional Accessories
OPTIONAL ACCESSORIES LMP-F272 LMP-F230 LMP-F331 Replacement Lamp for VPL-FX30 Replacement Lamp for VPL-FX35 Replacement Lamp for VPL-FX37 PAM-600 VPLL-Z1024 VPLL-Z1032 Projector Suspension Support Projector Lens Projector Lens PK-F30LA1 Projector Lens Adapter OPTIONAL LENSES VPLL-Z1024 VPLL-Z1032 Projection lens Throw ratio 2.38 to 3.26 3.24 to 4.95 Zoom / Focus Manual / Manual... -
Page 6: Installation Diagram
PRESET SIGNAL CHART Computer Signal Digital TV Signal Input connector Input connector fH [kHz]/ Resolution Signal fV [Hz] fV [Hz] RGB* DVI-D* RGB/YP DVI-D* 31.5/70 480i 640 x 350 37.9/85 576i 31.5/70 480p 640 x 400 37.9/85 576p 31.5/60 1080i 35.0/67 1080i 640 x 480... -
Page 7: Specifications
SPECIFICATIONS VPL-FX37 VPL-FX35 VPL-FX30 Display system 3 LCD system Display device Size 0.79” (20.1 mm) x 3, Aspect ratio: 4:3 Number of pixels 2,359,296 (1024 x 768 x 3) pixels Projection lens Zoom Manual (Approx. 1.6 x) Focus Manual Lens shift Manual, Vertical: Upward 51% to Downward 0%, Horizontal: Right 33% to Left 33% Light source High-pressure mercury lamp 330 W type... - Page 8 Features and specifications are subject to change without notice. Sony, BrightEra with Long Lasting Optics, BrightEra, Remote Commander; and Sony make.believe and BrightEra with Long Lasting Optics logos are trademarks of Sony. Sony Electronics Inc. Trademark PJLink is a trademark applied for trademark rights in Japan, 1 Sony Drive the United States of America and other countries and areas.
