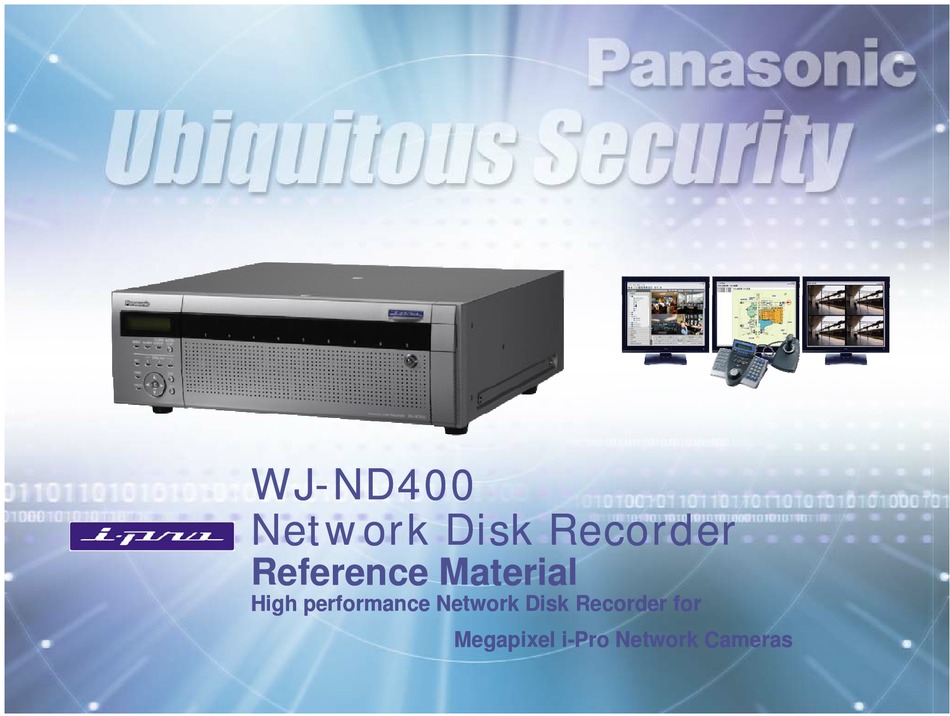

- Page 1 WJ-ND400 WJ-ND400 Network Disk Recorder Network Disk Recorder Reference Material Reference Material High performance Network Disk Recorder for High performance Network Disk Recorder for Megapixel i-Pro Network Cameras Megapixel i-Pro Network Cameras...
- Page 2 Table of Contents • Key Features • Front Panel • Rear Panel • Network Configuration • Displaying the Operation Window • Main Camera Select Page • Monitoring Live Images M it i • Sequencing Live Images • Camera Control • Playback of Recorded Video •...
- Page 3 WJ-ND400 Key features New higher throughput allows the WJ-ND400 to record up to 64 cameras at 30 ips in M-PEG4 @ 2 Megabit setting. 30 i i M PEG4 @ 2 M The WJ-ND400 can record up to 64 channels of audio. 2 Gigabit Ethernet ports.
- Page 4 Structure – Front Panel ALARM BUZZER STOP SUSPEND BUTTON Access ALARM ERROR TIMER OPERATIO ESC BUTTON LINK/ACT BUTTON...
- Page 5 Structure – Rear Panel Alarm/Control 60mm FAN Terminal 80mm 2 Gigabit AC Inlet FANs Ethernet Ports 5 eSATA Ports 5 eSATA Ports Power SW for HDE400...
-
Page 6: Network Configuration
Network Configuration... - Page 7 Display the Operating Window • Launch the web browser, input the main unit's IP address, and press the [Enter] key. • The authentication screen opens. • Enter your user name and password to login. – Default User name: ADMIN – Password:12345 Password:12345 •...
- Page 8 Main Camera Select Page...
-
Page 9: Monitoring Live Images
Monitoring Live Images... -
Page 10: Sequence Display
Sequence Display... -
Page 11: Camera Control
Camera Control Ti ! Tip! • You can also click on the image display to re-center the camera location. -
Page 12: Playback Recorded Video
Playback Recorded Video Or…... -
Page 13: Playback Controls
Playback Controls... -
Page 14: Searching For Recorded Video
Searching for Recorded Video... -
Page 15: Smart Search
Smart Search • From the Control Page, click Search. • Next, select VMD (Video Motion Detection) Search (Cont.) - Page 16 Smart Search - 2 • Draw a rectangle on the video display. • Enter the Start and Stop time parameters. • Click OK. Cli k OK (Cont.)
- Page 17 Smart Search - 3 • View list of results in Rec Event display. • Number of records found is Number of records found is displayed in groups of 16. • Click on record Time & Date to Click on record Time & Date to playback.
-
Page 18: Downloading Recorded Video
Downloading Recorded Video • Search and/or Playback view as described on Pages 12, 14, or 15. • Review video Review video. • Press the START button to mark the beginning of the clip you wish to download. • Play the video or Fast Forward to the end of the clip end of the clip. - Page 19 Next, click on the Download button, located on the HDD tab. • •The Download window asks to include: Audio Alter Detect (Panasonic Watermarking to protect against tampering) • Click OK. •Internet Explorer will ask you to save the file(s). • If you need the viewer application, click on the Viewer Button If you need the viewer application click on the Viewer Button to download.
- Page 20 View Hard Drive Record Retention Period • Click Setup to access the setup menu setup menu. • Select the Maintenance menu. • Select the Disk Information tab. • You are shown your total capacity and disk d d k configuration. (Cont.)
- Page 21 View Hard Drive Record Retention Period - 2 • Under Recording Information, select the Display button.
